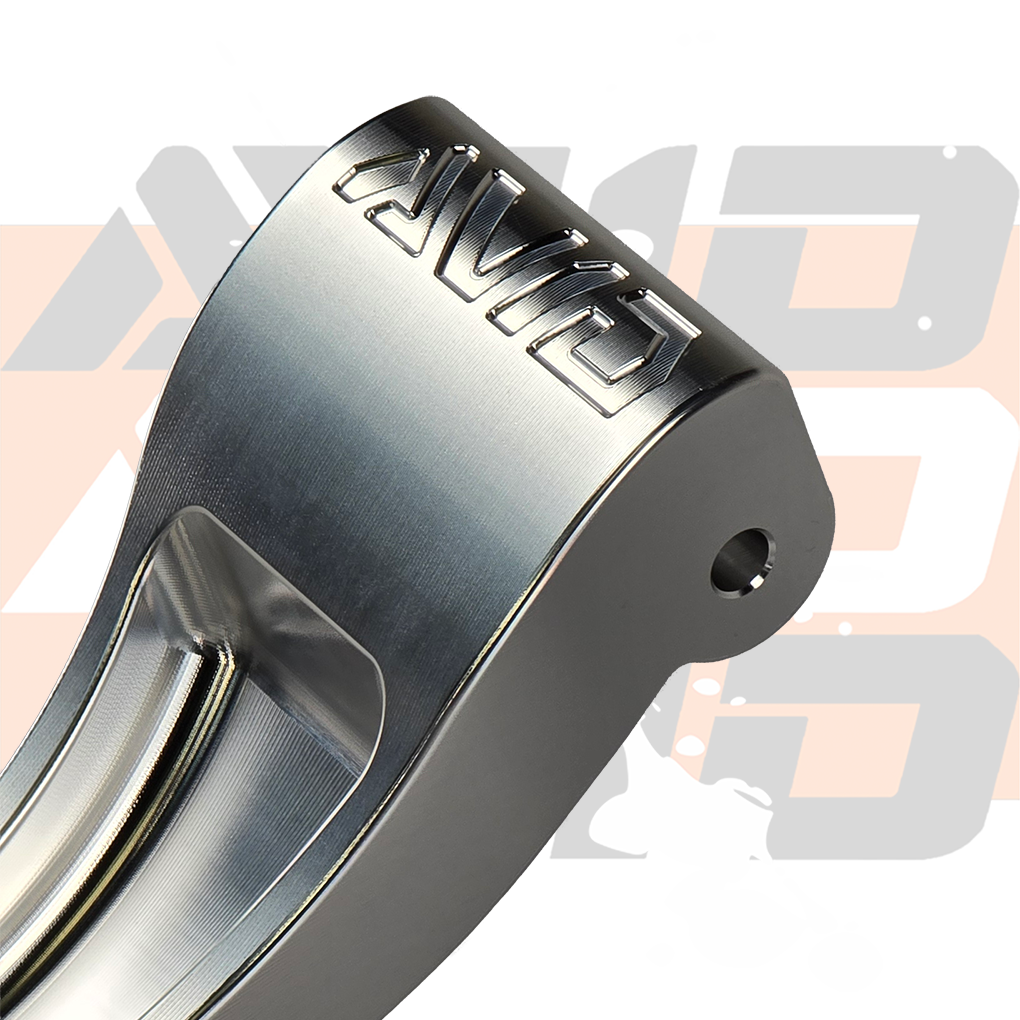

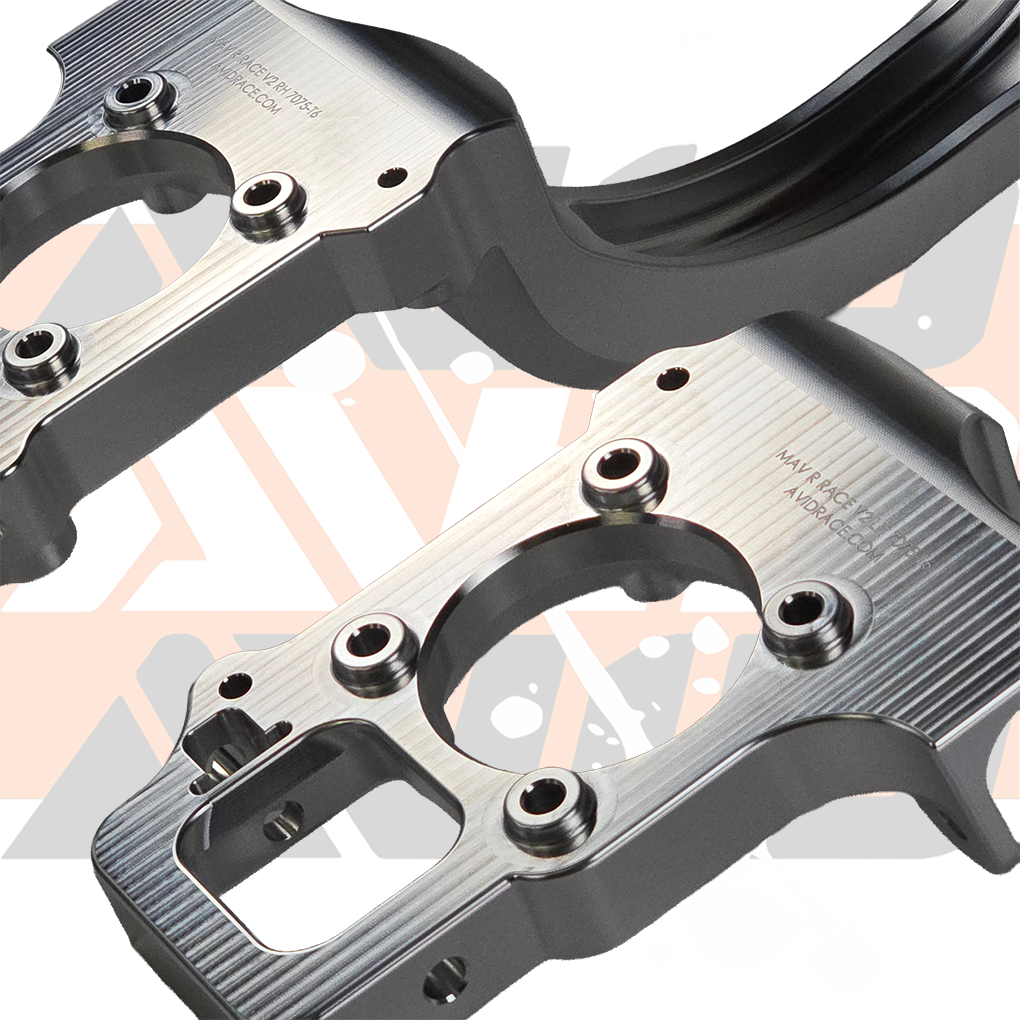

Can-Am Maverick R Baja Race 7075-T6 Billet Uprights / Knuckle

Can-Am Maverick R Baja Race 7075-T6 Billet Uprights / Knuckle

The AVID Racing Can-Am Maverick R Baja Race 7075-T6 Billet Uprights are the core of our Maverick R RACE front suspension system. CNC machined from 7075-T6 billet aluminum with vertical uniballs in true double shear, these uprights carry all of the corrected geometry: KPI, scrub radius, caster, and camber gain. The result is a Maverick R that feels precise and stable at high speed.

These billet uprights are designed to work with the complete AVID Maverick R Baja or RACE front kit and must be installed as part of the full system. Compared to our chromoly upright, this 7075-T6 billet version is approximately 20 percent lighter while also increasing stiffness and strength.

The lower pivot uses the same location as the factory upright, which means these uprights can be used with some third party lower control arms that run a vertical bearing or uniball at the lower mount. The upper control arm must either be an AVID arm or a custom arm built to match our geometry and uniball configuration.

What This Means on the Car

• Sharper steering and turn in: Correct KPI and scrub radius keep the tire planted and reduce steering effort at speed.
• More stability in the rough: Improved camber and caster control give the front end a planted, predictable feel through whoops, ruts, and landings.
• Lighter and stronger: 7075-T6 billet construction is about 20 percent lighter and significantly stronger than both chromoly and OEM cast uprights.
• Lower arm compatibility: Can be paired with third party lower arms that use a vertical bearing or uniball at the factory style lower pivot, with an AVID or custom upper arm.

Key Features

• CNC machined from high strength 7075-T6 billet aluminum
• Vertical 1 inch uniballs in true double shear
• Geometry tuned for corrected KPI, scrub radius, caster, and camber gain
• Designed to work with AVID Maverick R Baja and RACE front control arm and steering kits
• Shares the factory lower pivot location for compatibility with select third party lower arms

Included in Kit

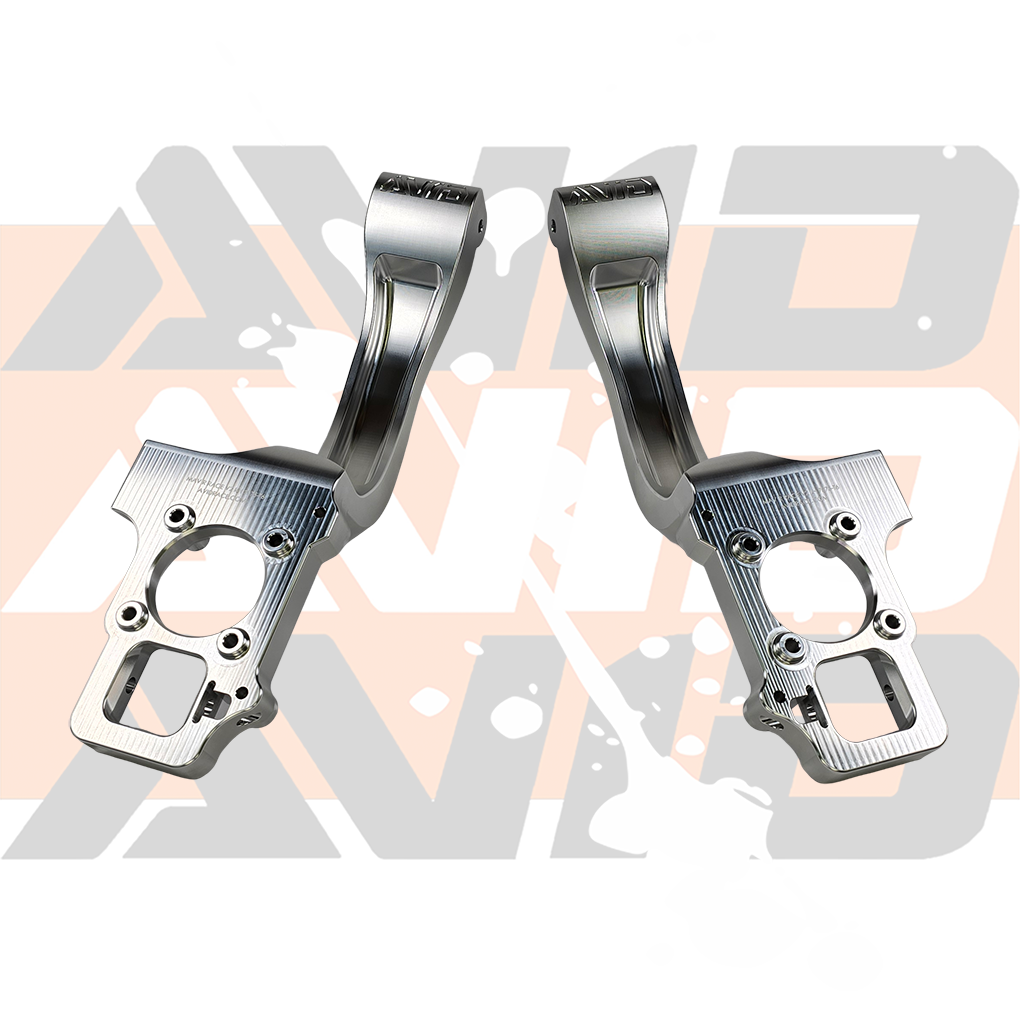

• Left and right 7075-T6 billet front uprights
• Matched misalignment spacers
• Hardware for upright assembly where applicable

Bottom line: The AVID Maverick R Baja Race 7075-T6 Billet Uprights deliver the full RACE front end geometry with maximum strength, reduced weight, and precise steering feel for serious Maverick R builds.
