Can-Am Maverick R Baja Race 4130 Chromoly Uprights / Knuckle

Can-Am Maverick R Baja Race Chromoly Uprights

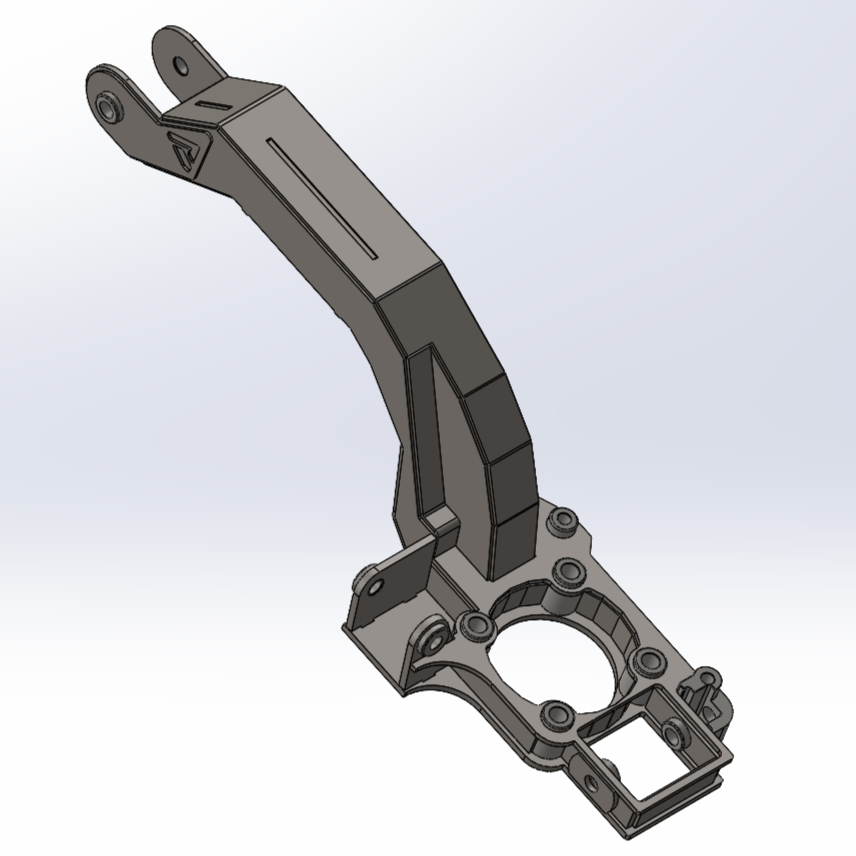

The AVID Racing Can-Am Maverick R Baja Race Chromoly Uprights deliver the same corrected front end geometry as our billet uprights in a high strength, cost conscious package. Built from precision cut and TIG welded 4130 chromoly plate with vertical uniballs in true double shear, these uprights carry the AVID RACE numbers for KPI, scrub radius, caster, and camber gain so the Maverick R feels precise and stable at high speed.

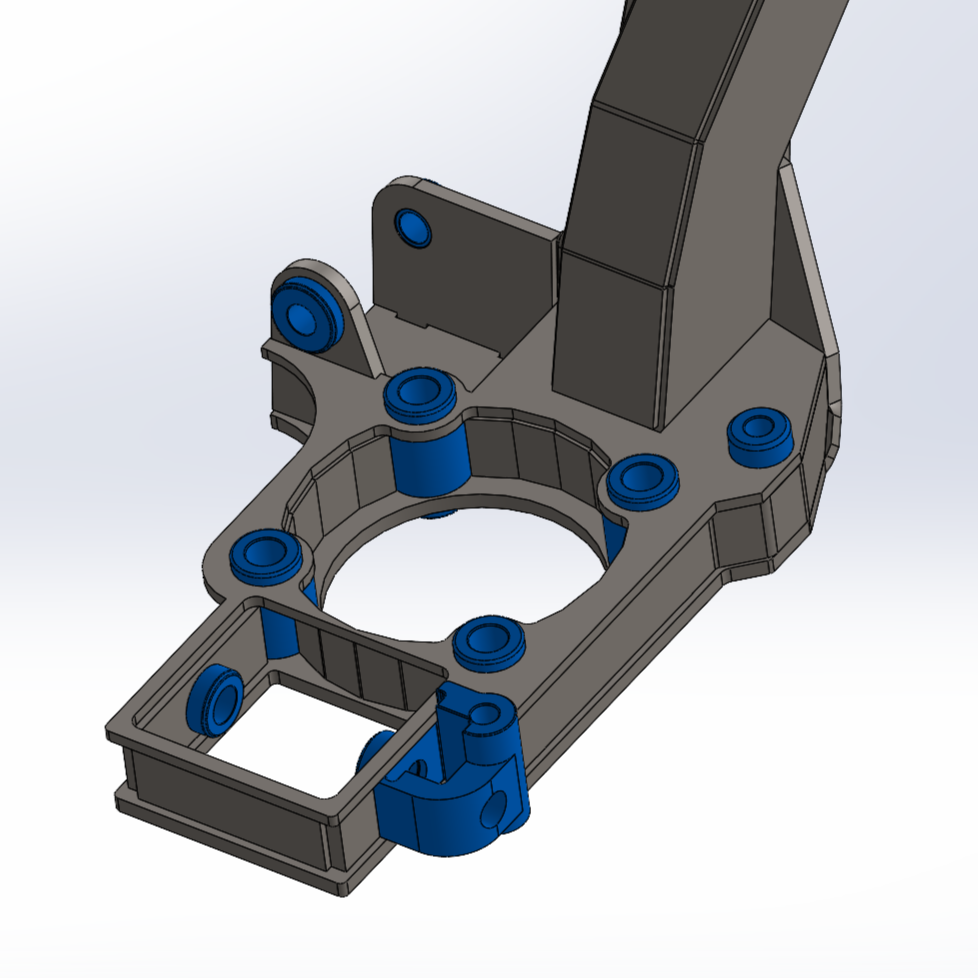

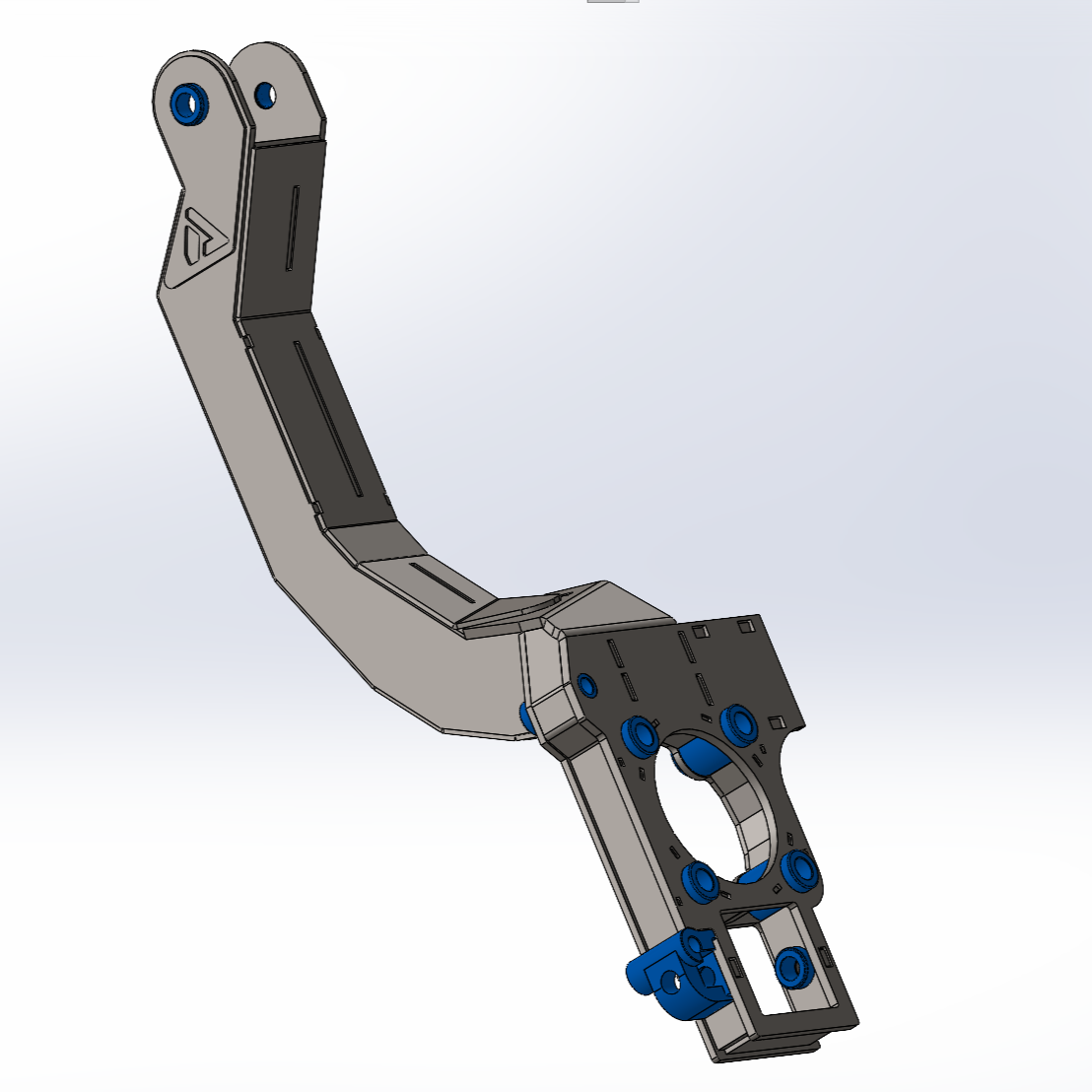

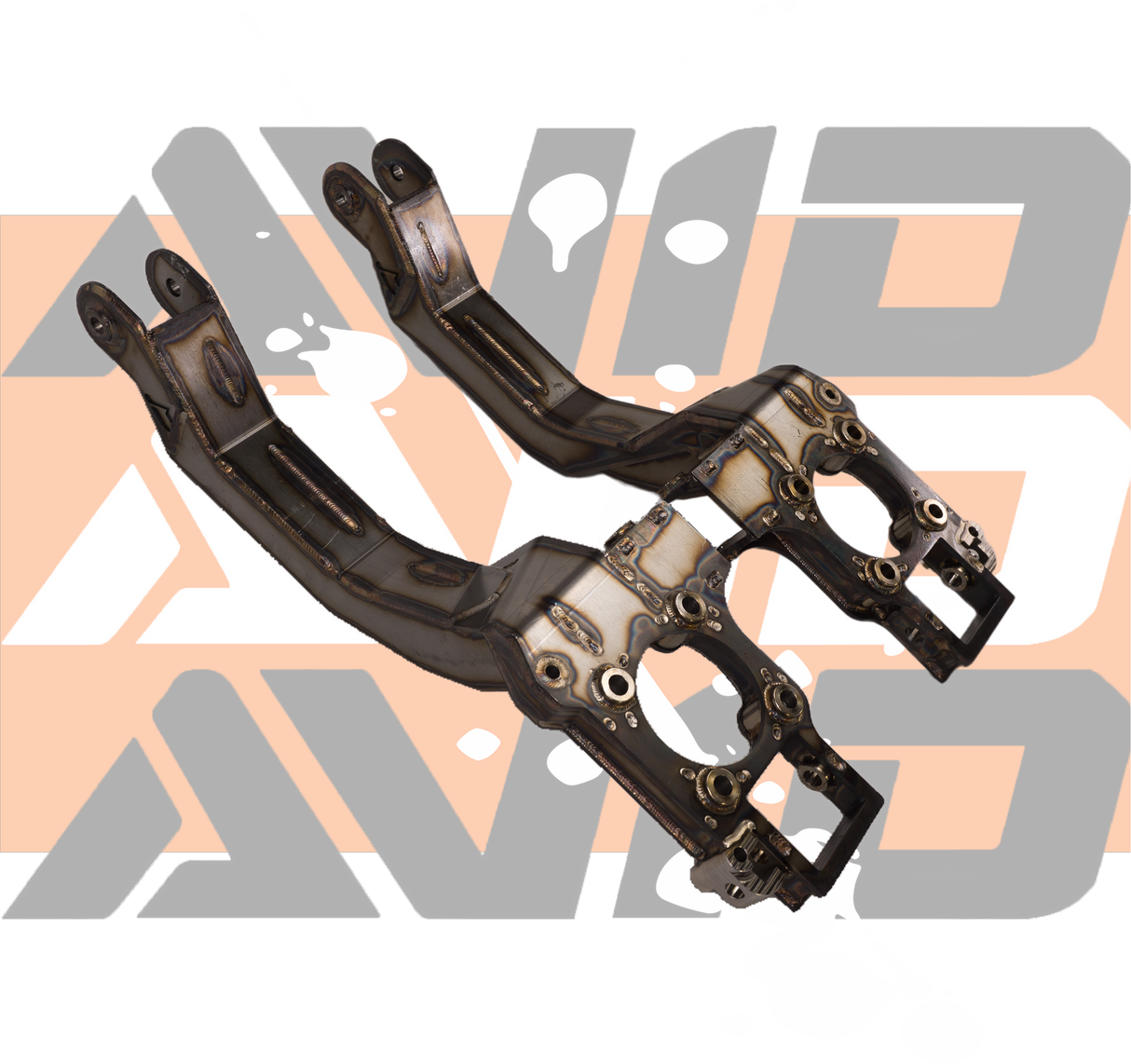

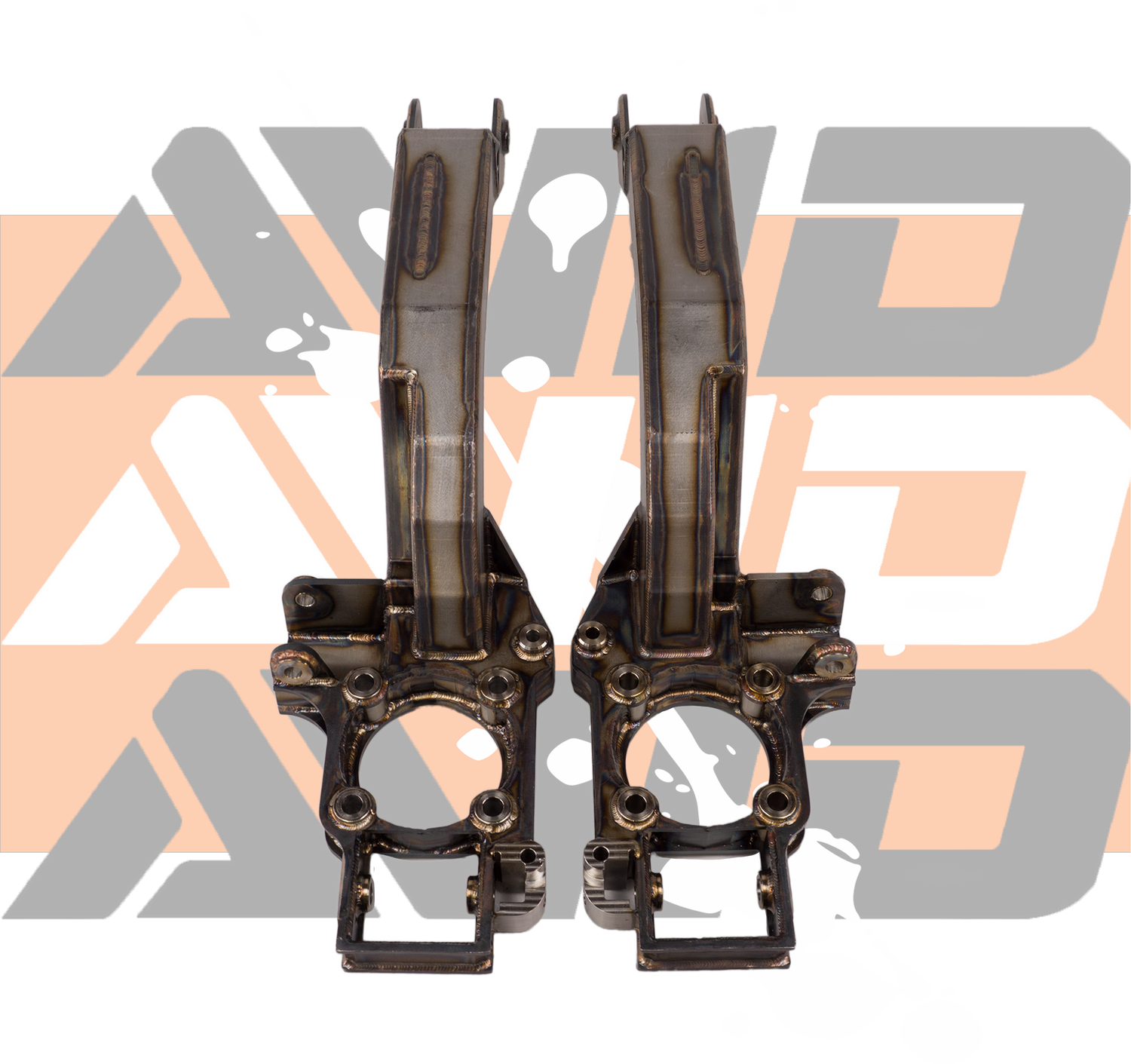

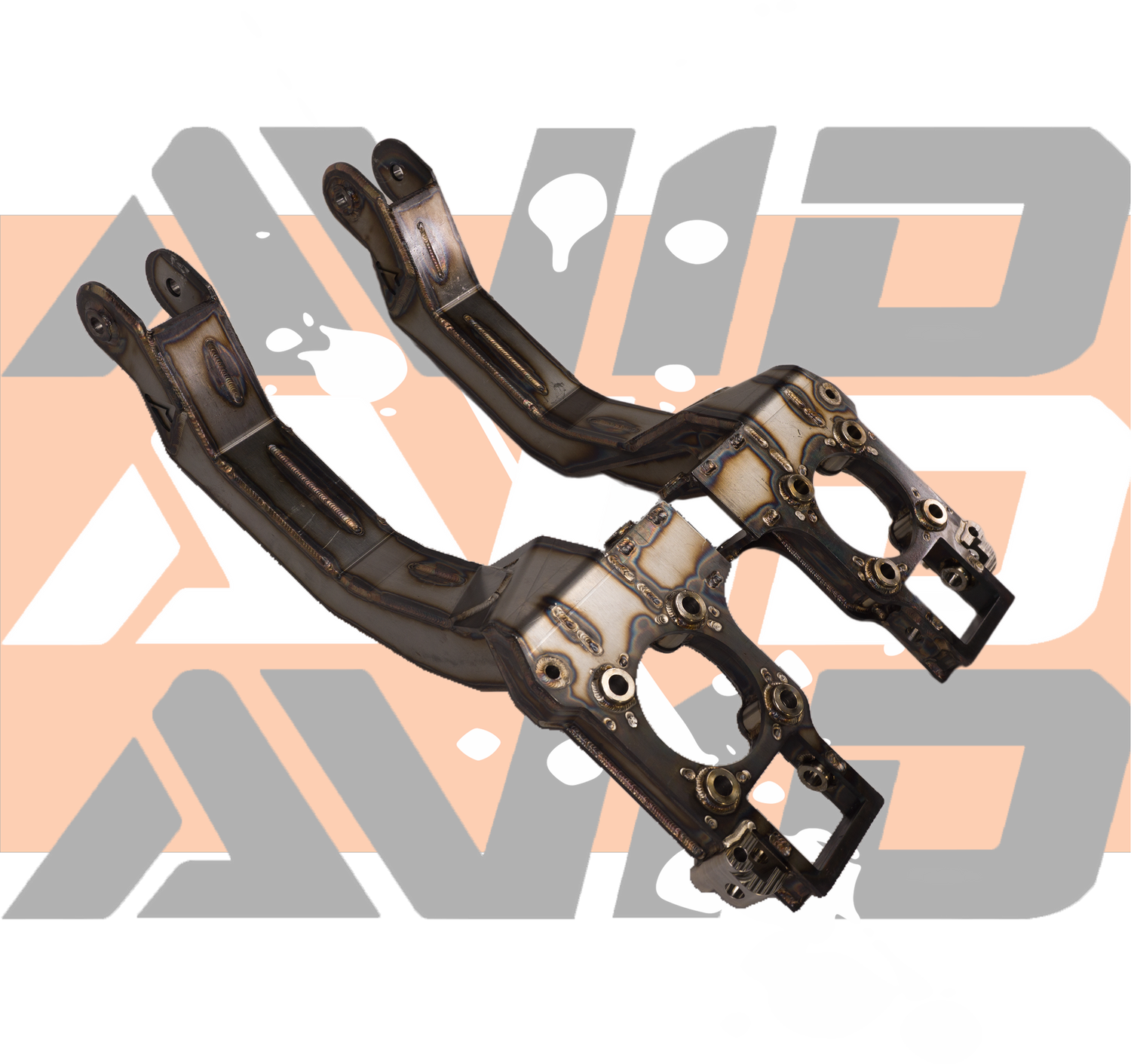

Even though these uprights are plate construction, they are held to the same standard as our billet products. All critical bolt pivot points use fully machined steel bosses so the bolt shank locates perfectly in shear and the suspension can cycle with precise, repeatable movement. The product images highlight these machined components to show the load paths, strength, and attention to fitment.

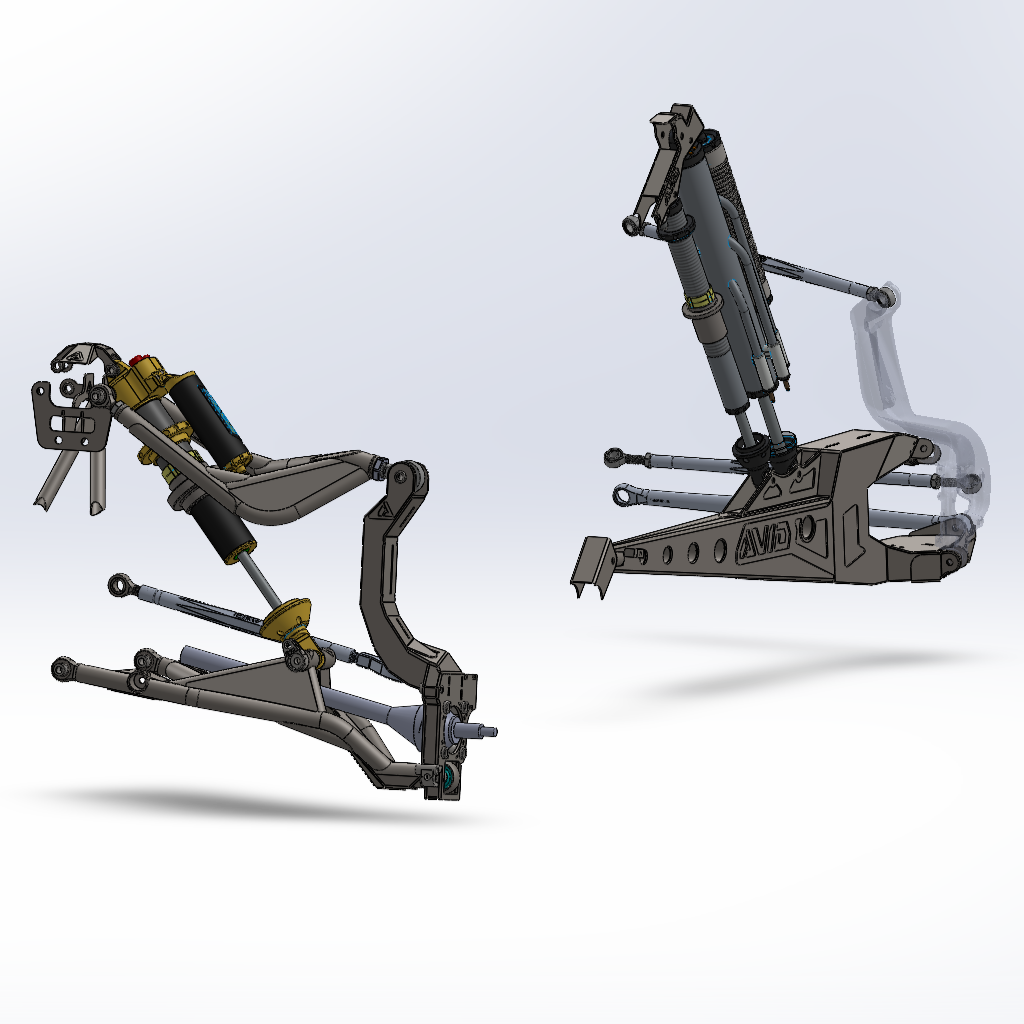

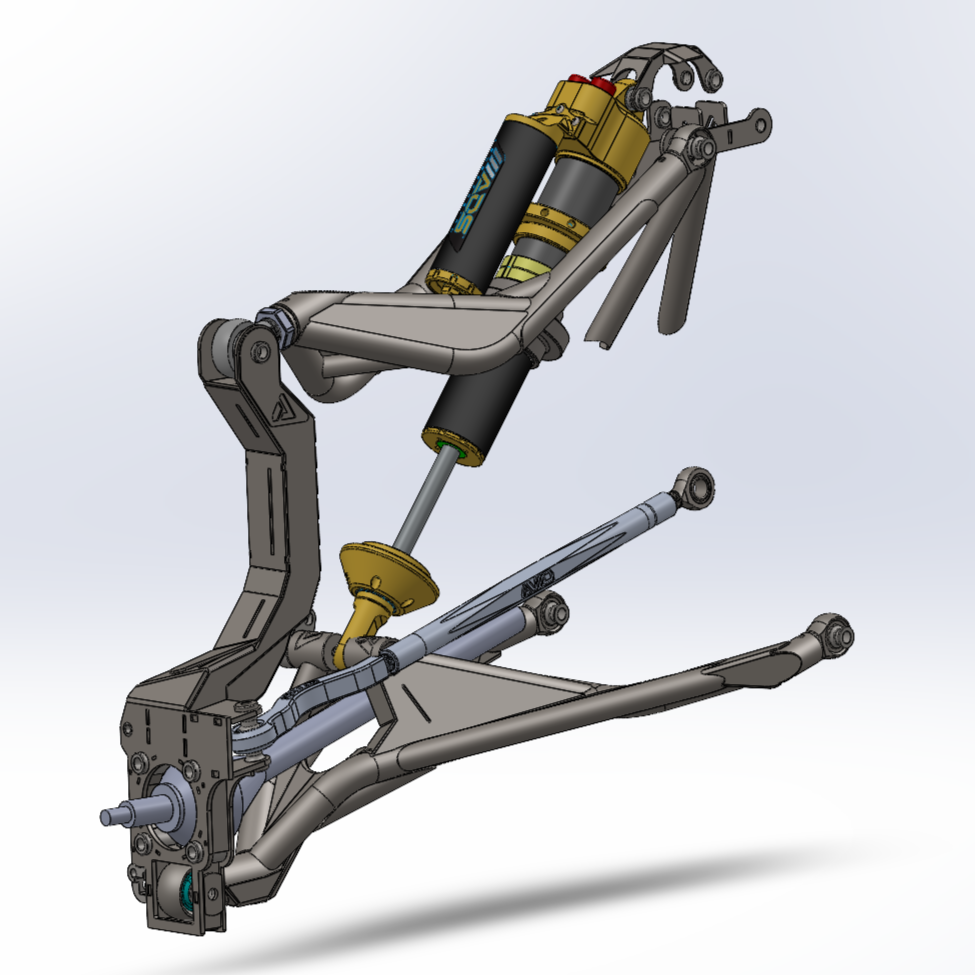

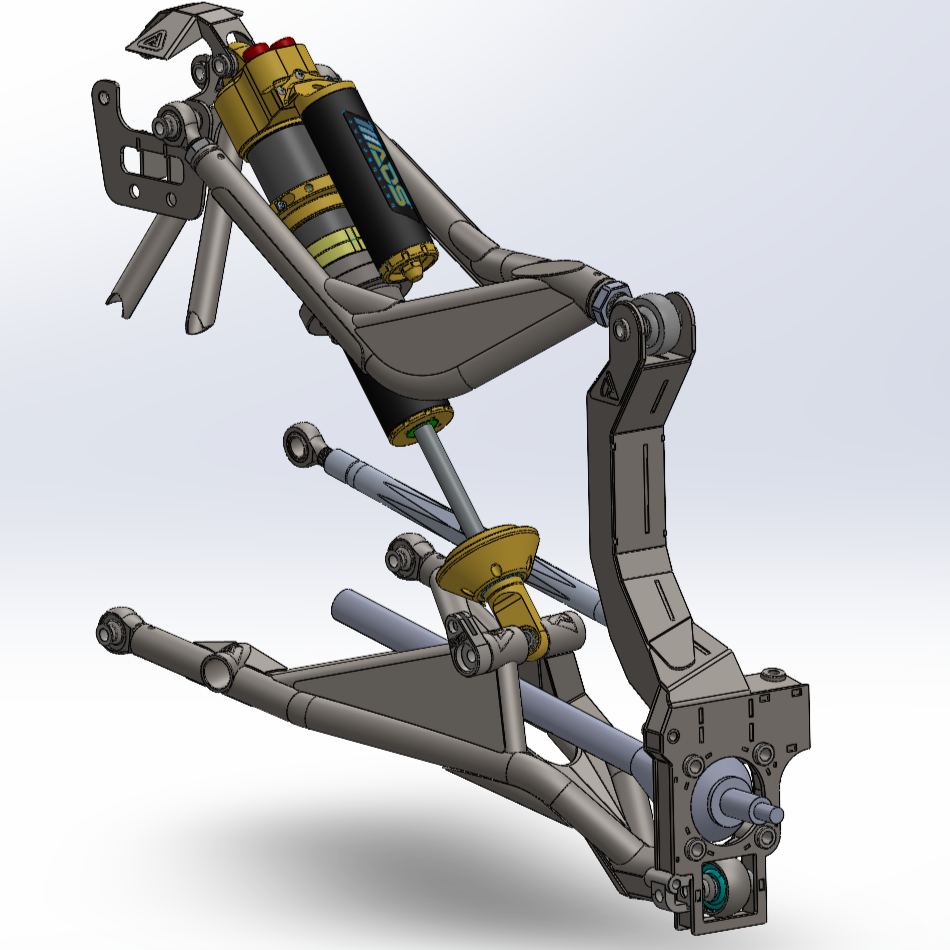

These chromoly uprights are designed to work with the complete AVID Maverick R Baja or RACE front kit and must be installed as part of the full system. They provide a very strong and reliable option that is significantly stronger than the factory cast upright while keeping overall project cost under control.

The lower pivot uses the same location as the factory upright, which means these uprights can be used with some third party lower control arms that run a vertical bearing or uniball at the lower mount. The upper control arm must either be an AVID arm or a custom arm built to match our geometry and uniball configuration.

What This Means on the Car

• Sharper steering and turn in: Correct KPI and scrub radius help the tire stay planted and reduce steering effort at speed.
• More stability in the rough: Improved camber and caster control give the front end a planted, predictable feel through whoops, ruts, and landings.
• Big strength upgrade over stock: 4130 chromoly construction, machined steel pivot bosses, and double shear uniball mounting resist flex and cracking far better than OEM cast uprights.
• Lower arm compatibility: Can be paired with third party lower arms that use a vertical bearing or uniball at the factory style lower pivot, with an AVID or custom upper arm.

Key Features

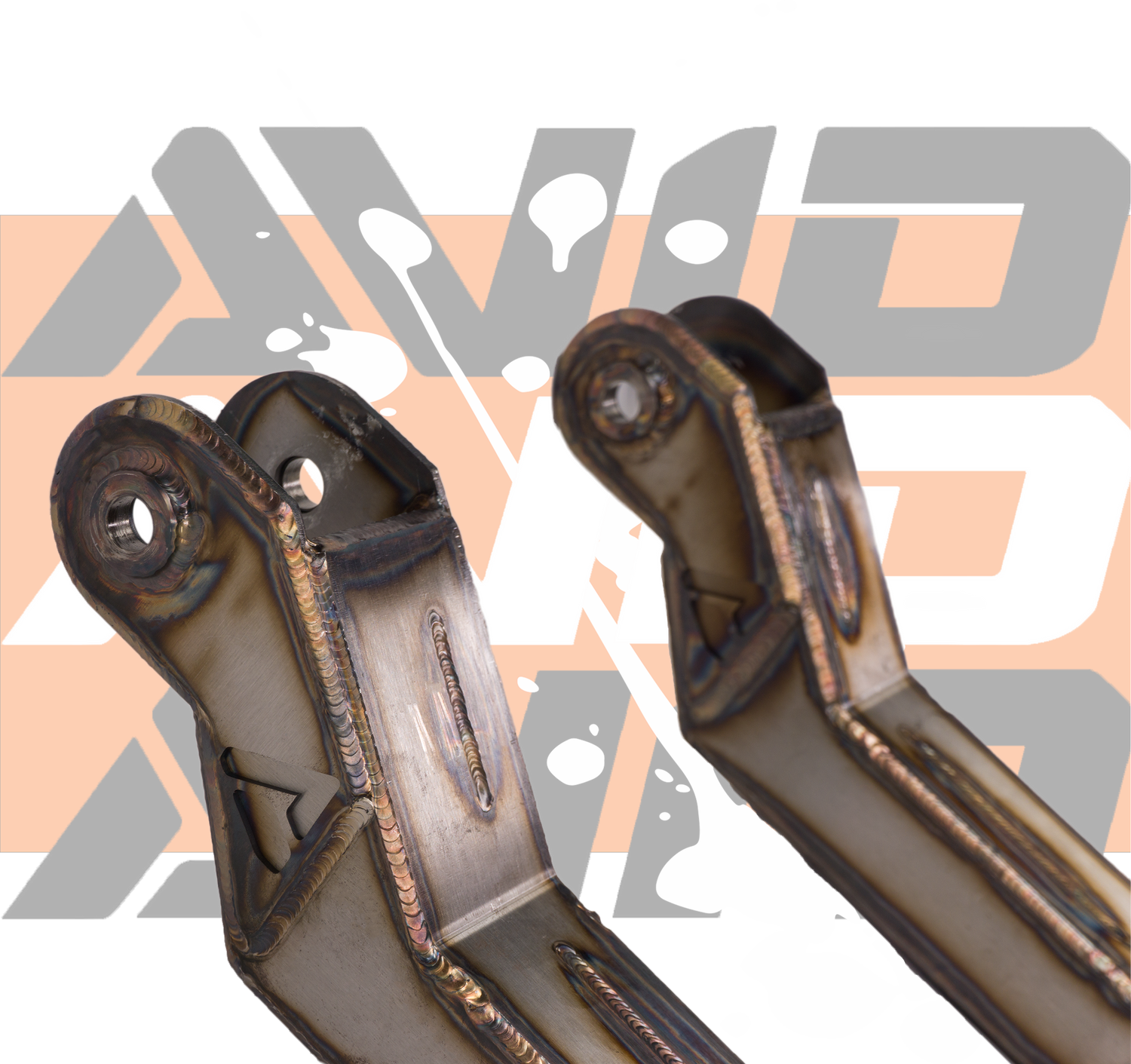

• Fabricated from high strength 4130 chromoly plate, precision cut and TIG welded

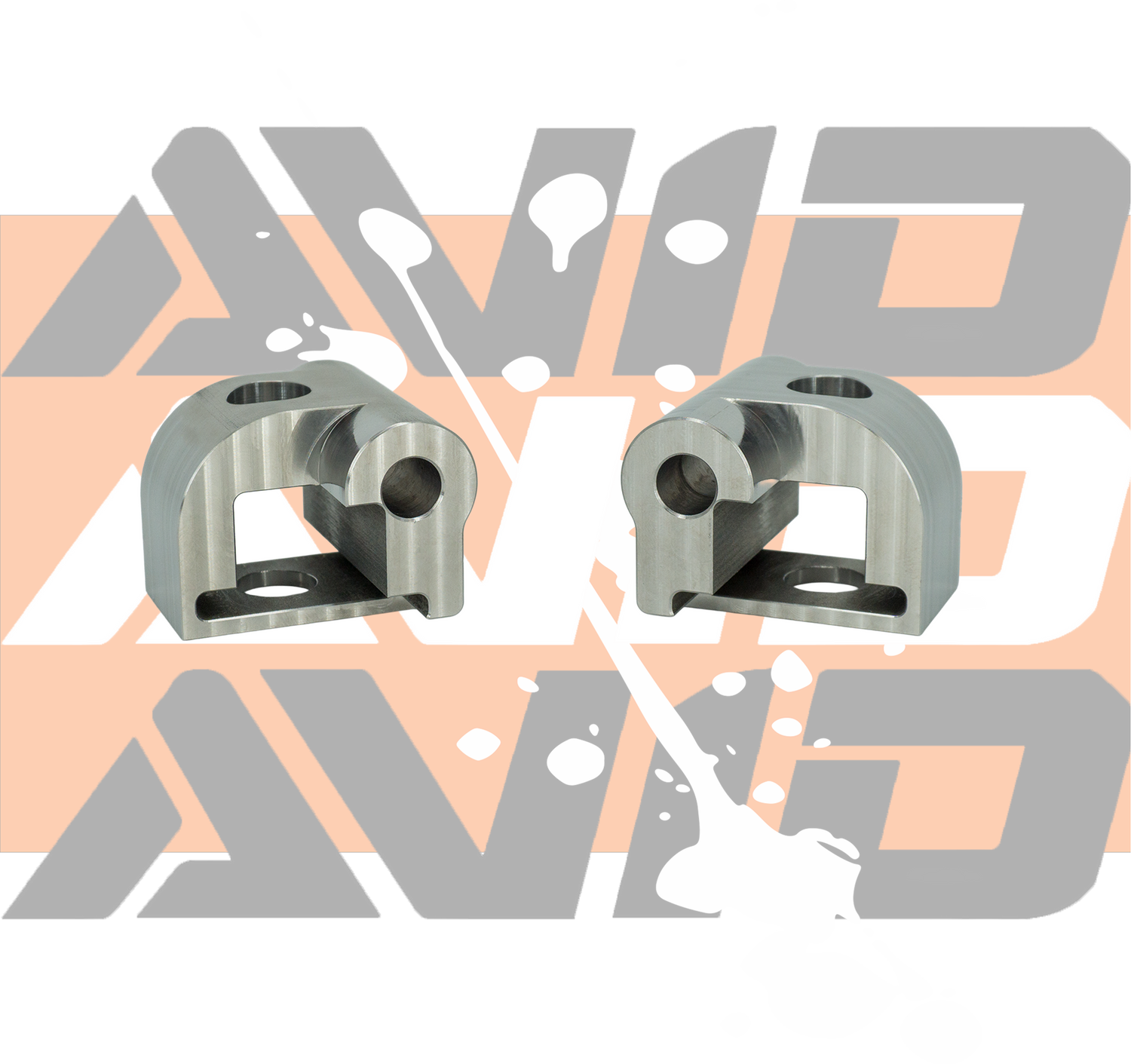

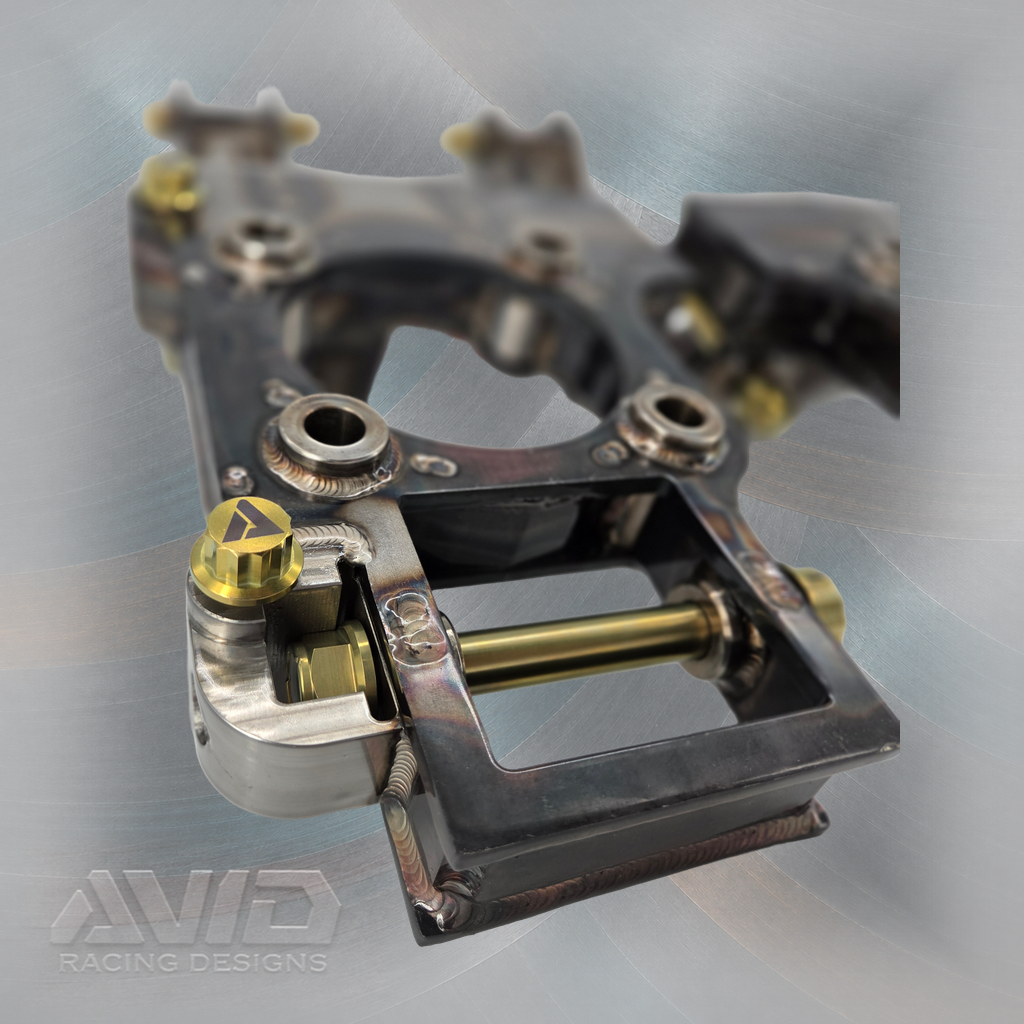

• Machined steel pivot bosses at all bolt locations for proper shank fit and shear support
• Vertical 1 inch uniballs in true double shear
• Geometry tuned for corrected KPI, scrub radius, caster, and camber gain
• Designed to work with AVID Maverick R Baja and RACE front control arm and steering kits
• Shares the factory lower pivot location for compatibility with select third party lower arms

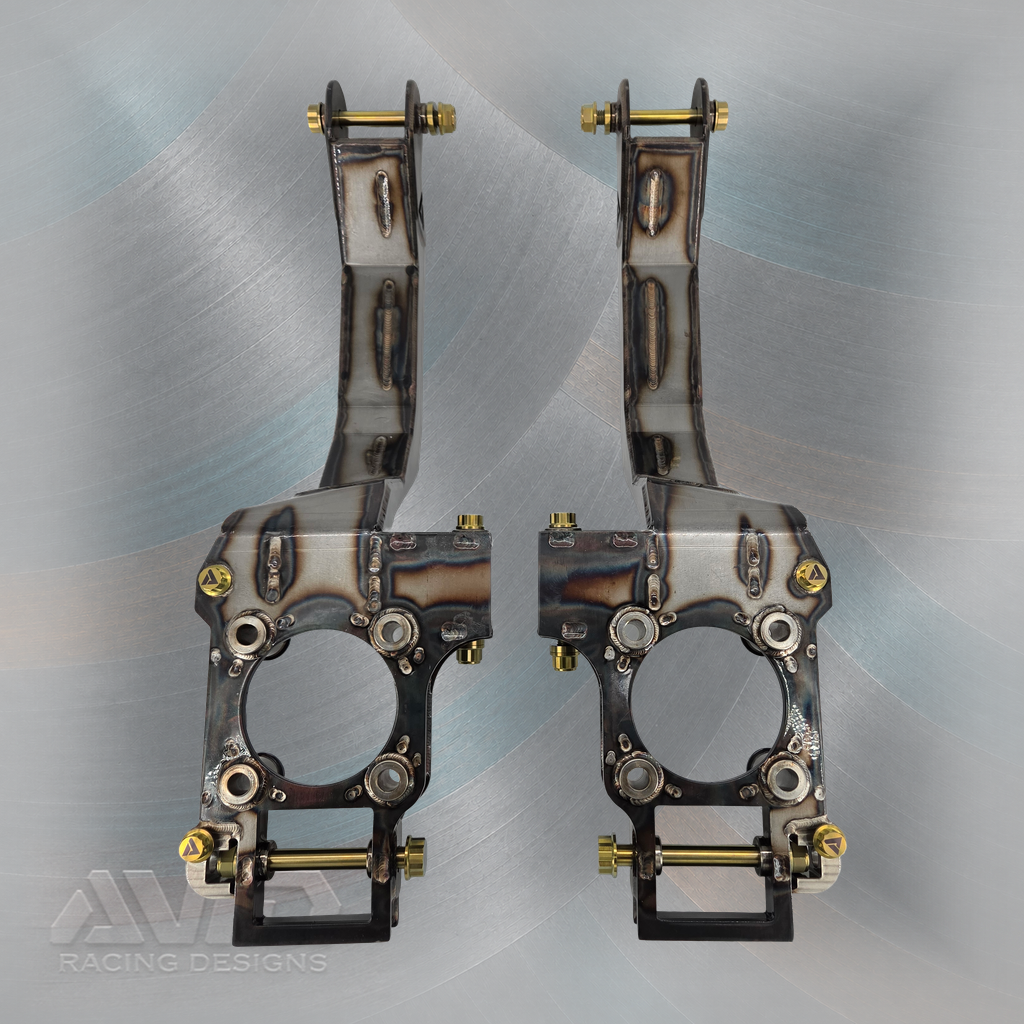

Included in Kit

• Left and right 4130 chromoly front uprights

• Matched misalignment spacers
• Hardware for upright assembly where applicable

Bottom line: The AVID Maverick R Baja Race Chromoly Uprights give you full RACE front end geometry and a major strength increase over stock, with plate construction and machined pivot details that meet the same standard as our billet parts.
