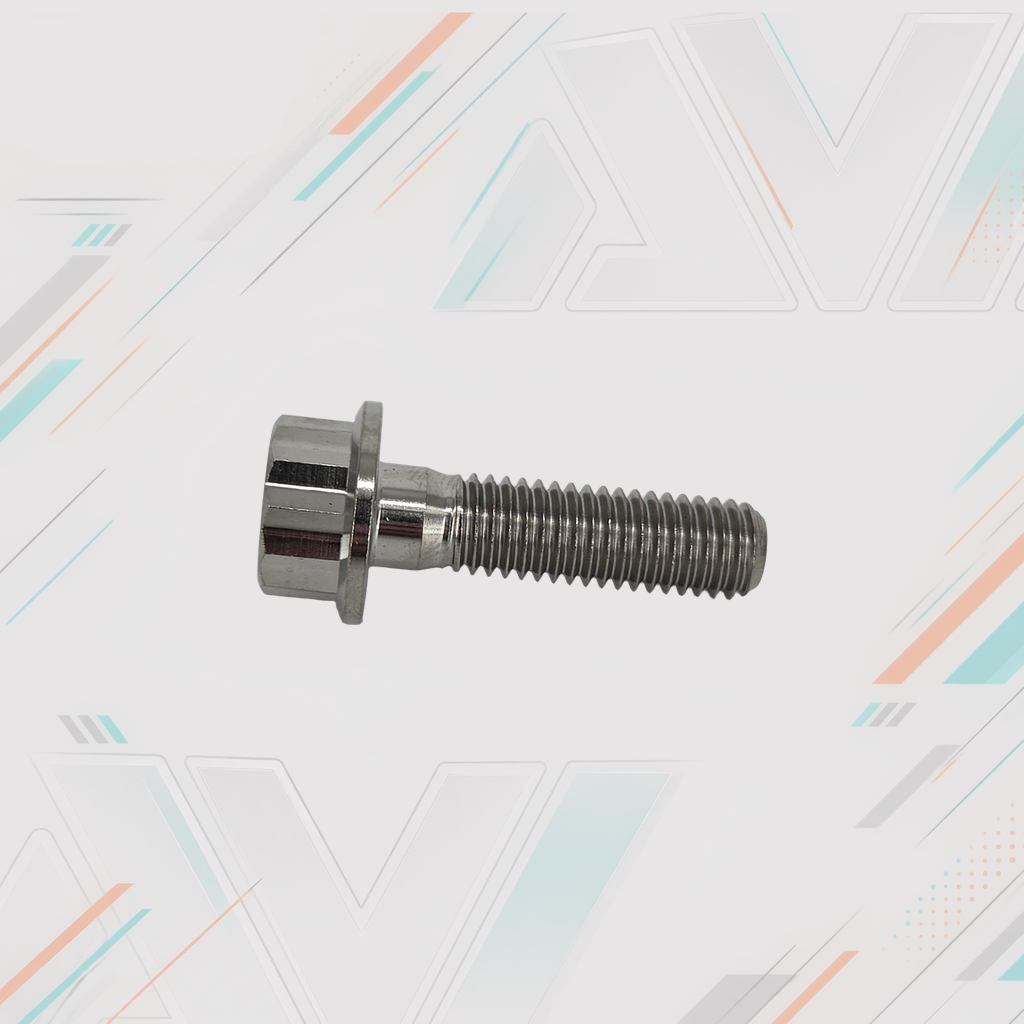

![AVID Racing Titanium 12 Point Flange Bolt, M8 x 1.25 x 30 mm, 25 mm Thread | AVID Racing — Side Profile — M8-T12FB-30x5-125_03 [AVID:58418603-e43c-4d59-90f8-d5b47b6f2520] [AVID-VERSION:be7c5ebf-4087-44b9-8851-9920270e4434]](http://avidrace.com/cdn/shop/files/1792126780625-5e5a1c55-d0dc-4a12-8c73-609a25f1b81b.png?v=1792126787&width=1800)

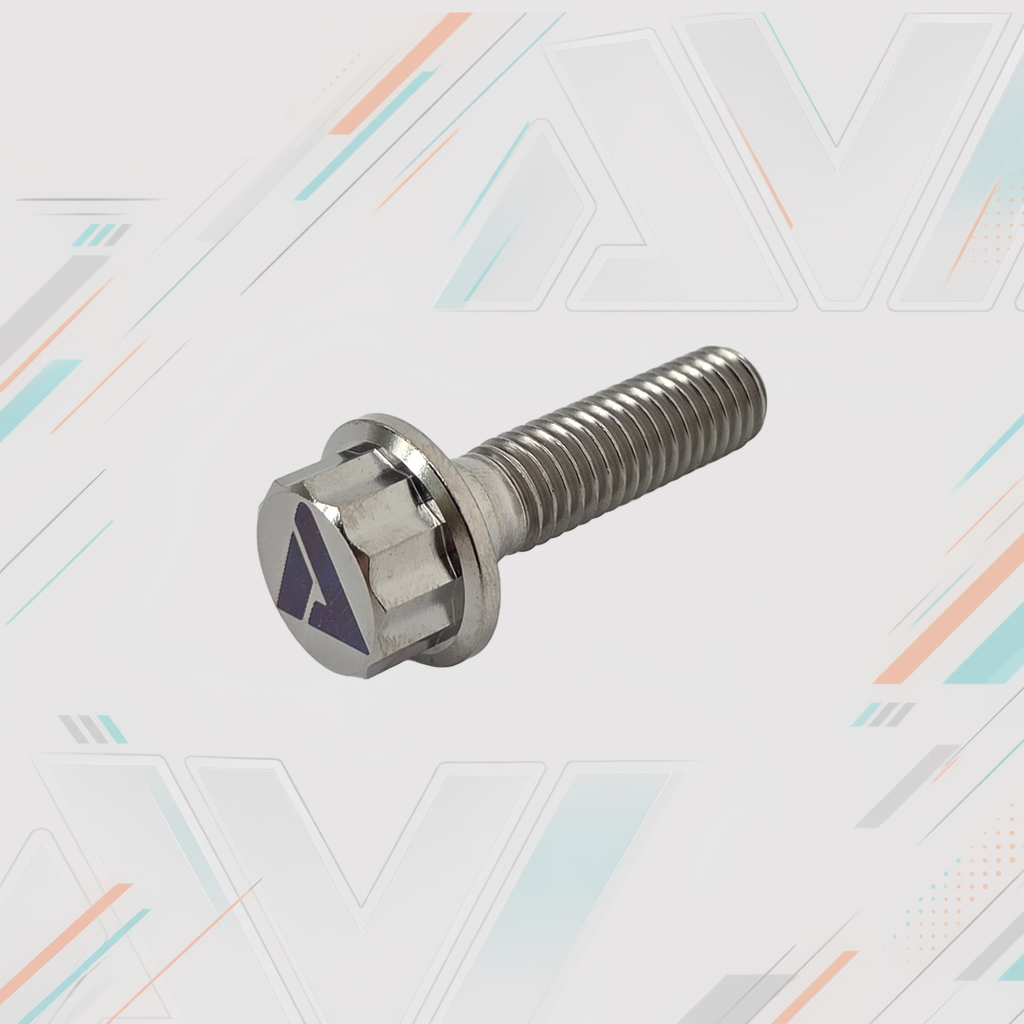

![AVID Racing Titanium 12 Point Flange Bolt, M8 x 1.25 x 30 mm, 25 mm Thread | AVID Racing — Component Detail — M8-T12FB-30x5-125_02 [AVID:8bbc7baf-9cb3-448c-8108-aae36ff29623] [AVID-VERSION:f0a538a2-8039-4aec-8607-da45ee47f1c7]](http://avidrace.com/cdn/shop/files/1792126777274-9b8b0b92-949c-46ea-8cd2-d8938ef5645e.png?v=1792126787&width=1800)
Titanium hardware reference
Back to titanium hardwareTitanium 12 Point Flange Bolt, M8 x 1.25 x 30 mm, 25 mm Thread
Purchase options
Choose the exact part
Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.
AVID Ti exact-data reference
Individual hardware specifications
Match the measurement system, thread, every listed dimension, head, drive, grade, and piece count.
- Titanium family
- Hardware
- Component type
- Bolt
- Measurement system
- METRIC
- Thread designation
- M8x1.25
- Nominal diameter
- 8 mm
- Thread pitch
- 1.25 mm
- Overall length
- 30 mm
- Thread length
- 25 mm
- Shank length
- 5 mm
- Head style
- Flange head
- Drive style
- 12 point
- Wrench / head size
- 12 mm
- Head diameter
- 17 mm
- Head height
- 8 mm
- Material
- Titanium
- Pieces per product
- 1
- Pack quantity
- 1
- Unit of sale
- Each
- Anodizing eligibility
- Not eligible
- Specification status
- Verified
Product information
Details when you need them.
Review the product description, exact dimensions, documents, and technical support.
Overview and included items
Titanium 12-Point Flange Bolt, M8 x 1.25 x 30 mm | AVID Racing
This titanium 12 point flange bolt provides a lightweight, corrosion-resistant replacement for standard steel hardware where an M8 x 1.25 thread and 30 mm overall length are required.
Specific Bolt Specs
- Hardware type: 12 Point Flange Bolt
- Socket size: 12 mm
- Thread size: M8 x 1.25
- Total length: 30 mm
- Thread length: 25 mm
- Shank length: 5 mm
- Material: Titanium
Why Upgrade to AVID Titanium Hardware?
AVID titanium hardware is precision-made for builders who want clean fitment, reduced weight, corrosion resistance, and dependable serviceability. Titanium is well suited for off-road, race, and fabrication applications where hardware is exposed to dirt, water, corrosion, and repeated maintenance.
Confirm the thread pitch, total length, thread length, shank length, head style, and available installation clearance before ordering. Vehicle-specific fitment is not assigned to this universal hardware item.
For best results, use anti seize where applicable and blue lock tite on the threads where applicable. Proper torque is critical. The standard torque reference for this M8 titanium bolt is 28 Nm / 21 ft-lb. Always verify the manufacturer-required torque specification before installation because clamping force is application specific.
