Titanium hardware reference
Back to titanium hardwareTitanium 12 Point Flange Bolt, M16 x 1.5 x 50 mm, 27.5 mm Thread
Purchase options
Choose the exact part
Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.
AVID Ti exact-data reference
Individual hardware specifications
Match the measurement system, thread, every listed dimension, head, drive, grade, and piece count.
- Titanium family
- Hardware
- Component type
- Bolt
- Measurement system
- METRIC
- Thread designation
- M16x1.5
- Nominal diameter
- 16 mm
- Thread pitch
- 1.5 mm
- Overall length
- 50 mm
- Thread length
- 22.5 mm
- Shank length
- 22.5 mm
- Head style
- Flange head
- Drive style
- 12 point
- Wrench / head size
- 21 mm
- Head diameter
- 32 mm
- Head height
- 15 mm
- Material
- Titanium
- Pieces per product
- 1
- Pack quantity
- 1
- Unit of sale
- Each
- Anodizing eligibility
- Not eligible
- Specification status
- Verified
Product information
Details when you need them.
Review the product description, exact dimensions, documents, and technical support.
Overview and included items

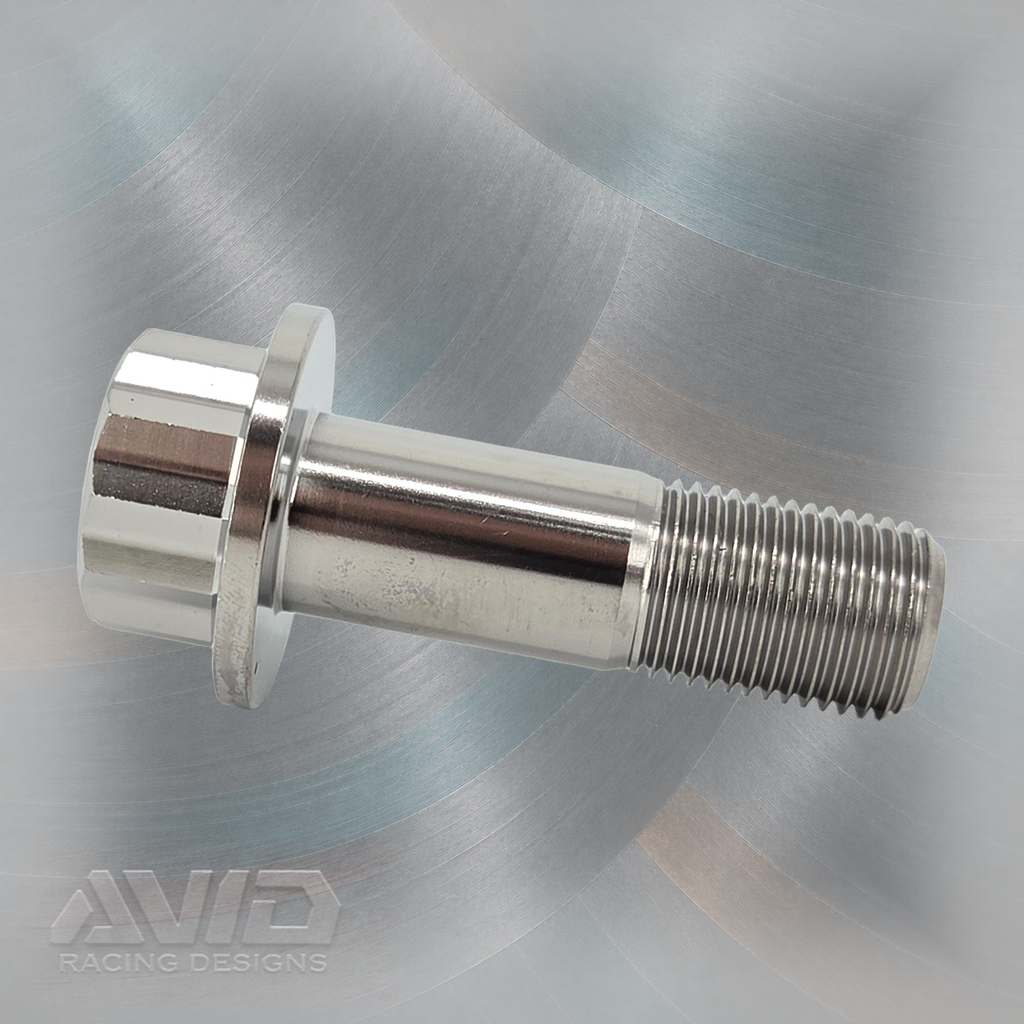

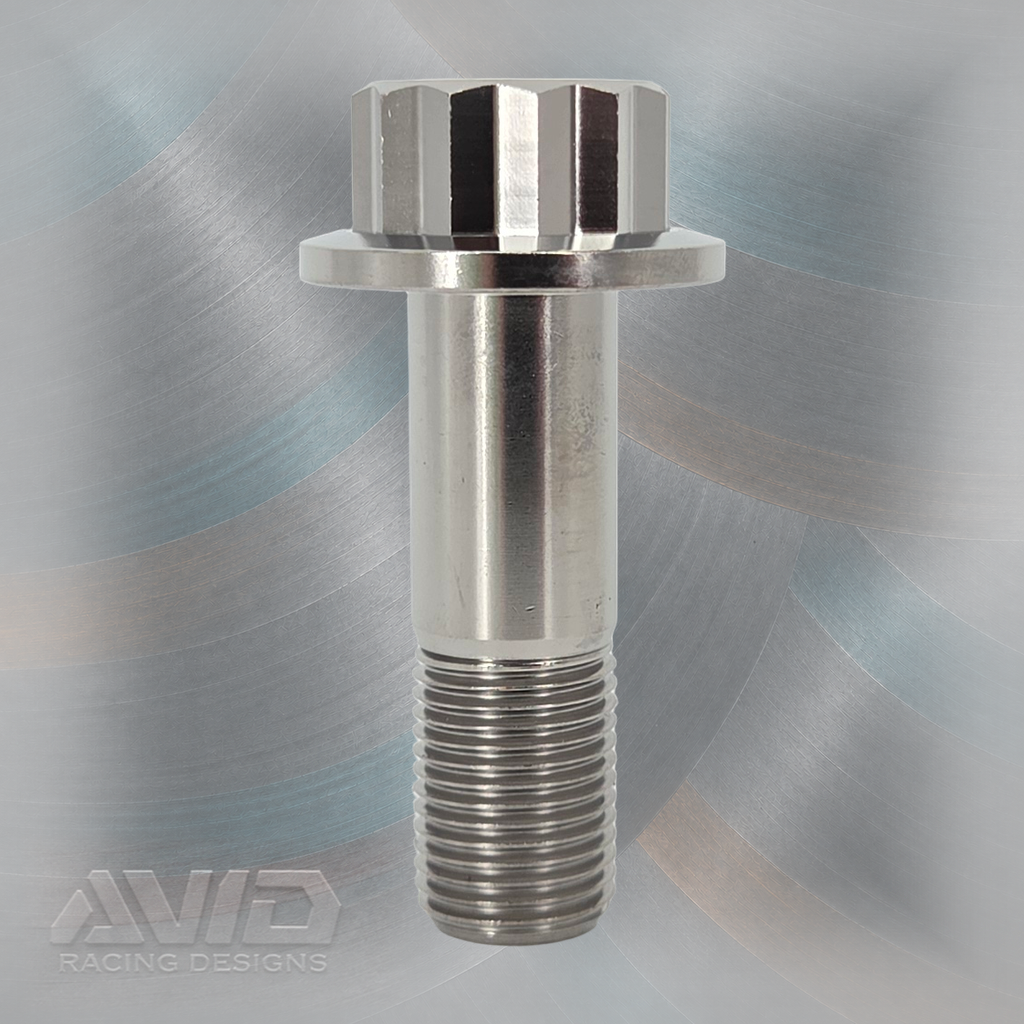

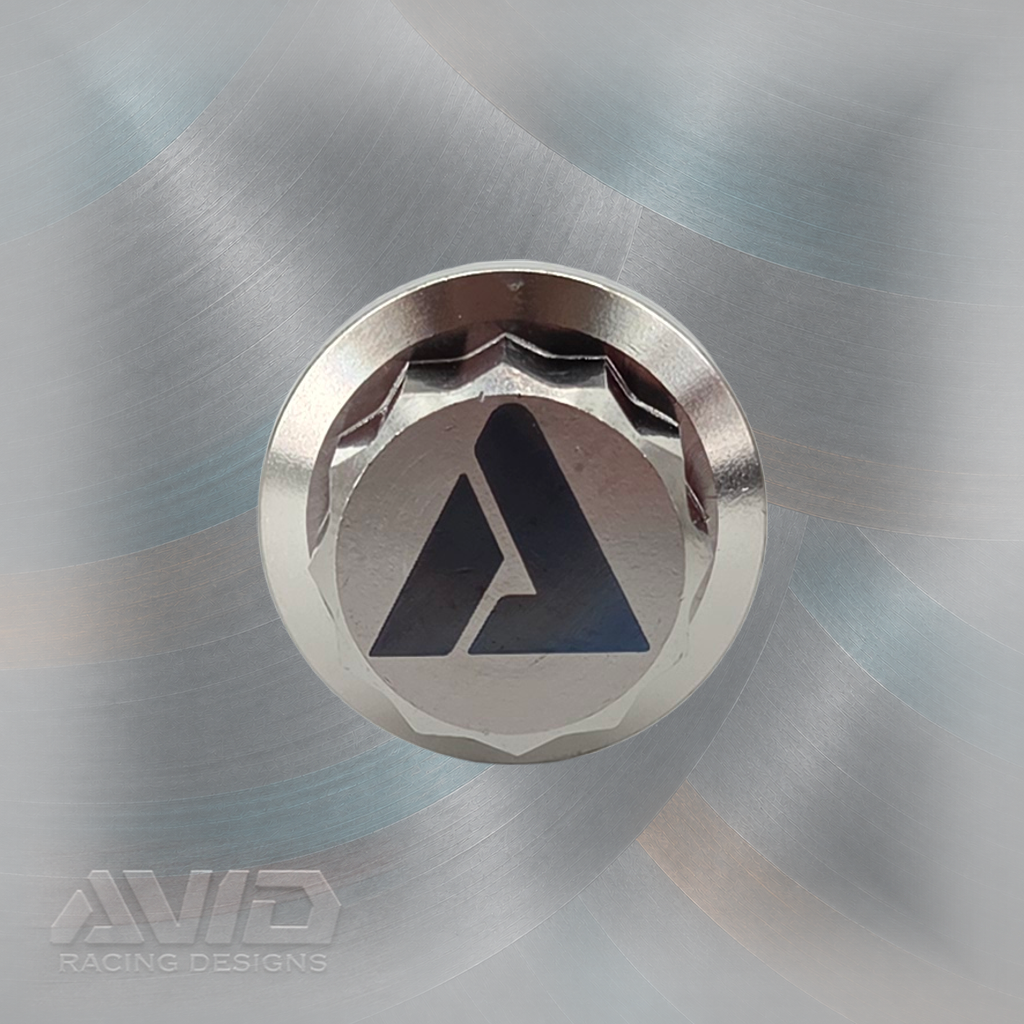

Titanium 12-Point Flange Bolt, M16 x 1.5 x 50 mm | AVID Racing
This titanium 12 point flange bolt is a single AVID titanium hardware item with an M16 x 1.5 thread, 50 mm total length, and 27.5 mm thread length.
Specific Bolt Specs
- Hardware type: 12 point flange bolt
- Thread size: M16 x 1.5
- Total length: 50 mm
- Thread length: 27.5 mm
- Shank length: 22.5 mm
- Material: Titanium
Why Upgrade to AVID Titanium Hardware?
AVID titanium hardware is precision-made from lightweight, corrosion-resistant titanium for off-road, race, and fabrication use.
Use this bolt where the confirmed M16 x 1.5 thread, 50 mm length, and 12 point flange bolt style match the required hardware stack.
Use anti seize or blue lock tite as appropriate for the application. M16 titanium hardware has a reference torque of 200 Nm / 148 ft-lb, but the installer must verify the manufacturer-required torque specification before installation because clamping force is application specific.
