Back to titanium hardwareTitanium 12 Point Flange Bolt, M12 x 1.5 x 75 mm, 25 mm Thread
Purchase options
Choose the exact part
Available to order
Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.
AVID must confirm a valid selling price before this variant can be added to cart. Contact us for current pricing and availability.
Request pricing reviewThe complete vehicle application has not yet been published for this item.
Contact AVID Support about fitmentAVID Ti exact-data reference
Individual hardware specifications
Match the measurement system, thread, every listed dimension, head, drive, grade, and piece count.
- Titanium family
- Hardware
- Component type
- Bolt
- Measurement system
- METRIC
- Thread designation
- M12x1.5
- Nominal diameter
- 12 mm
- Thread pitch
- 1.5 mm
- Overall length
- 75 mm
- Thread length
- 25 mm
- Shank length
- 50 mm
- Head style
- Flange head
- Drive style
- 12 point
- Wrench / head size
- 17 mm
- Head diameter
- 22 mm
- Head height
- 11 mm
- Material grade
- Titanium
- Pieces per product
- 1
- Pack quantity
- 1
- Unit of sale
- Each
- Anodizing eligibility
- Not eligible
- Specification status
- Verified
Product information
Details when you need them.
Review the product description, exact dimensions, documents, and technical support.
Overview and included items

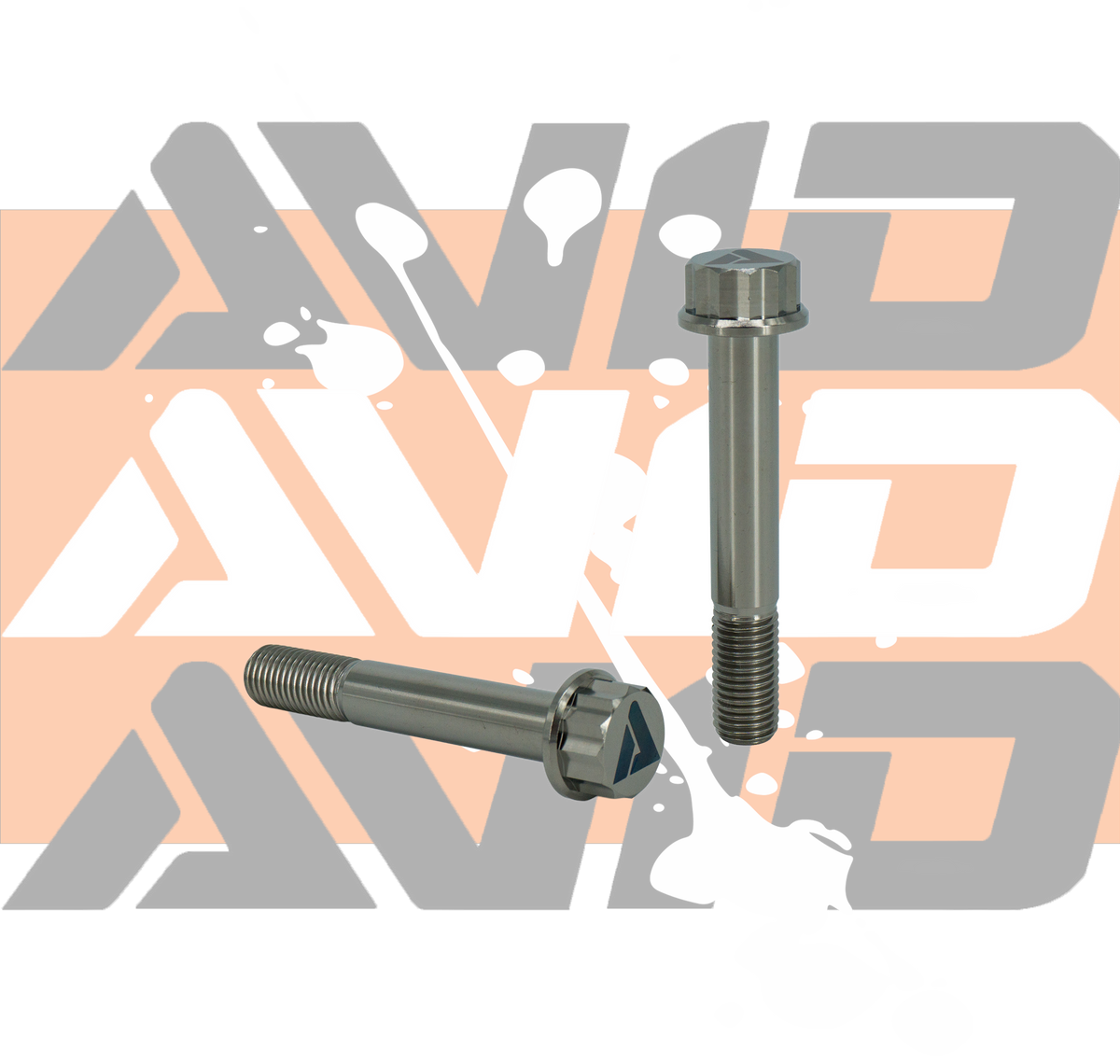

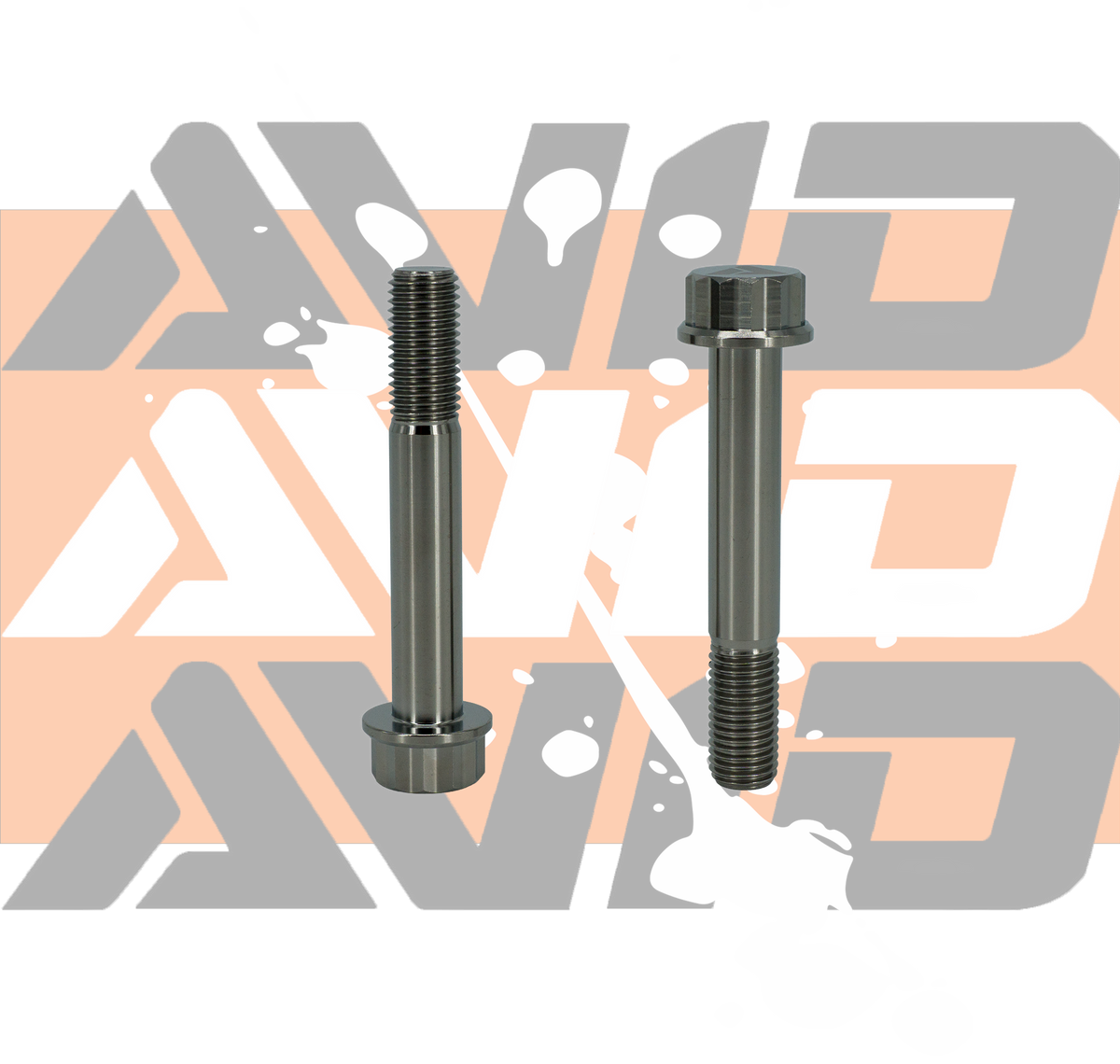

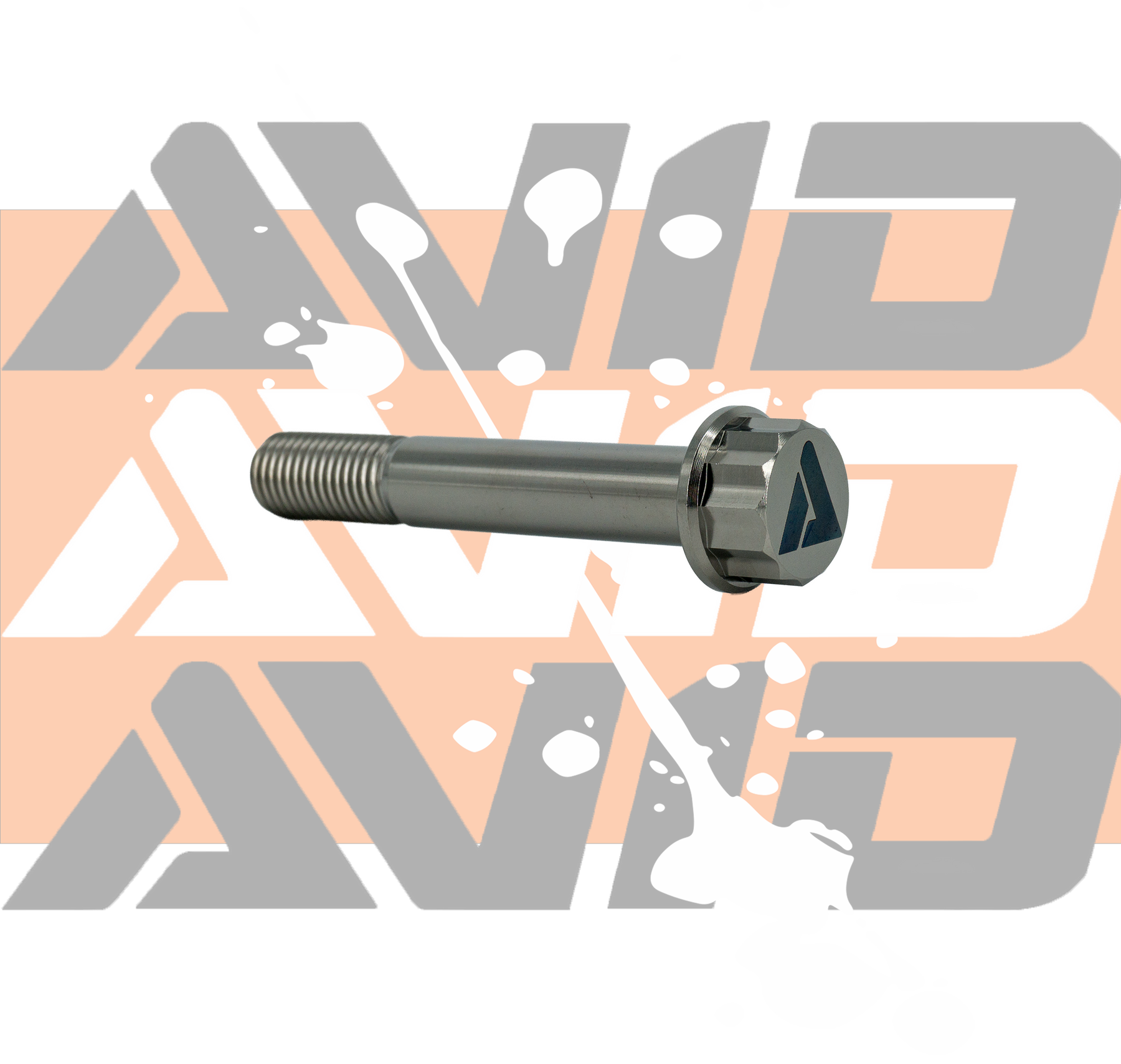

Titanium 12-Point Flange Bolt, M12 x 1.5 x 75 mm | AVID Racing
The Titanium 12 Point Flange Bolt, M12 x 1.5 x 75 mm, 25 mm Thread is an AVID titanium bolt for applications that require M12 x 1.5 x 75 mm. It replaces standard steel hardware with a lightweight, corrosion-resistant titanium fastener for clean fitment and long-term serviceability.
Specific Bolt Specs
- Hardware type: 12P Flange Bolt
- Socket size: 17 mm
- Thread size: M12 x 1.5
- Total length: 75 mm
- Thread length: 25 mm
- Shank length: 50 mm
- Material: Titanium
Why Upgrade to AVID Titanium Hardware?
AVID titanium hardware is precision-made for builders who want clean fitment, reduced weight, and corrosion-resistant hardware without giving up serviceability. Titanium is well suited for off-road, race, and fabrication applications where hardware is exposed to dirt, water, corrosion, and repeated maintenance.
Use this bolt where the listed thread size, length, head style, and shank length match the required mounting location. When used in pivot or tab-mounted locations, proper shank engagement helps the joint carry load on the smooth shank instead of the threads.
For best results, use anti seize on the shank where applicable and blue lock tite on the threads where applicable. Proper torque is critical. Standard torque reference for this M12 titanium bolt is 83 Nm / 61 ft-lb. This is a standard torque reference for AVID titanium hardware. Always verify the manufacturer-required torque specification before installation because clamping force is application specific.
