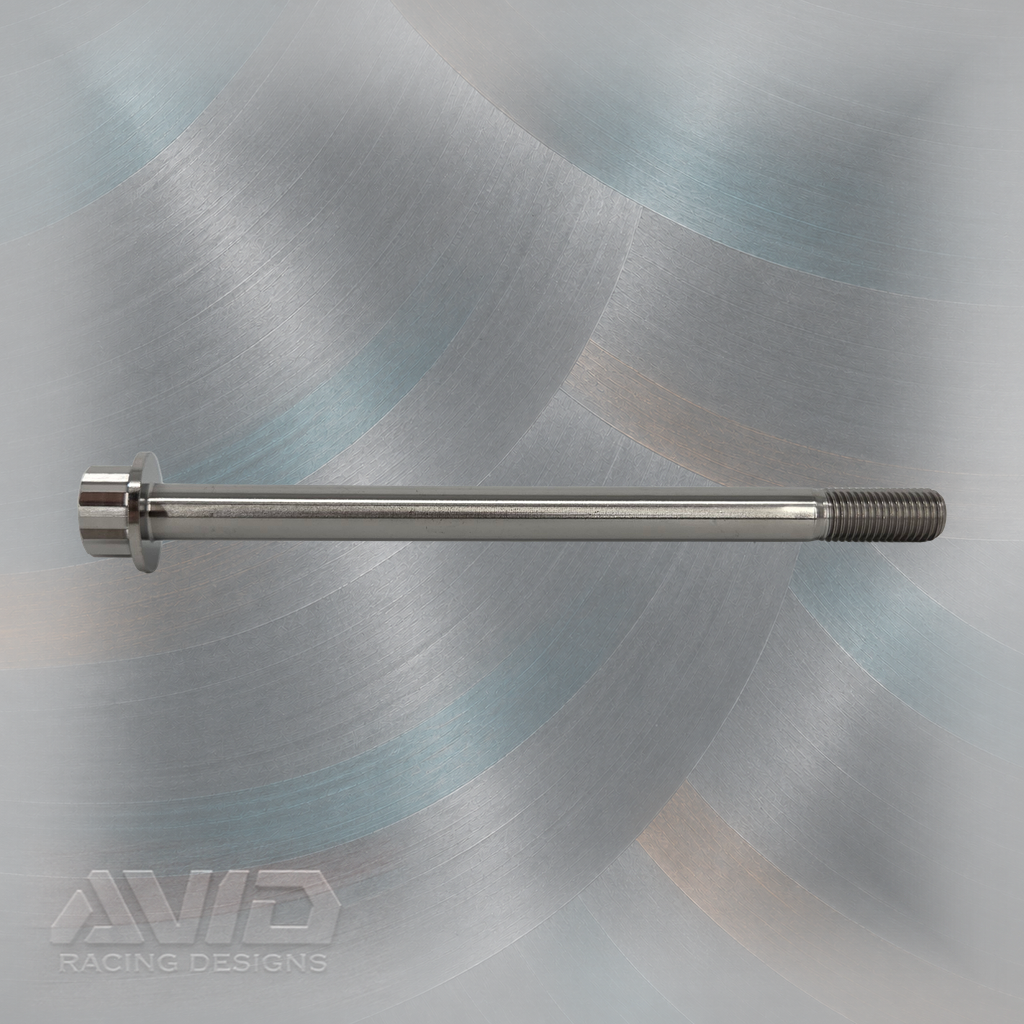

![AVID Racing Titanium 12-Point Flange Bolt, M10x1.25 x 140 mm, 22.5 mm Thread | AVID Racing — Complete Bolt Side View — M10-T12FB-140x1175-125_01 [AVID:eadf549d-7992-4da0-9319-4ecd00eefe21] [AVID-VERSION:df5e873f-14fa-458c-9d6a-64a094f127d7]](http://avidrace.com/cdn/shop/files/1790548673879-9ff3d352-c687-41c2-ba43-e371677e31b5.png?v=1790548686&width=1800)

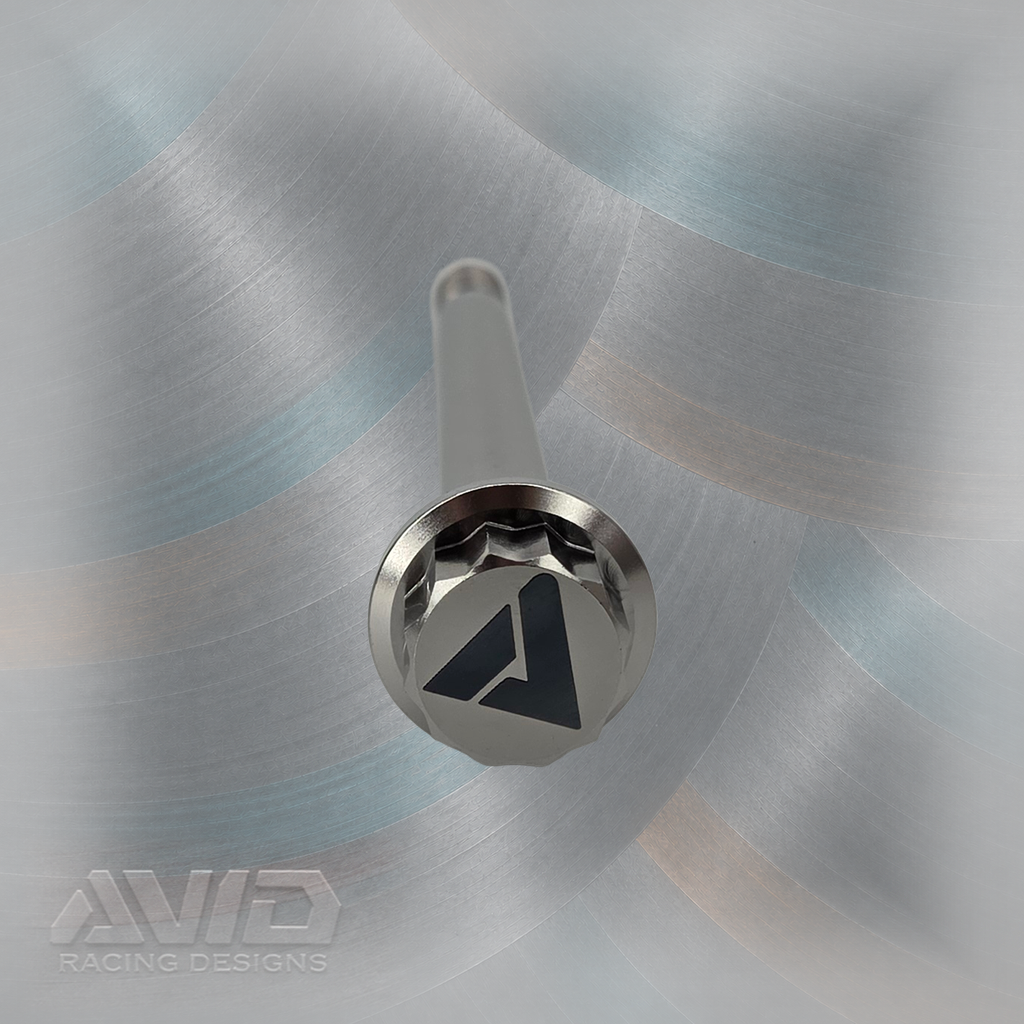

![AVID Racing Titanium 12-Point Flange Bolt, M10x1.25 x 140 mm, 22.5 mm Thread | AVID Racing — Front View — M10-T12FB-140x1175-125_03 [AVID:f90c3478-a93c-4c2d-a2e4-f9aeaa8cb6fe] [AVID-VERSION:e21bbfe6-678d-4bfa-b22a-b3ced65d8031]](http://avidrace.com/cdn/shop/files/1790548676764-06560382-7293-475b-b091-76ef11b46603.png?v=1790548686&width=1800)

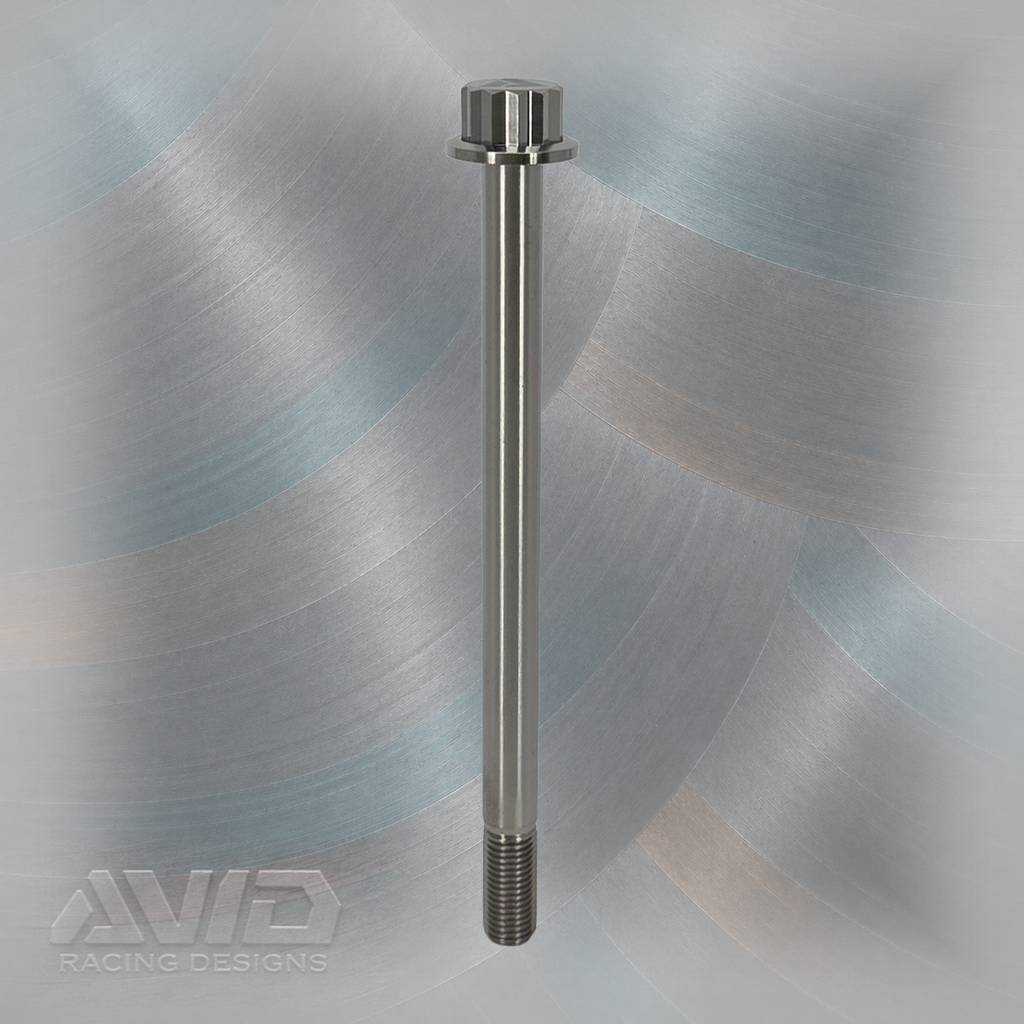

![AVID Racing Titanium 12-Point Flange Bolt, M10x1.25 x 140 mm, 22.5 mm Thread | AVID Racing — Full Length Product View — M10-T12FB-140x1175-125_02 [AVID:5dcb44a1-bea5-41f2-87a2-9f7a9d1e5863] [AVID-VERSION:4e4b11c0-6e49-4e6e-9869-8a0c67872f36]](http://avidrace.com/cdn/shop/files/1790548679943-1a1ae48e-3067-4e25-8081-4808fa0ed0a8.png?v=1790548687&width=1800)
Titanium hardware reference
Back to titanium hardwareTitanium 12-Point Flange Bolt, M10x1.25 x 140 mm, 22.5 mm Thread
Purchase options
Choose the exact part
Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.
AVID Ti exact-data reference
Individual hardware specifications
Match the measurement system, thread, every listed dimension, head, drive, grade, and piece count.
- Titanium family
- Hardware
- Component type
- Bolt
- Measurement system
- METRIC
- Thread designation
- M10x1.25
- Nominal diameter
- 10 mm
- Thread pitch
- 1.25 mm
- Overall length
- 140 mm
- Thread length
- 22.5 mm
- Shank length
- 117.5 mm
- Head style
- Flange head
- Drive style
- 12 point
- Wrench / head size
- 14 mm
- Head diameter
- 21 mm
- Head height
- 11 mm
- Material
- Titanium
- Pieces per product
- 1
- Pack quantity
- 1
- Unit of sale
- Each
- Anodizing eligibility
- Not eligible
- Specification status
- Verified
Product information
Details when you need them.
Review the product description, exact dimensions, documents, and technical support.
Overview and included items
Titanium 12-Point Flange Bolt, M10x1.25 x 140 mm | AVID Racing
This AVID titanium 12-point flange bolt is a single titanium hardware replacement with M10x1.25 threads, 140 mm total length, and 22.5 mm thread length. It is built for customers who need a direct titanium hardware option for off-road, race, or fabrication use where this confirmed size is required.
Specific Bolt Specs
- Hardware Type: 12-point flange bolt
- Thread Size: M10x1.25
- Total Length: 140 mm
- Thread Length: 22.5 mm
- Shank Length: 117.5 mm
- Material: Titanium
Why Upgrade to AVID Titanium Hardware?
AVID titanium hardware is precision-made from lightweight, corrosion-resistant titanium for off-road, race, and fabrication use. It is a clean hardware upgrade where the confirmed thread size, length, and shank dimensions match the required application.
Use this bolt only where the full hardware stack, thread pitch, length, and shank engagement match the application requirements.
Apply anti seize to the shank and contact areas where appropriate, and use blue lock tite on clean threads when the application calls for threadlocker. Proper torque is critical. For M10 titanium hardware, 38 Nm / 28 ft-lb is the standard AVID titanium hardware reference. Always verify the manufacturer-required torque specification before installation because clamping force is application specific.
