Can-Am Maverick R Front Upper Control Arm Inner Pivot Gusset Kit

Can-Am Maverick R Front Upper Control Arm Inner Pivot Gusset Kit

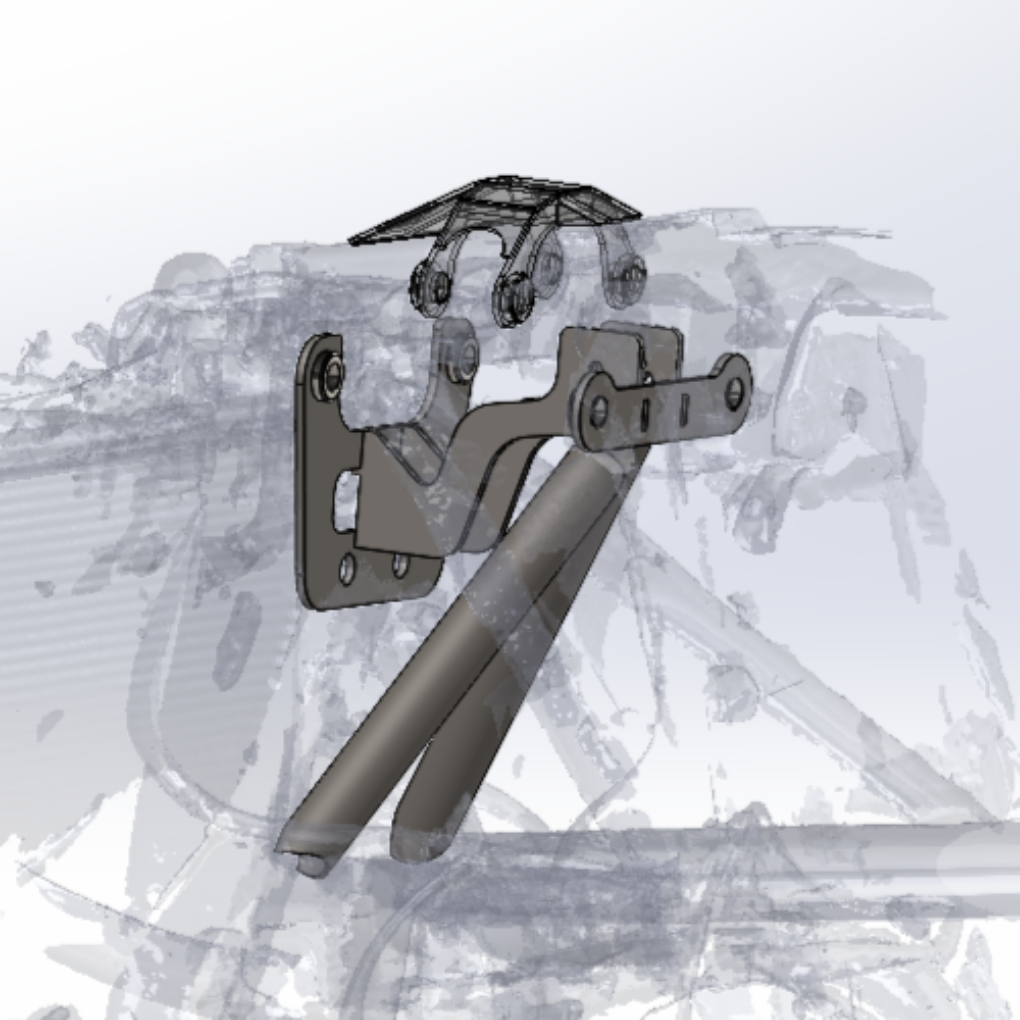

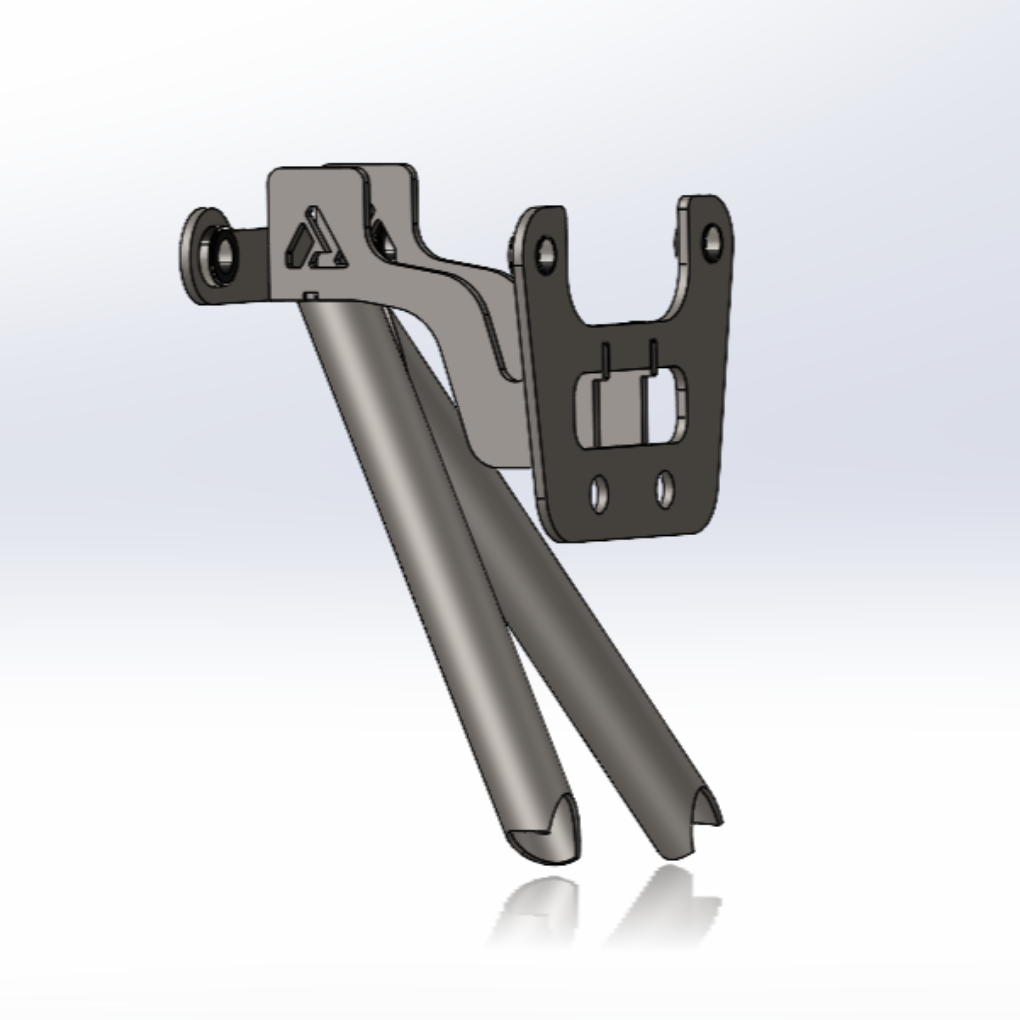

The AVID Racing Can-Am Maverick R Upper Control Arm Inner Pivot Gusset Kit is built to reinforce the upper A-arm inner mounts and tie them into the chassis for real race level strength. This weld on kit is laser cut from 3/16 inch 4130 chromoly plate and uses our signature machined weld washers that pierce through the factory pivot brackets. Once installed, the control arm bolt runs through a true half inch thick machined hole for maximum support and long term durability at the inner pivots.

What This Does On The Car

• Strengthens upper arm pivots: Machined weld washers pass through the factory inner mounts and create a solid, half inch thick machined bore for the control arm bolt.
• Mechanically ties into the chassis: Gusset plates and weld washers mechanically attach the upper arm mounts to the surrounding frame, reducing flex and spreading load through the front structure.
• Built for hard use: Ideal for long travel kits, race uprights, and aggressive desert or short course driving where the factory A-arm pivots are pushed to the limit.
• Clean weld in design: Parts are shaped to locate off the stock mounts so installation is straightforward for a qualified fabricator.

Key Features

• Direct fit upper control arm inner pivot gusset kit for the Can-Am Maverick R
• Weld on design fabricated from 3/16 inch 4130 chromoly plate
• AVID machined weld washers pierce factory mounts and create a half inch thick machined control arm bolt bore
• Mechanically ties the upper arm pivots into the chassis for added rigidity and support
• Designed to complement AVID Maverick R front suspension and race upright packages

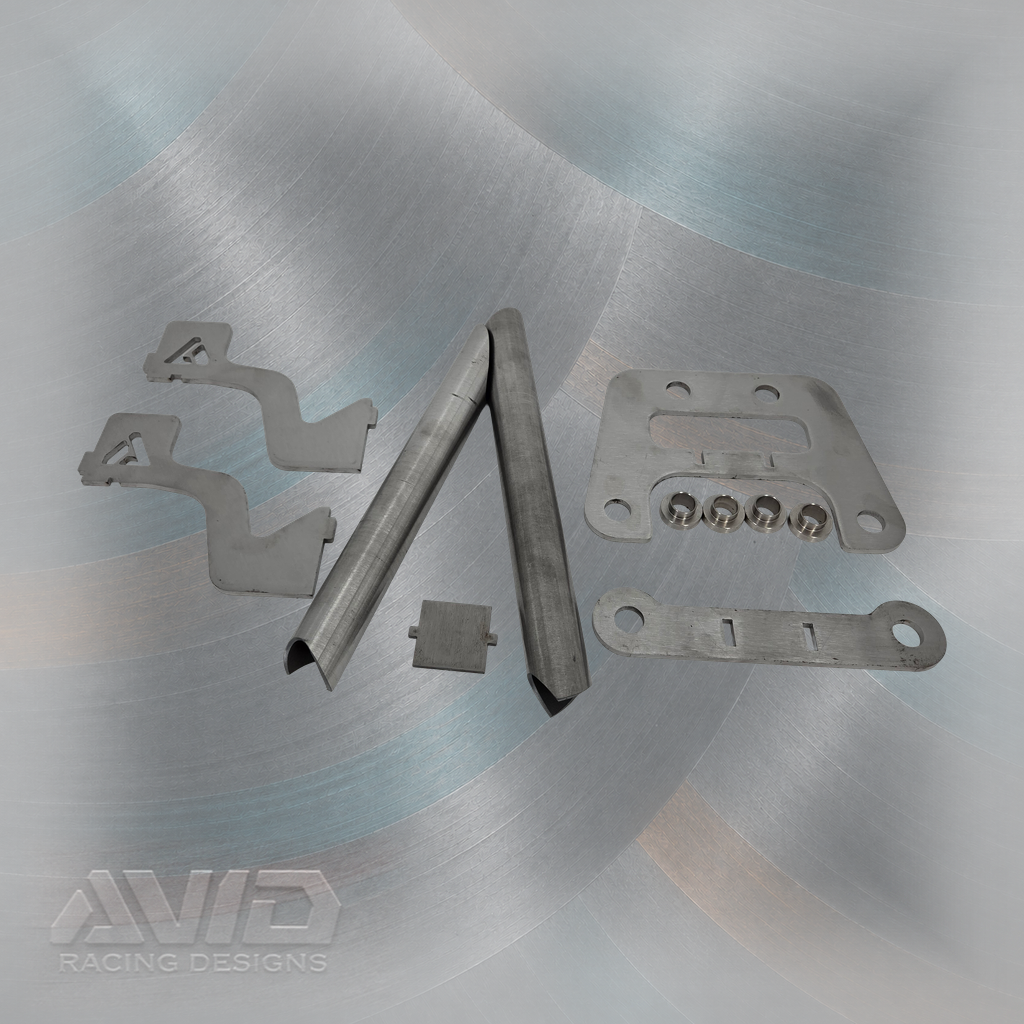

Included in Kit

• Left and right 3/16 inch 4130 chromoly upper control arm inner pivot gusset plates
• AVID machined weld washers for the upper A-arm inner pivot locations
• Installation notes for fitment and welding locations

Installation note: This kit is weld on and should be installed by a qualified fabricator or chassis shop. All paint or coating must be removed from the weld areas before installation.
