Yamaha YXZ1000 Bottom Drop Transmission Mount Adapter Kit

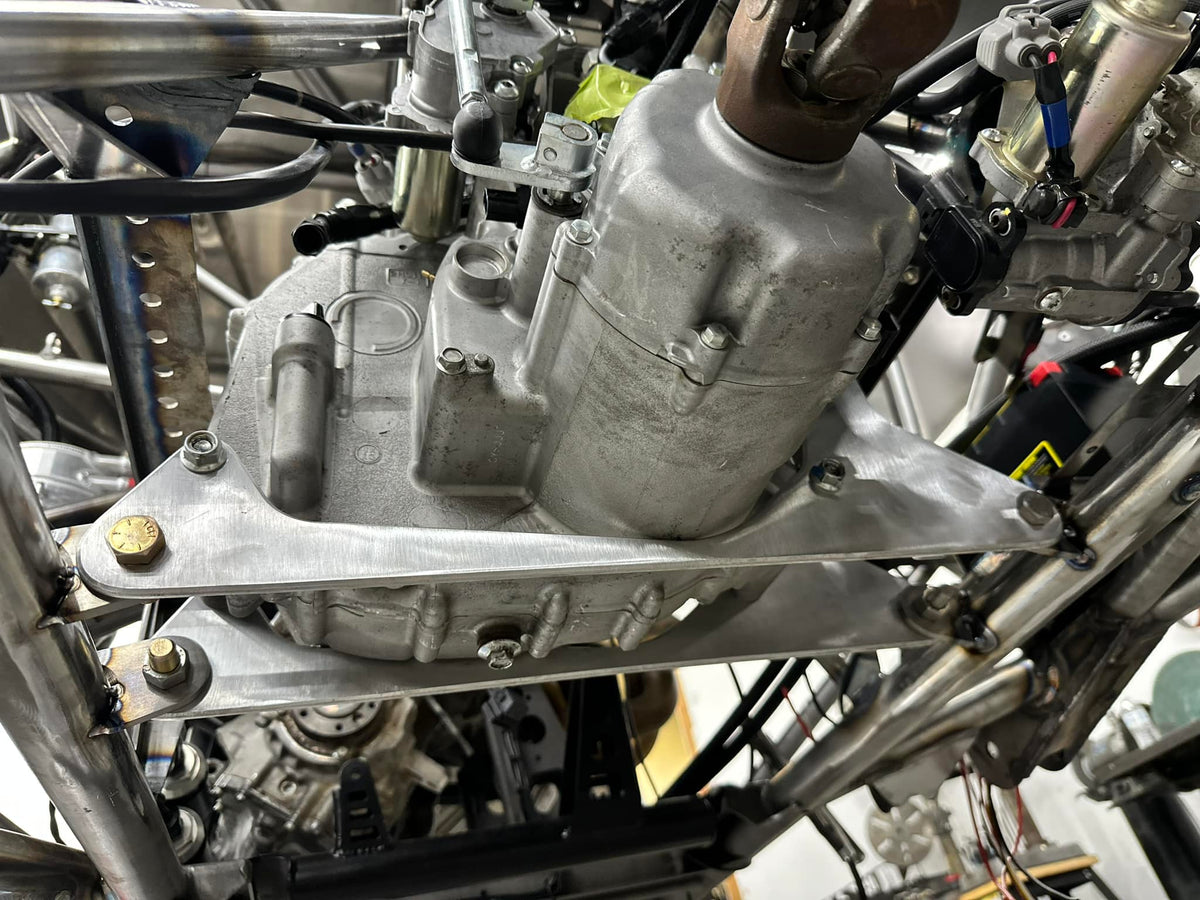

The AVID Racing Bottom Drop Transmission Mount Adapter Kit for the Yamaha YXZ1000 allows you to remove the transmission from underneath the car without tearing apart the interior or console. This weld-in solution replaces the factory “trapped” design with a service-friendly mount system using billet plates and chromoly tabs.
Designed for race teams and serious builders, this kit makes clutch, gear, and transmission work faster and cleaner while maintaining the strength needed for high-horsepower YXZ builds.
What This Means on the Car
- Bottom Drop Service: Transmission can be removed from below the chassis. No need to pull the console, seats, or interior panels.
- Race Shop Friendly: Saves time on clutch and transmission service between test days, or race weekends.
- Stronger Mounting: Chromoly tabs and billet plates provide a more robust mounting interface than the thin factory brackets.
Included in Kit

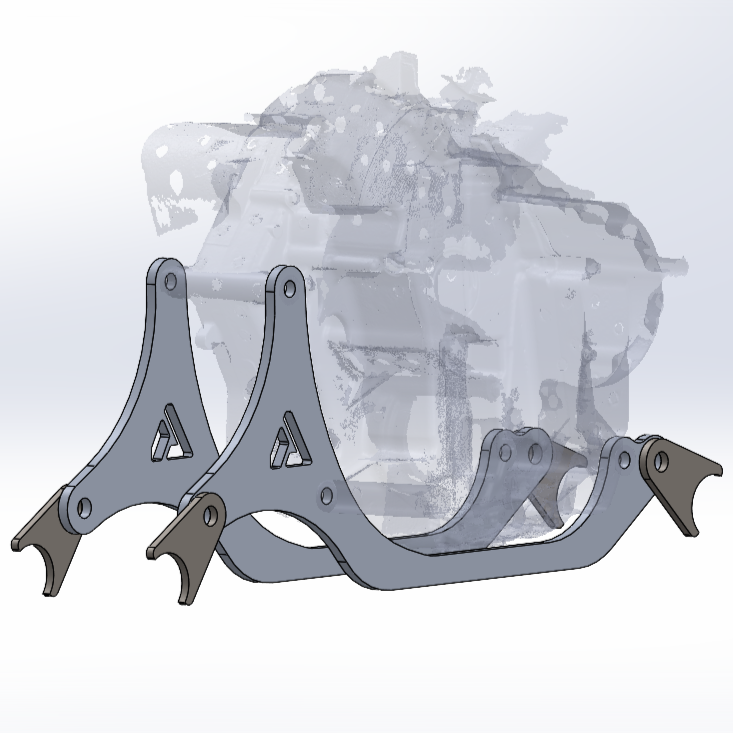

- 6061 billet aluminum transmission mounting plates
- Four chromoly weld-on mounting tabs
Installation Notes
- Tabs must be welded to the factory frame—professional welding and fabrication recommended.
- Vehicle must be properly supported and squared before welding to ensure correct alignment.
Applications and Fitment
Choose your exact vehicle to check the published compatibility rules and conditions.
Contact AVID Support about fitment- Approved application
- Yamaha YXZ1000R · 2023-2024 · MT EPS Std
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2021 · SS Se3 Cal
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2021-2022 · MT Std
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2017 · SS
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2021 · SS Se2
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2016 · Eps-Se
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2017 · EPS SE
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2017 · SS SE
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2025 · Mt EPS
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2023-2024 · SS EPS XT-R
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2021-2022 · SS Std
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2021 · SS Se1
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2023-2024 · SS EPS Std
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2022 · SS XT-R
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2025 · SS XT-R EPS
- Configuration
- Select your exact vehicle to check the retained application restrictions.
- Approved application
- Yamaha YXZ1000R · 2025 · SS EPS
- Configuration
- Select your exact vehicle to check the retained application restrictions.
Specifications
- Material
- Chromoly (4140/4130) and 6061 Billet
- Complete kit
- Yes
