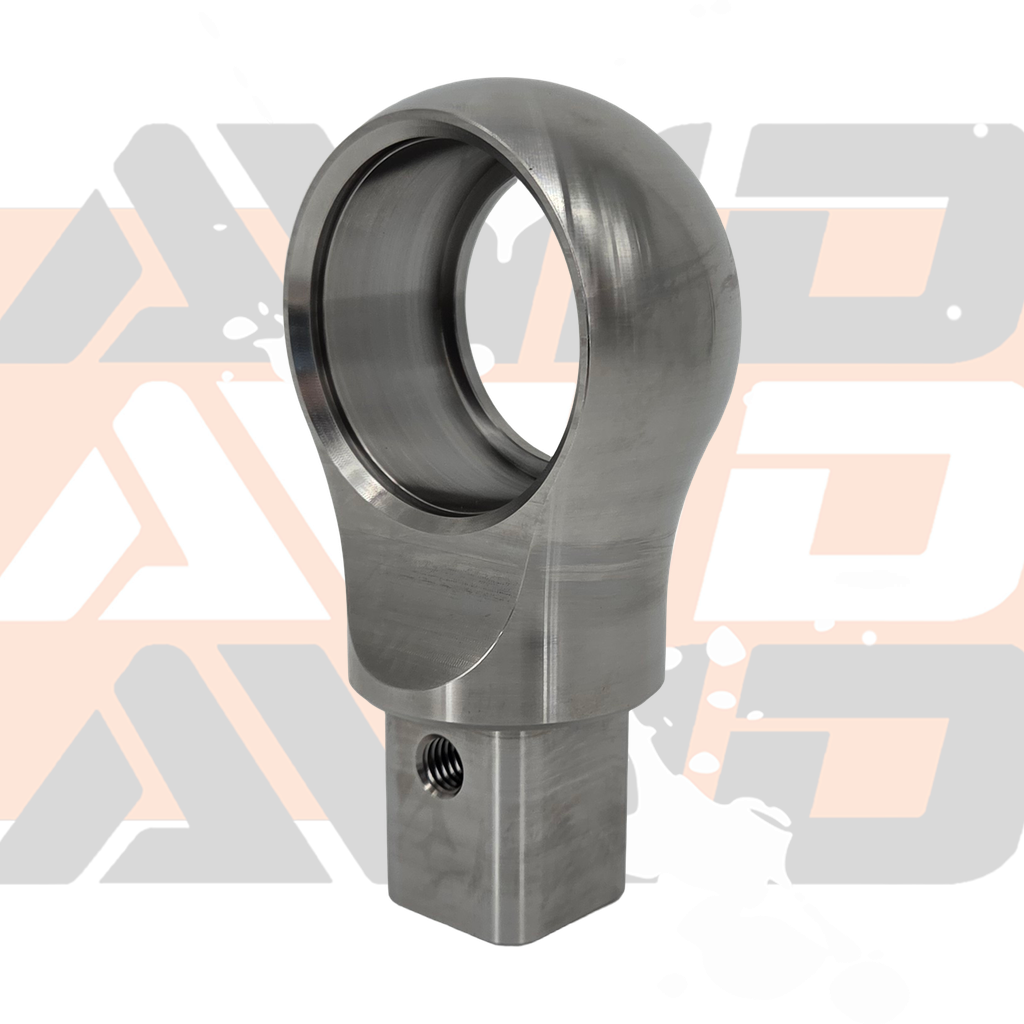

AVID Racing 1" Stem Cup, Bolt In — Component Detail — AVID-UBC16-01_03 [AVID:42fe2dd3-6911-4c3e-822e-9760018272e9]

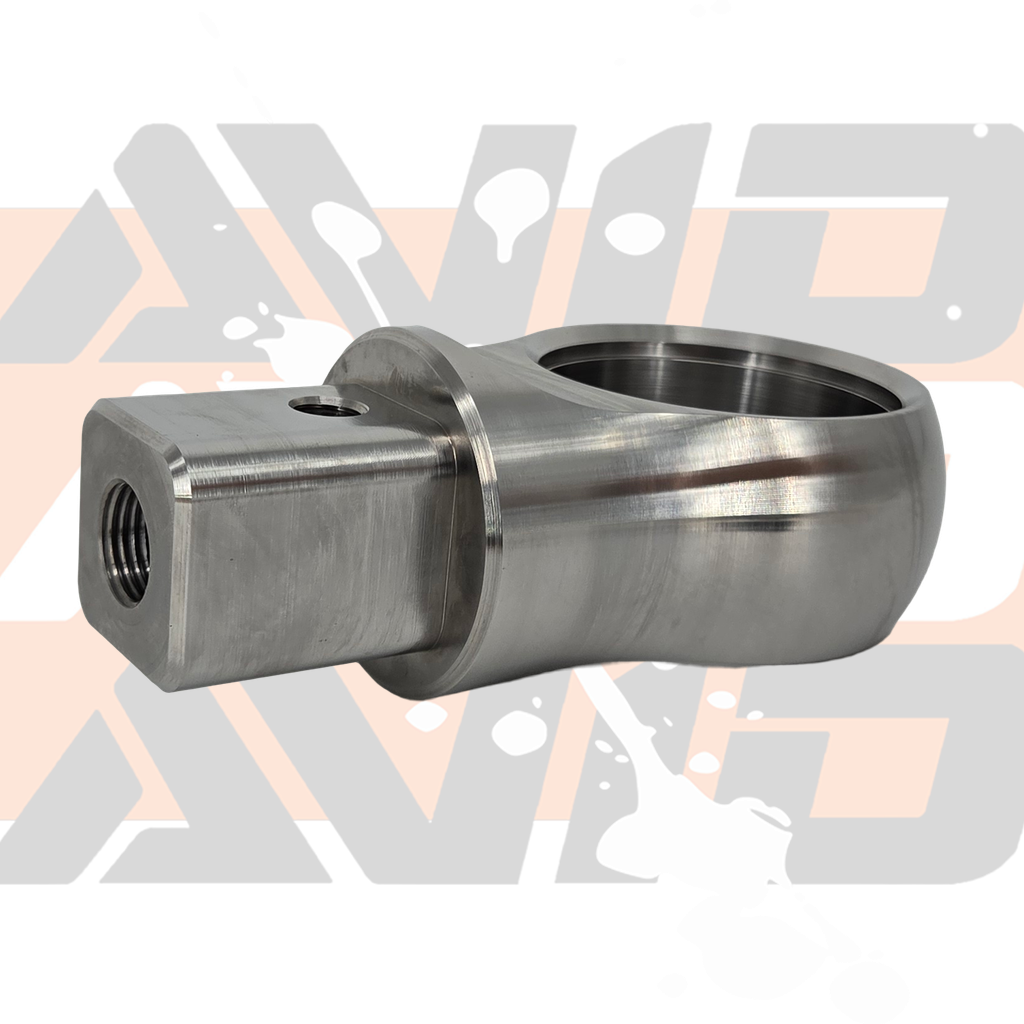

AVID Racing 1" Stem Cup, Bolt In — Component Detail — AVID-UBC16-01_04 [AVID:2fa2cc03-96f2-4fa5-a8ee-21f3112c1621]

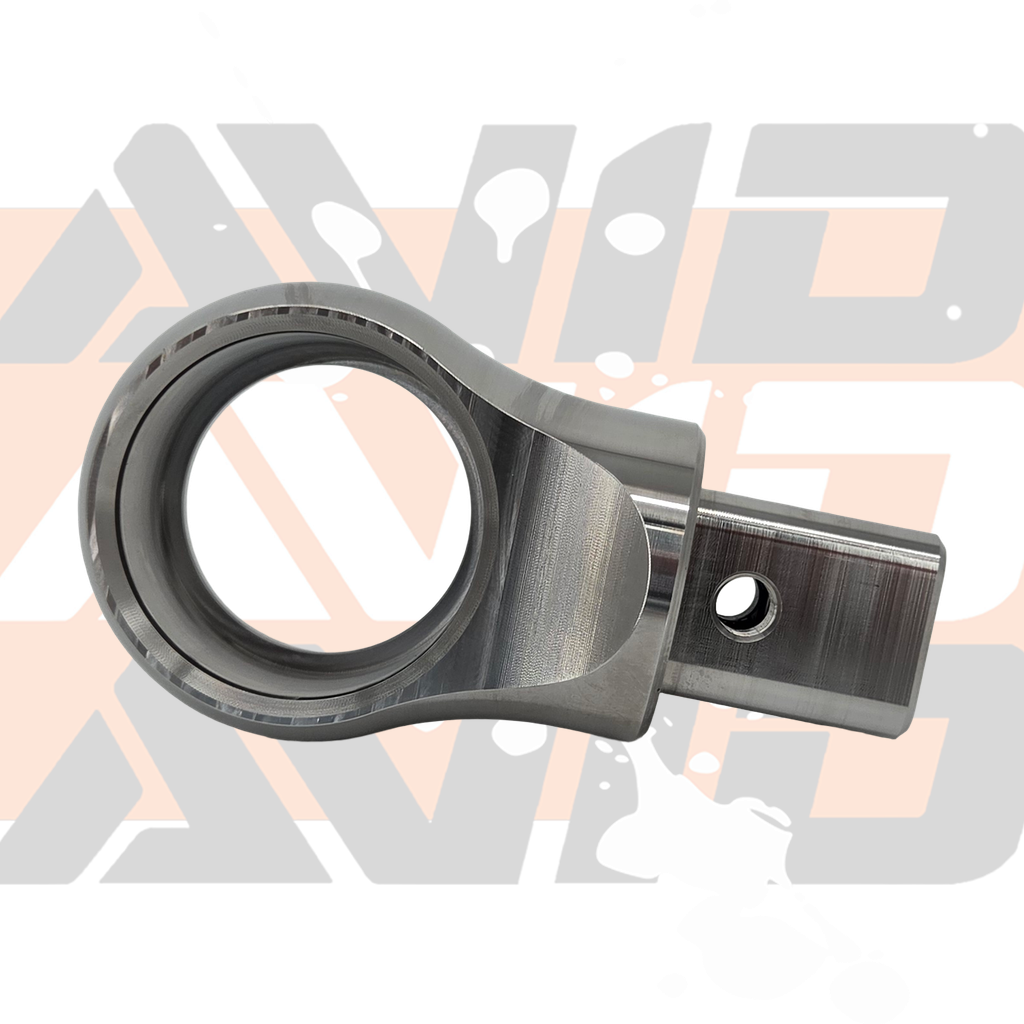

AVID Racing 1" Stem Cup, Bolt In — Component Detail — AVID-UBC16-01_05 [AVID:e519be25-ab1c-4d21-9a9b-2b9a77d52626]

Technical reference component

Back to Fabrication Components

17-4 Stainless Uniball Stem Cup, 1", Bolt-In

AVID Racing Uniball Cup SKU AVID-UBC16-01

Purchase options

Choose the exact part

Specifications

Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.

Match every listed specification. Verify dimensions, material, intended use, and mating components before purchase.
$115.00

Available to order

Total $115.00 Current selection

Match every listed specification and complete each required selection before adding this part to your cart.

Planning this vehicle build? Save this exact variant to a vehicle in My AVID Garage and track its public price over time.
This records product interest only. It does not reserve inventory, place an order, or begin a payment plan.
My AVID Garage

Save to Planned Build

17-4 Stainless Uniball Stem Cup, 1", Bolt-In | AVID Racing

Loading your Garage…
Contact AVID Support about this product

Technical reference

Core specifications

Use these values to match the part to the assembly.

Component type
Stem Cup
Material
Stainless Steel
Material grade
17-4 stainless steel
Bearing bore (in)
1.0
Bearing outside diameter (in)
2.125
Bearing width (in)
1.375
Mounting thread
M16x1.5
Cross-hole thread
M10x1.5
Bearing series
WSSX, WPB
Compatible bearing SKUs
AVID-WPB16T
Retention
Snap ring / retaining ring
Contact AVID Support before ordering if any value is unclear

Product information

Details when you need them.

Review the product description, exact dimensions, documents, and technical support.

Overview and included items

We use this bolt-in uniball stem cup in our billet control arms and other custom assemblies. Its threaded mounting design also gives you a bearing mount for your own custom build. We machine it from 17-4 stainless steel with an M16 x 1.5 stem thread and M10 x 1.5 threaded cross holes.

Key Specs

  • Bearing bore: 1"
  • Stem thread: M16 x 1.5
  • Cross-hole threads: M10 x 1.5
  • Mounting style: bolt-in
  • Material: 17-4 stainless steel
  • Finish: machined

Compatible Bearing

Compatible with a 1" WSSX or WPB series uniball bearing with a 2.125" outside diameter. Our matching part number is AVID-WPB16T.

What's Included

  • (1) Uniball stem cup
  • Bearing sold separately
