Back to Fabrication Components4140 Chromoly Uniball Stem Cup, 1" Bearing, 1.75" x .120" Tube
Purchase options
Choose the exact part
Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.
Technical reference
Core specifications
Use these values to match the part to the assembly.
- Component type
- Stem Cup
- Material
- Chromoly (4140/4130)
- Material grade
- 4140 chromoly
- Bearing bore (in)
- 1.0
- Bearing outside diameter (in)
- 2.125
- Bearing width (in)
- 1.375
- Tube size
- 1.75" OD x .120" wall
- Bearing series
- WSSX, WPB
- Compatible bearing SKUs
- AVID-WPB16T
- Retention
- Snap ring / retaining ring
Product information
Details when you need them.
Review the product description, exact dimensions, documents, and technical support.
Overview and included items

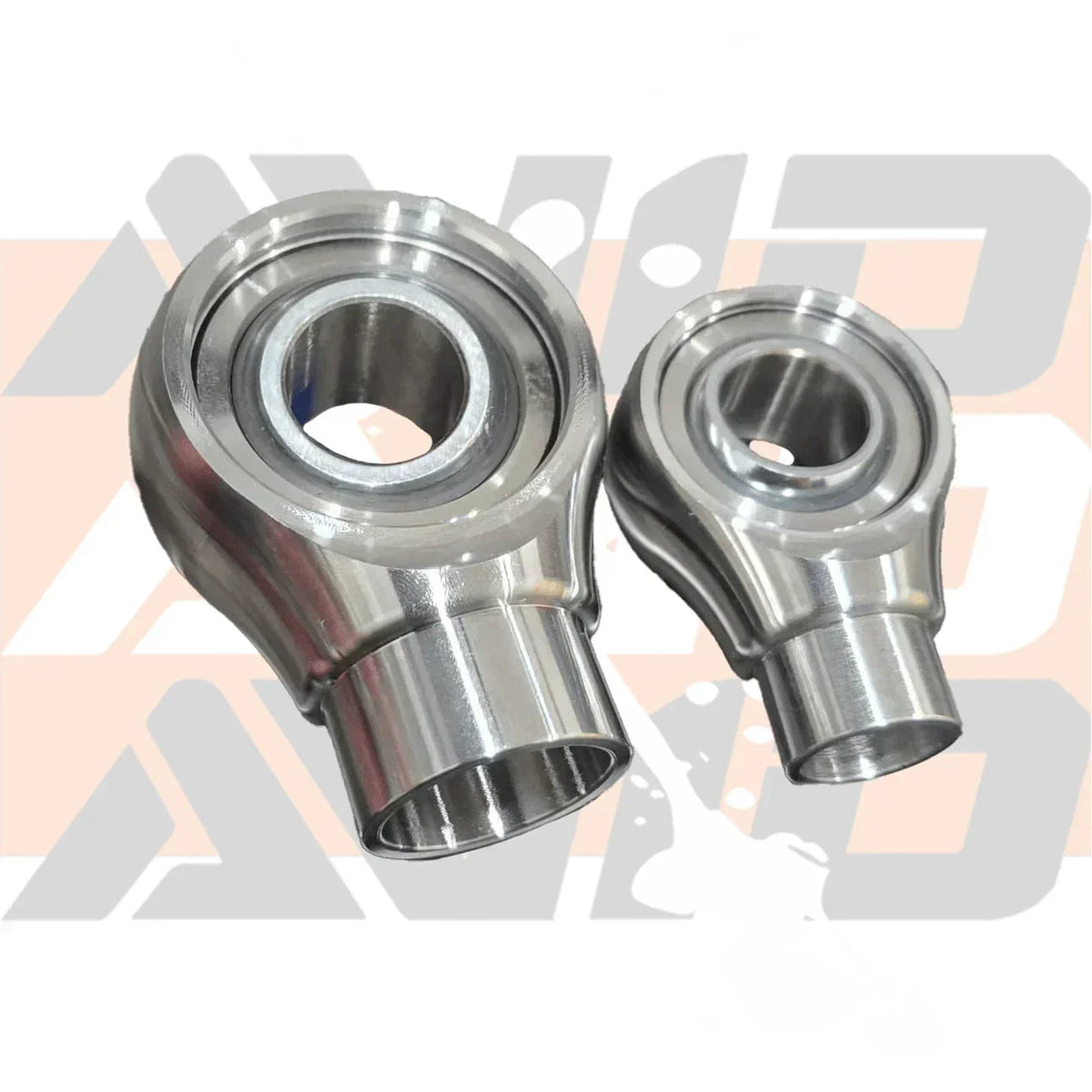

Our 1" uniball stem cup provides a bearing mount for a fabricated tube assembly. It is made from 4140 chromoly and sized for 1.75" OD tubing with a .120" wall.
Key Specs
- Bearing size: 1"
- Tube fit: 1.75" OD x .120" wall
- Material: 4140 chromoly
- Finish: machined
Compatible Bearing
Compatible with a WSSX or WPB series uniball bearing in the 1" bore size with a 2.125" outside diameter. Our matching AVID part number is AVID-WPB16T.
What's Included
- (1) Uniball stem cup
- Bearing sold separately
Downloads and instructions
Installation and Requirements
Match every listed dimension, interface, material, and mating component before ordering.
