Polaris RZR Pro R LT80" Front Baja Long Travel Suspension Kit

Polaris Pro R LT80" Front Baja Suspension Kit

Introducing the AVID Racing Pro R 80" Front Baja Kit — the ultimate suspension upgrade for the Polaris RZR Pro R. Developed from years of racing and testing, this complete bolt-on front system brings true race geometry to the production platform. Every angle, pivot, and uniball has been corrected to deliver unparalleled strength, precision, and control.

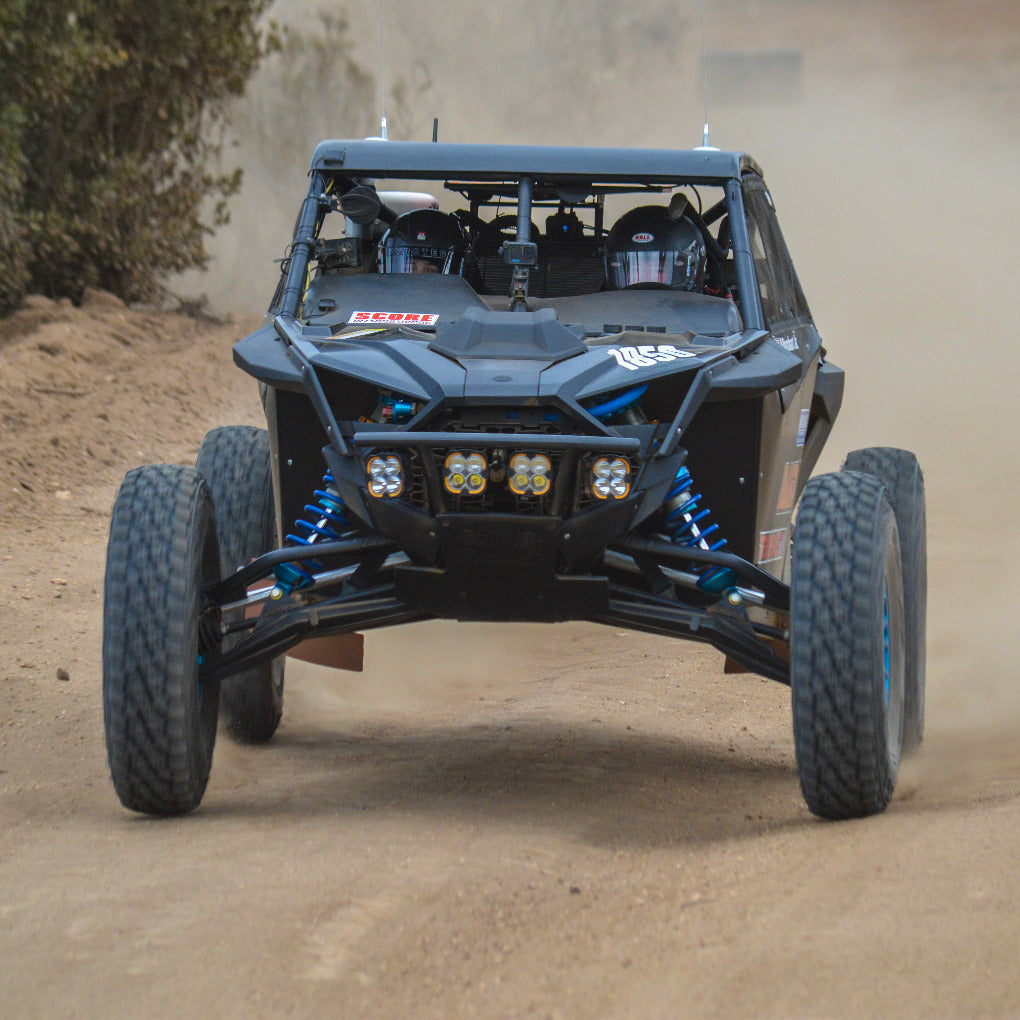

The AVID difference is in the details. We set out to perfect geometry and deliver a bulletproof race setup—not just another factory-style replacement. Starting with the most noticeable change, the front track width has been widened to 80 inches for maximum stability. KPI and scrub radius have been corrected, bringing bump steer down to under 1/8”, virtually eliminating steering deflection through the suspension cycle. Caster now features a base of +7°

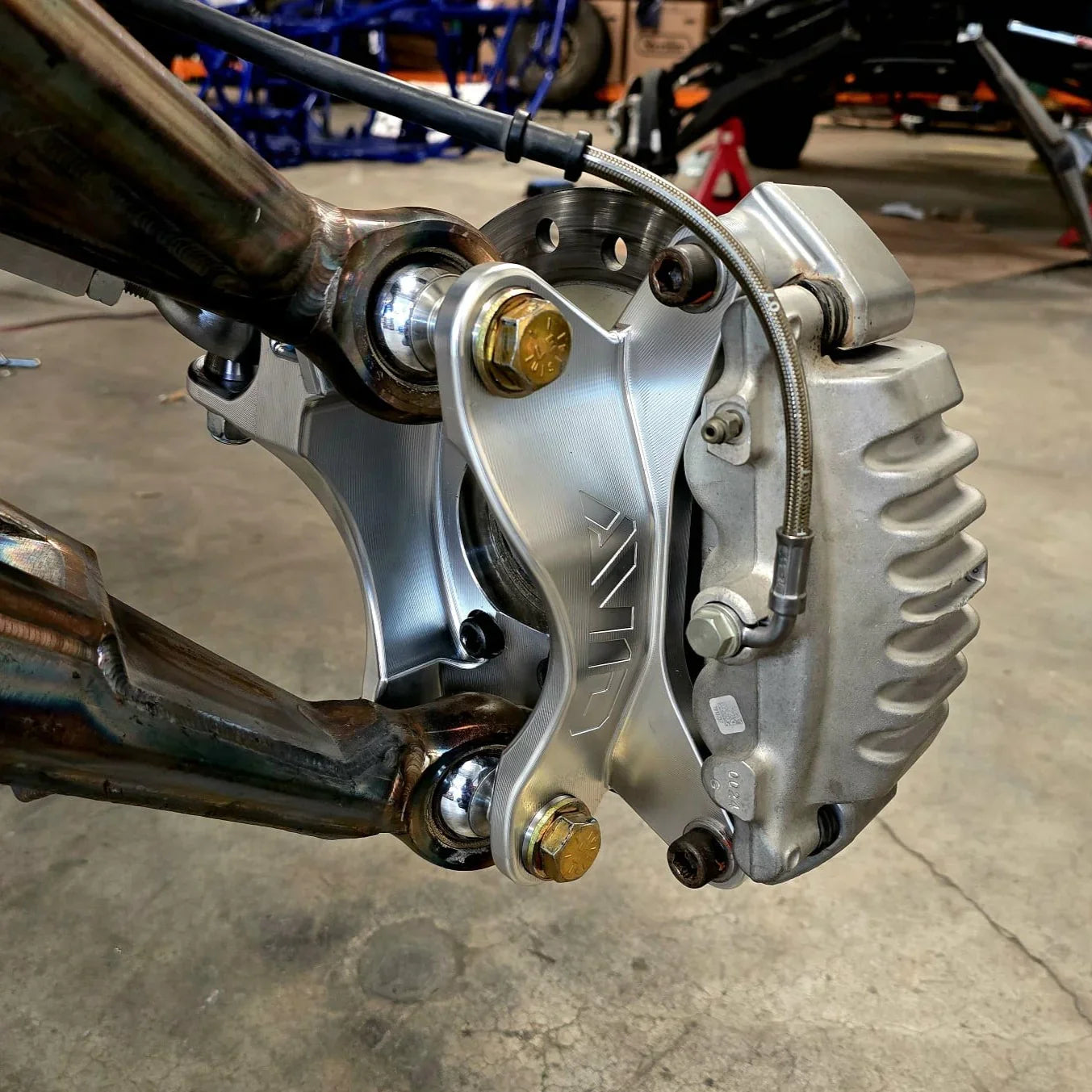

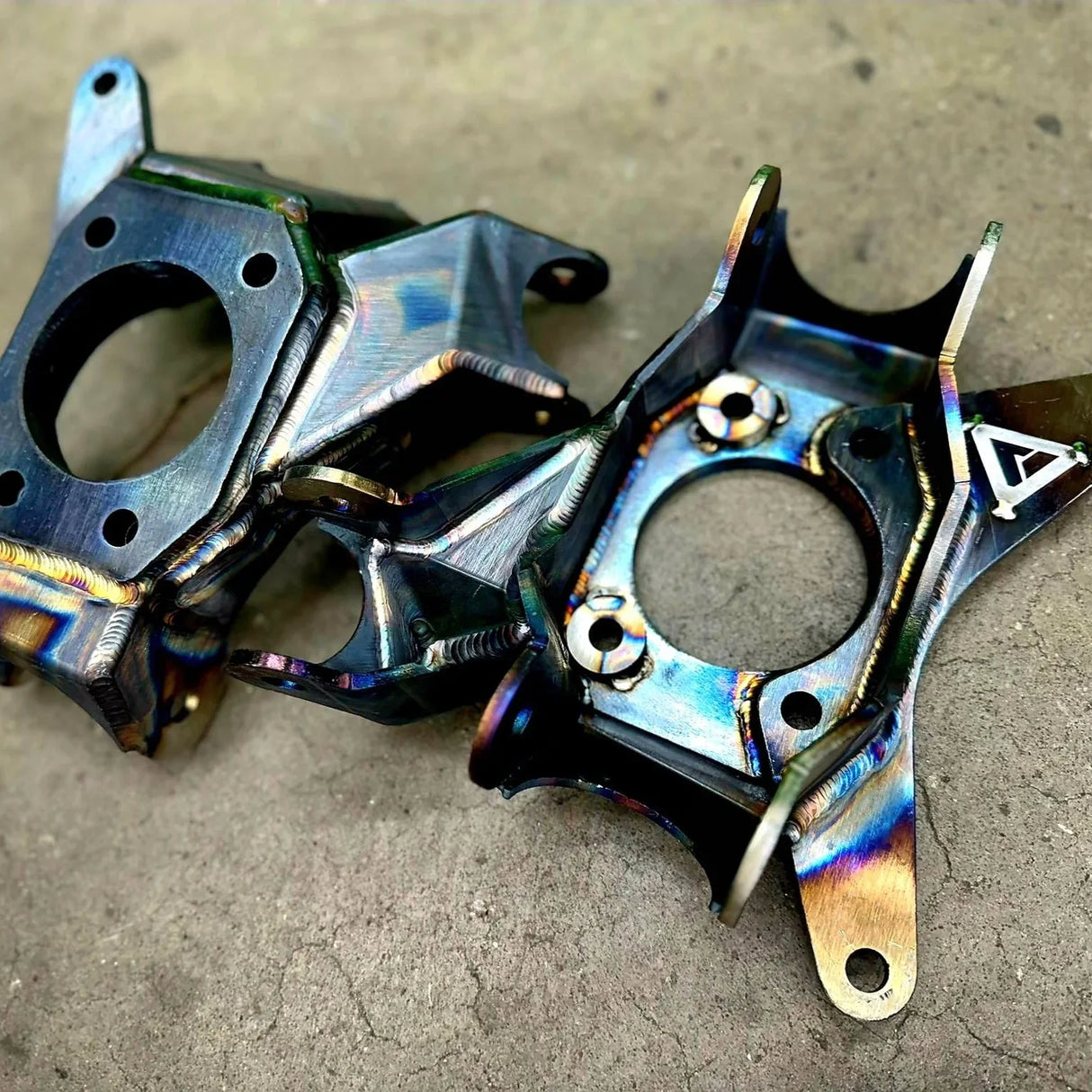

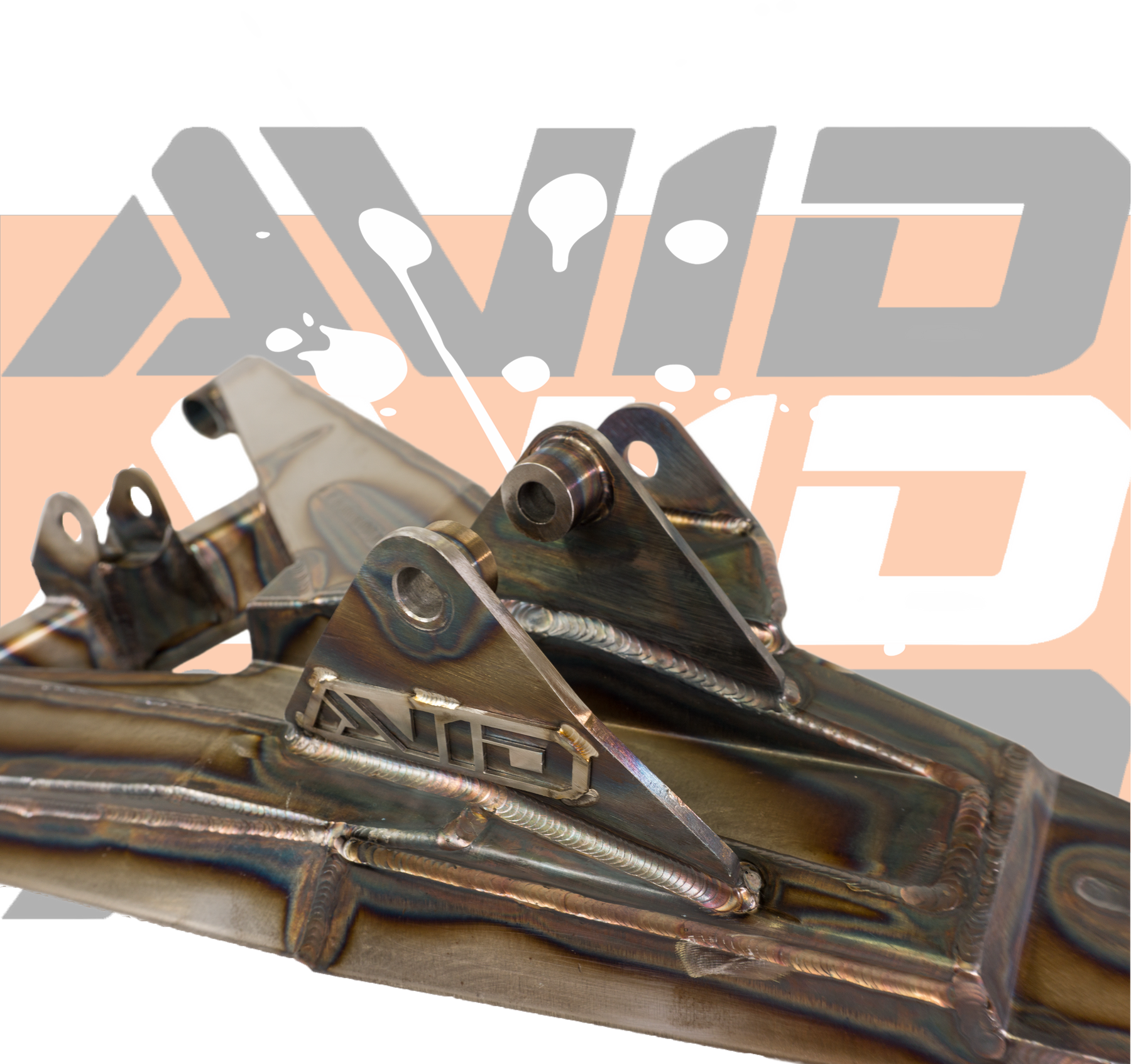

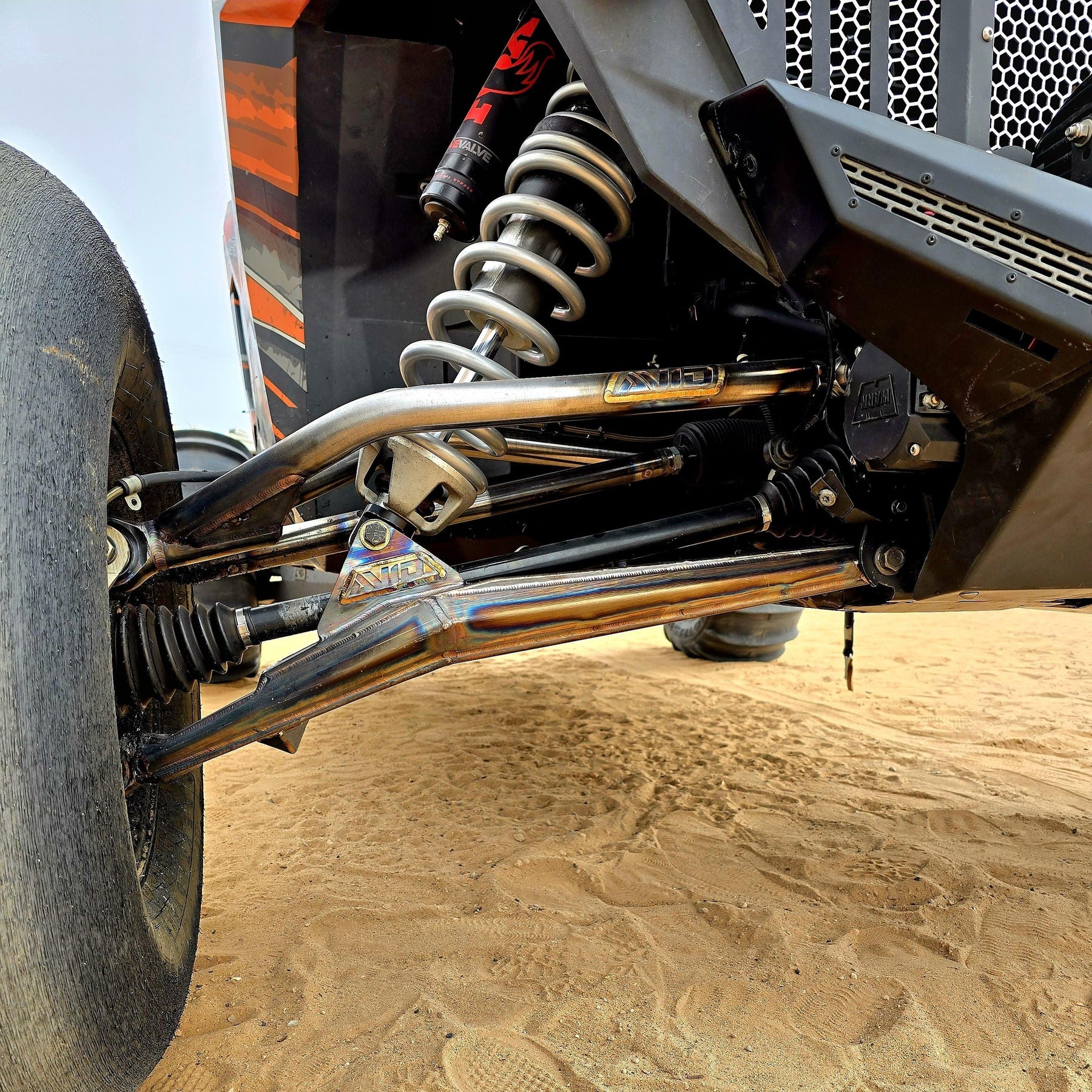

All ball joints have been replaced with 1” vertically mounted uniballs and paired with a new 7075 billet spindle utilizing a true double-shear configuration (Chromoly spindle option available by request). Each arm is fabricated from 4130 Chromoly plate and TIG welded to perfection, creating a system built to handle the harshest racing environments.

What This Means on the Track

• Improved Steering Precision: Minimal bump steer and tighter geometry deliver a smoother, more controlled steering feel.
• High-Speed Stability: The car naturally tracks straight with less steering correction, especially in whoops and at race pace.
• Cornering Grip: Corrected camber and caster angles improve tire contact, increasing front-end bite in both sand and dirt.
• Race-Proven Strength: Double-shear mounting and Chromoly/TIG construction eliminate flex and deflection under load.

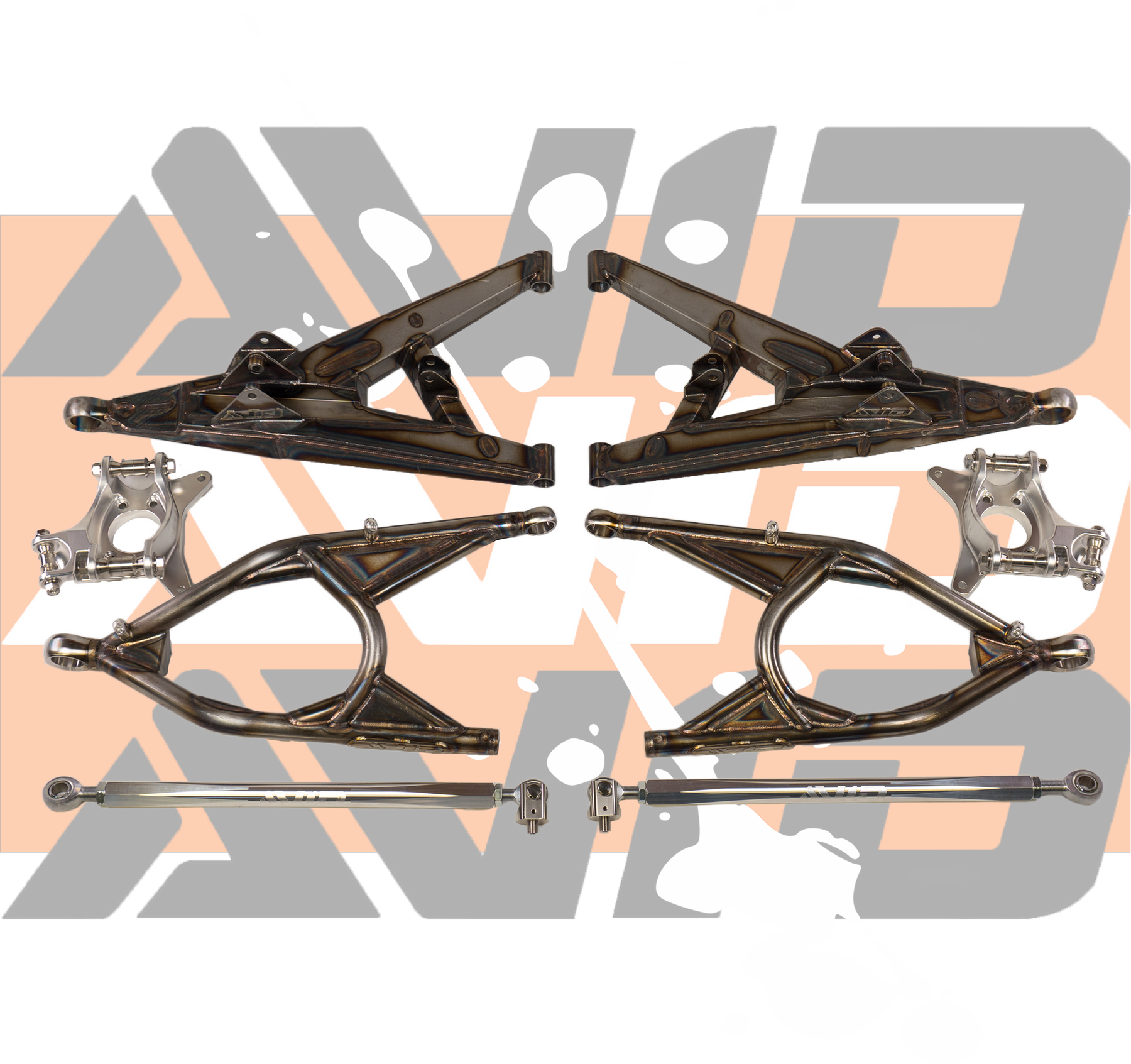

Included in Base Kit

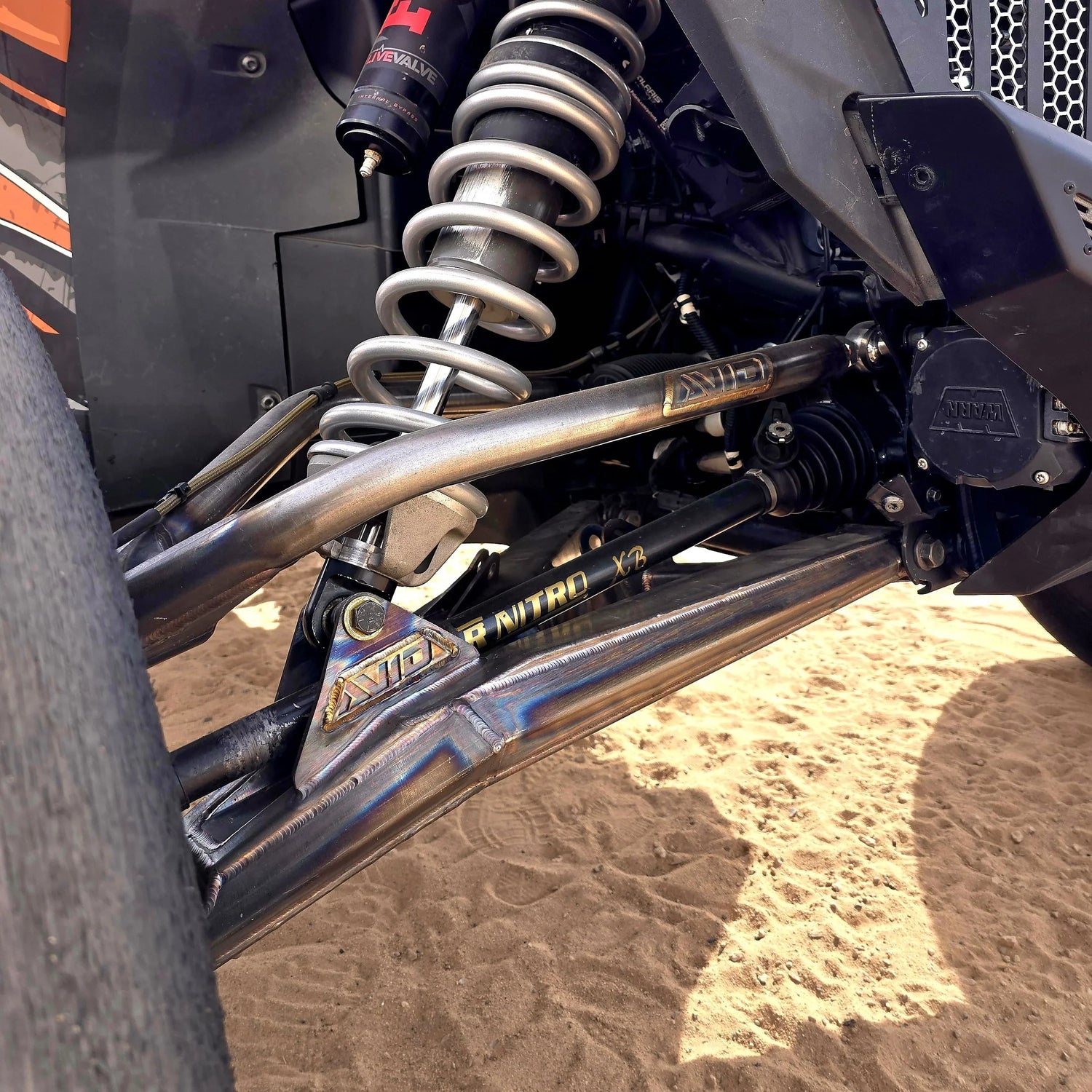

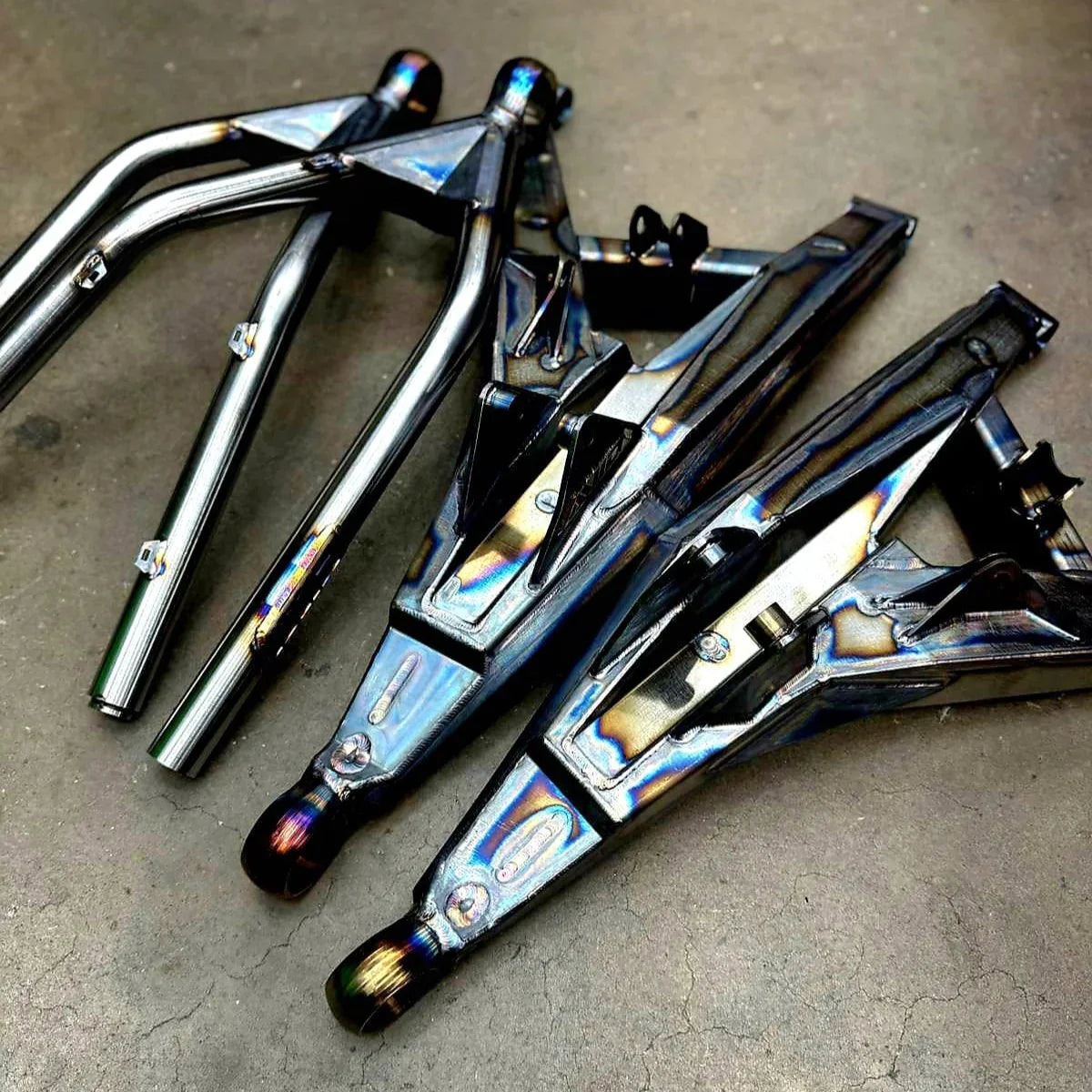

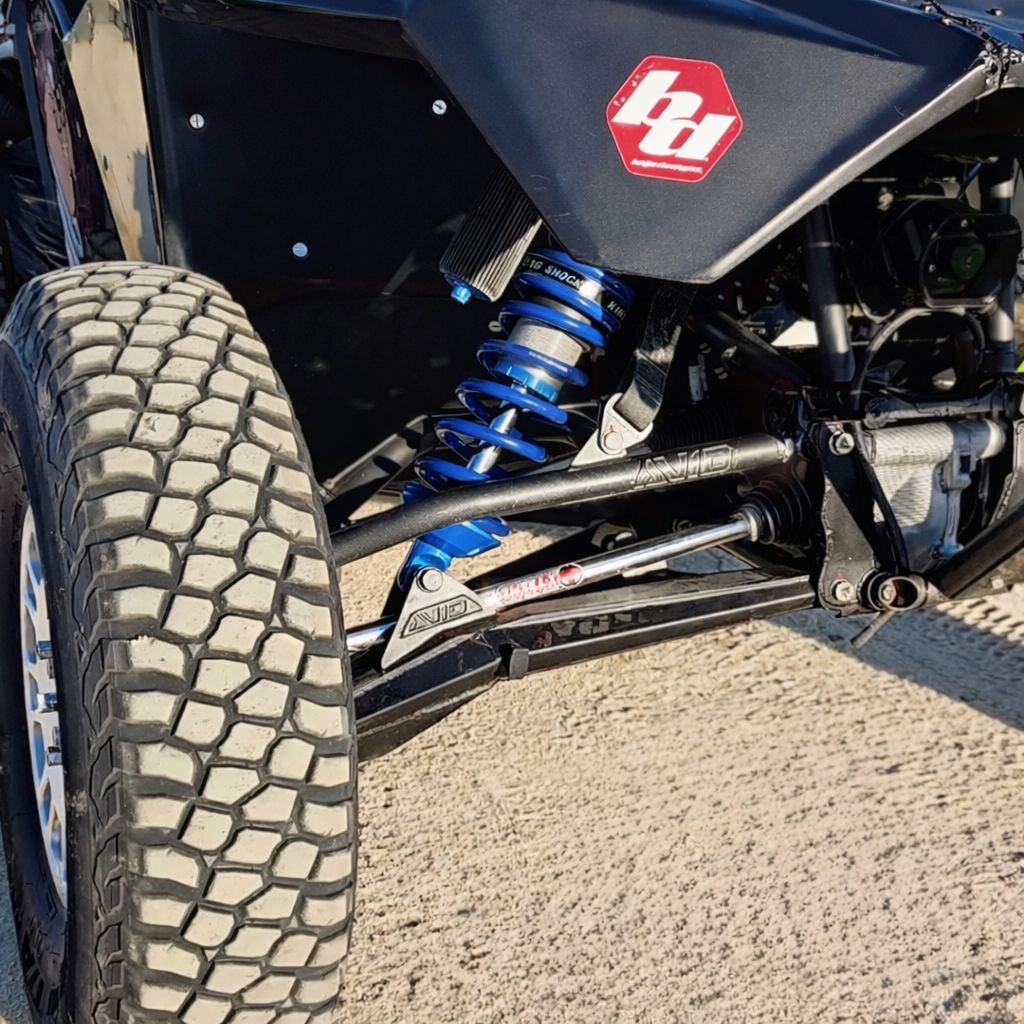

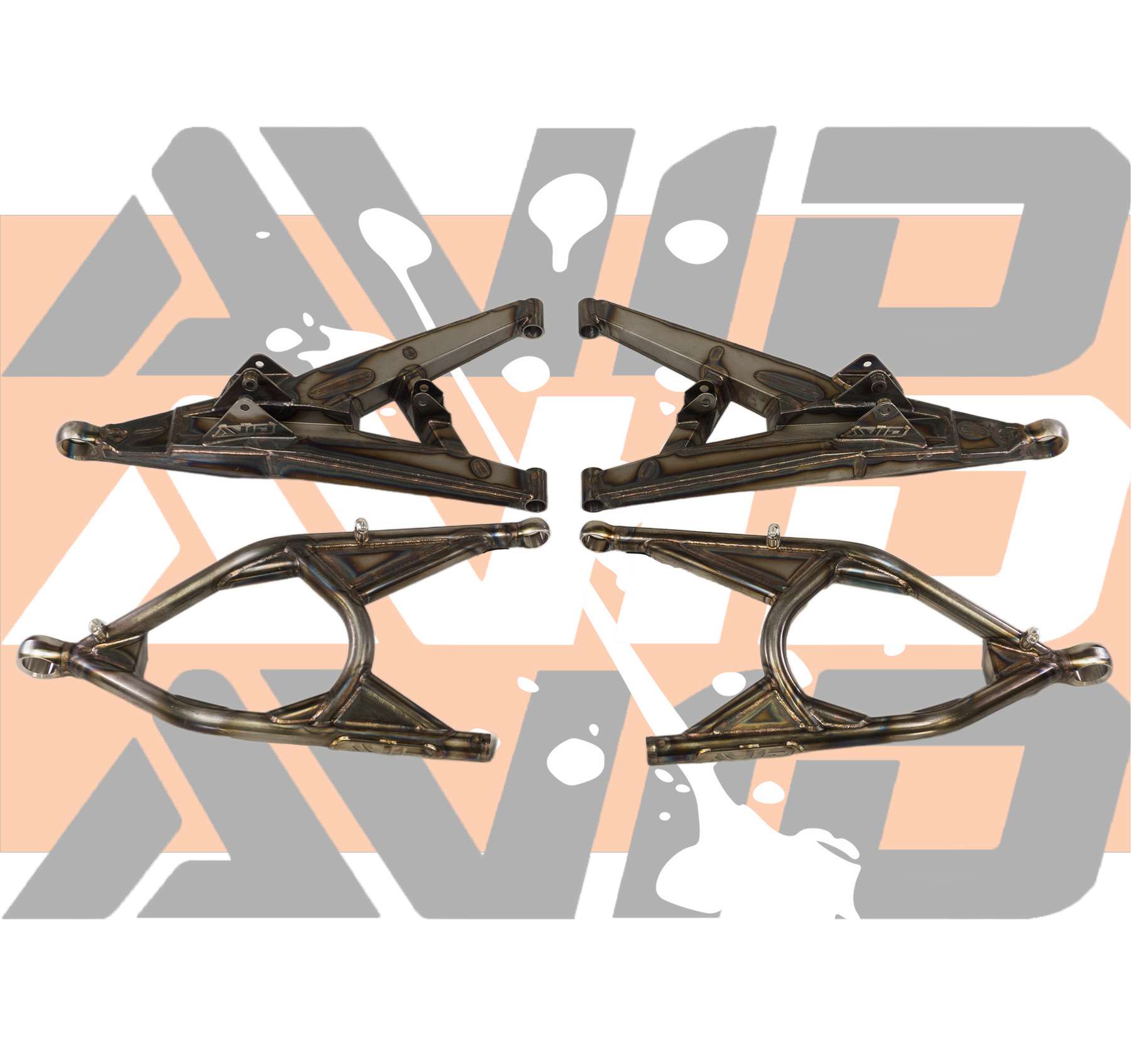

• Complete front upper and lower control arm set

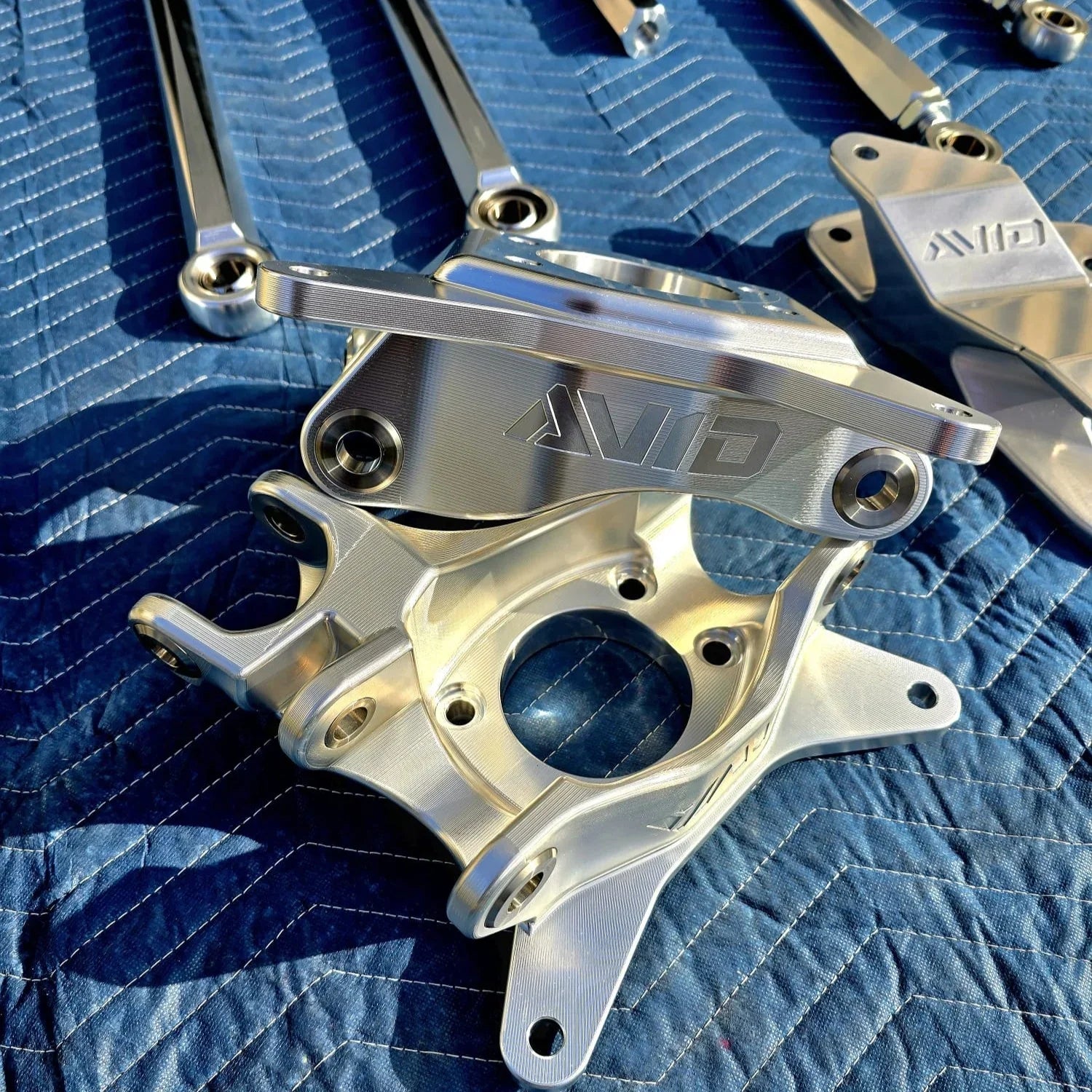

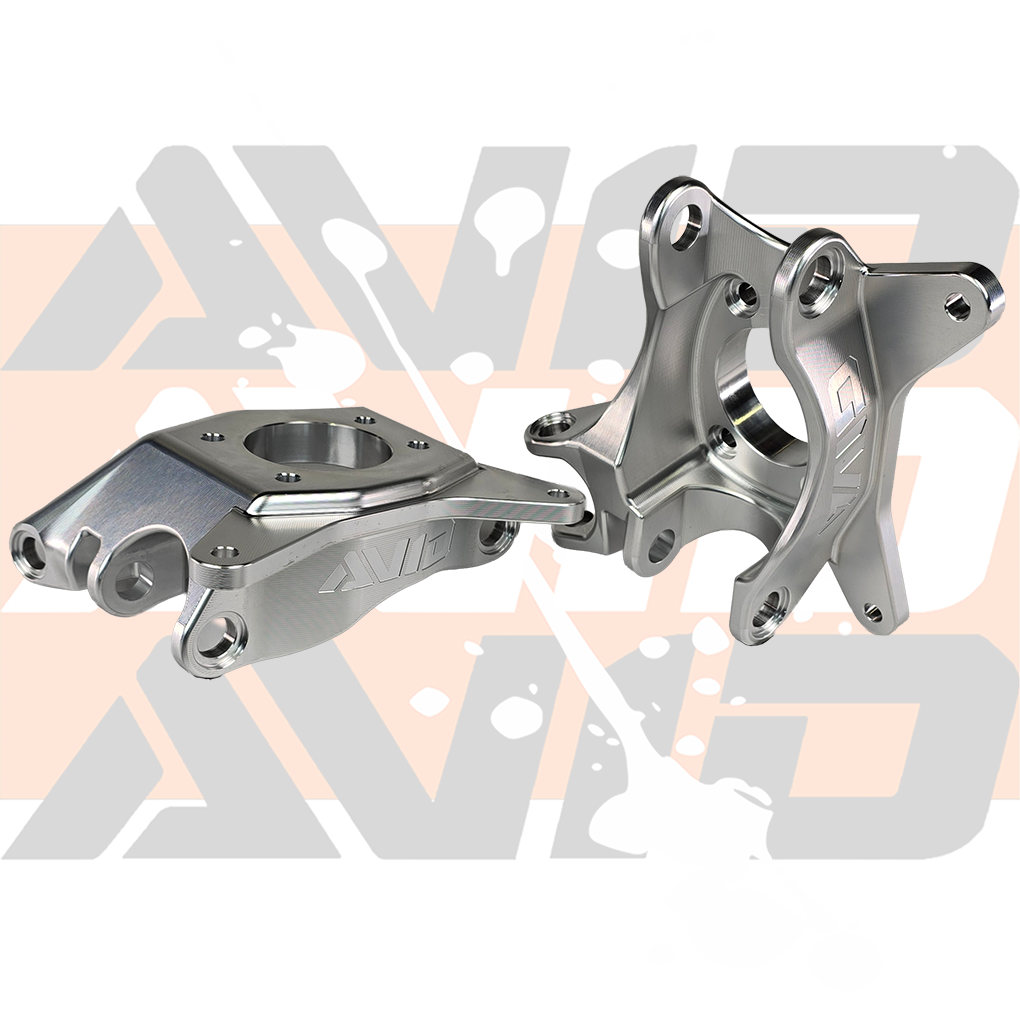

• 7075 billet race spindles

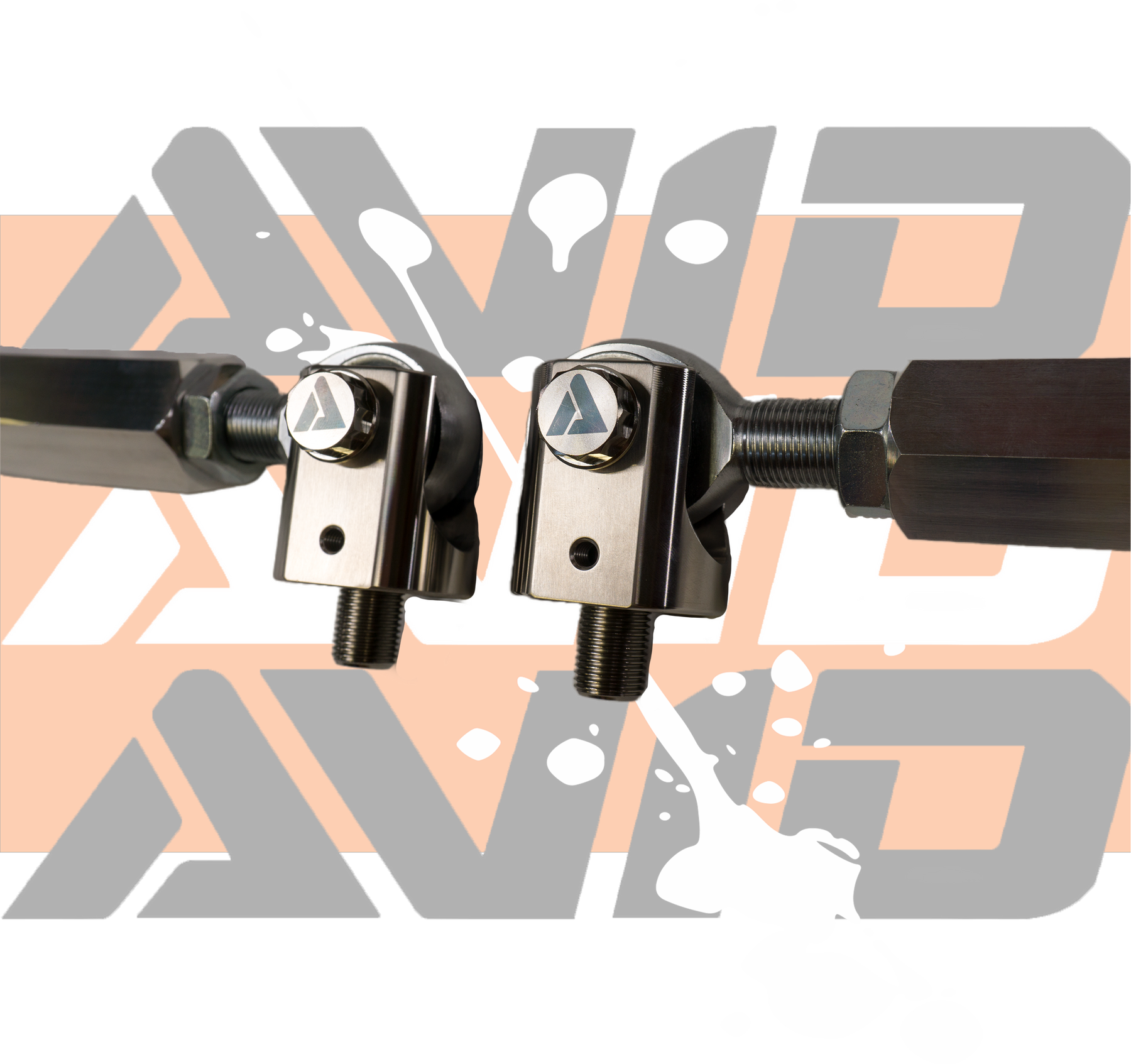

• 7075 billet tie rods
• All uniballs and rod ends
• All misalignments and bushings

Complete Your Kit

• Axles: Options available using Demon Xtreme HD or Turner axle assemblies for the required length and strength.
• Brake Lines: Extended front brake line kit available. Factory lines can be reused by swapping calipers (left to right).
• Shock Shafts: AVID’s upgraded 7/8” shock shaft replaces the factory 5/8” design for superior durability and Fox/ADS compatibility. Requires installation by Shock Talk or a qualified shock tuner.
• Limit Straps: 7075 billet bolt-on limit strap brackets available for perfect alignment with preinstalled strap tabs. Highly recommended to extend the life of shocks and suspension components.

Bottom Line: The Pro R LT80" Front Baja Kit is a complete geometry-corrected system engineered for high-speed control, stability, and race-level strength. If you want the most precise, race-proven front setup for your Pro R — this is it.
