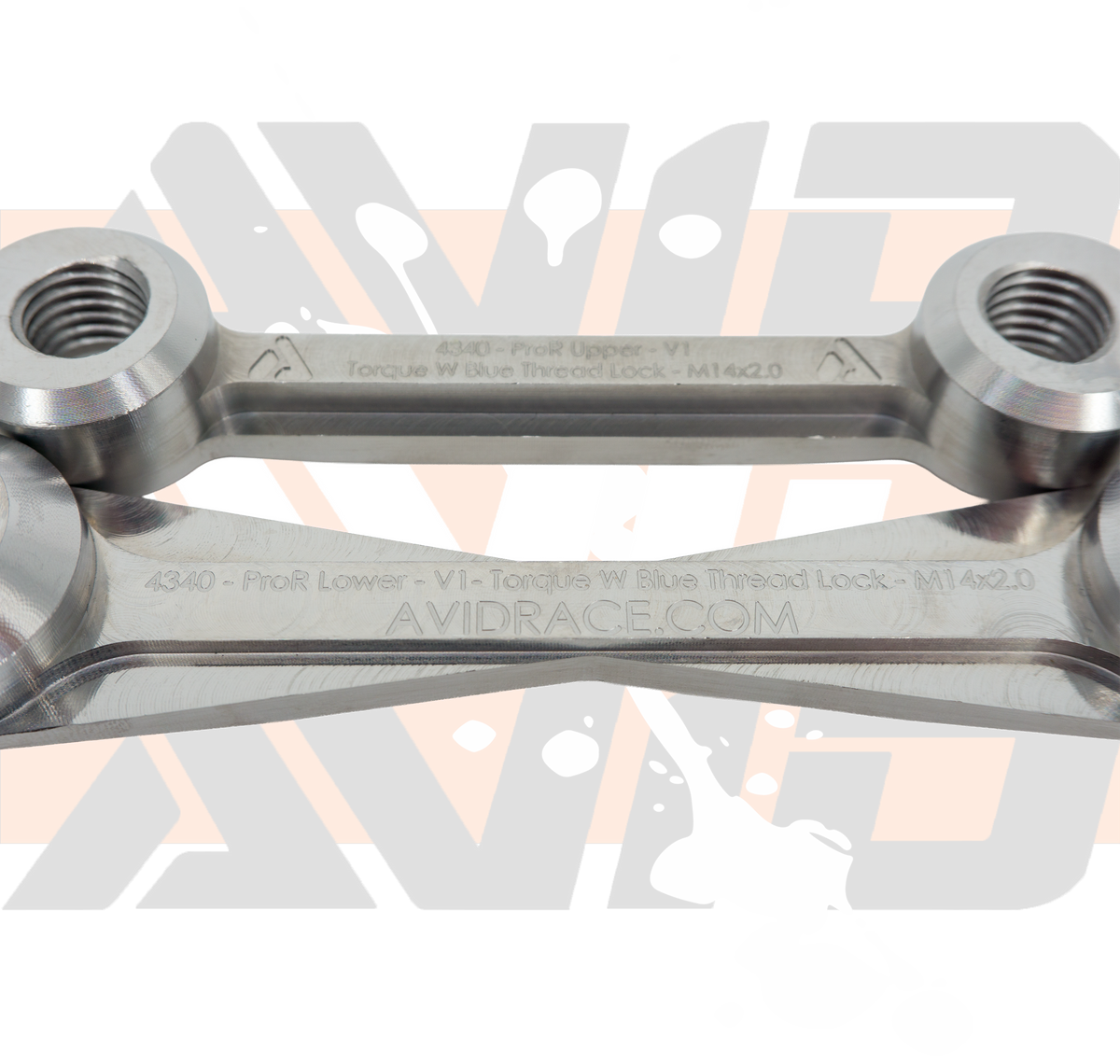

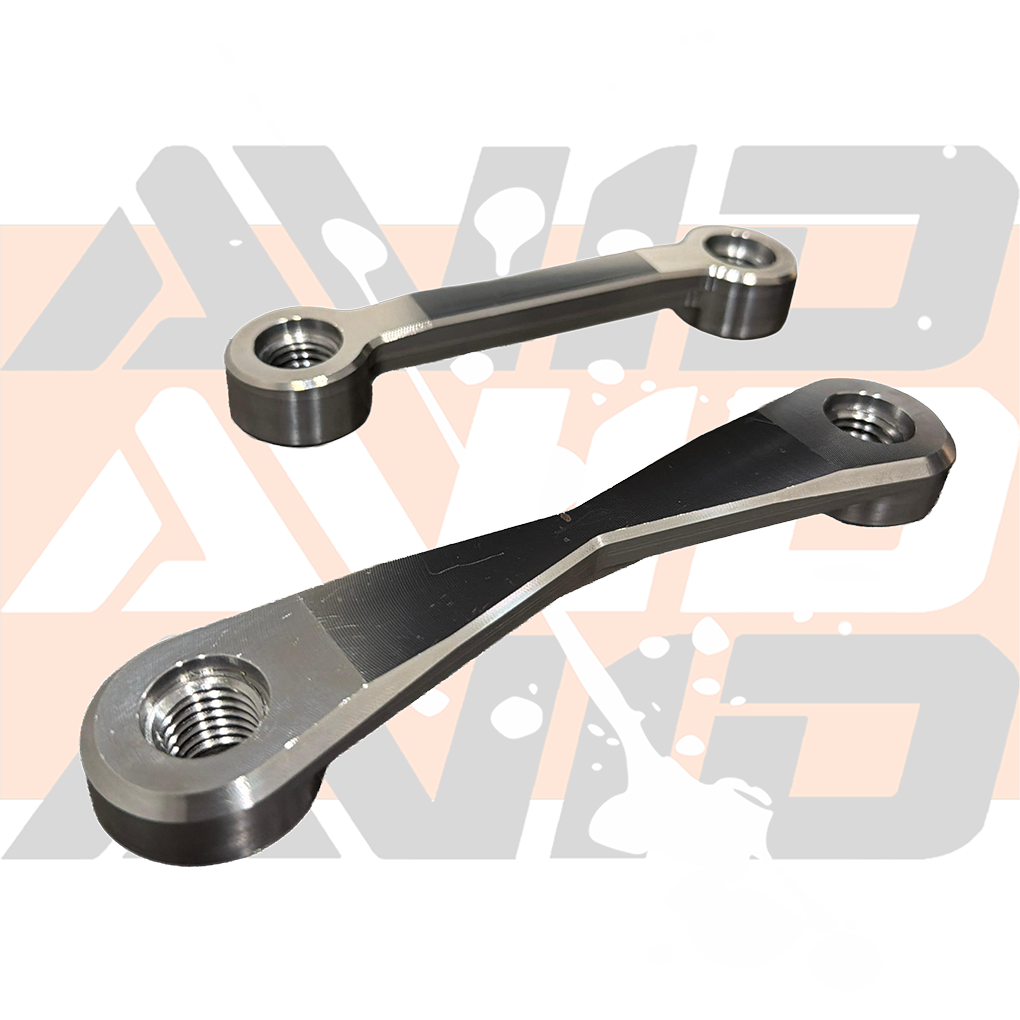

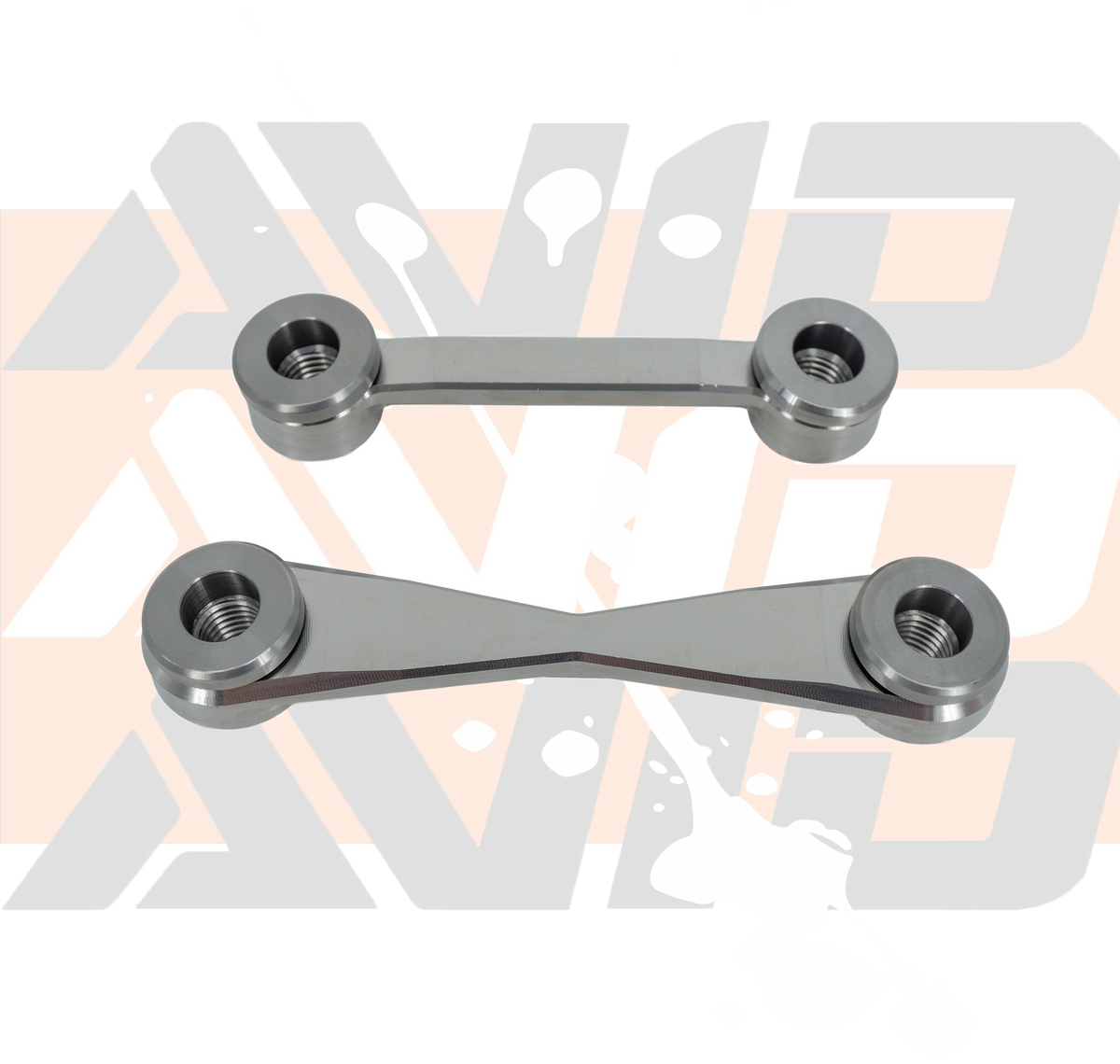

Polaris RZR Pro R Radius Rod Dog Bone Nut Retainer Support Kit
The AVID Racing Pro R Dog Bone Nut Retainer Support Kit is a direct factory replacement designed to strengthen the chassis side of the rear radius rod mounting area while making installation and service much easier. Machined from high-strength, hardened 4340 steel, this part delivers strength comparable to a Grade 10 bolt and replaces the need to fight a wrench on the back side of the factory hardware during assembly and maintenance.
More than just a nut retainer, the AVID Dog Bone also acts as a support structure between the chassis side radius rod bolts, helping spread load and reinforce the mounting area under hard use. Each kit includes a weld washer that allows the factory sheet metal to be sandwiched between the dog bone and the washer, tying everything together for a stronger, more rigid mounting point.
What This Means on the Car
- Easier Installation: Eliminates the need to hold a wrench behind the chassis side radius rod bolts, making installation faster and less frustrating.
- Easier Maintenance: Simplifies future disassembly and service work by keeping the nut captured and supported.
- Substantial Strength Increase: Hardened 4340 steel construction adds serious support between the radius rod bolts and helps reinforce the chassis mounting area.
- Improved Load Distribution: The included weld washer sandwiches the factory sheet metal and helps clamp the entire area together for greater rigidity and long-term durability.
Key Features
- Direct factory replacement for Polaris RZR Pro R chassis side radius rod hardware support
- Machined from hardened 4340 steel
- Strength comparable to a Grade 10 bolt
- Captures the nut so no wrench is needed behind the mount during installation
- Includes weld washer for added chassis reinforcement
- Designed for increased strength, easier installation, and easier service

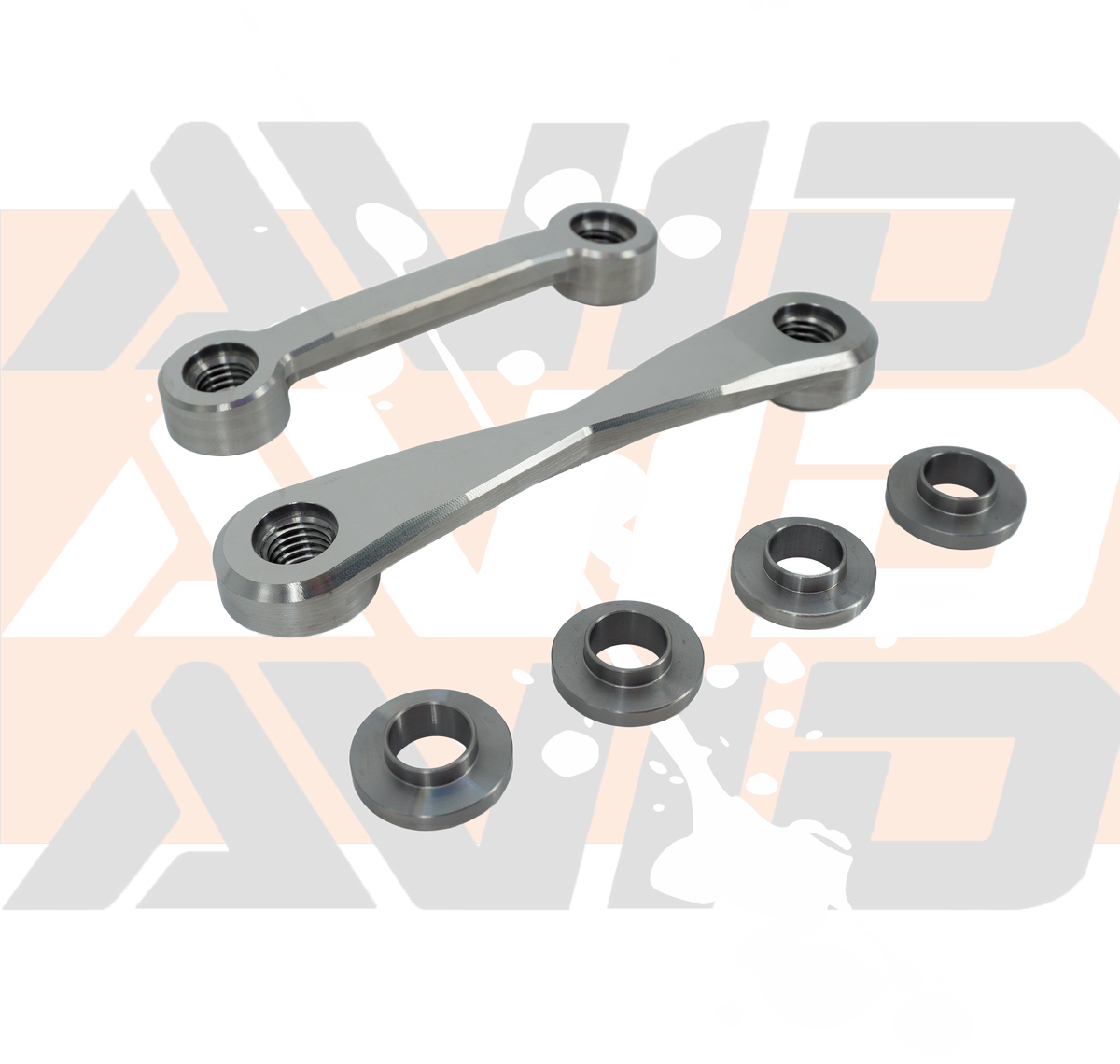

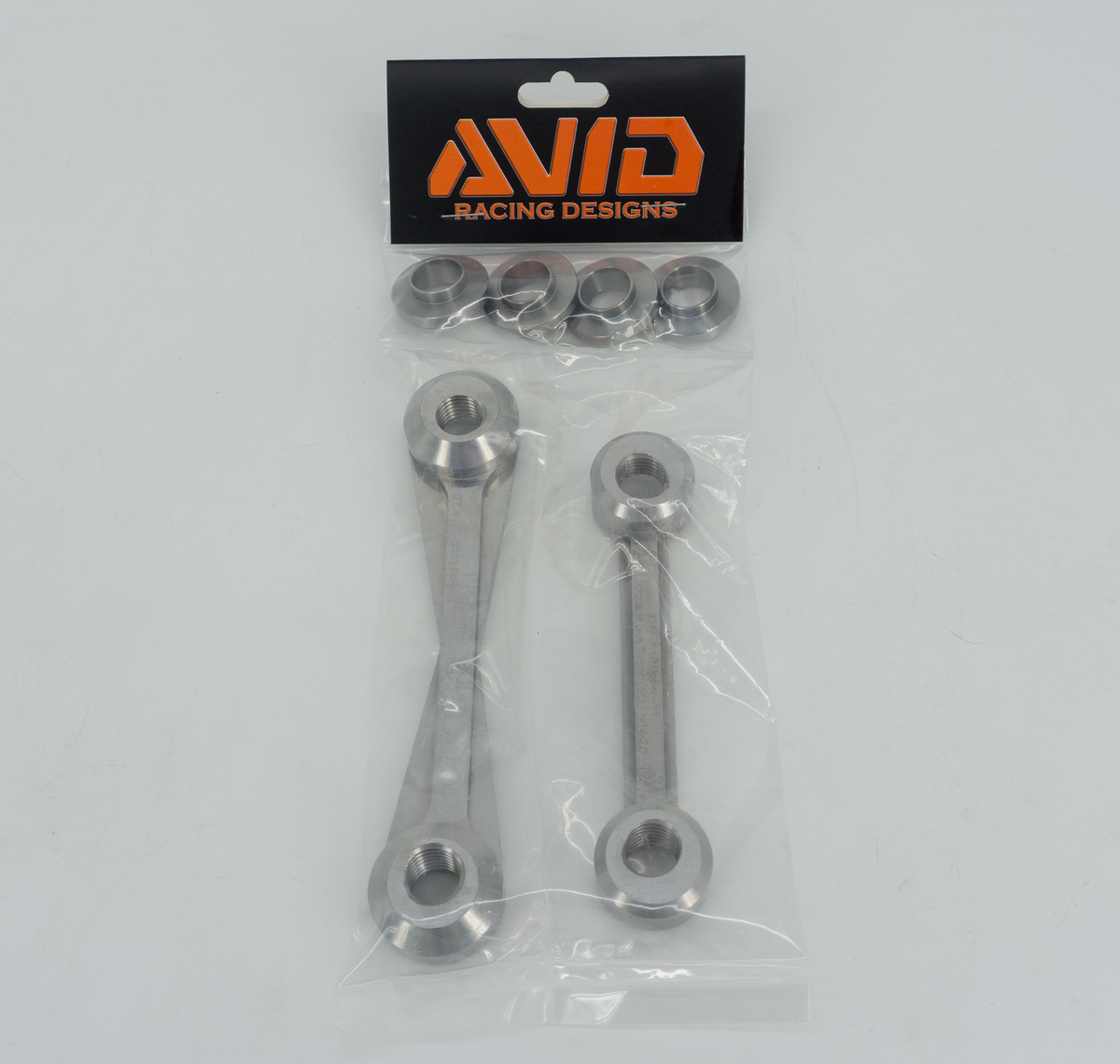

Included in Kit
- Upper and Lower AVID Racing Pro R Dog Bone nut retainer support
- 4 Matching weld washers
Bottom Line: The AVID Racing Pro R Dog Bone Nut Retainer Support Kit is a simple upgrade that makes a big difference. It strengthens the chassis side radius rod mount, makes installation easier, and improves long-term serviceability for any Pro R that gets driven hard.
Applications and Fitment
This item is listed for RZR Pro R and RZR Pro S. The complete year and trim details have not yet been published.
Contact AVID Support about fitmentSpecifications
- Material
- Chromoly (4340)
- Thread
- M14x2.0
- Complete kit
- Yes
Downloads and instructions
Installation and Requirements
The complete fitment record is still being reviewed. Confirm the listed application before ordering or ask AVID for help.
