JMXL16T 3-Piece Chromoly Rod End - 1-1/4-12 LH Thread

AVID Racing Rod End SKU AVID-JMXL16T

Purchase options

Choose the replacement part

Service part
$59.50

Currently unavailable

Match every listed specification. Verify dimensions, material, intended use, and mating components before purchase.
Total $59.50 Current selection

Match every listed specification and complete each required selection before adding this part to your cart.

Planning this vehicle build? Save this exact variant to a vehicle in My AVID Garage and track its public price over time.
This records product interest only. It does not reserve inventory, place an order, or begin a payment plan.
My AVID Garage

Save to Planned Build

JMXL16T 3-Piece Chromoly Rod End - 1-1/4-12 LH Thread | AVID Racing

Loading your Garage…
Ask AVID about this product

Replacement reference

Core specifications

Compare these values with the removed part and its mating components.

Material
Chromoly (4140/4130)
Thread
1-1/4-12
Inner diameter
1"
Outer diameter
2.950"
Width
1.375 in
Length
4.5 in
Thread length
2.5 in
Finish
zinc-plated chromate body and race; hard-chrome-plated ball
Thread hand
Left-hand
Ask AVID before ordering if any value is unclear

Product information

Details when you need them.

Review replacement notes, specifications, documents, and service support.

Overview and included items

JMXL16T 3-Piece Chromoly Rod End - 1-1/4-12 LH Thread | AVID Racing

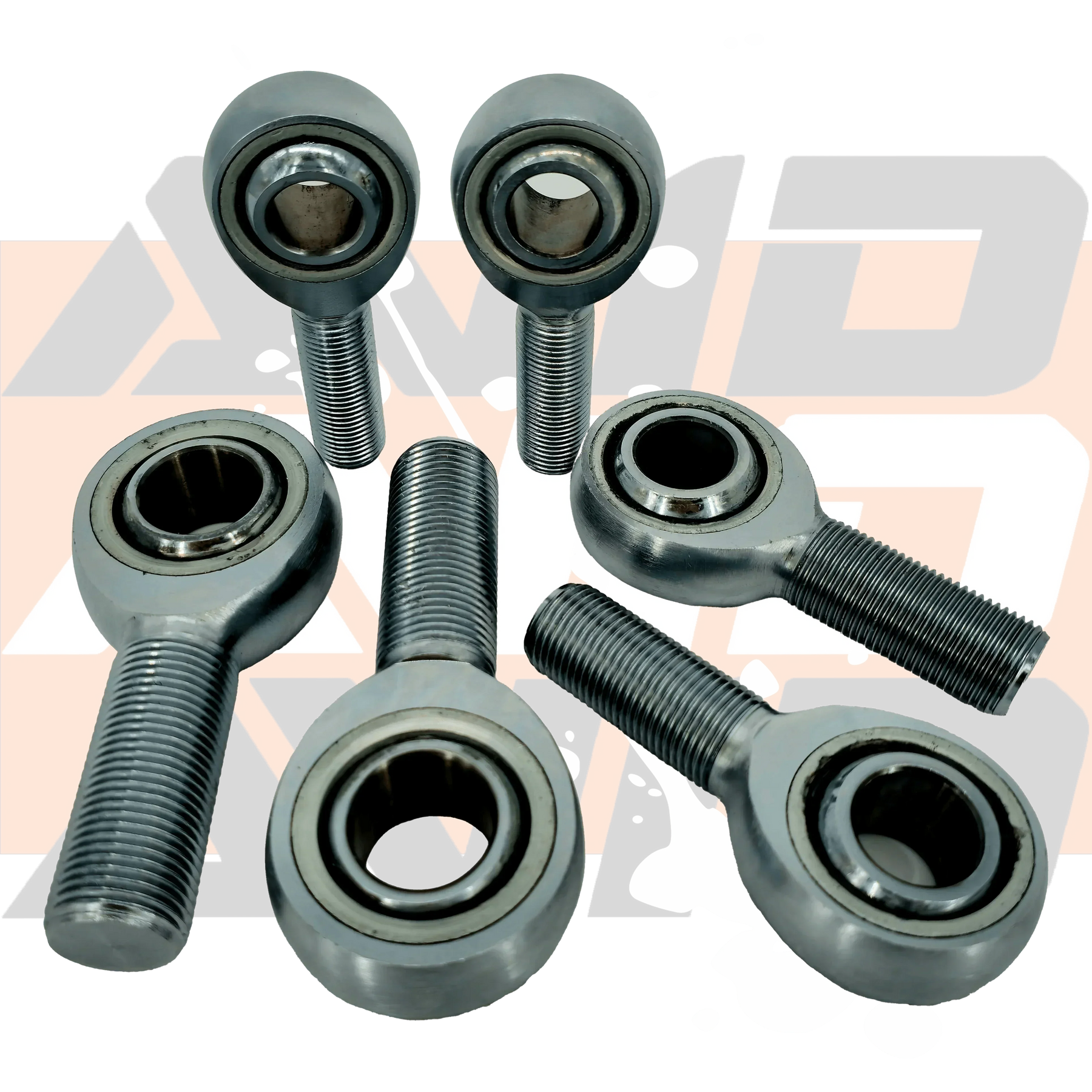

JMXL16T is a 3-piece male chromoly rod end with a 1-1/4-12 left-hand thread and a 1.0000 inch bore.

Its PTFE-lined alloy-steel construction uses a heat-treated, hard-chrome-plated ball and a heat-treated, zinc-plated and chromate-treated body and race. This listing includes one rod end; mating hardware is sold separately unless stated otherwise.

Key Specs

  • Part Number: JMXL16T
  • Product Type: Rod End
  • Bearing ID / Bore: 1 in
  • Bearing OD / Head Diameter: 2.95 in
  • Bearing Width / Ball Width: 1.375 in / 1.015 in
  • Ball Diameter / Ball Radius Reference: 1.875 in ball diameter
  • Thread Size / Pitch: 1-1/4-12
  • Thread Direction: Left-hand
  • Thread Length: 2.5 in
  • Centerline Length: 4.5 in
  • Misalignment Angle: 17 degrees
  • Static Radial Load Rating: 107,182 lb
  • Material: alloy steel / chromoly rod-end construction
  • Finish: zinc-plated chromate body and race; hard-chrome-plated ball
  • Style: 3-piece male rod end, PTFE lined
  • Included: One rod end
  • Approx. Weight: 2.46 lb

Fitment Notes

Verify thread size, thread direction, bore size, mounting width, and required misalignment before ordering. Final fitment depends on the mating hardware and application geometry.
