Back to Universal & ServiceJMXL14T-770 3-Piece Chromoly Rod End - 7/8-14 LH Thread
Purchase options
Choose the replacement part
Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.
Replacement reference
Core specifications
Compare these values with the removed part and its mating components.
- Material
- Chromoly
- Component type
- Rod end / heim
- Inside diameter
- 7/8"
- Outside diameter
- 2"
- Width
- 0.770 in
- Thread
- 7/8-14
- Thread hand
- Left-hand
- Centerline length
- 3.375 in
- Thread length
- 1.875 in
- Ball diameter
- 1.375 in
- Ball width
- 0.875 in
- Misalignment angle
- 12°
- Static radial load
- 45,051 lb
- Weight
- 0.91 lb
- Construction
- 3-piece male rod end, PTFE lined
- Included quantity
- 1
Product information
Details when you need them.
Review replacement notes, specifications, documents, and service support.
Overview and included items

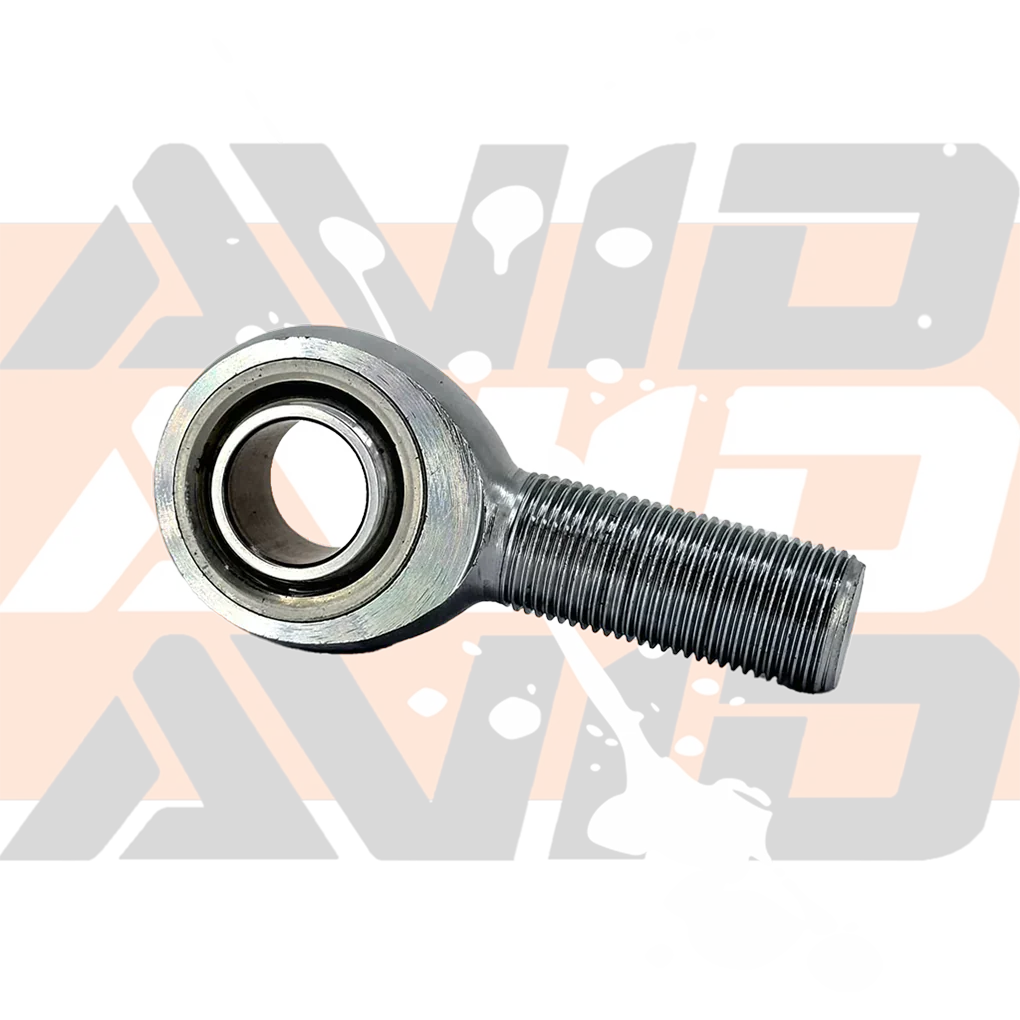

JMXL14T-770 3-Piece Chromoly Rod End - 7/8-14 LH Thread | AVID Racing
JMXL14T-770 is a 3-piece male chromoly rod end with a 7/8-14 left-hand thread and a 0.8750 inch bore.
Its PTFE-lined alloy-steel construction uses a heat-treated, hard-chrome-plated ball and a heat-treated, zinc-plated and chromate-treated body and race. This listing includes one rod end; mating hardware is sold separately unless stated otherwise.
Key Specs
- Part Number: JMXL14T-770
- Product Type: Rod End
- Bearing ID / Bore: 0.875 in
- Bearing OD / Head Diameter: 2 in
- Housing Thickness / Ball Width: 0.770 in / 0.875 in
- Ball Diameter: 1.375 in
- Thread Size / Pitch: 7/8-14
- Thread Direction: Left-hand
- Thread Length: 1.875 in
- Centerline Length: 3.375 in
- Misalignment Angle: 12 degrees
- Static Radial Load Rating: 45,051 lb
- Material: alloy steel / chromoly rod-end construction
- Finish: zinc-plated chromate body and race; hard-chrome-plated ball
- Style: 3-piece male rod end, PTFE lined
- Included: One rod end
- Approx. Weight: 0.91 lb
Fitment Notes
Verify thread size, thread direction, bore size, mounting width, and required misalignment before ordering. Final fitment depends on the mating hardware and application geometry.
