Service and replacement part
Back to Universal & ServiceAMR10 7075 Aluminum Rod End - 5/8-18 RH Thread
Purchase options
Choose the replacement part
Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.
Replacement reference
Core specifications
Compare these values with the removed part and its mating components.
- Material
- Aluminum
- Component type
- Rod end / heim
- Inside diameter
- 5/8"
- Outside diameter
- 1-1/2"
- Width
- 3/4"
- Thread
- 5/8-18
- Thread hand
- Right-hand
- Centerline length
- 2.625 in
- Thread length
- 1.625 in
- Misalignment angle
- 16°
- Static radial load
- 8,600 lb
- Weight
- 0.18 lb
- Construction
- male rod end with self-lubricating race
- Included quantity
- 1
Product information
Details when you need them.
Review replacement notes, specifications, documents, and service support.
Overview and included items
AMR10 7075 Aluminum Rod End - 5/8-18 RH Thread | AVID Racing

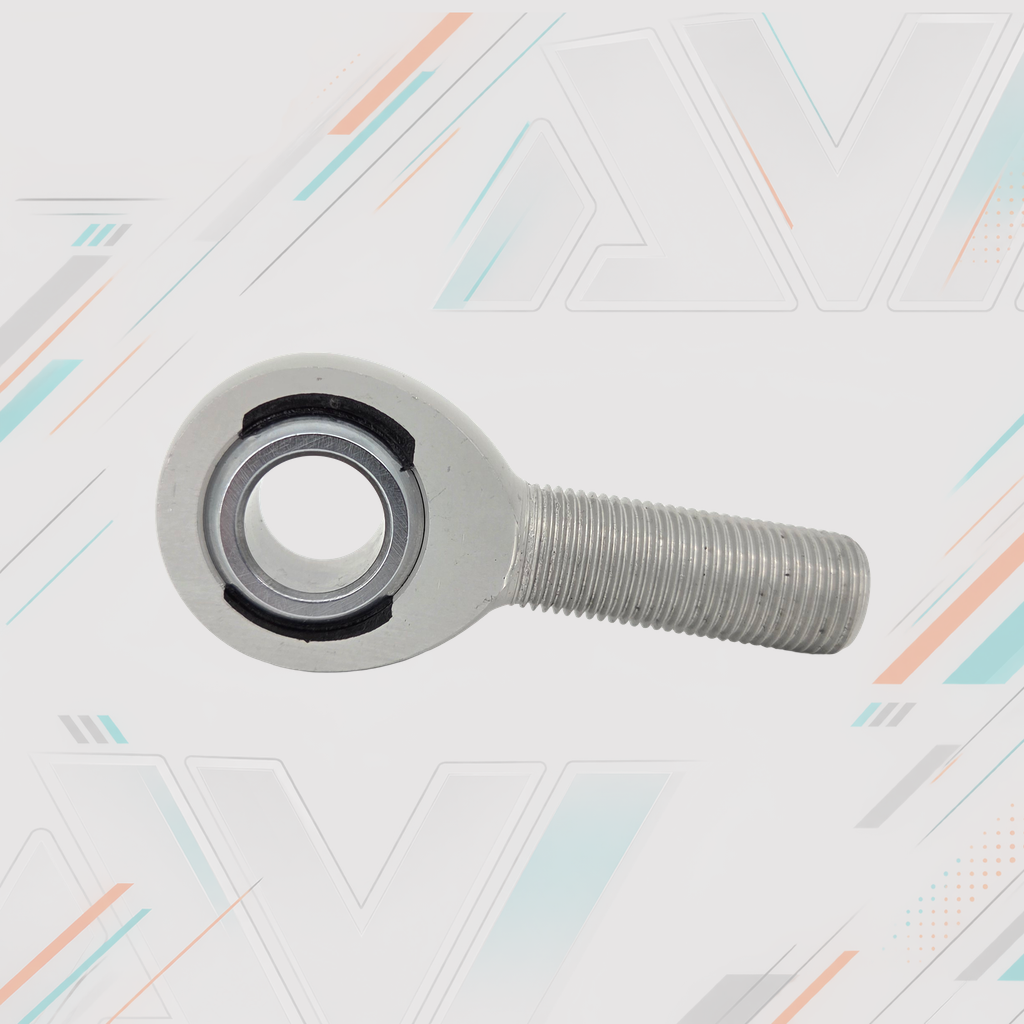

AMR10 is a 7075 aluminum rod end with a 5/8-18 right-hand thread and a 0.6250 inch bore.
Its aluminum body and self-lubricating race are intended for rods, links, or adjusters that match the listed bore, thread, and rod-end dimensions. This listing includes one rod end; mating hardware is sold separately unless stated otherwise.
Key Specs
- Part Number: AMR10
- Product Type: Rod End
- Bearing ID / Bore: 0.625 in
- Bearing OD / Head Diameter: 1.5 in
- Bearing Width / Ball Width: 0.75 in
- Thread Size / Pitch: 5/8-18
- Thread Direction: Right-hand
- Thread Length: 1.625 in
- Centerline Length: 2.625 in
- Misalignment Angle: 16 degrees
- Static Radial Load Rating: 8,600 lb
- Material: 7075 aluminum
- Style: male rod end with self-lubricating race
- Included: One rod end
- Approx. Weight: 0.18 lb
Fitment Notes
Verify thread size, thread direction, bore size, mounting width, and required misalignment before ordering. Final fitment depends on the mating hardware and application geometry.
