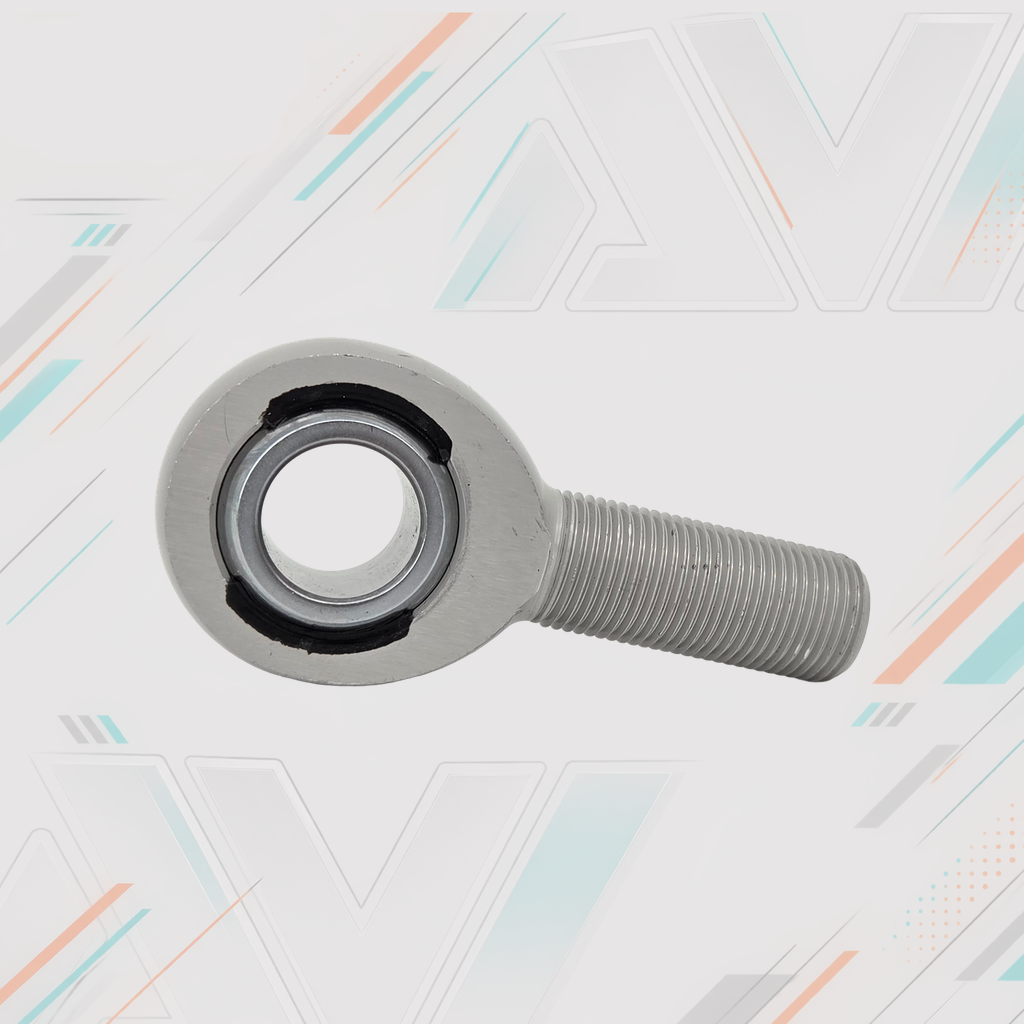

![AVID Racing AML12 7075 Aluminum Rod End - 3/4-16 LH Thread | AVID Racing — rod end front view — AVID-AML12_01 [AVID:6ee13deb-8c35-4ea4-a064-18929213ccee] [AVID-VERSION:76a0b142-b247-4398-8b0e-b85a7735a003]](http://avidrace.com/cdn/shop/files/1792124505715-c51522e3-8225-498d-a5f4-d4c4bb108655.png?v=1792124511&width=1800)
Service and replacement part
Back to Universal & ServiceAML12 7075 Aluminum Rod End - 3/4-16 LH Thread
Purchase options
Choose the replacement part
Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.
Replacement reference
Core specifications
Compare these values with the removed part and its mating components.
- Material
- Aluminum
- Component type
- Rod end / heim
- Inside diameter
- 3/4"
- Outside diameter
- 1-3/4"
- Width
- 7/8"
- Thread
- 3/4-16
- Thread hand
- Left-hand
- Centerline length
- 2.875 in
- Thread length
- 1.75 in
- Misalignment angle
- 14°
- Static radial load
- 13,400 lb
- Weight
- 0.29 lb
- Construction
- male rod end with self-lubricating race
- Included quantity
- 1
Product information
Details when you need them.
Review replacement notes, specifications, documents, and service support.
Overview and included items
AML12 7075 Aluminum Rod End - 3/4-16 LH Thread | AVID Racing
AML12 is a 7075 aluminum rod end with a 3/4-16 left-hand thread and a 0.7500 inch bore.
Its aluminum body and self-lubricating race are intended for rods, links, or adjusters that match the listed bore, thread, and rod-end dimensions. This listing includes one rod end; mating hardware is sold separately unless stated otherwise.
Key Specs
- Part Number: AML12
- Product Type: Rod End
- Bearing ID / Bore: 0.75 in
- Bearing OD / Head Diameter: 1.75 in
- Bearing Width / Ball Width: 0.875 in
- Thread Size / Pitch: 3/4-16
- Thread Direction: Left-hand
- Thread Length: 1.75 in
- Centerline Length: 2.875 in
- Misalignment Angle: 14 degrees
- Static Radial Load Rating: 13,400 lb
- Material: 7075 aluminum
- Style: male rod end with self-lubricating race
- Included: One rod end
- Approx. Weight: 0.29 lb
Fitment Notes
Verify thread size, thread direction, bore size, mounting width, and required misalignment before ordering. Final fitment depends on the mating hardware and application geometry.
