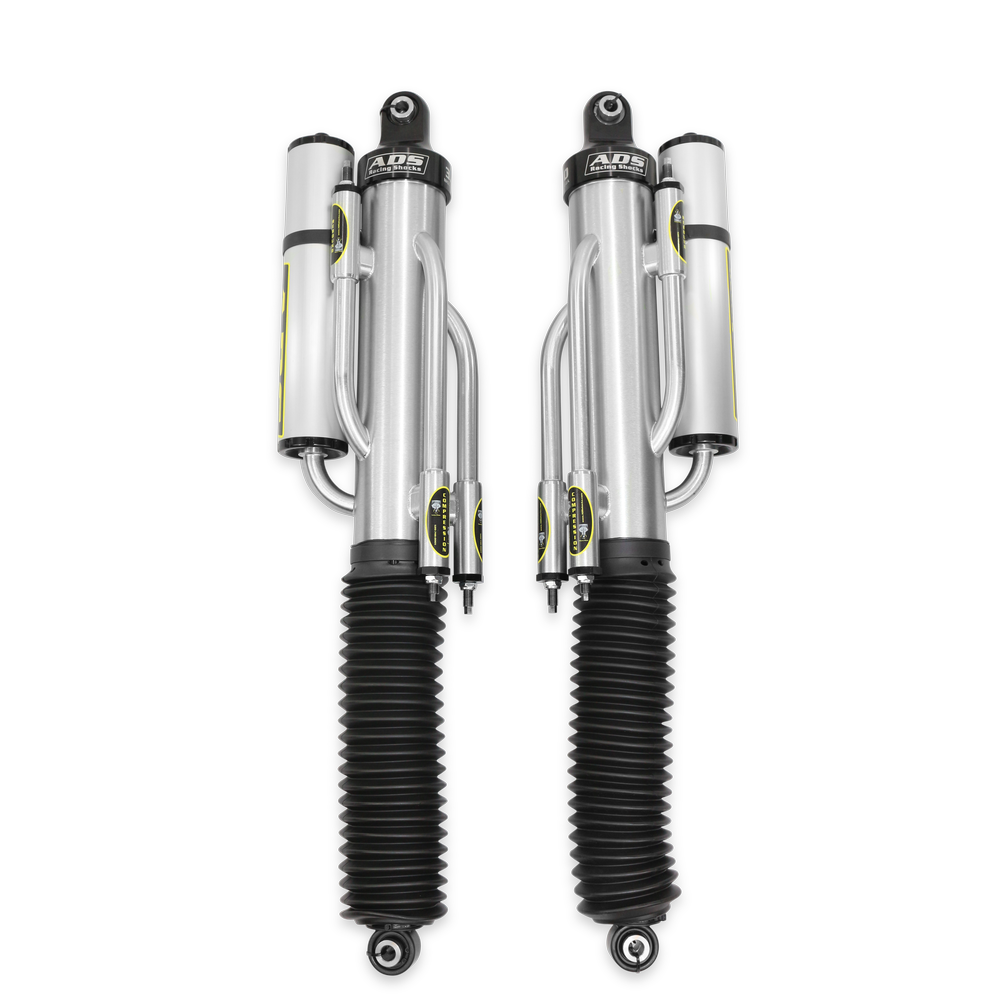

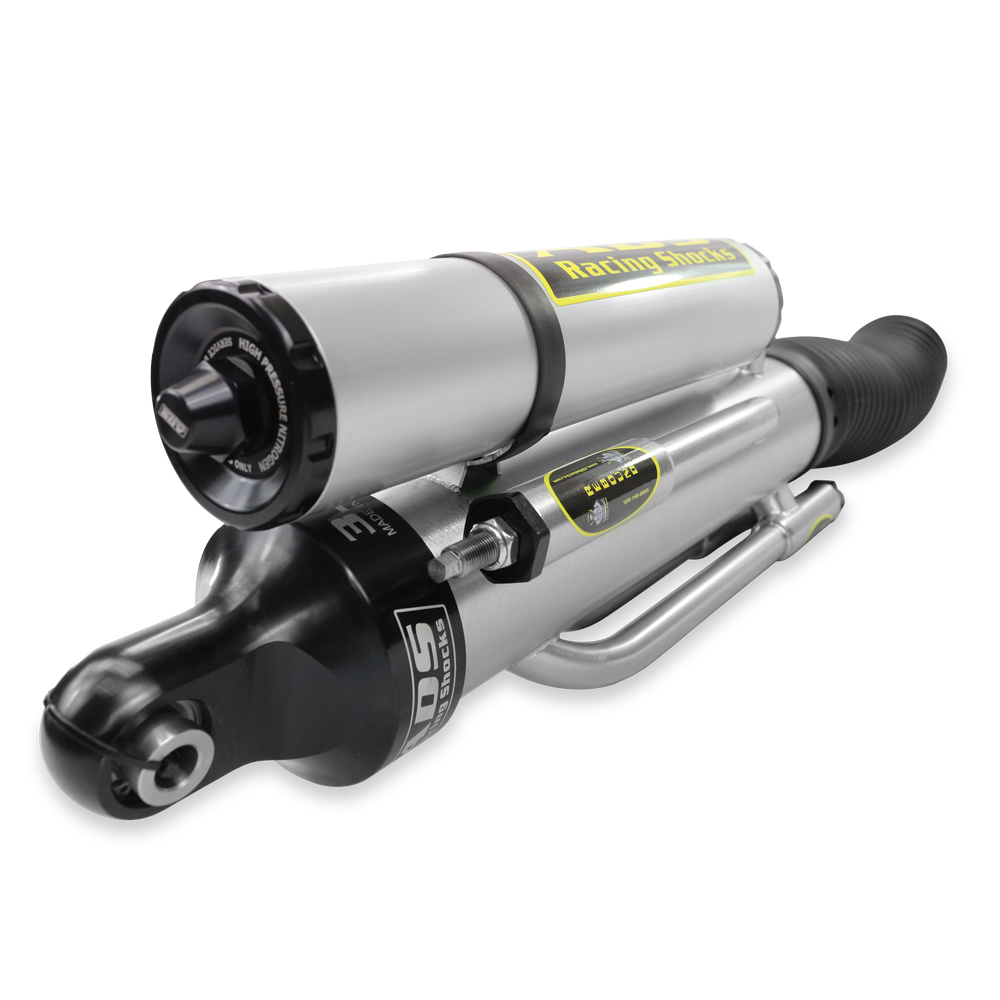

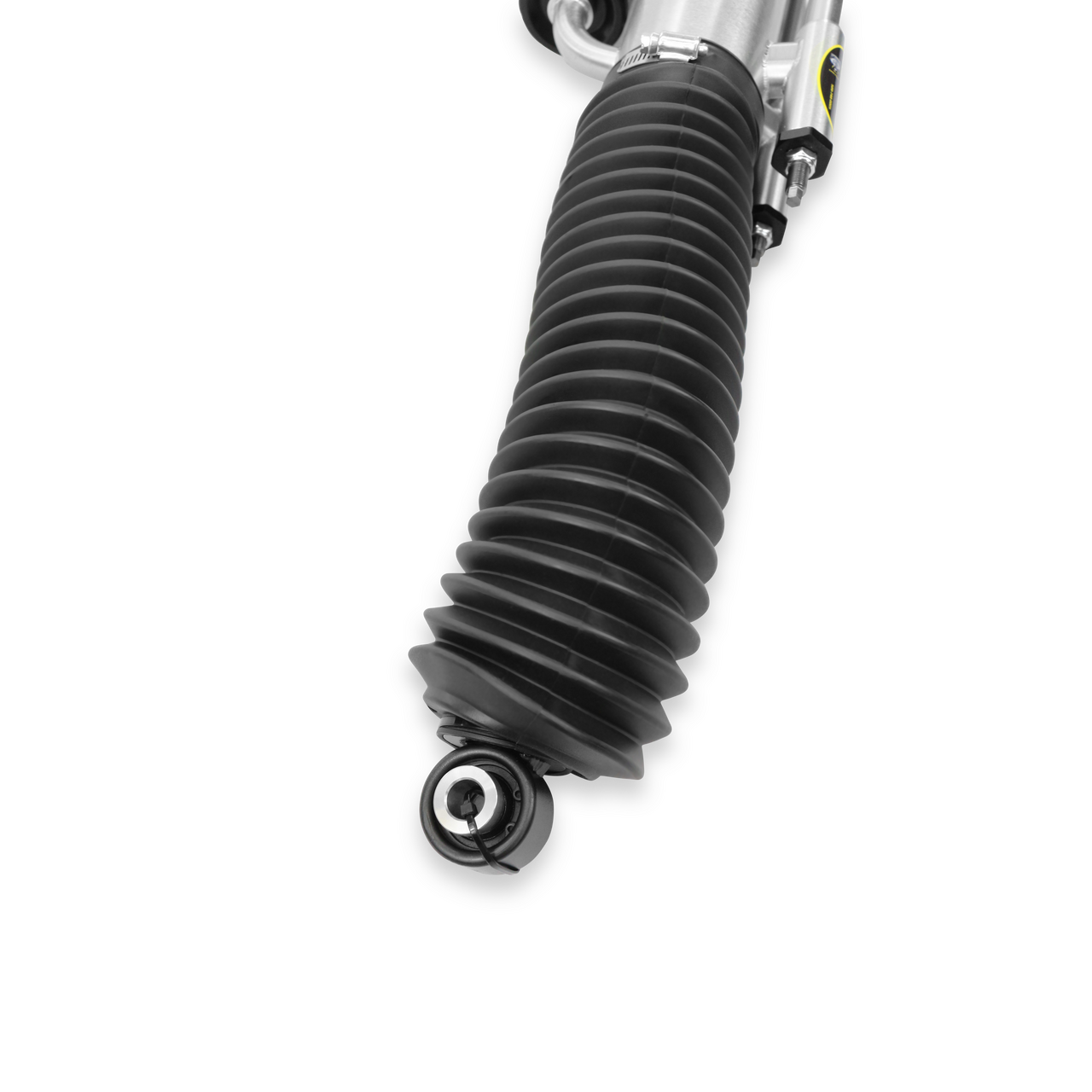

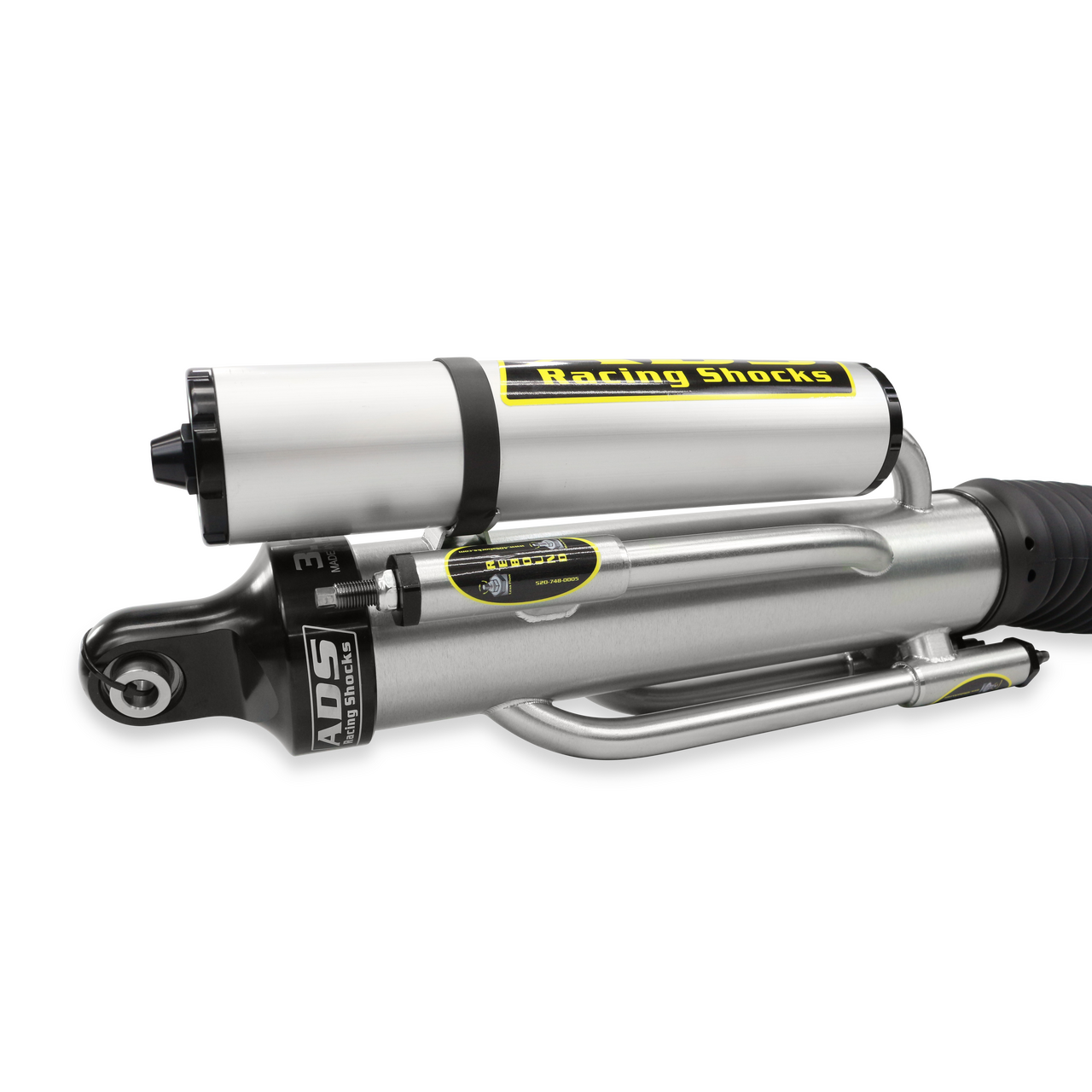

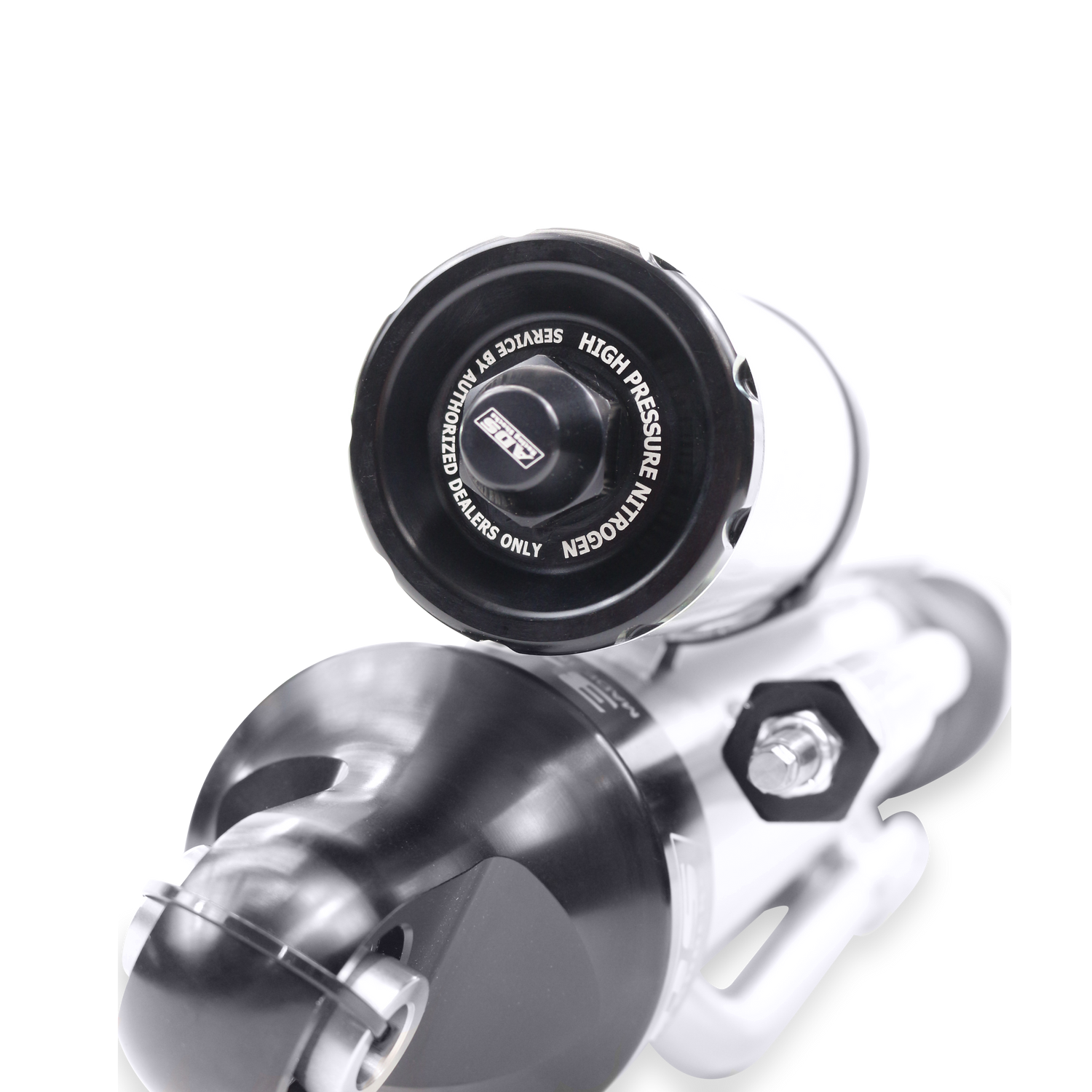

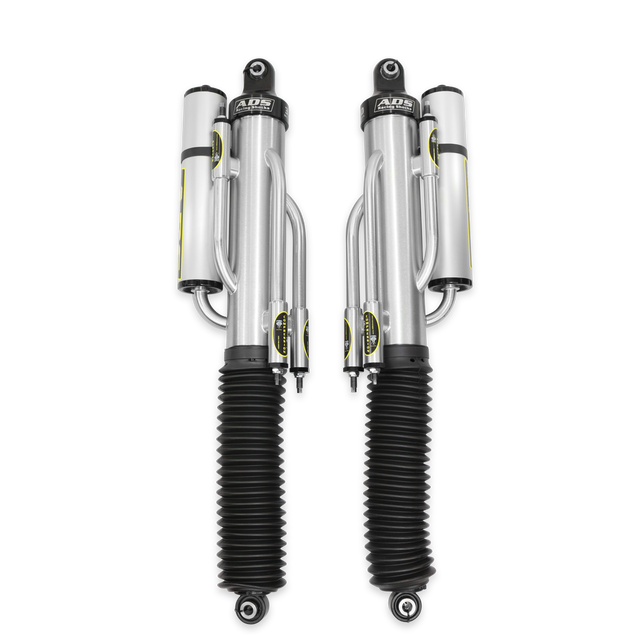

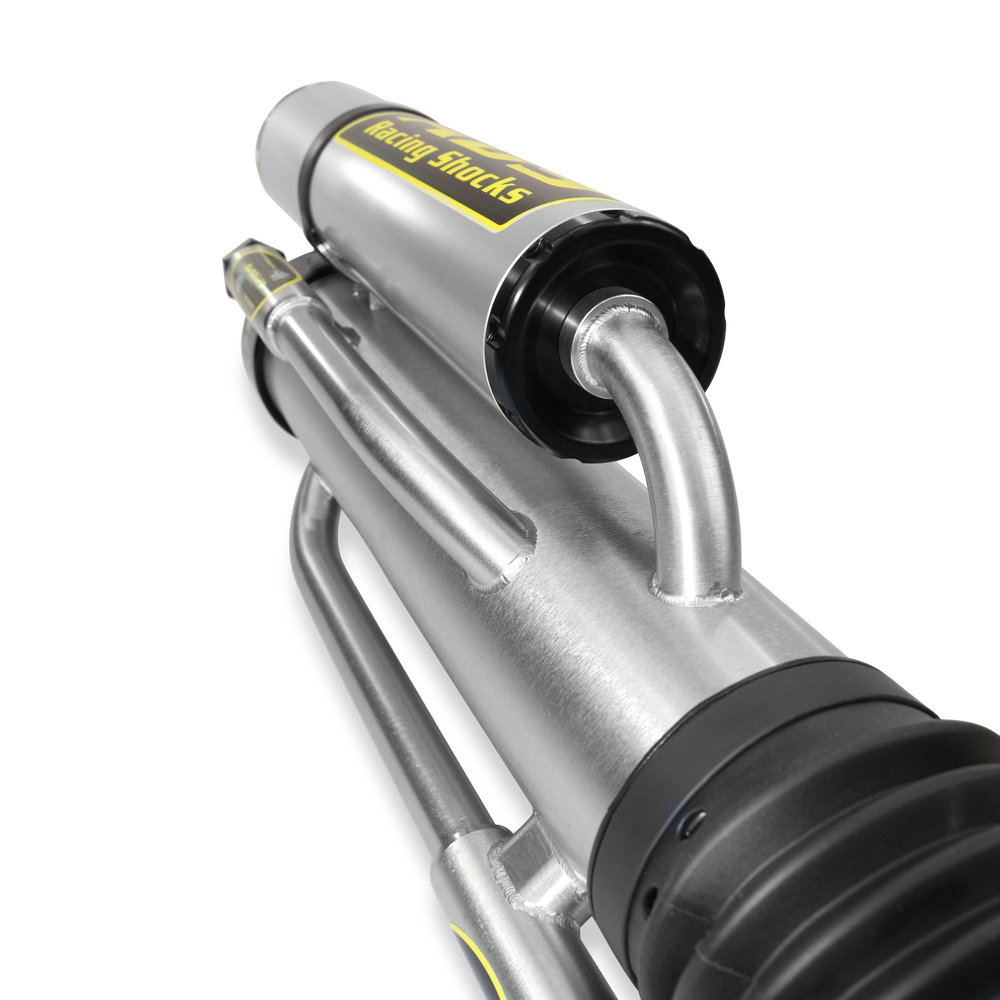

ADS Direct Fit 3 in. 3-Tube Bypass Reservoir Shocks - Rear 300-10RTR-000

ADS Direct Fit 3 in. 3-Tube Bypass Reservoir Shocks - Rear 300-10RTR-000

The ADS Direct Fit 3 in. 3-Tube Bypass Reservoir Shocks - Rear 300-10RTR-000 is an ADS factory-replacement shock identified by manufacturer part number 300-10RTR-000. 3.0" 2010-2014 Ford Raptor Rear 3 Tube Bypass Piggy Back (0"-3" Lift).

What This Means on the Vehicle

• Product identity: The ADS part number is preserved as 300-10RTR-000.
• Application: 2010-2014 Raptor.

Vehicle Fitment

• 2010-2014 Raptor

Key Features

• Position: Rear

Specifications

• Body Diameter: 3
• Collapsed Length: 17.995
• Extended Length: 29.665
• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Reservoir Length: 11
• Reservoir Diameter: 2.5
• Travel Length: 11.669999999999998
• Stroke: 11.67
• Shaft Diameter: 0.875
• Shaft Material: Hard-chrome plated steel
• Upper Mount Type: Eyelet
