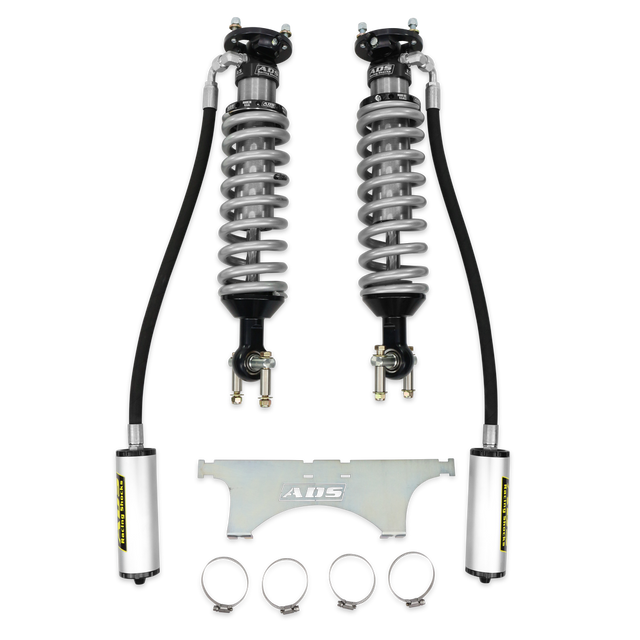

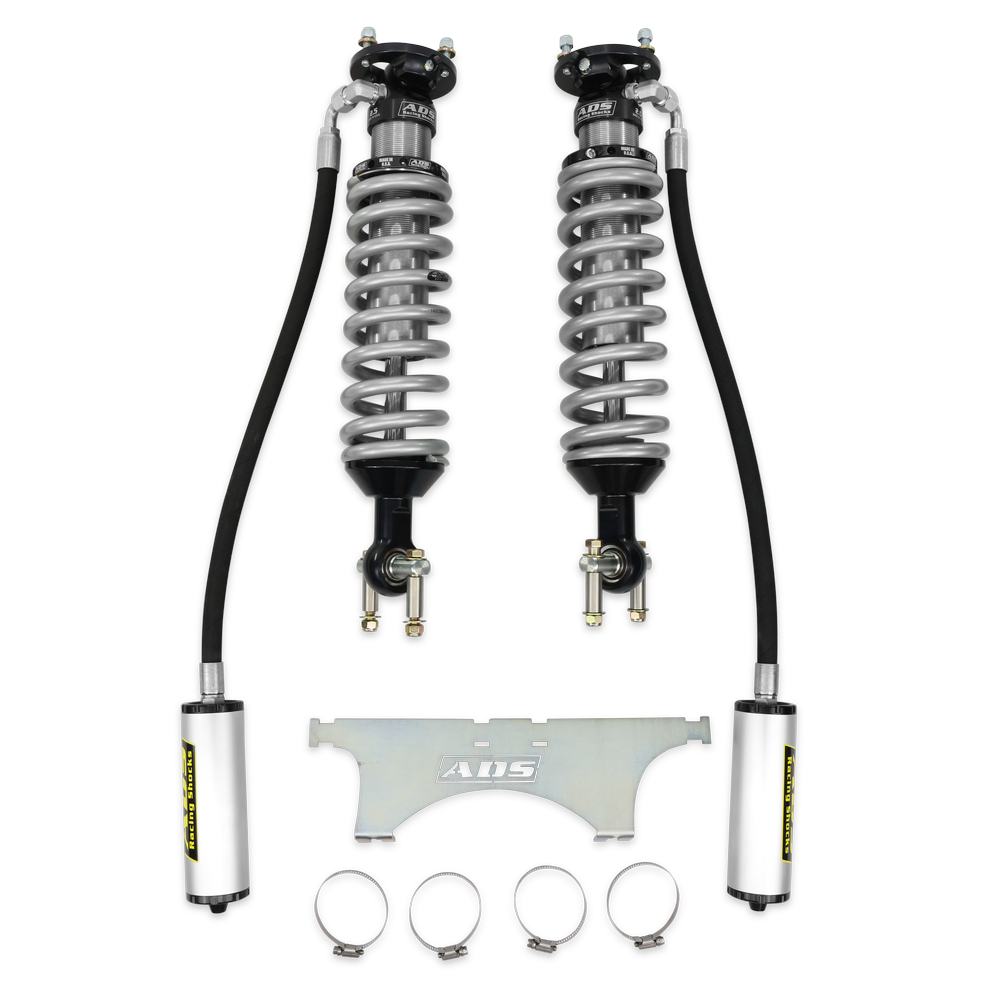

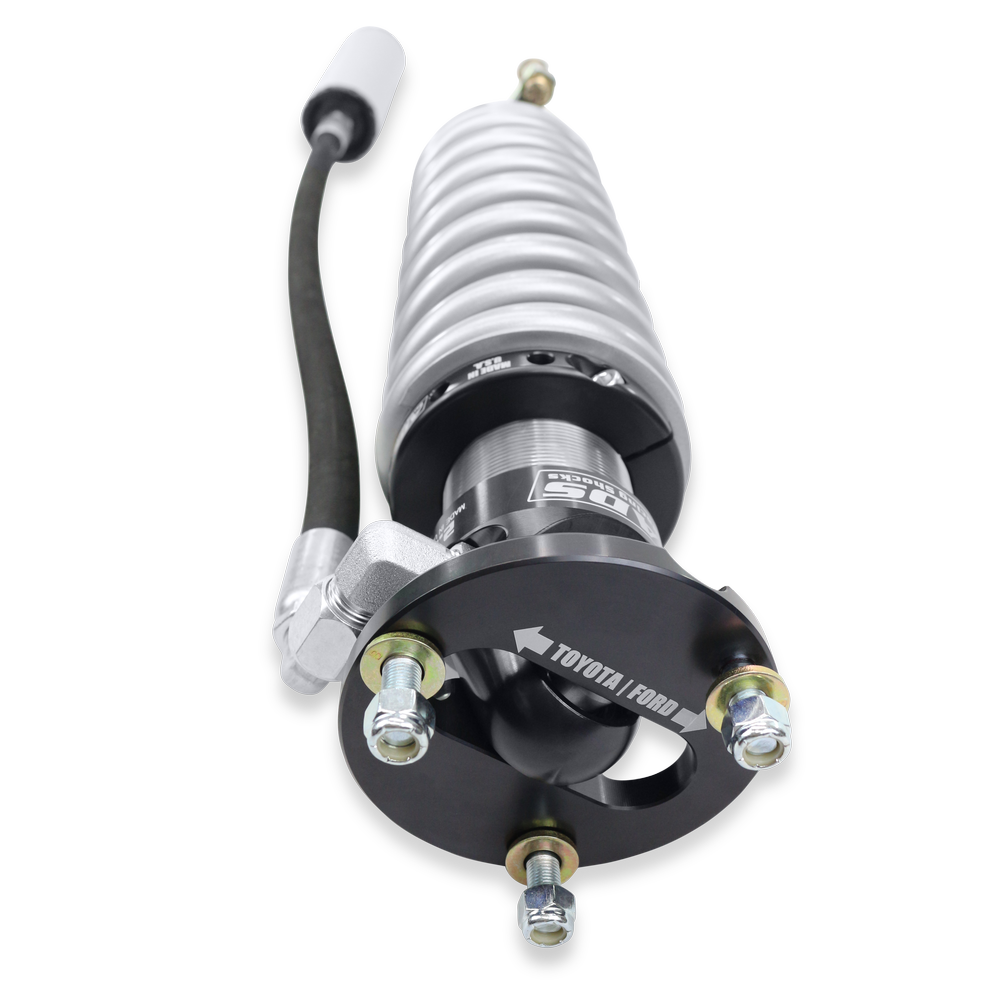

ADS Direct Fit 2.5" Reservoir Race Coilovers - Front 250-F15FD-060

ADS Direct Fit 2.5" Reservoir Race Coilovers - Front 250-F15FD-060

The ADS Direct Fit 2.5" Reservoir Race Coilovers - Front 250-F15FD-060 is an ADS factory-replacement shock identified by manufacturer part number 250-F15FD-060. 2.5" 2021-2024 Ford F150 4x4 Front Shock With Remote Reservoir (0"-2.5" Lift).

What This Means on the Vehicle

• Product identity: The ADS part number is preserved as 250-F15FD-060.
• Application: 2021-2024 F150.

Vehicle Fitment

• 2021-2024 F150

Key Features

• Product type: Coilover

Specifications

• Body Diameter: 2.5
• Collapsed Length: 18.07
• Cylinder Diameter: 2.5
• Extended Length: 23.52
• Mounting Hardware Included: Yes
• Lower Mount Type: Eyelet
• Shaft Material: Hard-chrome plated steel
• Shaft Diameter: 0.875
• Stroke: 5.4
• Strut Mount Insulator(S) Included: No
• Travel Length: 5.4
• Upper Mount Type: Mounting Plate
