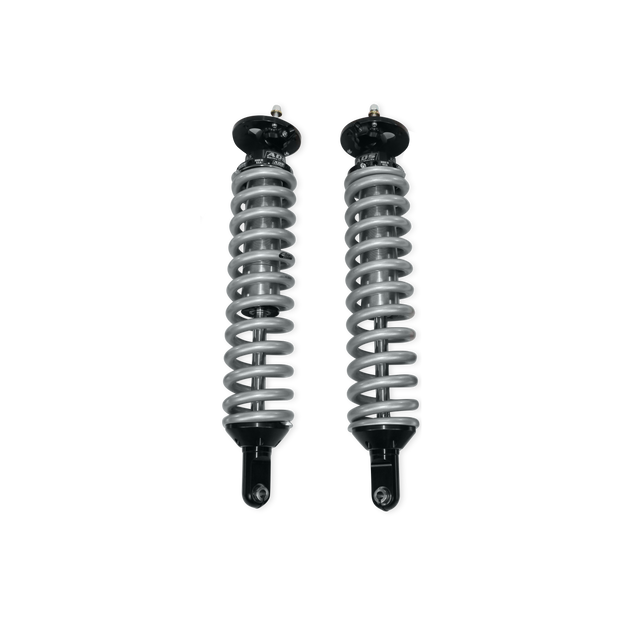

Photo - Primary [AVID:267756fc-395f-4e07-a834-c91b5bc893d3]

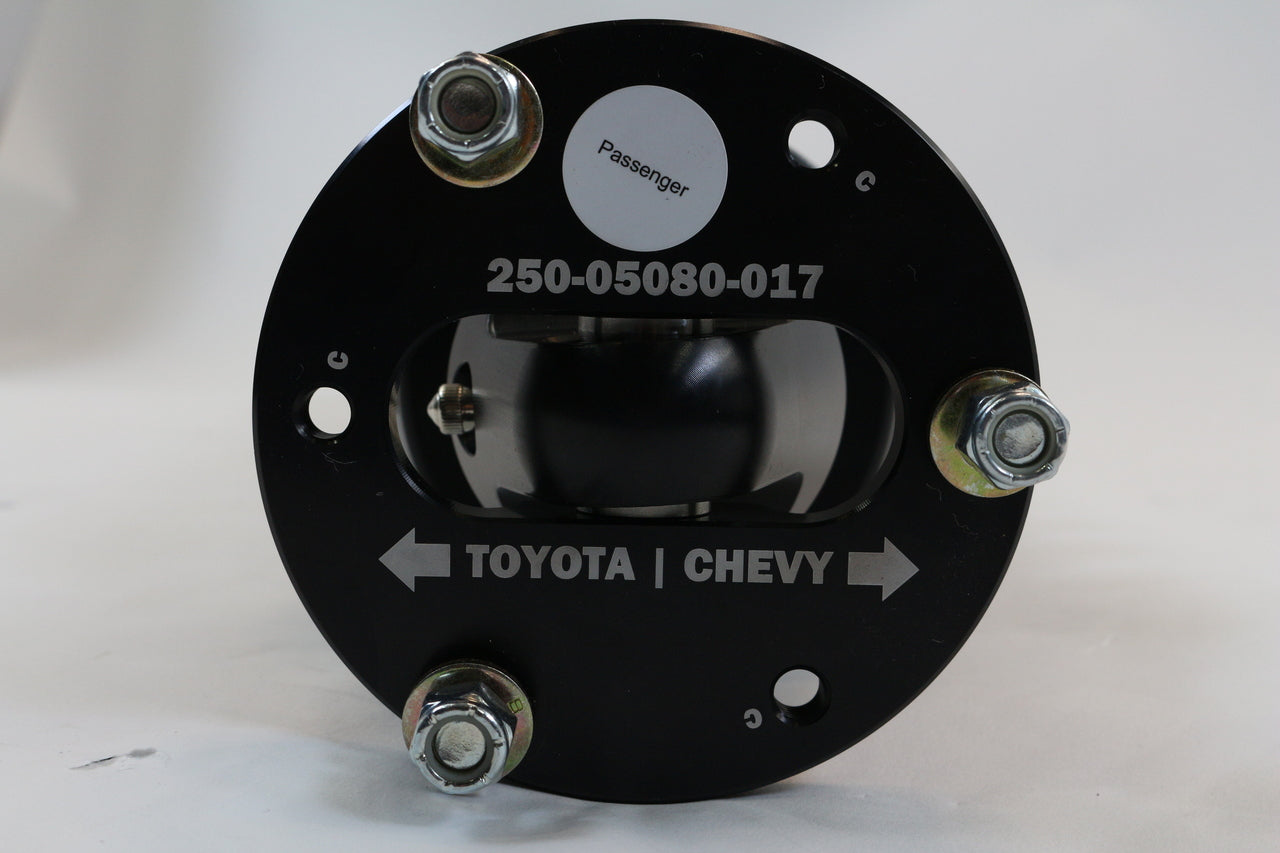

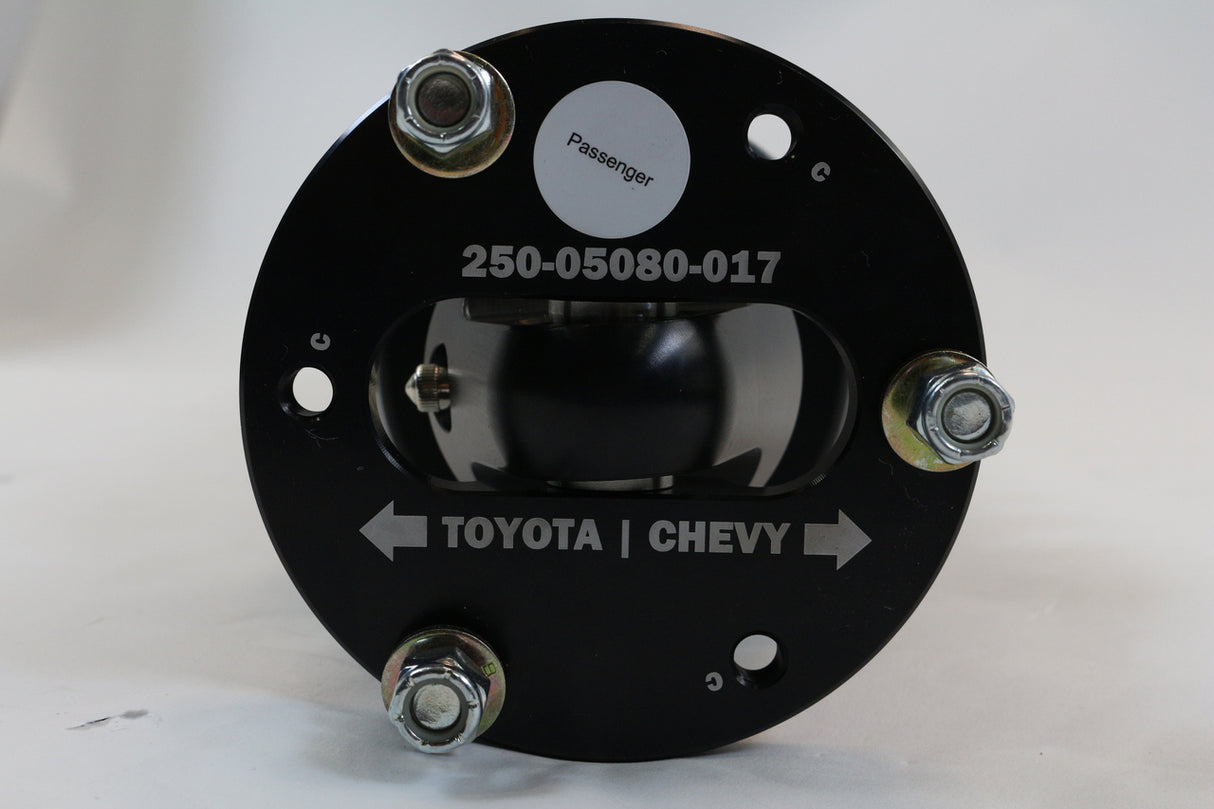

Photo - Close Up [AVID:c8df9e00-72d6-4ca5-bf3e-051486c441d2]
ADS Mesa 2.5" Coilovers - Front 100ADS-10112 [AVID:8e118210-a93e-497c-b24c-80e32fab0599]

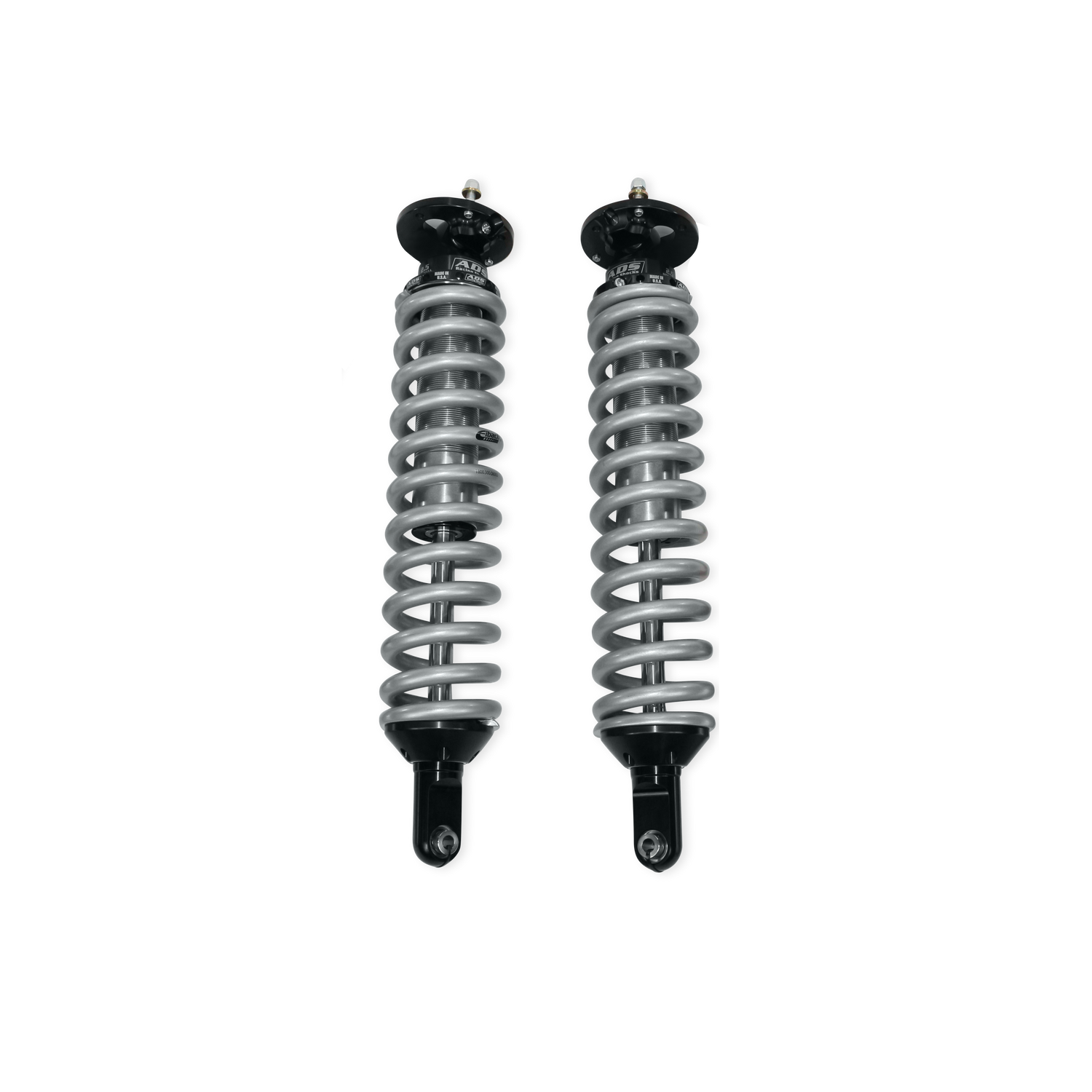

Photo - out of package [AVID:789d4206-3db9-4078-982a-4703de1b1afb]

Vehicle and performance upgrade

Back to AVID Shock Center

ADS Mesa 2.5" Coilovers - Front 100ADS-10114

ADS ADS Shocks SKU 100ADS-10114

Purchase options

Choose your options and quantity

Vehicle upgrade

Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.

Confirm the complete shock package. Match the application, dimensions, mounts, clearance, position, quantity, and every listed condition.
$1,662.45

Available to order

Total $1,662.45 Current selection

Complete every required choice. AVID verifies the exact components, pricing, and configuration before the system can enter the cart.

Planning this vehicle build? Save this exact variant to a vehicle in My AVID Garage and track its public price over time.
This records product interest only. It does not reserve inventory, place an order, or begin a payment plan.
My AVID Garage

Save to Planned Build

ADS Mesa 2.5" Coilovers - Front 100ADS-10114

Loading your Garage…
Contact AVID Support about this product

Product information

Details when you need them.

Review fitment, performance context, specifications, installation information, and support.

Overview and included items

ADS Mesa 2.5" Coilovers - Front 100ADS-10114

The ADS Mesa 2.5" Coilovers - Front 100ADS-10114 is an ADS factory-replacement shock identified by manufacturer part number 100ADS-10114. 2.5" Mesa IFP Shock, 2005-23', Tacoma 0.0" - 2.0" Lift.

What This Means on the Vehicle

  • Product identity: The ADS part number is preserved as 100ADS-10114.
  • Application: 2005- 2023 Tacoma.

Vehicle Fitment

  • 2005- 2023 Tacoma

Key Features

  • Product type: Coilover

Specifications

  • Body Diameter: 2.5
  • Cylinder Diameter: 2.5
  • Collapsed Length: 17.75
  • Extended Length: 22.3
  • Mounting Hardware Included: Yes
  • Lower Mount Type: Eyelet
  • Shaft Material: Hard-chrome plated steel
  • Shaft Diameter: 0.875
  • Travel Length: 4.55
  • Stroke: 4.55
  • Strut Mount Insulator(S) Included: No
  • Upper Mount Type: Mounting Plate
Applications and Fitment
Application 1
1996-2015 Toyota Tacoma Base
Notes
Provides 0-2 (in) Front Lift|With 650 (lb/in) Springs
Application 2
1998-2015 Toyota Tacoma Pre Runner
Notes
Provides 0-2 (in) Front Lift|With 650 (lb/in) Springs
Application 3
2015 Toyota Tacoma TRD Pro
Notes
Provides 0-2 (in) Front Lift|With 650 (lb/in) Springs
Application 4
2016-2026 Toyota Tacoma Limited
Notes
Provides 0-2 (in) Front Lift|With 650 (lb/in) Springs
Application 5
2016-2026 Toyota Tacoma SR
Notes
Provides 0-2 (in) Front Lift|With 650 (lb/in) Springs
Application 6
2016-2026 Toyota Tacoma SR5
Notes
Provides 0-2 (in) Front Lift|With 650 (lb/in) Springs
Application 7
2016-2026 Toyota Tacoma TRD Off-Road
Notes
Provides 0-2 (in) Front Lift|With 650 (lb/in) Springs
Application 8
2016-2026 Toyota Tacoma TRD Sport
Notes
Provides 0-2 (in) Front Lift|With 650 (lb/in) Springs
Application 9
2017-2026 Toyota Tacoma TRD Pro
Notes
Provides 0-2 (in) Front Lift|With 650 (lb/in) Springs
Application 10
2021-2022 Toyota Tacoma Nightshade
Notes
Provides 0-2 (in) Front Lift|With 650 (lb/in) Springs
Application 11
2021 Toyota Tacoma Trail
Notes
Provides 0-2 (in) Front Lift|With 650 (lb/in) Springs
Application 12
2023 Toyota Tacoma Trail Special Edition
Notes
Provides 0-2 (in) Front Lift|With 650 (lb/in) Springs
Specifications

No additional specifications are currently available for this product.

Downloads and instructions
Installation and Requirements

Confirm every vehicle or dimensional condition, mount, position, clearance, and quantity. Fitment type: Verified direct fit. Provides 0-2 (in) Front Lift • With 650 (lb/in) Springs
