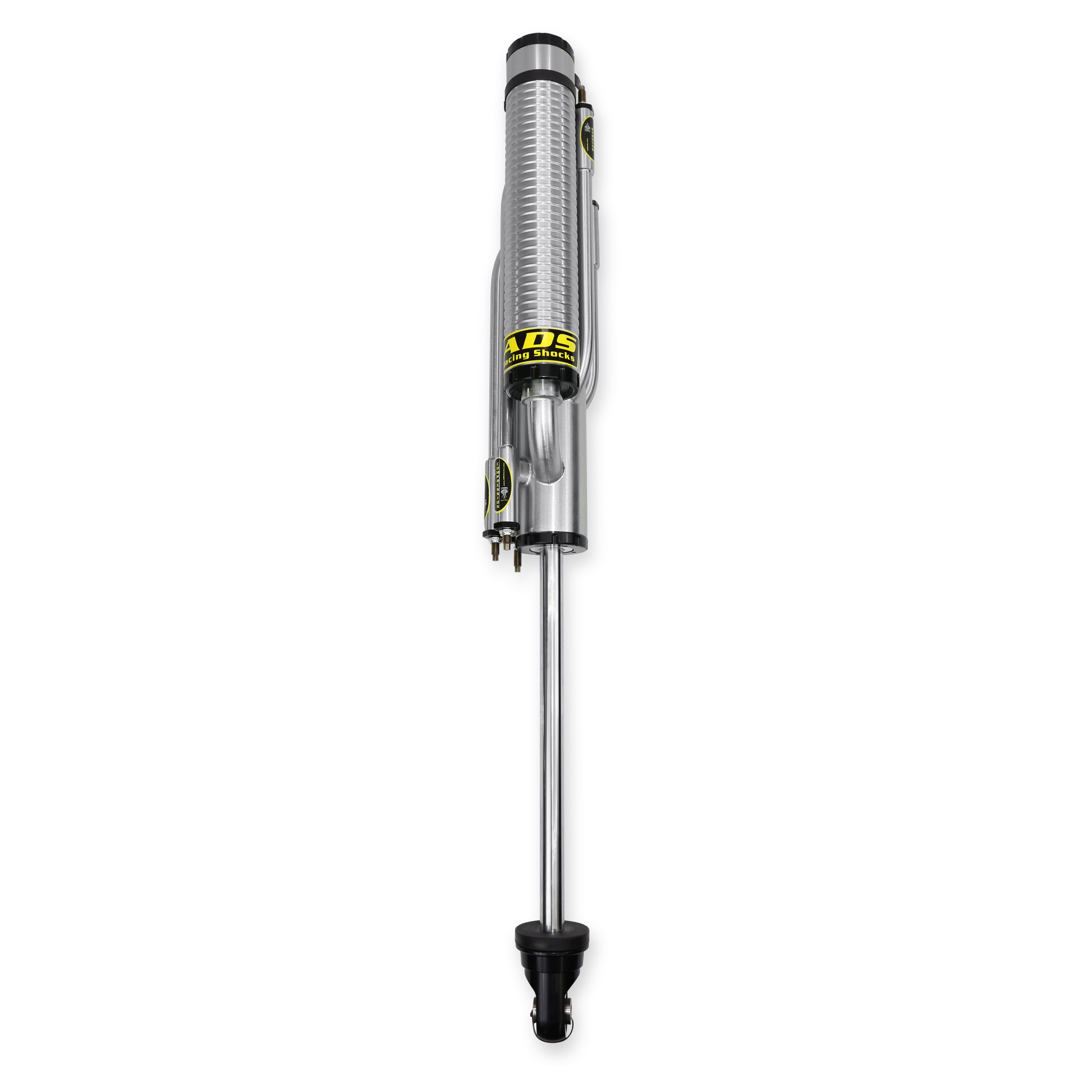

Photo - Primary [AVID:72fe34af-c5b2-4b63-bda7-c288bb5809b2]

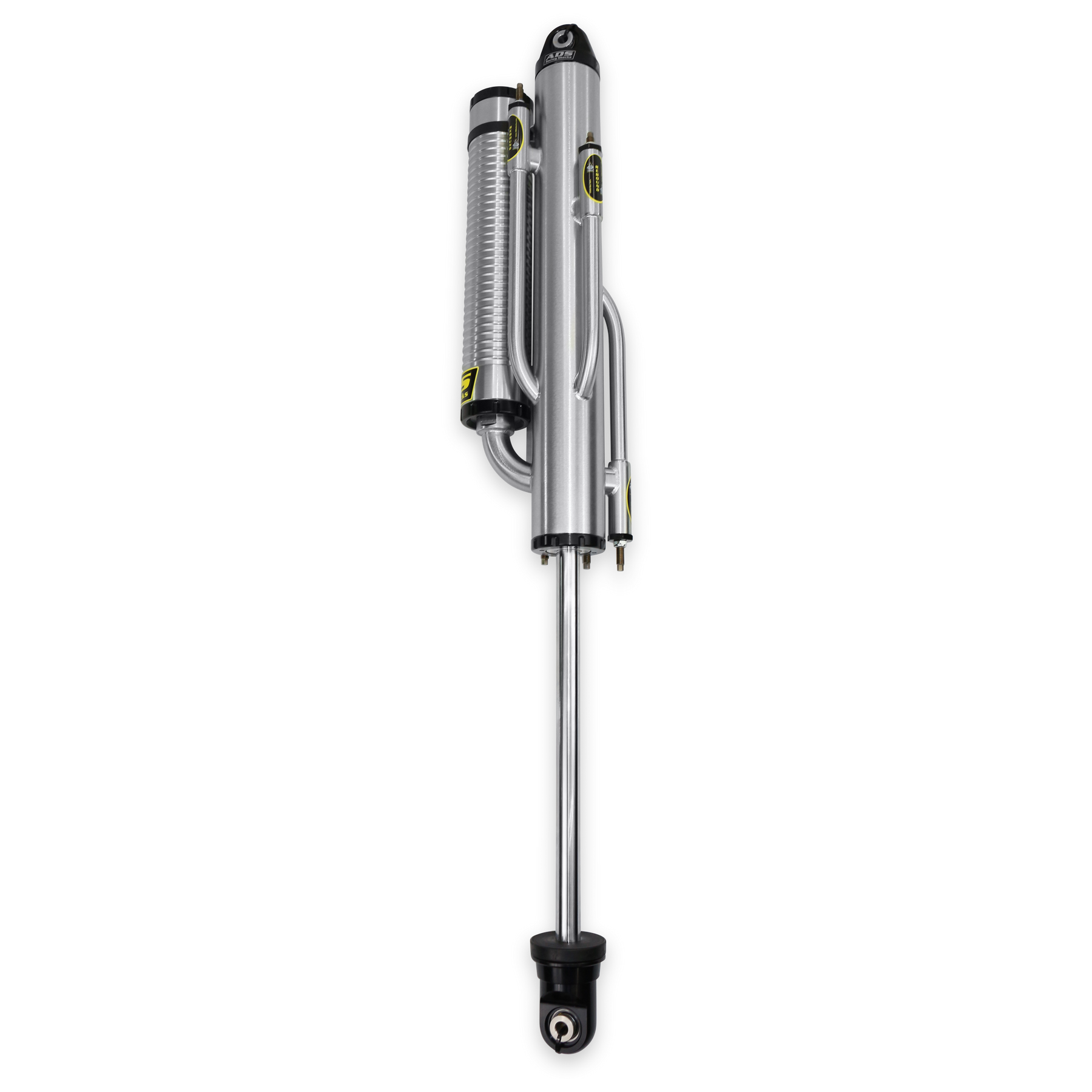

Photo - out of package [AVID:1ff5edbd-2cec-4be1-90f0-586c41b94dcc]

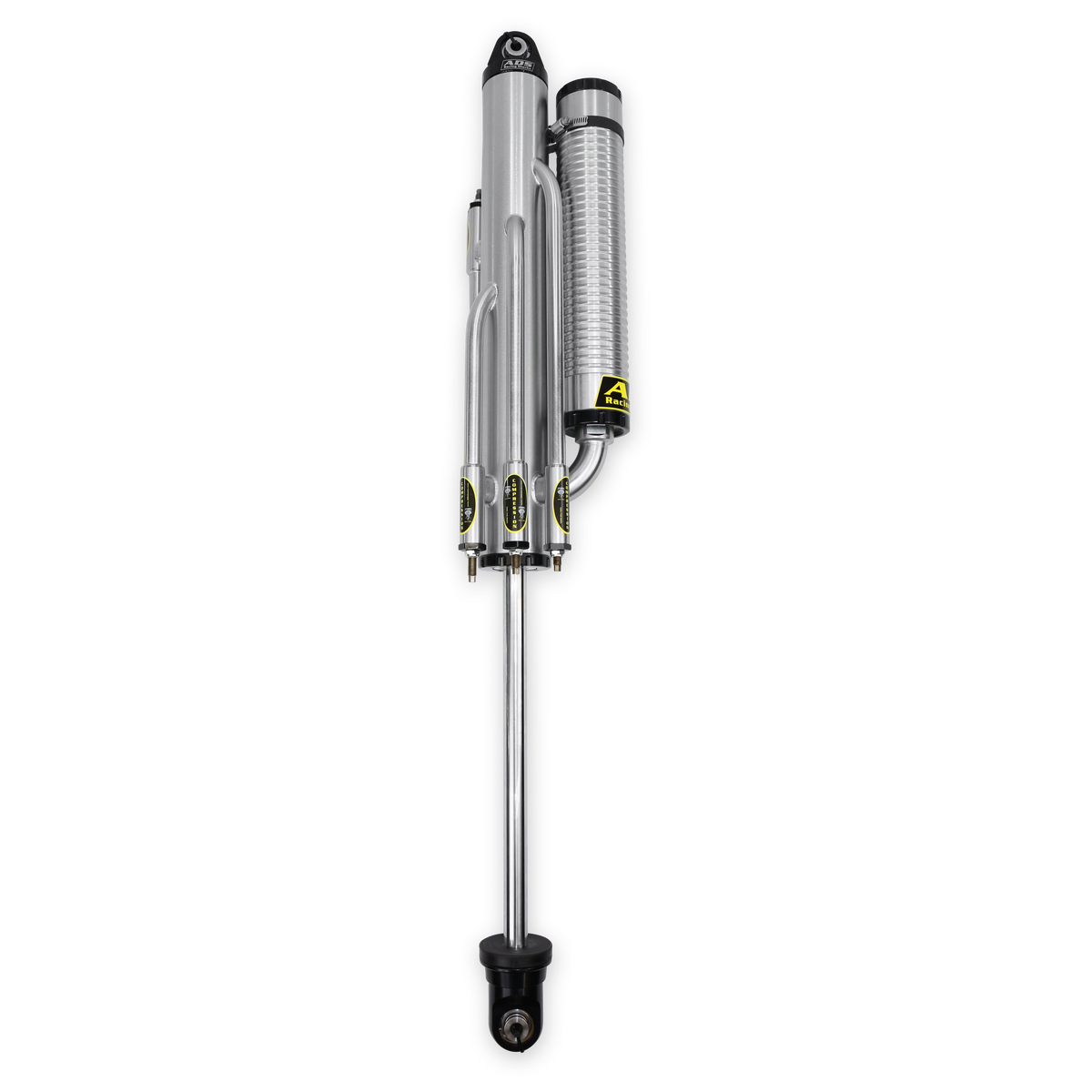

Photo - out of package [AVID:f39591f9-a2be-4125-a165-d16ed0e4bded]

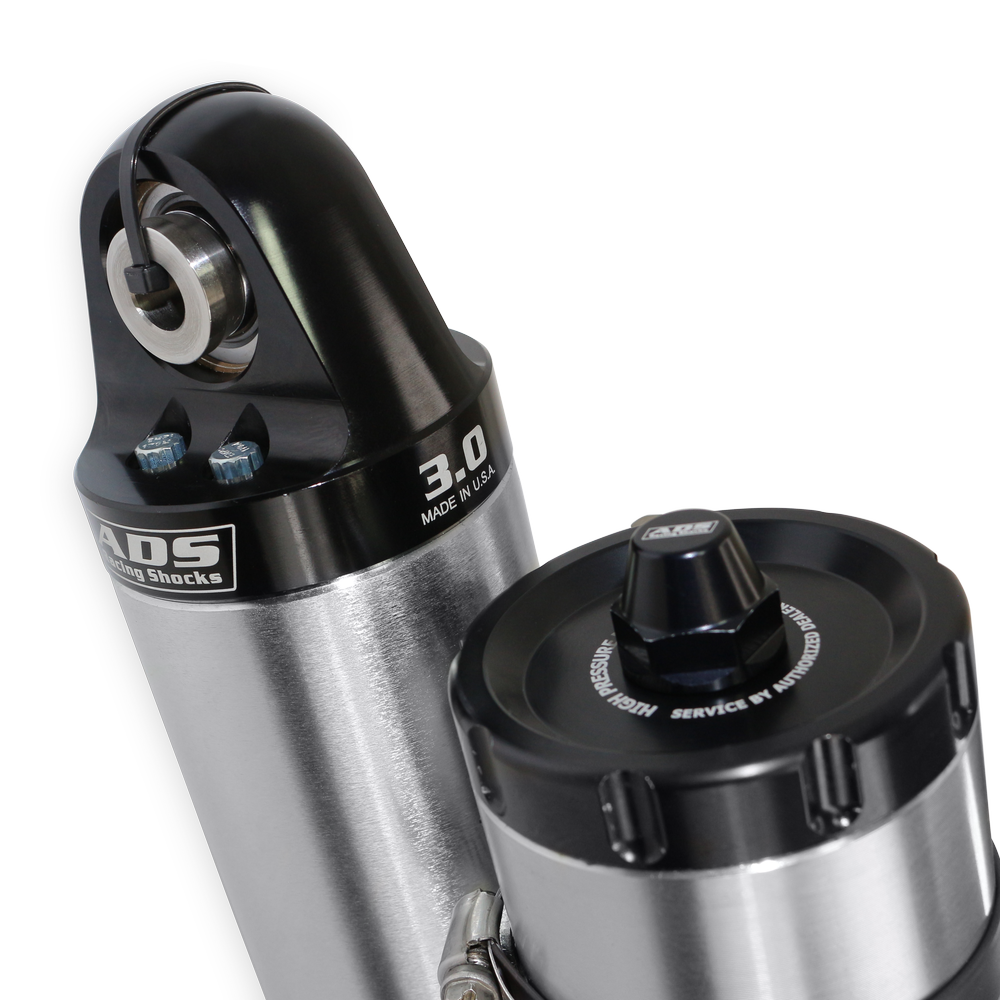

Photo - out of package [AVID:8d49edc7-57c3-4114-9d10-257e7d43d51b]

Vehicle and performance upgrade

Back to AVID Shock Center

ADS 5-Tube Bypass Shock, Style 2

ADS ADS Shocks SKU 400-BP516-0R2

Purchase options

Choose your options and quantity

Vehicle upgrade
$2,992.45

Available to order

Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.

Confirm fitment before ordering.

The complete vehicle application has not yet been published for this item.

Ask AVID about fitment
Total $2,992.45 Current selection

Review the application or specifications and complete every required configuration or product-option selection before adding this item to your cart.

Planning this vehicle build? Save this exact variant to a vehicle in My AVID Garage and track its public price over time.
This records product interest only. It does not reserve inventory, place an order, or begin a payment plan.
My AVID Garage

Save to Planned Build

ADS 5-Tube Bypass Shock, Style 2

Loading your Garage…
Request fitment review

Product information

Details when you need them.

Review fitment, performance context, specifications, installation information, and support.

Overview and included items

ADS 5-Tube Bypass Shock, Style 2

The ADS 5-Tube Bypass Shock, Style 2 is an ADS race bypass shock built for serious off-road use. ADS bypass shocks use external bypass tubes to control multiple compression and rebound zones through the stroke. Large reservoirs help control heat and pressure gain, while large diameter shafts and race construction are built to handle repeated high-load off-road use. This configuration features a race inch body, long inch stroke, and 5 external bypass tubes.

What This Means on the Vehicle

  • Multi-zone damping control: External bypass tubes let you tune control through different parts of the stroke.
  • Stable performance in heat: Large reservoir volume helps fight fade on long, rough runs.
  • Race-grade durability: Large shafts and robust construction are built to survive repeated heavy hits.

Key Features

  • Race inch bypass shock body
  • Long inch stroke
  • 5-tube external bypass layout
  • Large reservoir for improved cooling and pressure control
  • Race-ready rebuildable construction
Applications and Fitment

Complete fitment details are not available. Ask AVID to confirm the intended application.

Ask AVID to confirm fitment

Specifications
Manufacturer part number
400-BP516-0R2
Shock type
External bypass
Body diameter
4 in
Stroke
16.08 in
Collapsed length
27.28 in
Extended length
43.36 in
Mounting width
1.5 in
Mounting bolt size
0.5 in
Sold as
Individual
