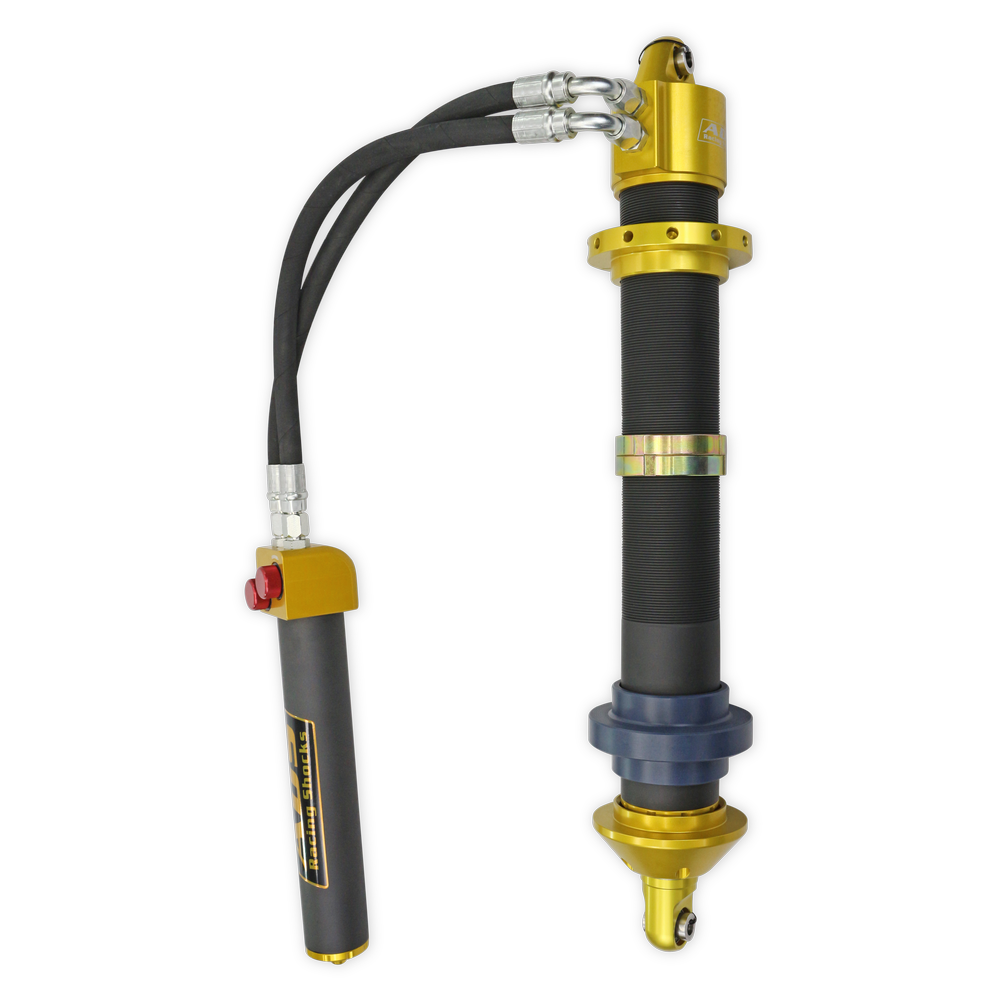

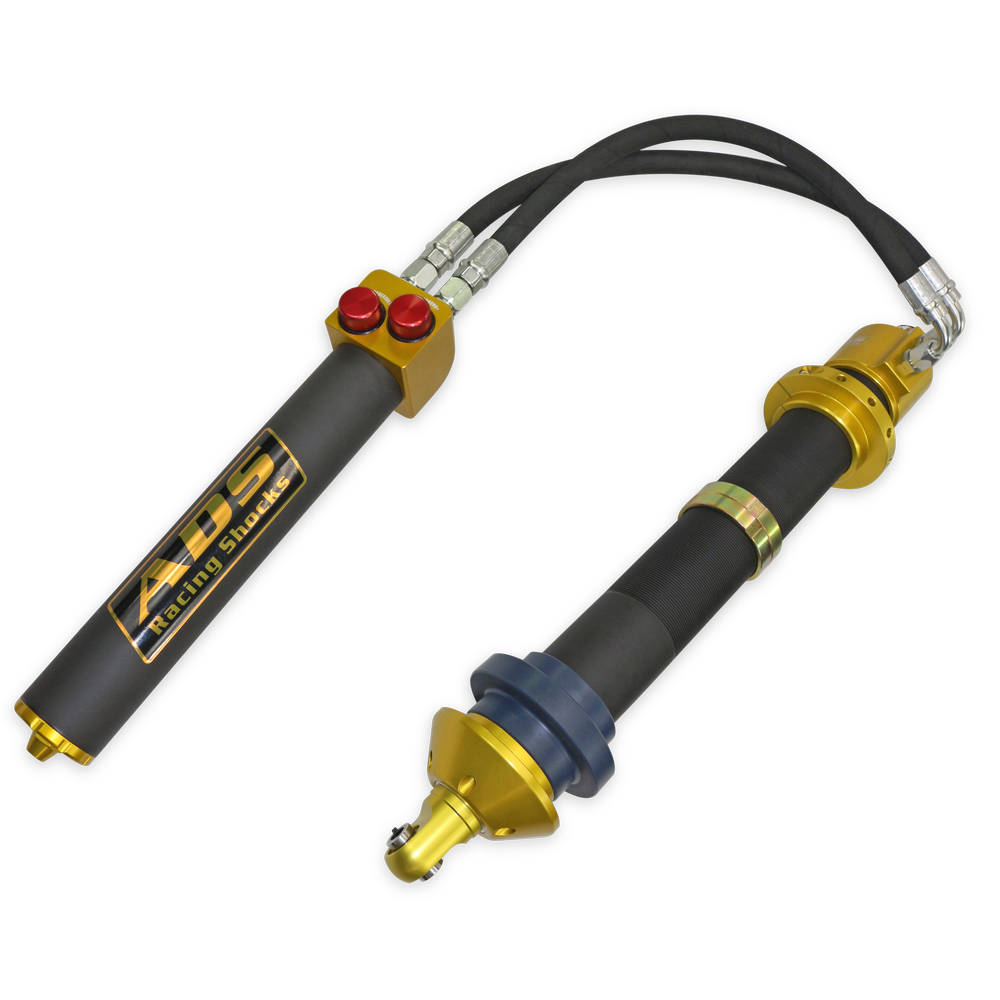

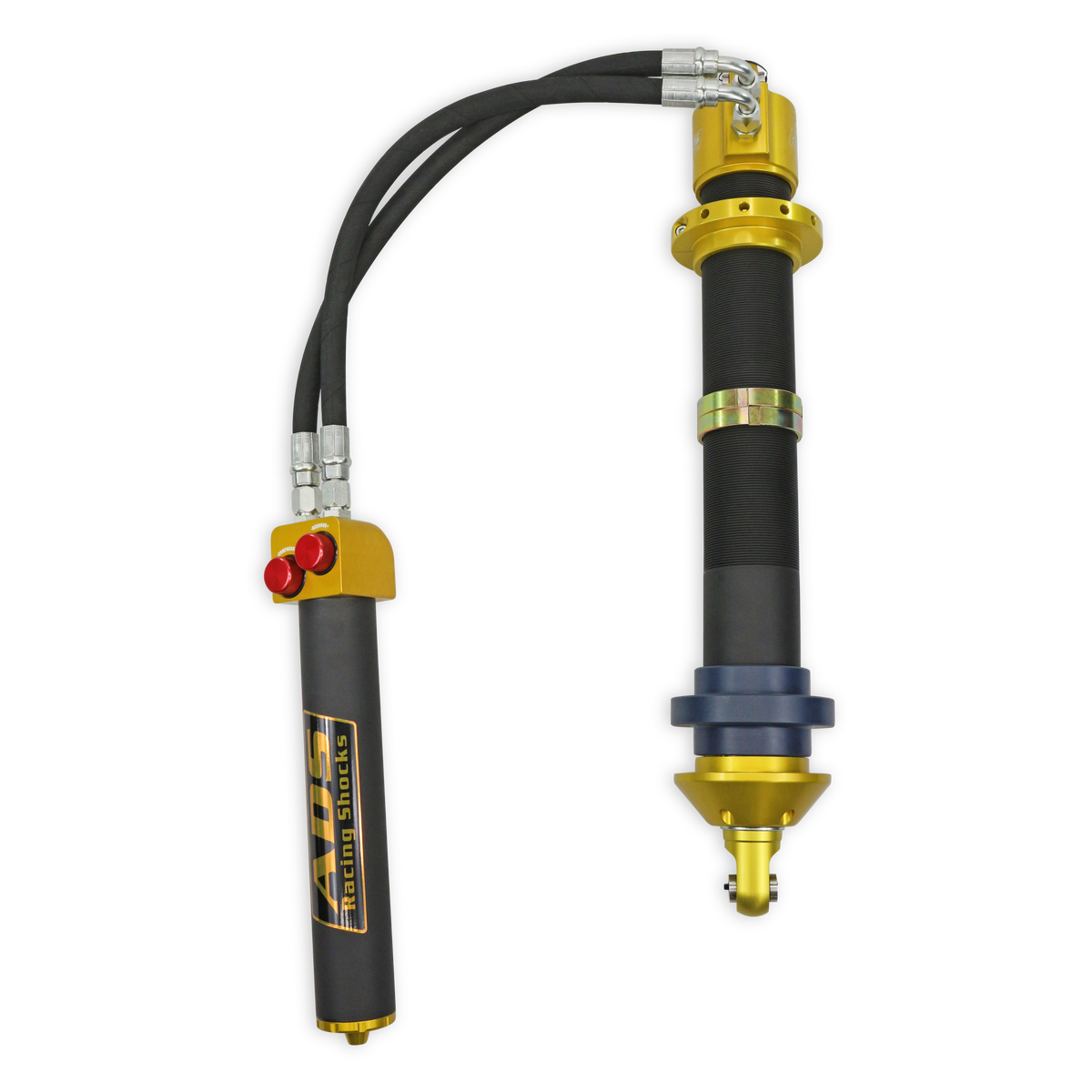

ADS 3.0" x 16" Multi Bypass Ring Coilover Remote 4 Way Adjustable Recirculating Reservoir

ADS ADS Shocks SKU 300-MBR16-000

Purchase options

Choose your options and quantity

Vehicle upgrade
$2,092.80

Available to order

Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.

Confirm fitment before ordering.

The complete vehicle application has not yet been published for this item.

Ask AVID about fitment
Total $2,092.80 Current selection

Review the application or specifications and complete every required configuration or product-option selection before adding this item to your cart.

Planning this vehicle build? Save this exact variant to a vehicle in My AVID Garage and track its public price over time.
This records product interest only. It does not reserve inventory, place an order, or begin a payment plan.
My AVID Garage

Save to Planned Build

ADS 3.0" x 16" Multi Bypass Ring Coilover Remote 4 Way Adjustable Recirculating Reservoir

Loading your Garage…
Request fitment review

Product information

Details when you need them.

Review fitment, performance context, specifications, installation information, and support.

Overview and included items

ADS 3.0" x 16" Multi Bypass Ring Coilover Remote 4 Way Adjustable Recirculating Reservoir

The ADS 3.0" x 16" Multi Bypass Ring Coilover Remote 4 Way Adjustable Recirculating Reservoir is part of the ADS MBR family, built to deliver true internal bypass control in a compact, race-ready shock package. ADS MBR technology uses a true multi-stage internal bypass system with independently adjustable zones controlled by a positive stop helix. Internal free bleed ports help shape the damping curve, and a dedicated top-out zone adds both hydraulic and mechanical control at full extension.

What This Means on the Vehicle

  • Wide tuning range: Independently adjustable bypass zones let tuners fine-tune small bump comfort, mid-stroke support, and bottoming control.
  • Improved control at speed: Internal bypass control helps keep the suspension composed in chop, G-outs, and repeated impacts.
  • Better thermal management: Reservoir design and recirculating fluid path help maintain stable damping over long runs.

Key Features

  • ADS MBR internal bypass technology
  • Positive stop helix adjustment system
  • Free bleed ports for damping curve refinement
  • Dedicated top-out control zone
  • Race-ready rebuildable construction
Applications and Fitment

Complete fitment details are not available. Ask AVID to confirm the intended application.

Ask AVID to confirm fitment

Specifications
Manufacturer part number
300-MBR16-000
Shock type
Internal bypass / MBR
Body diameter
3 in
Stroke
16 in
Collapsed length
25.99 in
Extended length
41.99 in
Mounting width
1.5 in
Mounting bolt size
0.5 in
Sold as
Individual
