Back to Universal & ServiceJMX12T 3-Piece Chromoly Rod End - 3/4-16 RH Thread
Purchase options
Choose the replacement part
Available to order
Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.
AVID must confirm a valid selling price before this variant can be added to cart. Contact us for current pricing and availability.
Request pricing reviewThe complete vehicle application has not yet been published for this item.
Ask AVID about fitmentReplacement reference
Core specifications
Compare these values with the removed part and its mating components.
- Material
- Chromoly (4140/4130)
- Thread
- 3/4-16
- Inner diameter
- 3/4"
Product information
Details when you need them.
Review replacement notes, specifications, documents, and service support.
Overview and included items

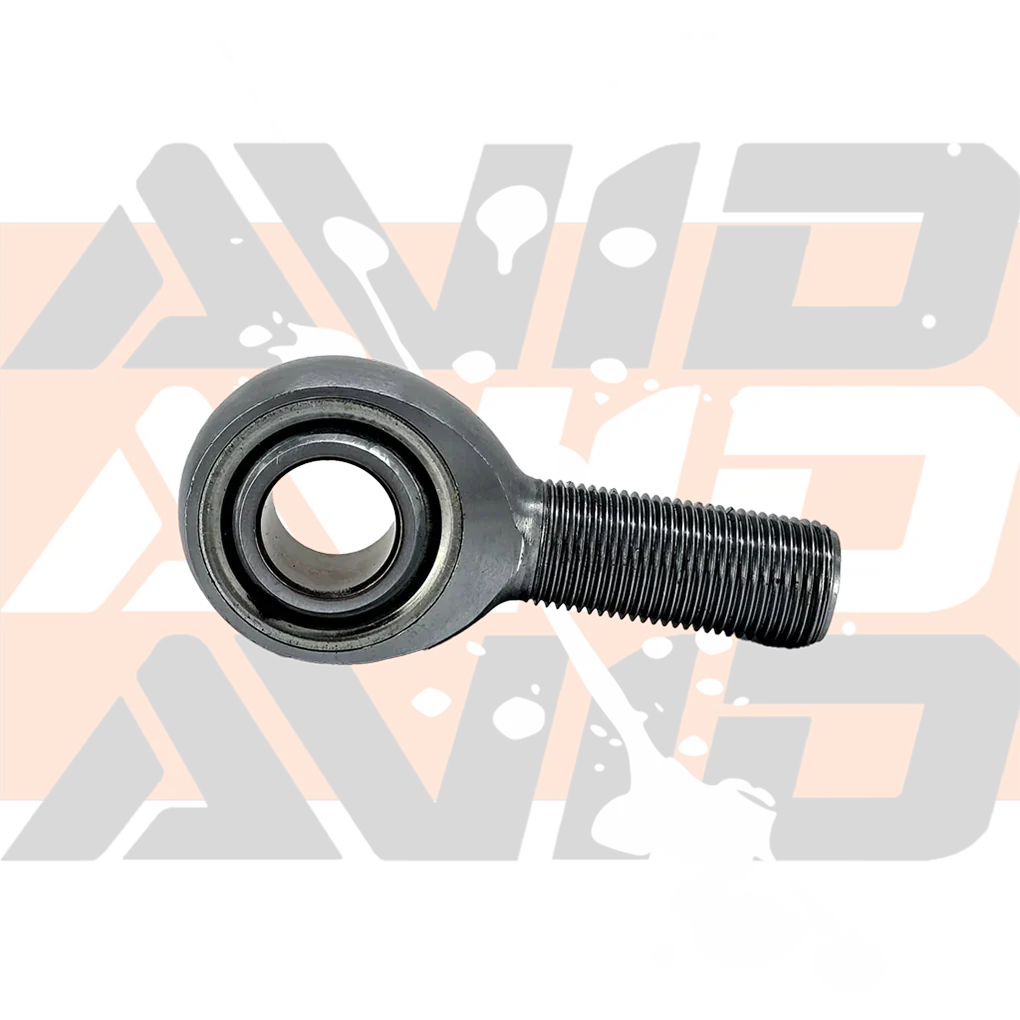

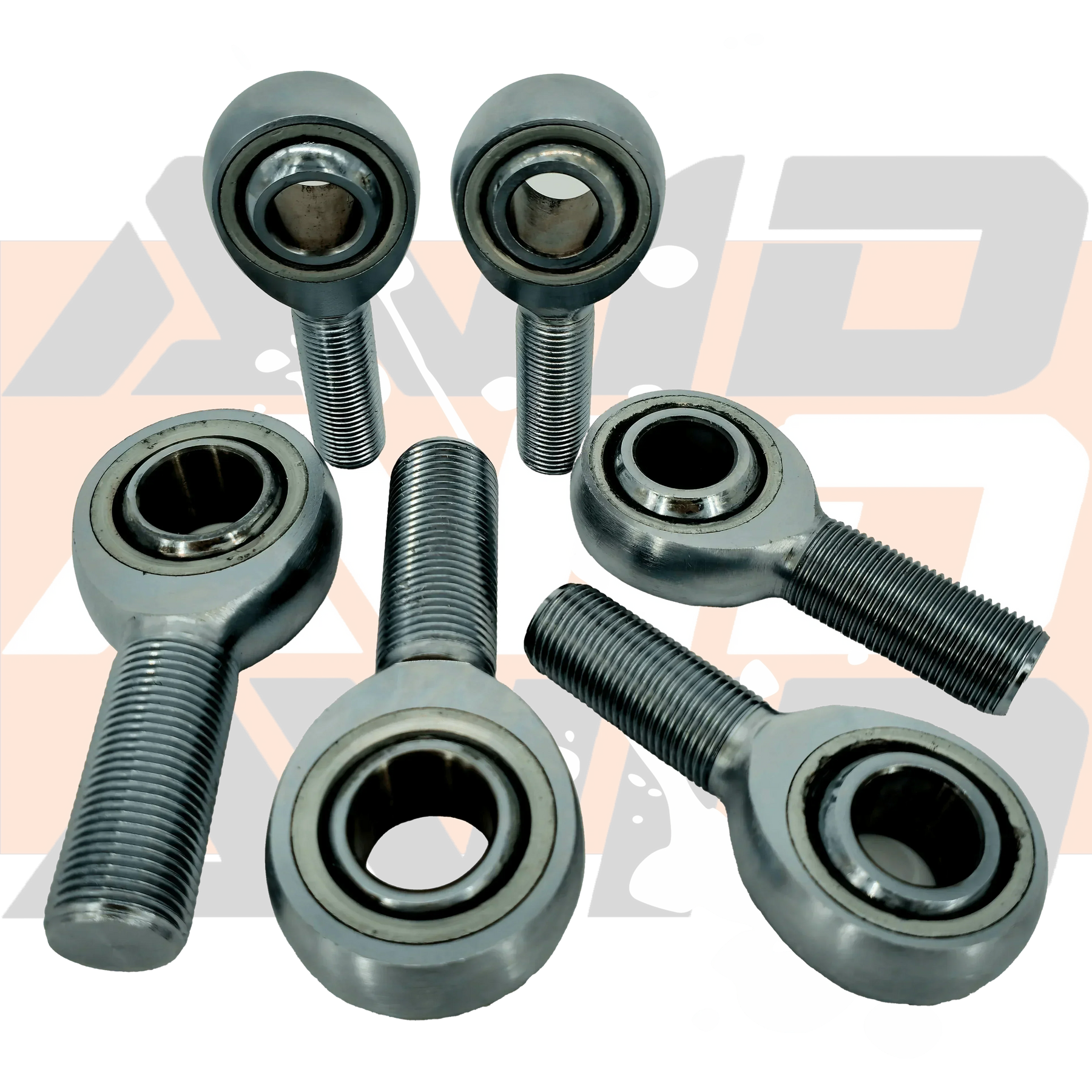

JMX12T 3-Piece Chromoly Rod End - 3/4-16 RH Thread
JMX12T is a 3-piece male chromoly rod end with a 3/4-16 right-hand thread and a 0.750 inch bore.
This PTFE-lined rod end uses alloy-steel construction with a heat-treated, hard-chrome-plated ball and a heat-treated, zinc-plated and chromate-treated body and race.
Key Specs
- Part Number: JMX12T
- Product Type: Rod End
- Bearing ID / Bore: 0.750 in
- Bearing OD / Head Diameter: 1.750 in
- Bearing Width / Ball Width: 0.875 in / 0.687 in
- Ball Diameter / Ball Radius Reference: 1.312 in ball diameter
- Thread Size / Pitch: 3/4-16
- Thread Direction: Right-hand
- Thread Length: 1.750 in
- Centerline Length: 2.875 in
- Misalignment Angle: 14 degrees
- Static Radial Load Rating: 28,090 lb
- Material: Alloy steel / chromoly rod-end construction
- Finish: Zinc-plated chromate body and race; hard-chrome-plated ball
- Style: 3-piece male rod end, PTFE lined
- Approx. Weight: 0.60 lb
Fitment Notes
Verify thread size, thread direction, bore size, and required misalignment before ordering. Final fitment depends on the mating hardware, mounting width, and application geometry.
Downloads and instructions
Installation and Requirements
Match every listed dimension, interface, material, and mating component before ordering.
