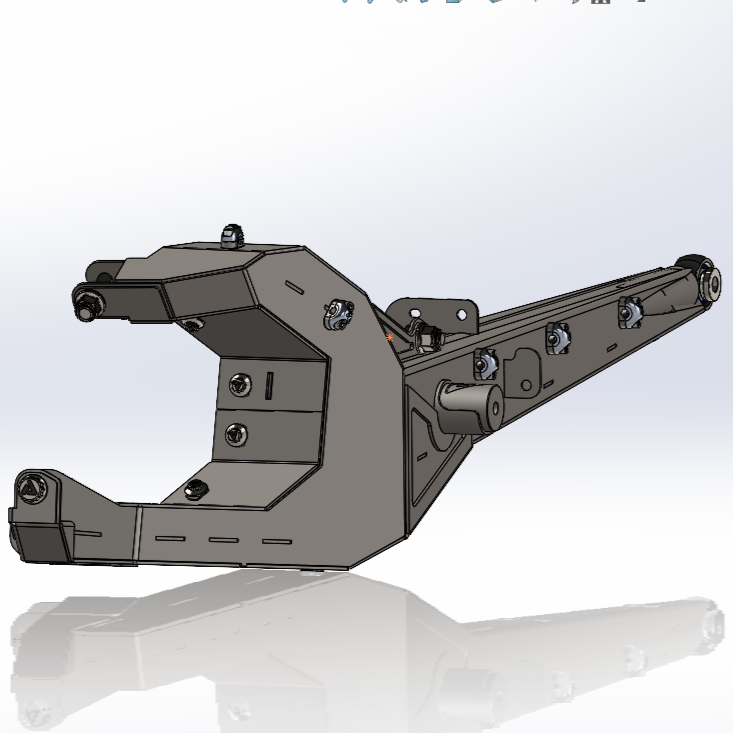

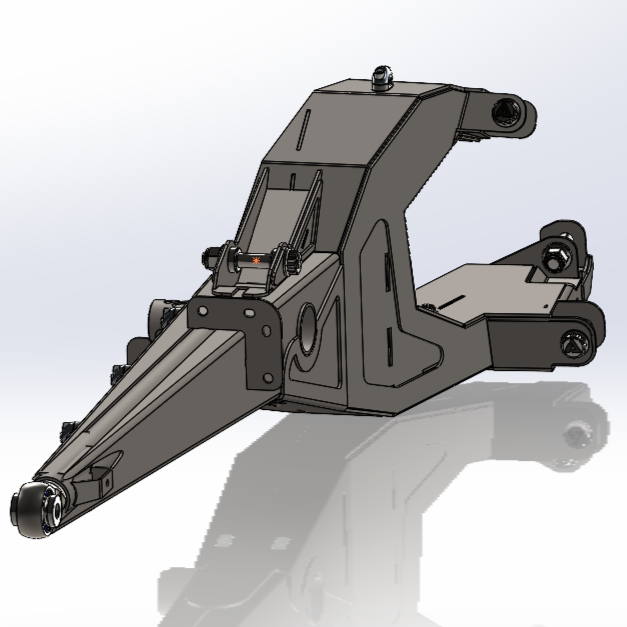

The AVID Racing Can-Am Maverick R 2-Seat Rear Baja Race Trailing Arm Kit is a high-clearance, stock-replacement rear trailing arm package built for factory shock applications. Designed for drivers who want the strongest factory replacement trailing arm on the market, this kit brings AVID's Baja Race Series construction, internal reinforcement, and race-tested durability into a complete rear arm package.

Most trailing arms rely on localized internal gussets placed around obvious high-stress areas. AVID takes the structure much further. Inside each arm is a full-length 2 inch .120-wall chromoly tube spine that connects the front of the arm to the rear, tying the major load areas together instead of reinforcing them as isolated points.

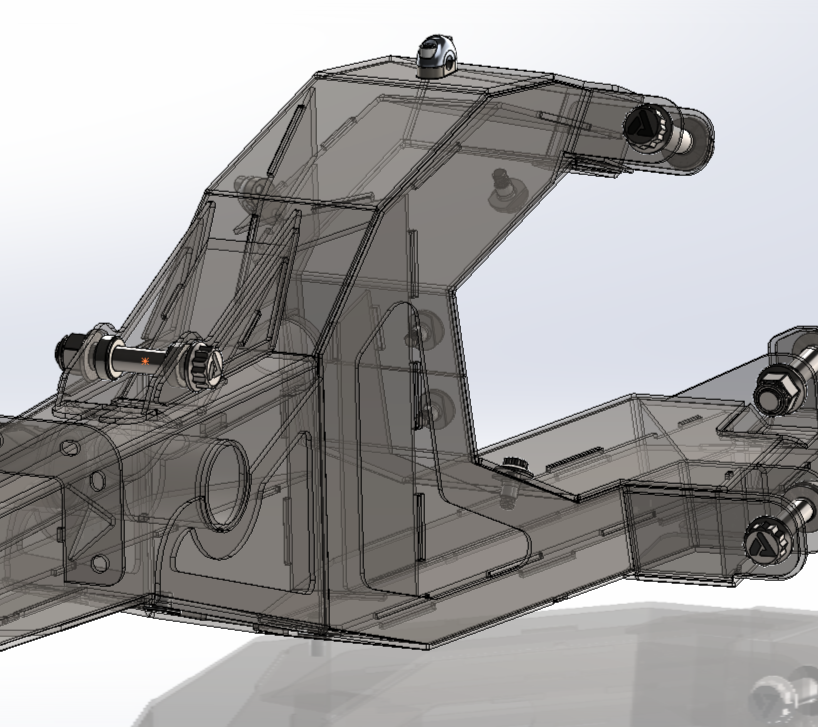

That internal spine is bound between five vertical layers of .120-wall chromoly plate, with boxing gussets and directed reinforcement placed intentionally to control how load moves through the arm. The transparent SolidWorks image shows the complexity of this internal structure, giving customers a clear look at the design work that sets this arm apart from every other replacement trailing arm on the market.

Even with that level of internal reinforcement, the arm is designed to stay efficient with material placement and overall weight. The result is a high-strength trailing arm package designed to be substantially lighter than most competing heavy-duty replacement arms on the market, without giving up the strength AVID expects from a Baja Race Series product.

These arms are based on the same design direction and field data behind our Maverick R Baja race trailing arm program. After a season of real-world testing, failure analysis, design review, and simulation work, AVID developed a reinforced internal structure where each spine, gusset, and plate is placed with a purpose: to direct load through the arm and create the ultimate factory-shock-location trailing arm for the 2-seat Maverick R.

Every arm is made in the USA from 4130 chromoly plate, using .120 inch and .187 inch material where required. Each assembly is 100% hand TIG welded with double-pass welds over chromoly construction. AVID proprietary stem cups are machined from solid 4140 billet steel, and the kit includes the titanium hardware package required for the arm assembly.

What Makes This Arm Different

• Full-length internal spine: A 2 inch .120-wall chromoly tube connects the front of the arm to the rear to tie major load areas together.
• Five-layer chromoly structure: The spine is bound between five vertical layers of .120-wall chromoly plate with directed boxing gussets.
• Factory shock location: Designed for the 2-seat Can-Am Maverick R while retaining the factory rear shock location.
• High-clearance design: Built for improved rear arm clearance in rough terrain.
• Premium construction: Made in the USA from 4130 chromoly with hand TIG welded, double-pass construction.
• Complete hardware package: Includes AVID proprietary 4140 billet stem cups, titanium hardware, and rear CV guards.

Included in Base Kit

• Left and right rear Baja Race trailing arms for the Can-Am Maverick R 2-seat platform
• AVID proprietary 4140 billet stem cups
• Uniballs, retaining rings, misalignments, and required mounting components where applicable
• AVID titanium hardware package
• Rear CV guard

Available Options

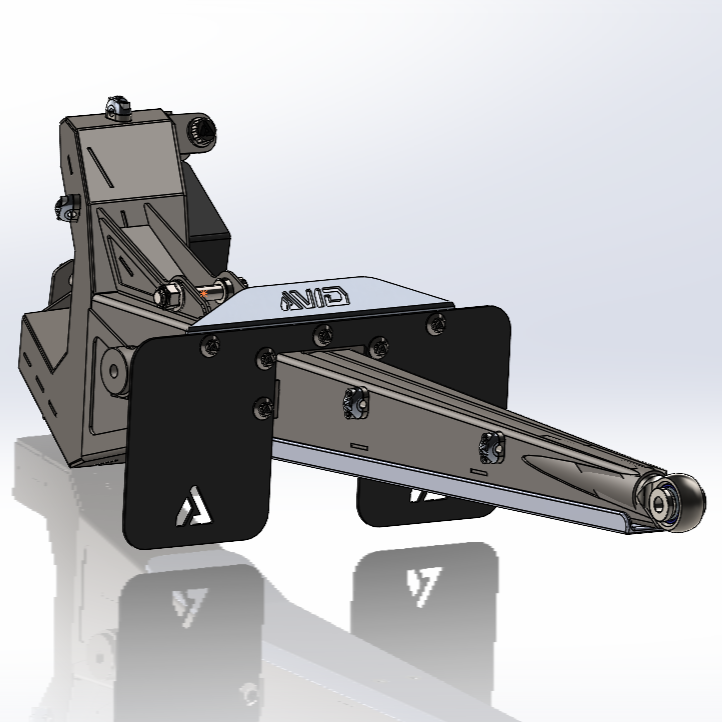

• Rock slider: Optional additional rock slider protection for drivers who want more side and lower-arm protection.

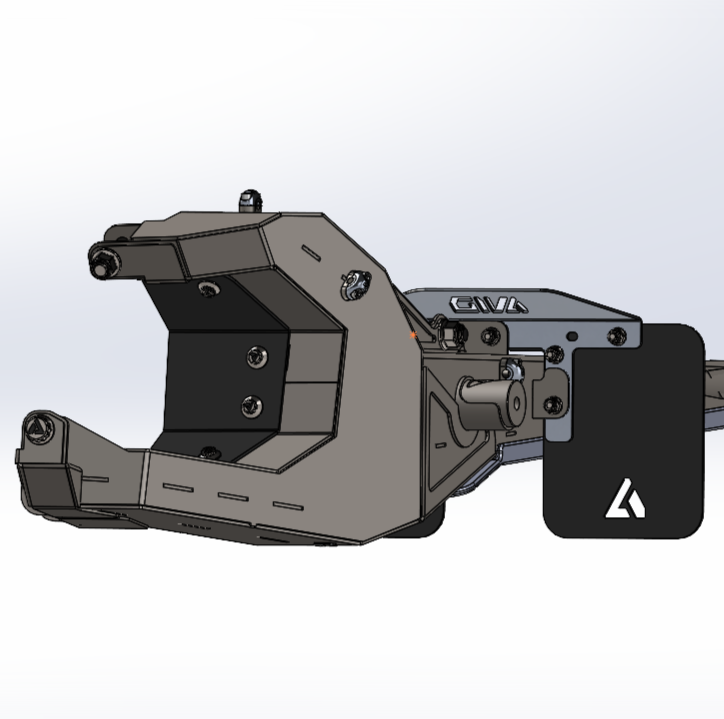

• Oversized mud flap: Optional oversized mud flap for additional debris control behind the rear tire.
