ADS Rear Dual Shock Package for Polaris RZR Pro R and Can-Am Maverick R

ADS Rear Dual Shock Package for Polaris RZR Pro R and Can-Am Maverick R

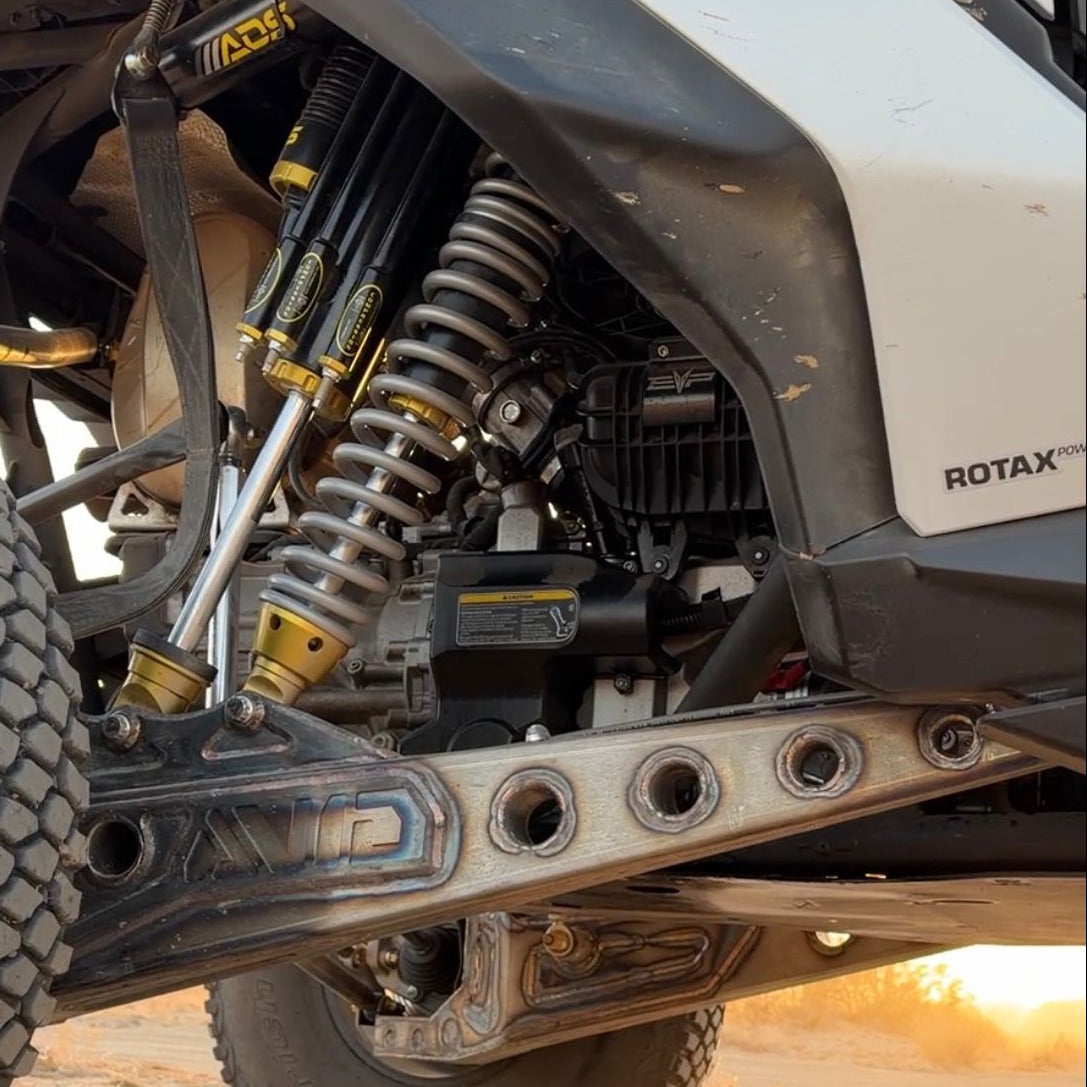

The AVID Racing ADS Rear Dual Shock Package is built specifically for our dual rear shock trailing arm kits on the Polaris RZR Pro R and Can-Am Maverick R. This package combines a 16 inch 5 tube ADS bypass shock with a 14 inch 2.25 ADS coilover, using Eibach dual rate springs and AVID pre tuned internal valving so the shocks are ready to run out of the box on our rear race suspension.

The 16 inch 5 tube bypass handles big hits, bottoming resistance, and high speed control, while the 14 inch coilover takes care of ride height, spring rate, and mid stroke support. Together they give you a true race style rear shock layout that is matched to the motion ratios and travel of the AVID dual shock trailing arm system.

What This Means On The Car

• True race rear control: Separate bypass and coilover shocks let you tune bottoming, mid stroke support, and ride comfort instead of compromising on a single shock.
• Matched to AVID trailing arms: Stroke lengths, valving, and spring rates are set up specifically for AVID dual rear shock trailing arm kits on Pro R and Maverick R.
• Pre tuned and spring matched: Shocks ship with internal valving already set and Eibach dual rate springs chosen for this package, which cuts down on initial tuning time.
• Heat and fade control: Large bodies, external bypass circuits, and remote reservoirs give the oil volume and cooling needed for long desert runs and race pace driving.

ADS 16 Inch 5 Tube Bypass Shock

• 5 tube race bypass layout: Multiple external bypass tubes allow separate control over compression and rebound zones for a wide tuning window.
• Multi stage bypass control: Internal bypass design uses independently adjustable zones so the damping curve can be shaped for small chop, G outs, and big landings.
• Remote reservoir: Reservoir adds fluid volume and cooling capacity to help resist fade under heavy use.
• Race construction: Large bore body, high strength shafts, and quality hardware built for off road race use.
• Pre tuned internal valving: Compression and rebound valving is set for AVID rear trailing arm motion ratios before shipment so the car is close on the first outing.

ADS 14 Inch 2.25 Coilover With Eibach Dual Rate Springs

• 2.25 inch coilover body: Race coilover sized for rear use on long travel UTV applications.
• Eibach dual rate spring stack: Main and tender springs selected to give good small bump feel with proper bottoming control when paired with the bypass shock.
• Pre tuned internal valving: Compression and rebound valving is set for AVID rear trailing arm motion ratios before shipment so the car is close on the first outing.
• Serviceable and revalveable: Built as a true race shock that can be revalved, resprung, and serviced as your program evolves.

Finish Options

• Custom anodized black and gold: Shocks can be ordered with a black and gold anodized finish to match ADS multi bypass front shocks for a complete, uniform look.
• Standard raw finish: If a finish option is not selected, shocks will ship in the standard raw aluminum ADS finish.

Included In The ADS Rear Dual Shock Package

• Two 16 inch ADS 5 tube rear bypass shocks configured for AVID dual rear shock trailing arm kits
• Two 14 inch ADS 2.25 coilover shocks with remote reservoirs
• Eibach dual rate spring stacks and spring hardware for each coilover
• Shock eye hardware and spacers matched to AVID rear trailing arm and chassis mounts

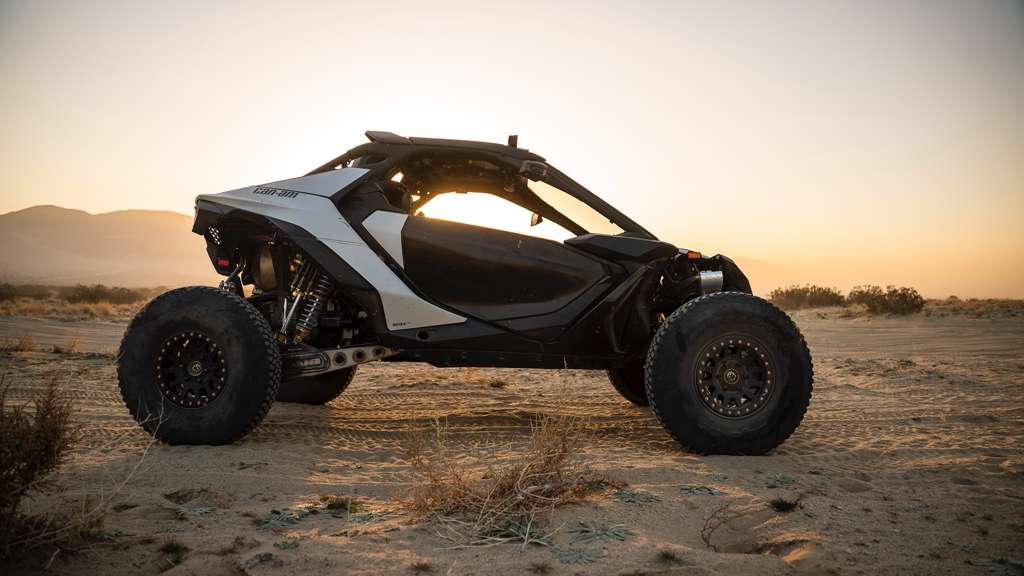

Fitment: This ADS rear dual shock package is designed specifically for AVID Racing dual rear shock trailing arm kits on the Polaris RZR Pro R and Can-Am Maverick R.
