MIG vs TIG Welding: Why AVID Racing Only TIG Welds Chromoly (and Why That Matters)

MIG vs TIG Welding: Why AVID Racing Only TIG Welds Chromoly (and Why That Matters)

Keven Smith |

MIG vs TIG Welding for Suspension Parts: Why AVID TIG Welds Chromoly

When you’re shopping suspension components, “strong welds” is easy to claim and hard to compare. The real differences come from two choices: the welding process and the material. This page explains MIG vs TIG in practical terms, then gets specific about why AVID uses TIG-welded chromoly where many competitors build around MIG-welded mild steel.

MIG and TIG: What They Actually Do

MIG welding

MIG is a wire-fed process. The machine continuously feeds filler wire through the gun while shielding gas protects the molten weld puddle. MIG is widely used because it is efficient for production, especially on mild steel parts where speed and throughput matter.

TIG welding

TIG uses a tungsten electrode to create the arc while the welder adds filler rod by hand when needed. TIG gives the operator direct control over heat and puddle size, which is especially valuable on tighter joints, thinner sections, complex assemblies, and alloy steels where consistency matters.

Material Matters: Mild Steel vs Chromoly

Mild steel

Mild steel is common in fabricated suspension parts because it is cost-effective and forgiving. It can absolutely be built strong, but it often achieves that by using thicker sections, larger gussets, or more material overall. That generally means more weight.

Chromoly (commonly 4130)

Chromoly is an alloy steel known for high strength potential relative to weight. In performance fabrication, the goal is not simply “strong,” it is strong where it counts without unnecessary mass. Chromoly supports that goal, but it also demands disciplined fit-up, cleanliness, and heat control during welding.

Why Many Competitors Use MIG-Welded Mild Steel

Competitors often standardize on MIG-welded mild steel because it is simpler to manufacture at scale. MIG welding has a high deposition rate and fast travel speed, which reduces labor time per part. Mild steel also tolerates a wider range of welding conditions and prep quality without becoming overly sensitive during fabrication.

This approach can produce perfectly usable parts, especially for general-purpose builds. The tradeoffs typically show up when the design has to survive repeated racing loads while also keeping weight down.

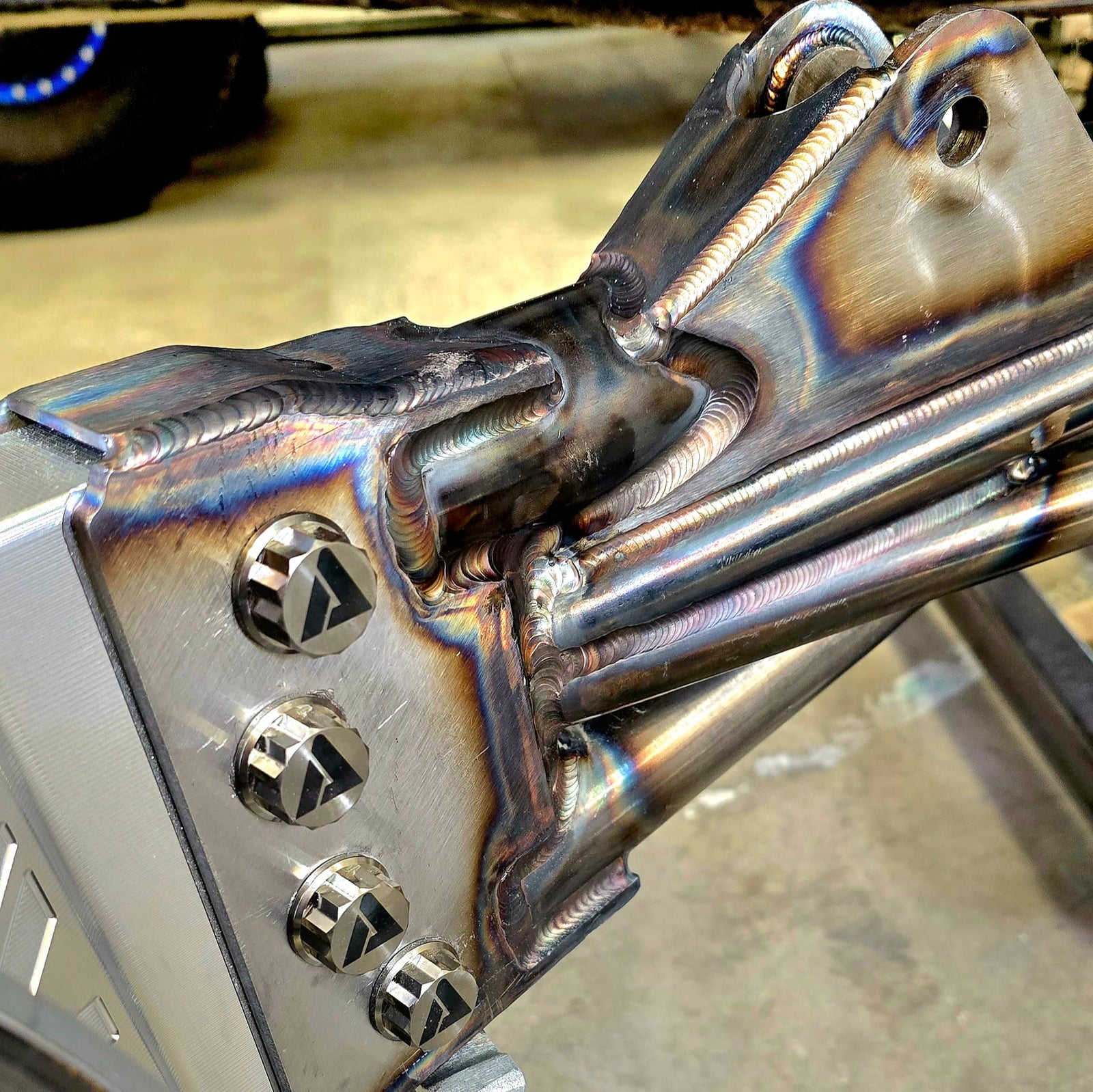

Why AVID TIG Welds Chromoly

Heat control and weld consistency on alloy steel

Chromoly benefits from controlled heat input and consistent technique. TIG lets the welder manage heat and filler placement with precision, which helps maintain stable weld geometry and clean fusion in complicated joints. This matters in suspension components because the highest stresses often concentrate near connection points and transitions.

Better fit-up discipline and joint quality

TIG encourages (and often requires) tighter fit-up and cleaner prep. In real fabrication, that discipline reduces variables. Better joint fit-up means the weld is doing what it should do, rather than compensating for gaps, poor alignment, or inconsistent edge prep. That supports repeatability from part to part.

Strength-to-weight focus

Many mild steel assemblies are built heavier to hit strength targets. Chromoly can support comparable strength targets with less material when designed correctly. In racing applications, weight reduction is not just a “nice to have.” Less mass can improve suspension response and handling feel, and it reduces the load your suspension has to control during rapid direction changes.

Time Difference: Why TIG Costs More

The biggest practical difference between MIG and TIG in manufacturing is time. TIG typically increases labor by 6 times over MIG because it involves more manual control and slower deposition.

Where TIG time goes in real production:

  • More time on fit-up and joint prep because consistent gaps and clean edges matter more
  • Slower travel speed while maintaining puddle control and fusion
  • Manual filler addition and continuous technique management
  • More attention on multi-axis joints, transitions, and tight access areas

That extra time is not marketing fluff. It is part of why TIG-welded chromoly components are considered premium workmanship compared to high-volume MIG-welded mild steel fabrication.

Strength, Fatigue, and Long-Term Durability: What You Actually Gain

Suspension parts rarely fail because of a single big hit alone. More often, failures come from repeated load cycles, vibration, and fatigue accumulating over time. That is why weld quality, joint geometry, and material choice matter.

What TIG-welded chromoly is built to deliver in racing use:

  • Durability under repeated cycling by focusing on consistent welds and joint quality in high-stress areas
  • Confidence in critical joints where alignment, transitions, and weld placement affect how loads flow through the part
  • Performance-driven weight control by pursuing strength targets without relying on extra thickness
  • Cleaner, more controlled assemblies because the process prioritizes precision and consistency

Bottom Line

MIG-welded mild steel is often chosen for speed, cost control, and production simplicity. TIG-welded chromoly is chosen for precision, process control, and strength-to-weight goals. AVID builds around TIG-welded chromoly because we’re optimizing for race-level performance and long-term durability under real suspension loading, not just the fastest way to produce parts.
