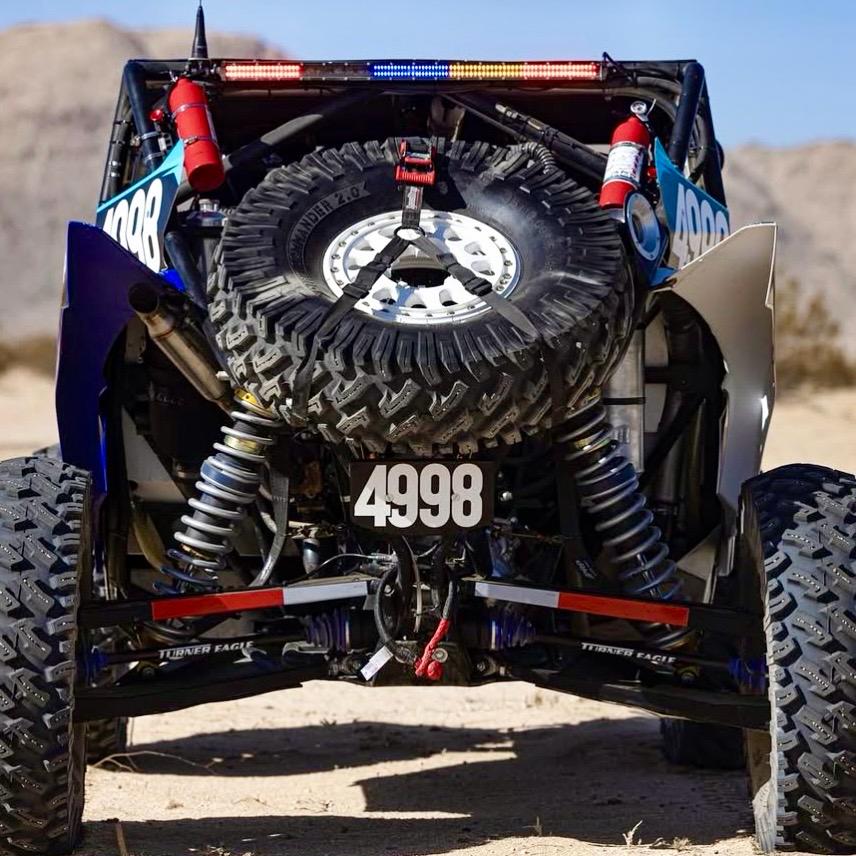

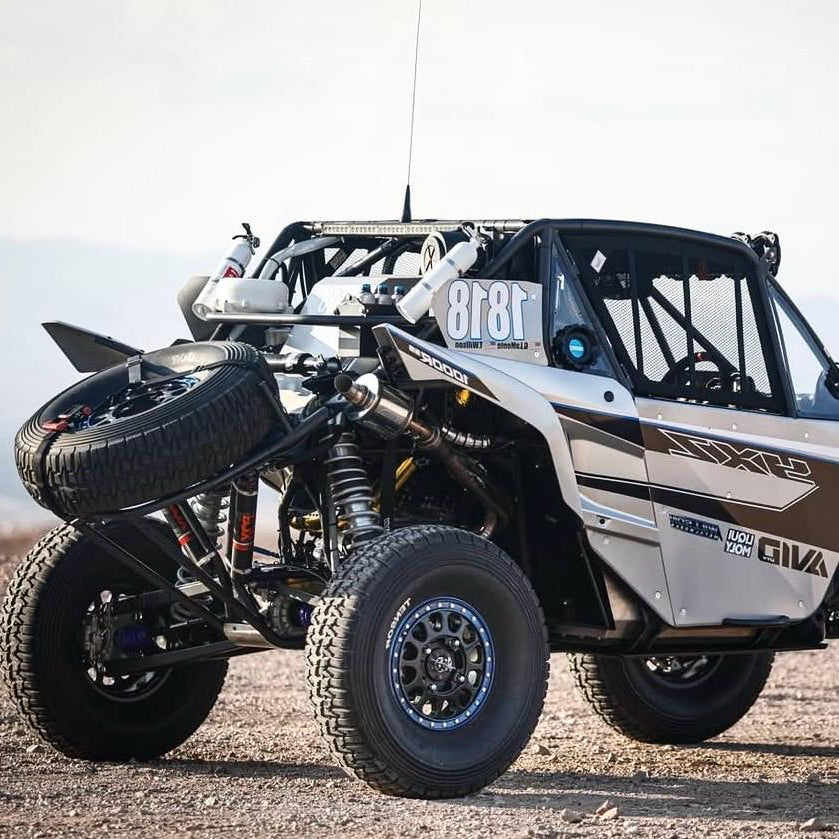

Yamaha YXZ1000 LTR 77" +13" Race Rear Long Travel Arm Kit | AVID Racing

The AVID Racing YXZ1000 77” +13” Race Rear Long Travel Kit is a race-proven suspension system engineered to deliver maximum strength, stability, and performance for high-speed off-road applications. Developed through years of real-world testing and abuse, this system extends the rear track width by 6.5 inches per side while improving suspension geometry and durability under extreme conditions.

Constructed from TIG-welded 4130 chromoly, this kit features double shear pivot points throughout the rear suspension, significantly increasing strength and reducing common failure points. The system utilizes 3/4” heim joints for improved adjustability and secure chassis mounting, while the rear shock relocation design enhances suspension performance and allows for proper damping control in aggressive terrain.

Designed for serious builds, this system requires fabrication and professional installation. The AVID Elite 77” rear system is ideal for dune, desert, and race-focused YXZ platforms looking for proven performance and long-term reliability. Complete your build with the Yamaha YXZ1000 LTR 77" +13" Race Front Long Travel Arm Kit.

Key Features

• +13” rear width (6.5” per side)
• Race-proven design developed through real-world testing
• TIG-welded 4130 chromoly construction
• Double shear pivot points for maximum strength
• 3/4” heim joints for adjustability and durability
• Rear shock relocation system for improved performance

Kit Includes

• Complete rear upper and lower control arm set
• Rear shock relocation bracket (welding required)
• Extended brake lines
• Uniballs and rod ends
• Misalignments, bushings, and installation hardware

Important Notes

• 14” rear shocks required (available as an option)
• Fabrication and professional welding required for installation
