Misalignment, 1" Bearing to 5/8" Bolt Hole, Stack 2.75"
Description
Description
Misalignment, 1" Bearing to 5/8" Bolt Hole, Stack 2.75"

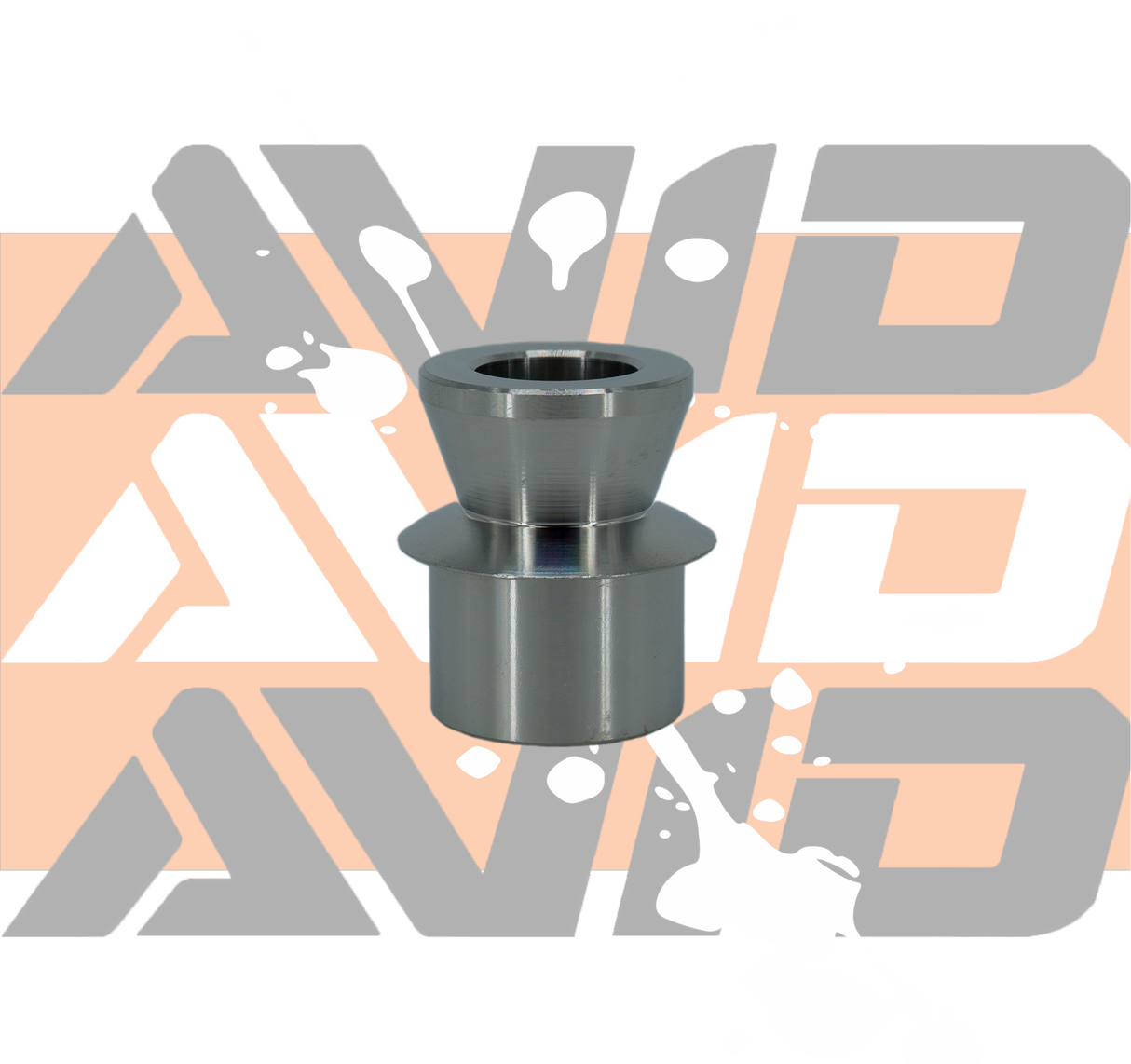

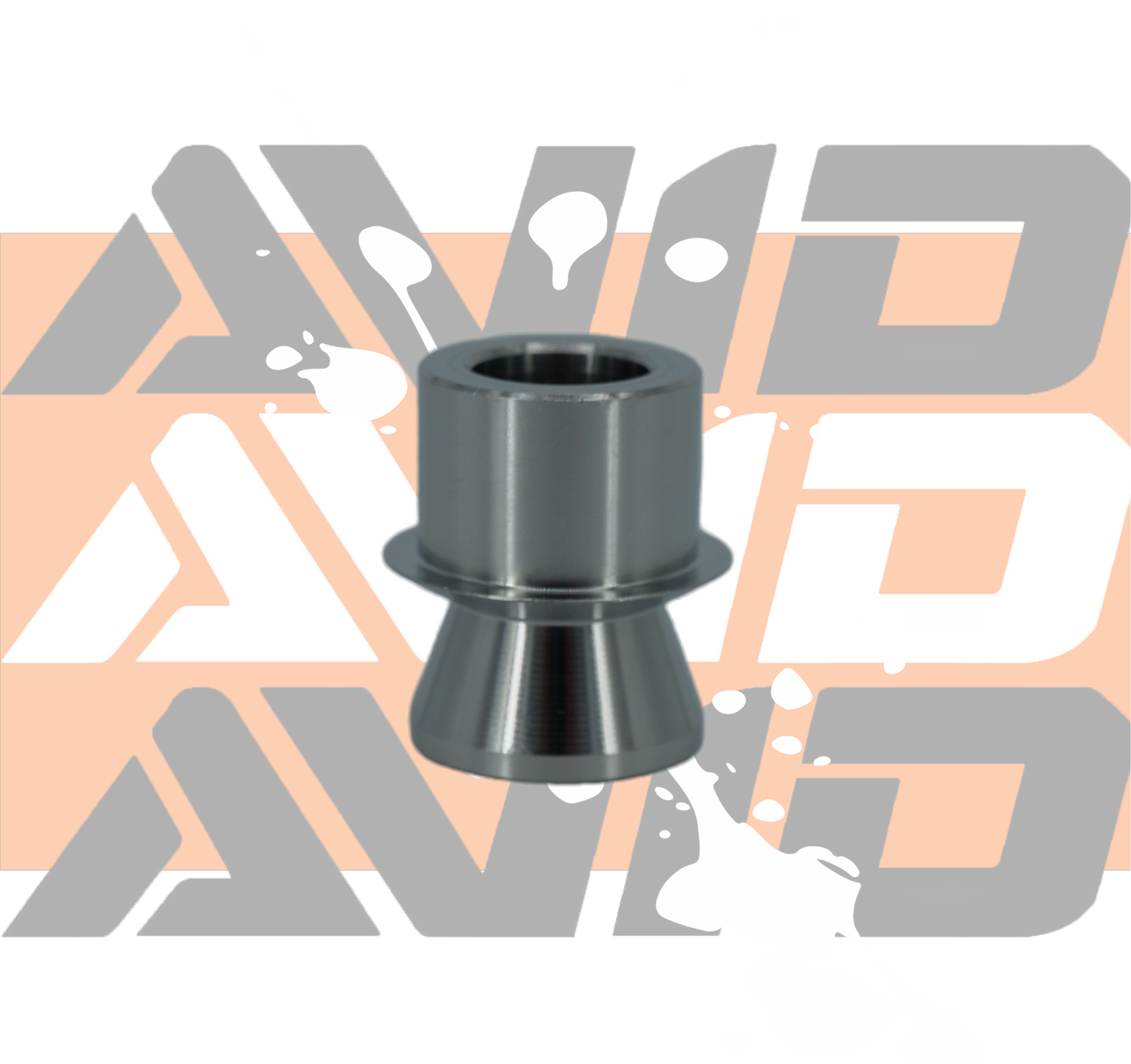

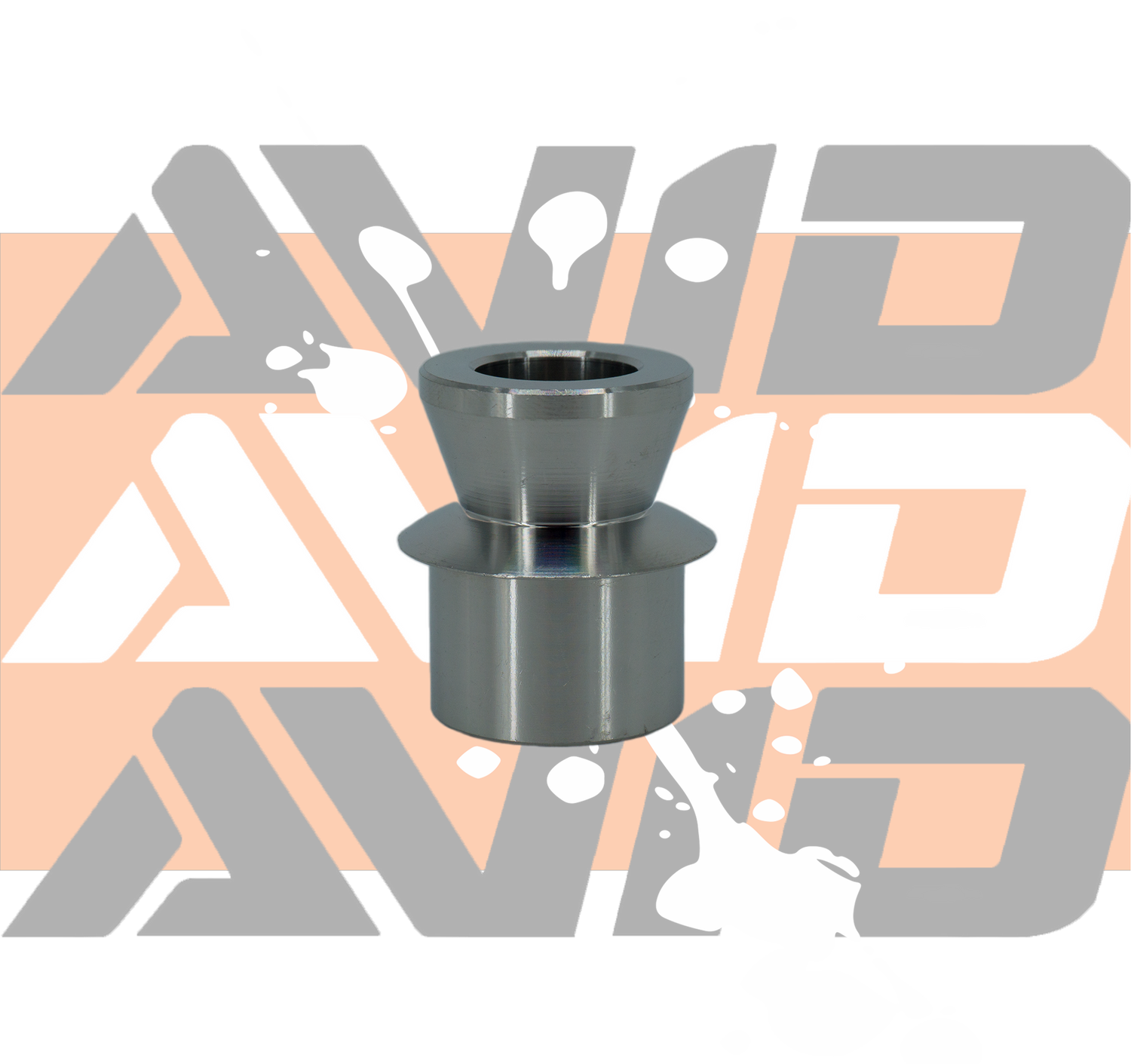

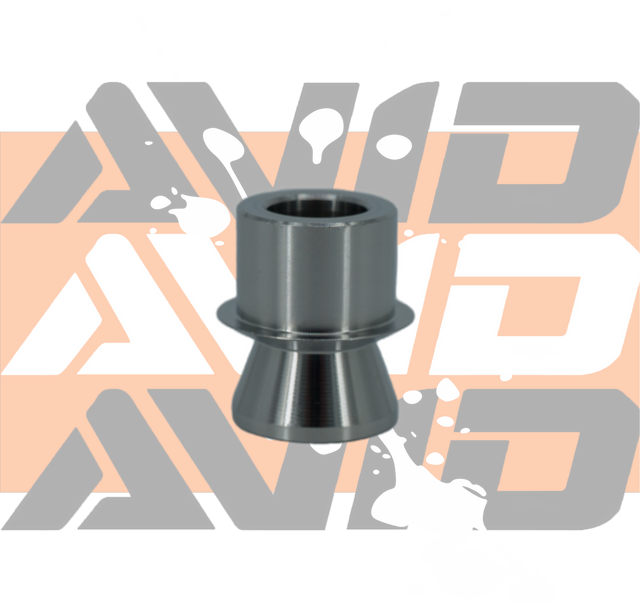

The AVID Racing Straight Reducer Spacer is designed to adapt a 1" spherical bearing to a 5/8" bolt while maintaining the correct fit, support, and stack height for suspension and steering assemblies. Machined from Stainless Steel, this spacer is built for strength, corrosion resistance, and long service life in harsh off-road and race environments.

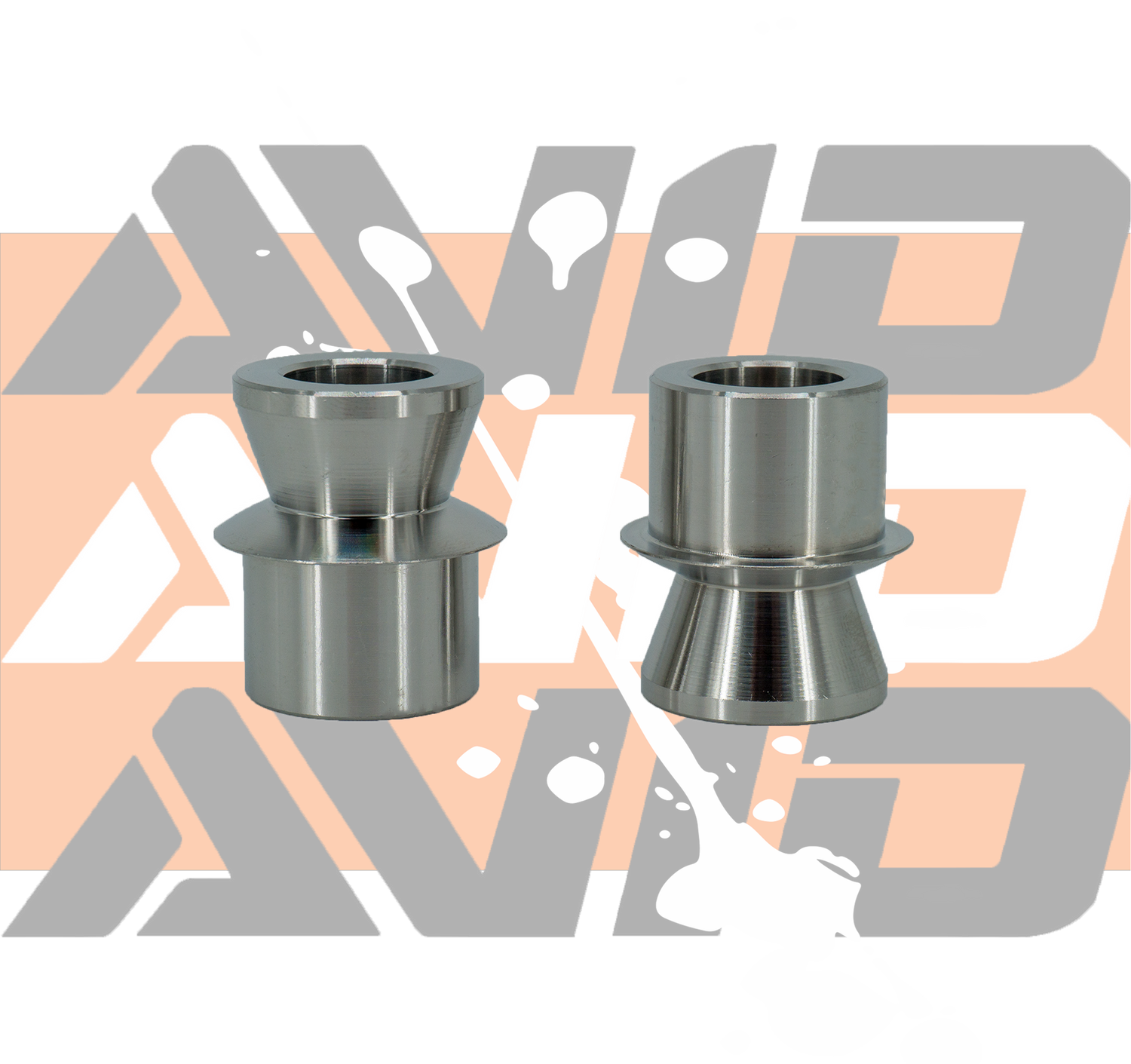

This misalignment uses a Straight Reducer Spacer profile and provides a total installed stack height of 69.85mm (2.75") when used as a pair in the correct bearing. Designed for precise fitment, it helps keep the bearing centered and the bolt properly supported under load.
Key Specifications
- ID Bearing Size: 1"
- Bolt Hole Size: 5/8"
- Stack Height: 69.85mm / 2.75"
- Ball Radius / Style: Straight Reducer Spacer
- Material: Stainless Steel
Misalignment, 1" Bearing to 5/8" Bolt Hole, Stack 2.75" may have a manufacturing lead time. Contact sales for exact ship date.
