One of the most overlooked factors in suspension hardware design is shank length. Many aftermarket bolt kits focus only on thread size—but improper shank length can create stress risers, movement, and premature failure.

At AVID Racing, shank length is one of our highest priorities.

⸻

What Is a Bolt Shank?

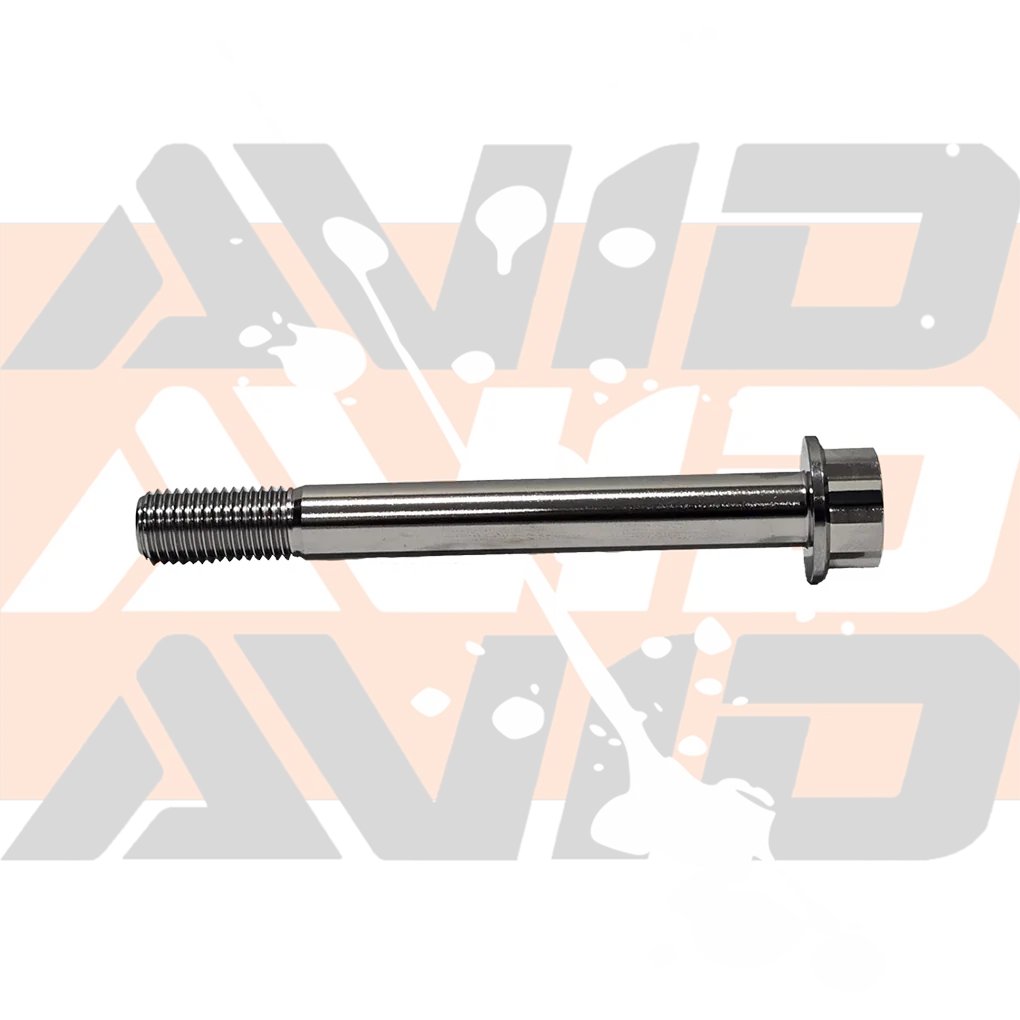

The shank is the smooth, unthreaded portion between the bolt head and the threads.

In suspension systems, the shank should carry the load, not the threads.

⸻

Why Threads in the Shear Zone Are a Problem

When threads sit inside a moving suspension joint:

• Load concentrates on thread roots

• Stress is not evenly distributed

• Components oval over time

• Bolts fatigue prematurely

This leads to:

• Suspension slop

• Fastener noise

• Joint wear

• Mount elongation

⸻

Why AVID Titanium Uses True Shank Lengths

All of our kits are engineered so that:

• The shank carries the shear load

• Threads are only used for clamping

• Mounting surfaces remain tight

• Torque readings remain consistent

This replicates OEM engineering standards—just with superior materials.

⸻

Rolled Threads vs Cut Threads

AVID bolts use rolled threads, not cut threads.

Rolled threads:

• Compress the grain structure instead of cutting it

• Increase fatigue resistance

• Improve vibration resistance

• Reduce micro-fracture initiation

This dramatically improves long-term durability in off-road conditions.

⸻

Where Shank Length Matters Most

• Control arms

• Radius rods

• Suspension pivots

• Shock mounting points

Anywhere movement occurs under load, proper shank design is critical.

⸻

Final Takeaway

Correct bolt diameter is only half the equation. Shank length determines how forces are distributed throughout your suspension system.

When shank length is wrong, even “strong” hardware fails prematurely.

⸻

Shop True-Fit Titanium Hardware

https://avidrace.com/collections/all-ti-kits

Shop Suspension Kits

https://avidrace.com/collections/all-suspension-kits

Install Best Practices

https://avidrace.com/pages/understanding-titanium

⸻

 FAQ Section

Q: What is a bolt shank?

A: The shank is the smooth portion of a bolt that carries shear load inside suspension joints.

Q: Why shouldn’t threads sit in the shear zone?

A: Threads concentrate stress and accelerate joint wear, ovaling, and bolt fatigue.

Q: Do AVID titanium bolts use proper shank lengths?

A: Yes. All AVID titanium kits are engineered with correct load-bearing shank lengths based on OEM design.
