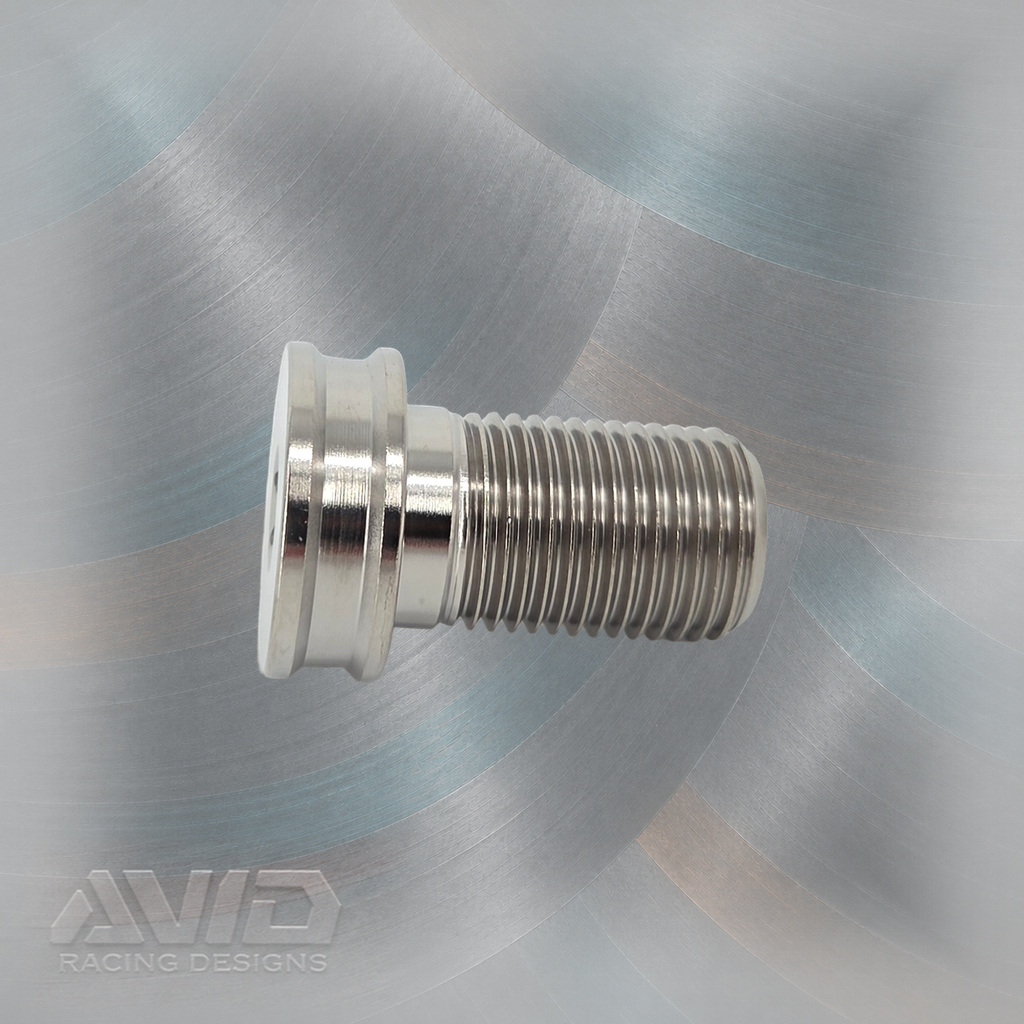

![AVID Racing Titanium Torx Cap Head Bolt, M16 x 1.5 x 26.5 mm | AVID Racing — Side Profile — M16-TCHB-265x4-15_01 [AVID:89cf2802-a689-4ea2-9823-1be9e78db30f] [AVID-VERSION:dd924640-1891-4006-a564-472e710f4e62]](http://avidrace.com/cdn/shop/files/1790549759945-1c5267ad-6a8a-4415-ade0-50bbbffb5a65.png?v=1790549769&width=1800)

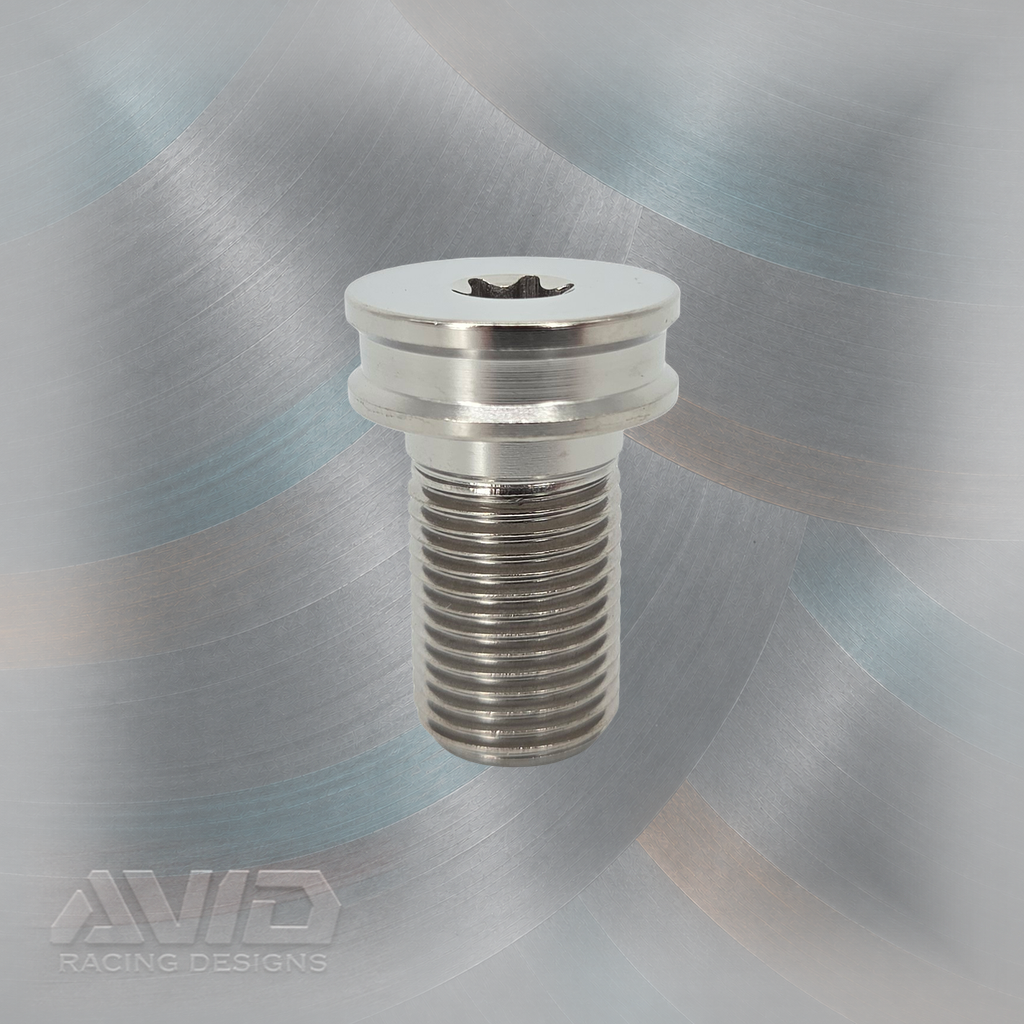

![AVID Racing Titanium Torx Cap Head Bolt, M16 x 1.5 x 26.5 mm | AVID Racing — Component Detail — M16-TCHB-265x4-15_02 [AVID:f6f6e9c8-d032-44a5-a71f-3c7ee7cf8a90] [AVID-VERSION:0ee4e8b4-e846-47ed-8278-fc899a7e886e]](http://avidrace.com/cdn/shop/files/1790549762958-94babaa4-1af0-4a63-be18-a4c00c955f88.png?v=1790549769&width=1800)
Titanium hardware reference
Back to titanium hardwareTitanium Torx Cap Head Bolt, M16 x 1.5 x 26.5 mm
Purchase options
Choose the exact part
Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.
AVID Ti exact-data reference
Individual hardware specifications
Match the measurement system, thread, every listed dimension, head, drive, grade, and piece count.
- Titanium family
- Hardware
- Component type
- Bolt
- Measurement system
- METRIC
- Thread designation
- M16x1.5
- Nominal diameter
- 16 mm
- Thread pitch
- 1.5 mm
- Overall length
- 26.5 mm
- Thread length
- 22.5 mm
- Shank length
- 4 mm
- Head style
- Cap head
- Drive style
- Torx
- Material
- Titanium
- Pieces per product
- 1
- Pack quantity
- 1
- Unit of sale
- Each
- Anodizing eligibility
- Not eligible
- Specification status
- Verified
Product information
Details when you need them.
Review the product description, exact dimensions, documents, and technical support.
Overview and included items
Titanium M16 x 1.5 Torx Cap Head Bolt 26.5 mm | AVID Racing
This AVID titanium Torx cap head bolt is a single hardware item with an M16 x 1.5 thread, 26.5 mm overall length, and 4 mm shank.
Specific Bolt Specs
- Part Number: M16-TCHB-265x4-15
- Component Type: Bolt
- Hardware Style: Cap Head Bolt
- Drive Style: Torx
- Thread Size: M16 x 1.5
- Overall Length: 26.5 mm
- Shank Length: 4 mm
- Thread Length: 22.5 mm
- Material: Titanium
Why Upgrade to AVID Titanium Hardware?
Titanium offers a lightweight, corrosion-resistant hardware option for performance builds where mass, durability, and serviceability matter.
Fitment & Use
Use only where the listed thread, length, Torx drive, and cap head style match the required assembly. Verify tool engagement and the complete hardware stack before ordering.
Installation Notes
Apply anti seize where service removal is required or blue lock tite where the assembly manufacturer calls for medium-strength thread retention; do not use both on the same interface. Verify the manufacturer-required torque specification before installation because clamping force is application specific.
Downloads and instructions
Installation and Requirements
Match every listed dimension, interface, material, and mating component before ordering.
