Yamaha YXZ1000 7075-T6 Billet Front Race Knuckle Kit

Yamaha YXZ1000 7075-T6 Billet Front Race Knuckle Kit

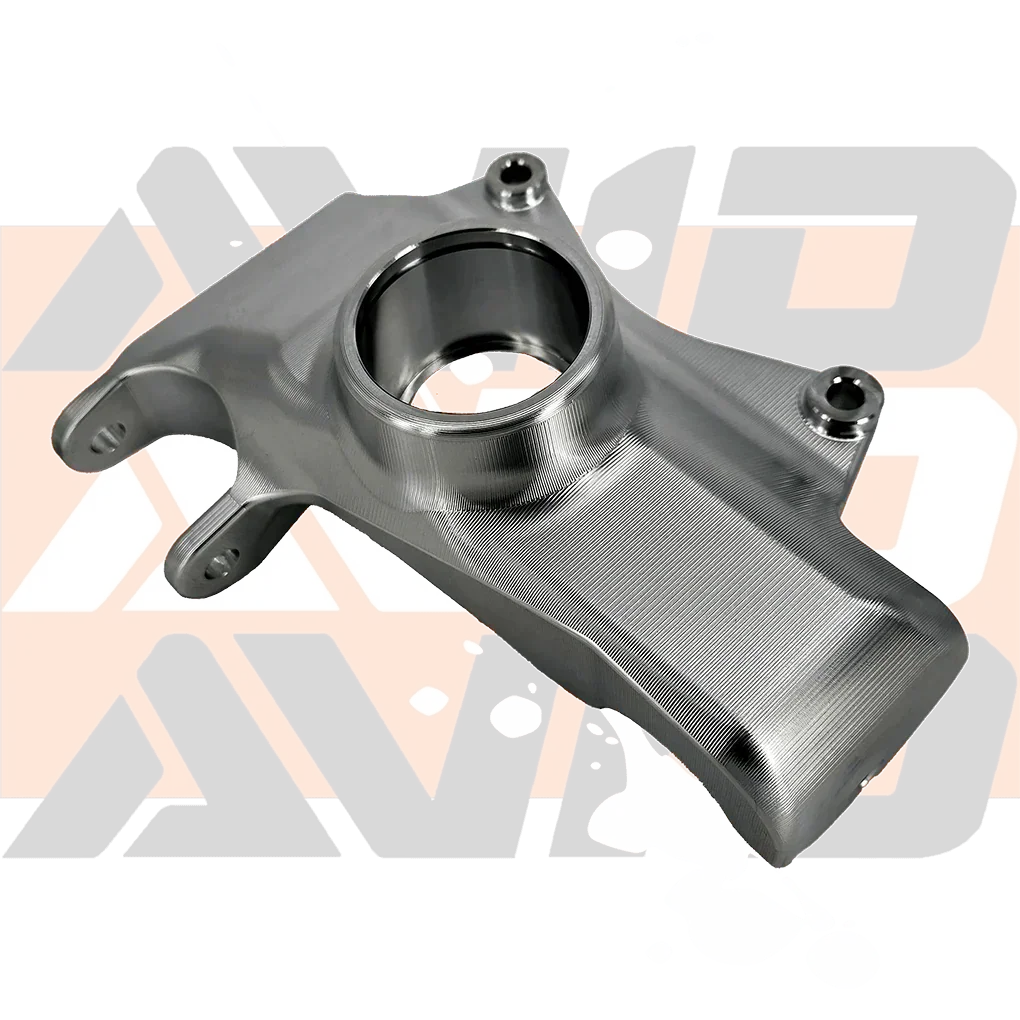

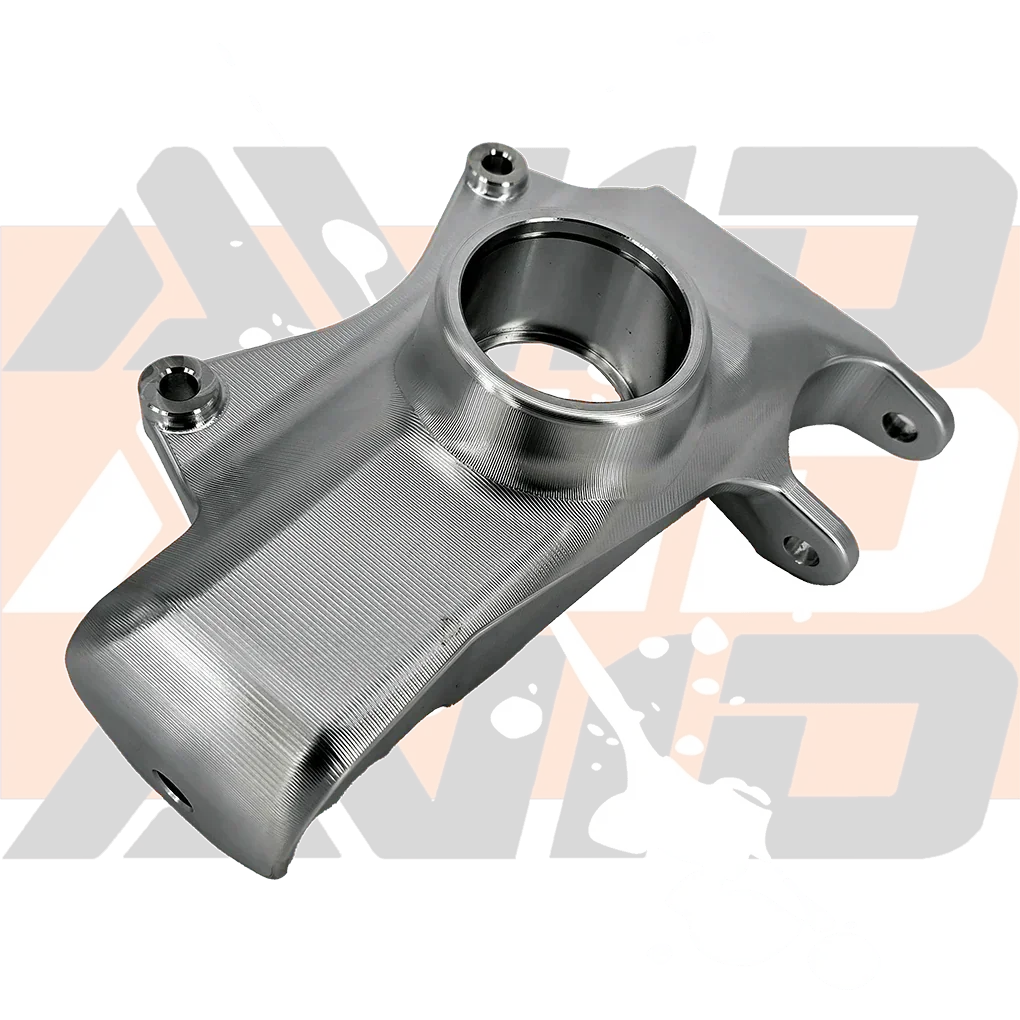

The AVID Racing YXZ1000 Billet Front Race Knuckle Kit is designed to work with our front control arm systems and bring true race geometry to the Yamaha YXZ1000. CNC machined from 7075-T6 billet aluminum, these front knuckles feature double-shear mounts for the upper and lower control arms and tie rod, creating a stronger, safer front end that holds alignment under real abuse.

New pivot locations have been engineered to reduce bump steer and optimize camber and caster through the full range of travel, giving the car a more precise, predictable feel at speed.

What This Means on the Car

• Cleaner Steering Feel: Corrected geometry greatly reduces bump steer so the car tracks straighter through chop and landings.
• More Front-End Grip: Optimized camber and caster curves keep the tire contact patch working, improving turn-in and mid-corner control.
• Stronger Knuckles: 7075 billet construction and double-shear mounting resist flex far better than stock cast components.
• Race-Ready Hardware: Titanium misalignments and Grade 8 hardware keep everything tight and reliable in harsh conditions.

Key Features

• CNC machined from 7075-T6 billet aluminum
• Double-shear upper, lower, and tie rod mounting
• Revised pivot locations to reduce bump steer
• Geometry optimized for camber and caster through the travel
• Designed specifically for Yamaha YXZ1000 AVID front arm kits

Included in Kit

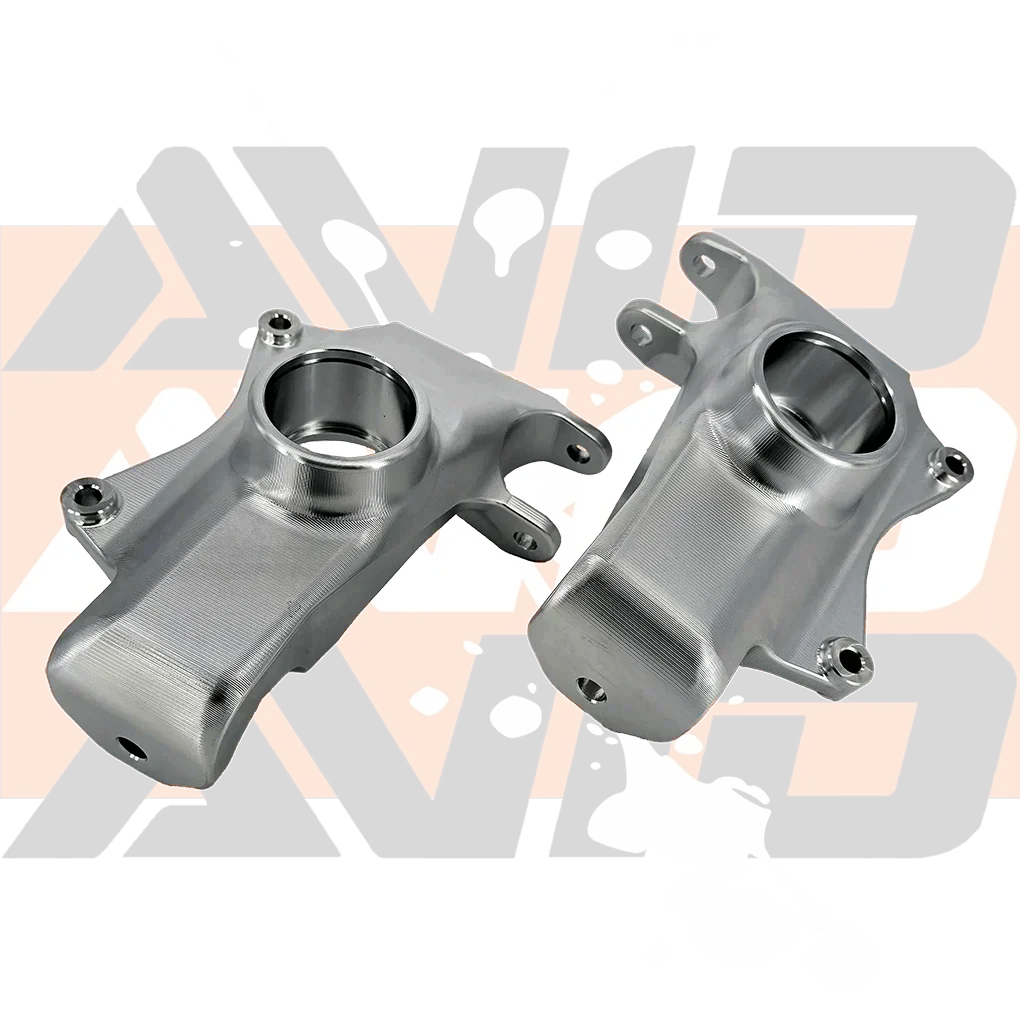

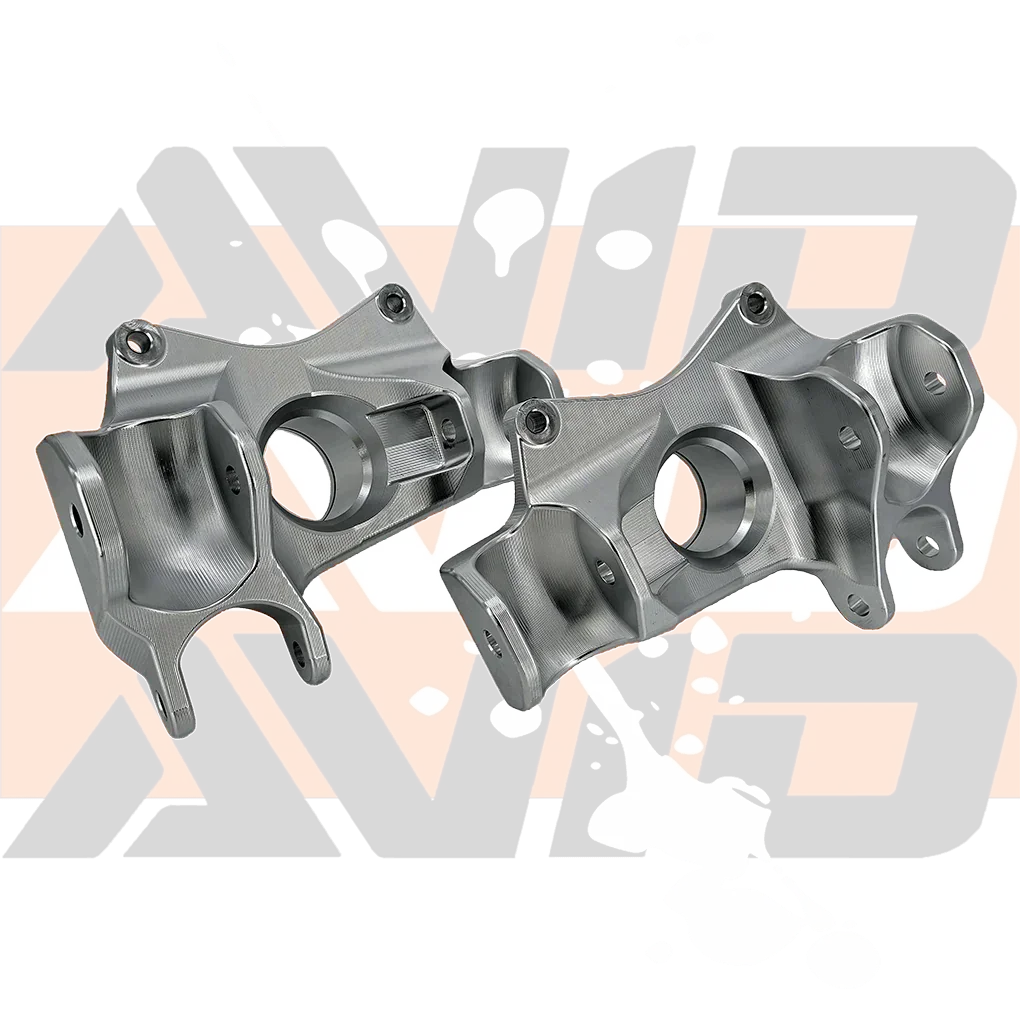

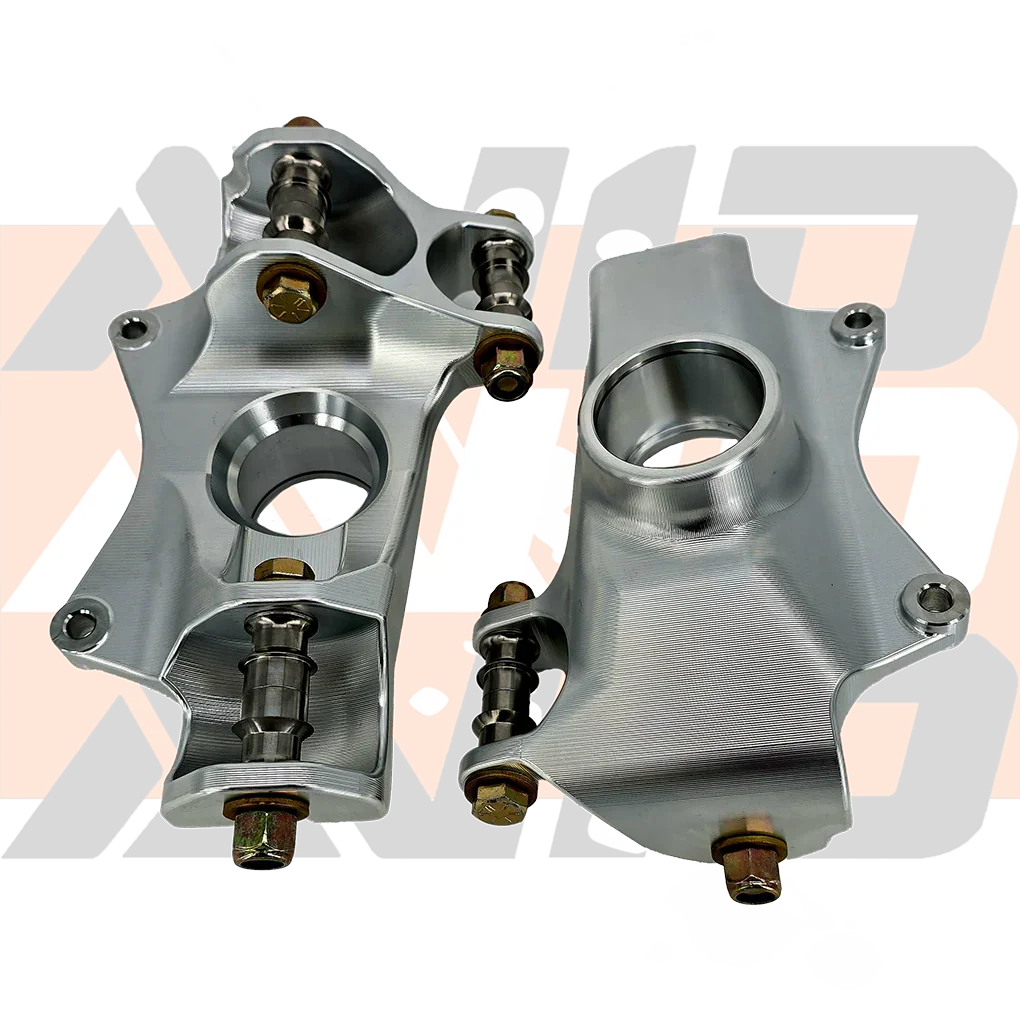

• Left and right 7075-T6 billet front race knuckles
• 5/8" and 1/2" titanium misalignments
• Grade 8 hardware for knuckle mounting points

Bottom Line: The AVID Yamaha YXZ1000 7075 Billet Front Race Knuckle Kit is the front upright upgrade for serious YXZ builds. Delivering stronger mounting, corrected geometry, and the steering feel you expect from a true race front end.
