Titanium 12 Point Flange Bolt, M14 x 2.0 x 65 mm, 40 mm Thread

Titanium 12-Point Flange Bolt, M14 x 2.0 x 65 mm | AVID Racing

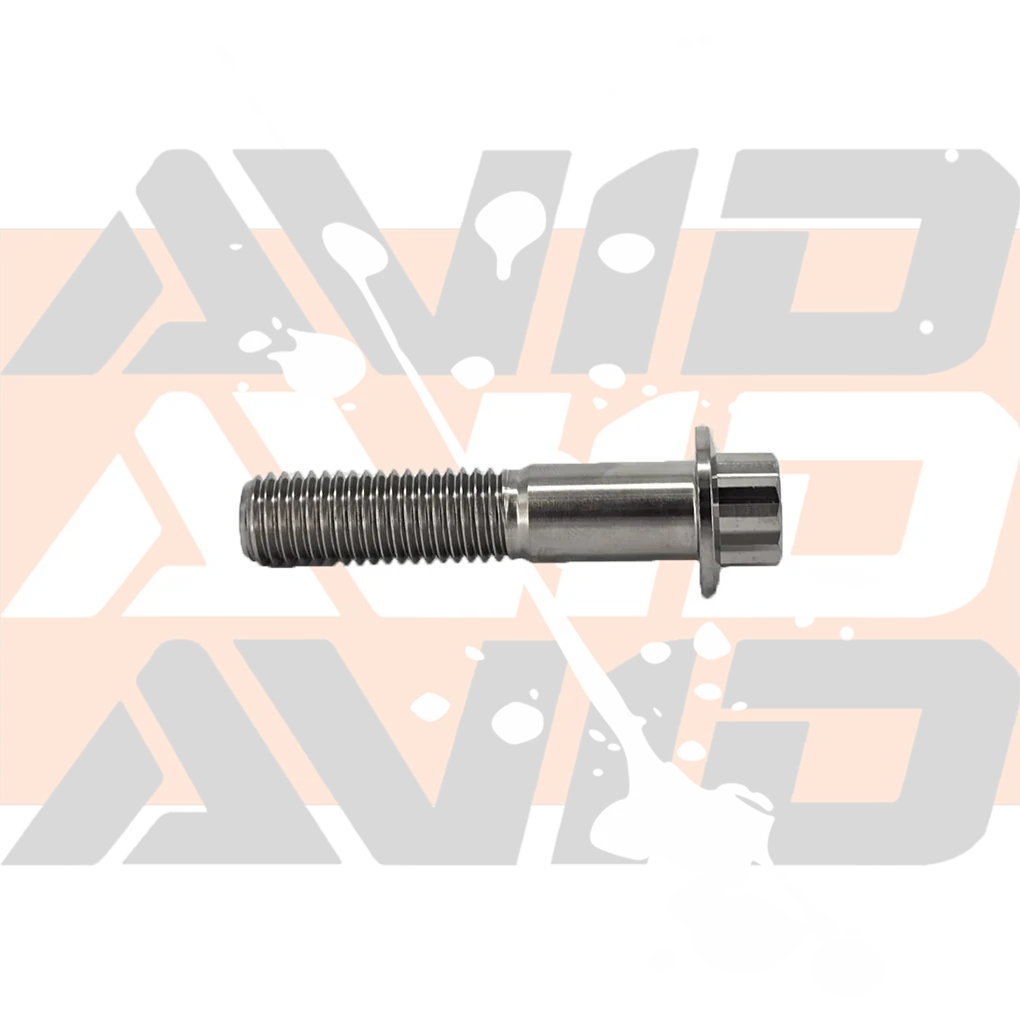

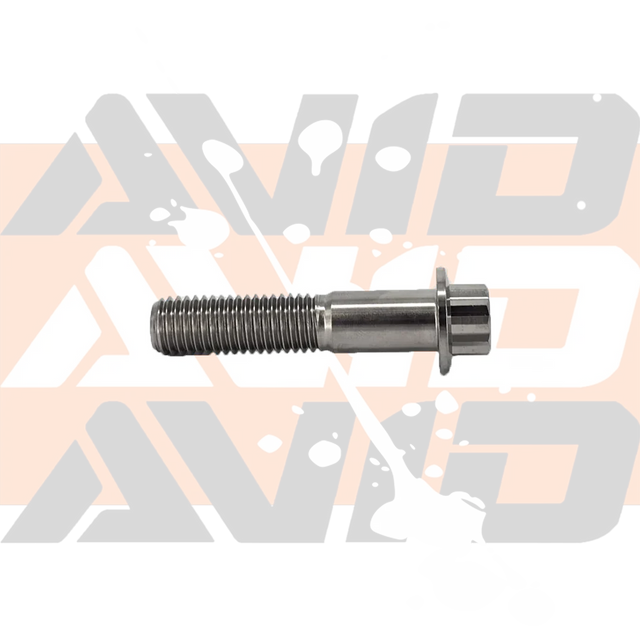

The Titanium 12 Point Flange Bolt, M14 x 2.0 x 65 mm, 40 mm Thread is an AVID titanium bolt for applications that require M14 x 2.0 x 65 mm. It replaces standard steel hardware with a lightweight, corrosion-resistant titanium fastener for clean fitment and long-term serviceability.

Specific Bolt Specs

• Hardware type: 12P Flange Bolt
• Socket size: 14 mm
• Thread size: M14 x 2.0
• Total length: 65 mm
• Thread length: 40 mm
• Shank length: 25 mm
• Material: Titanium

Why Upgrade to AVID Titanium Hardware?

AVID titanium hardware is precision-made for builders who want clean fitment, reduced weight, and corrosion-resistant hardware without giving up serviceability. Titanium is well suited for off-road, race, and fabrication applications where hardware is exposed to dirt, water, corrosion, and repeated maintenance.

Use this bolt where the listed thread size, length, head style, and shank length match the required mounting location. When used in pivot or tab-mounted locations, proper shank engagement helps the joint carry load on the smooth shank instead of the threads.

For best results, use anti seize on the shank where applicable and blue lock tite on the threads where applicable. Proper torque is critical. Standard torque reference for this M14 titanium bolt is 132 Nm / 97 ft-lb. This is a standard torque reference for AVID titanium hardware. Always verify the manufacturer-required torque specification before installation because clamping force is application specific.
