ADS Mesa 2.5" Coilovers - Front 100ADS-10147

ADS Mesa 2.5" Coilovers - Front 100ADS-10147

The ADS Mesa 2.5" Coilovers - Front 100ADS-10147 is an ADS factory-replacement shock identified by manufacturer part number 100ADS-10147. 2.5" Mesa IFP Shock, 2014-'20 F-150, 0.0 - 2.0 Lift.

What This Means on the Vehicle

• Product identity: The ADS part number is preserved as 100ADS-10147.
• Application: 2014-2020 F150 (2WD).

Vehicle Fitment

• 2014-2020 F150 (2WD)

Key Features

• Product type: Coilover

Specifications

• Body Diameter: 2.5
• Collapsed Length: 17.32
• Cylinder Diameter: 2.5
• Extended Length: 22.34

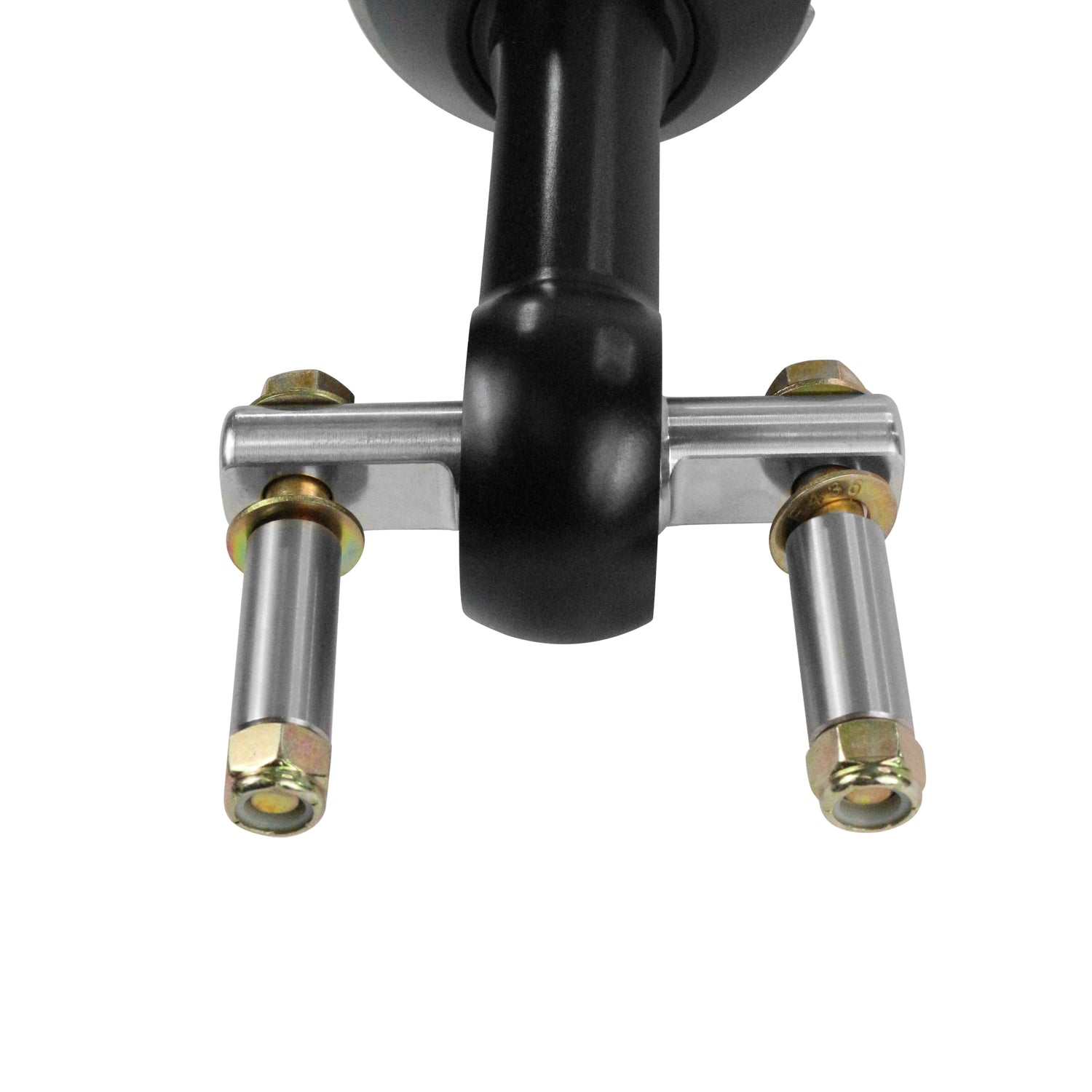

• Lower Mount Type: T-Bar
• Mounting Hardware Included: Yes
• Shaft Diameter: 0.875
• Shaft Material: Hard-chrome plated steel
• Strut Mount Insulator(S) Included: No
• Stroke: 5.02
• Travel Length: 5.02

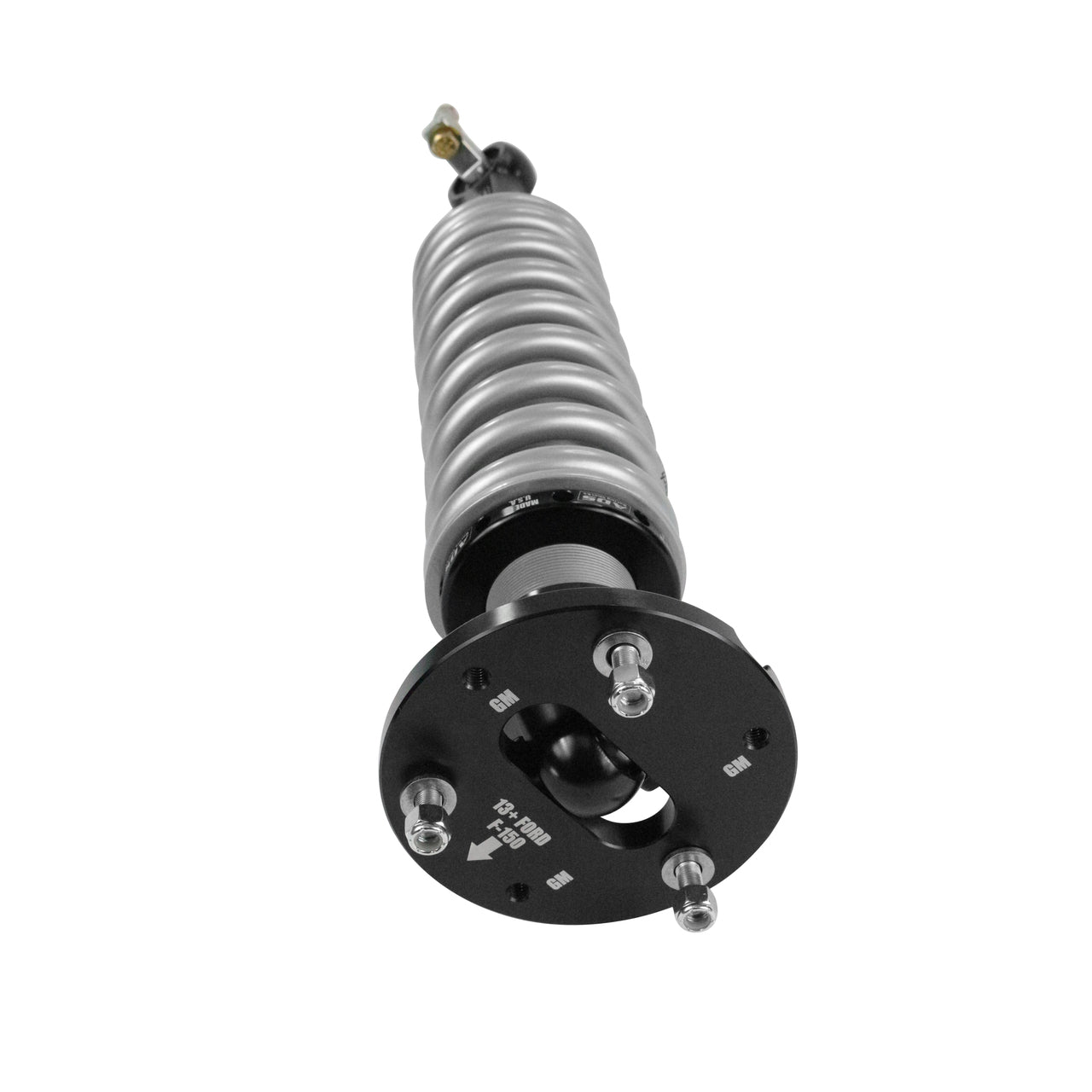

• Upper Mount Type: Mounting Plate
