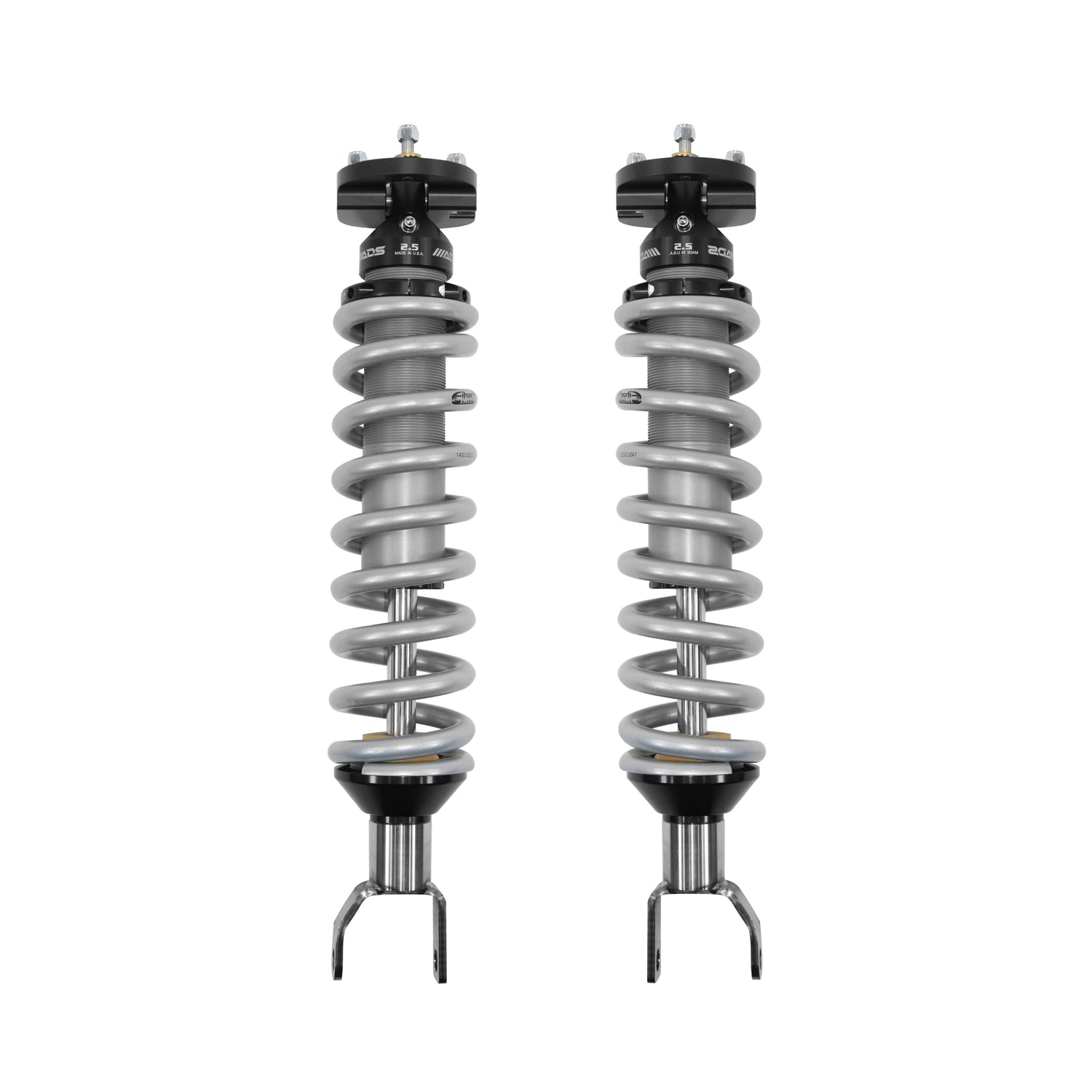

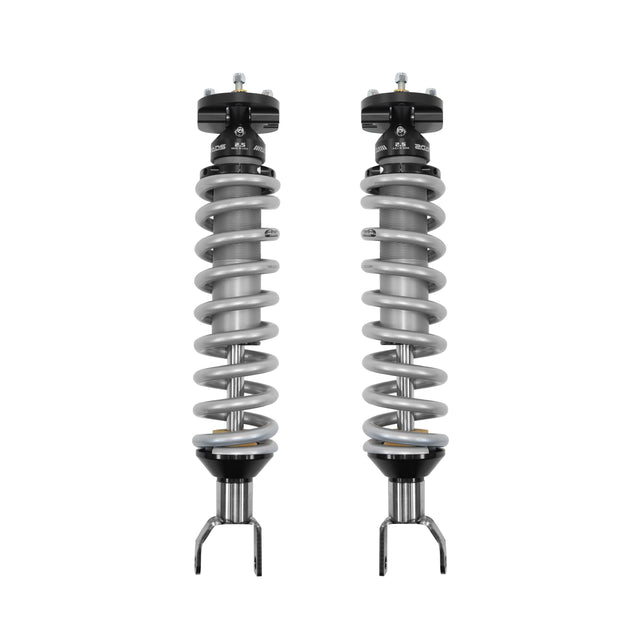

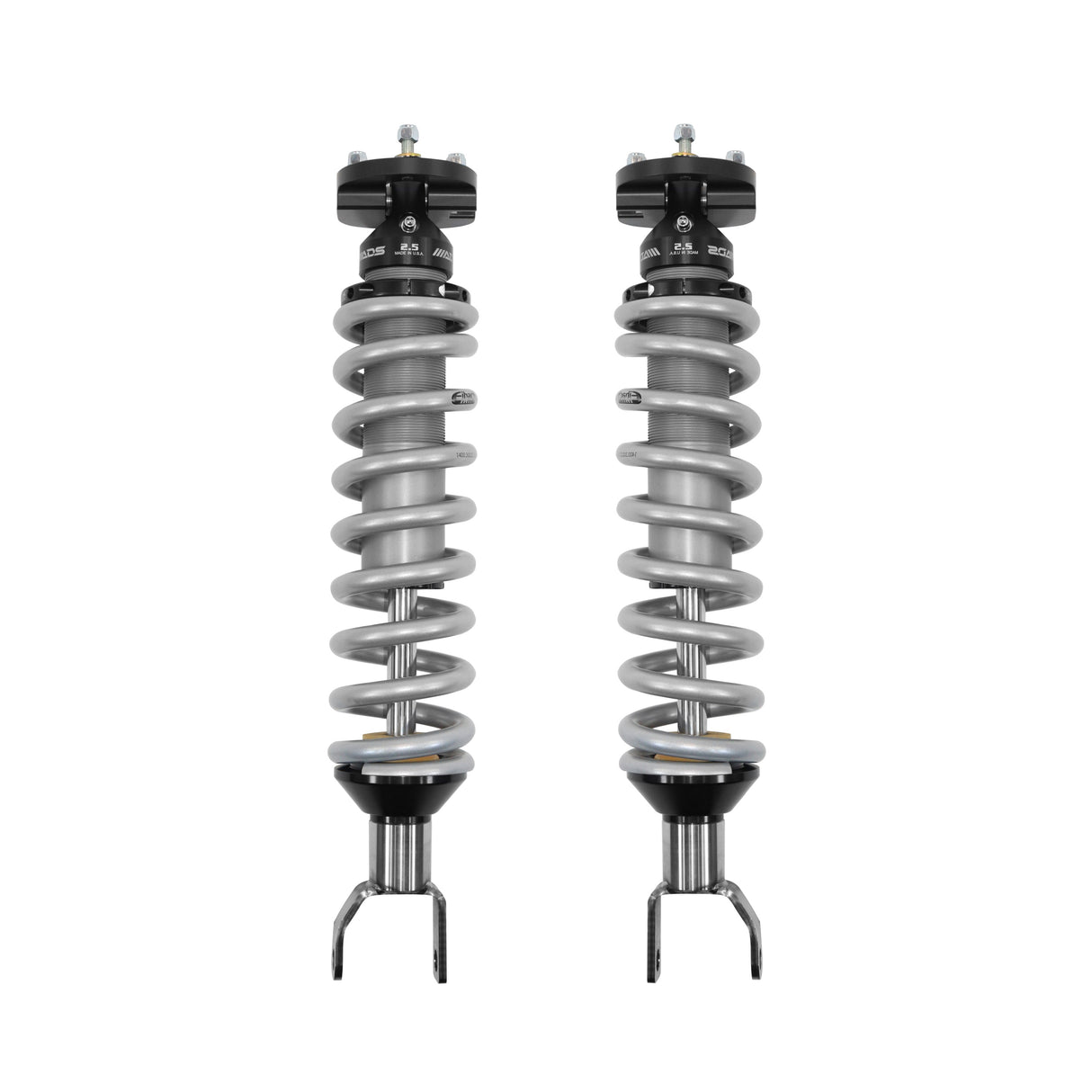

Photo - Primary [AVID:06ac6563-fdbf-4d54-9a0f-c9e364b361c0]

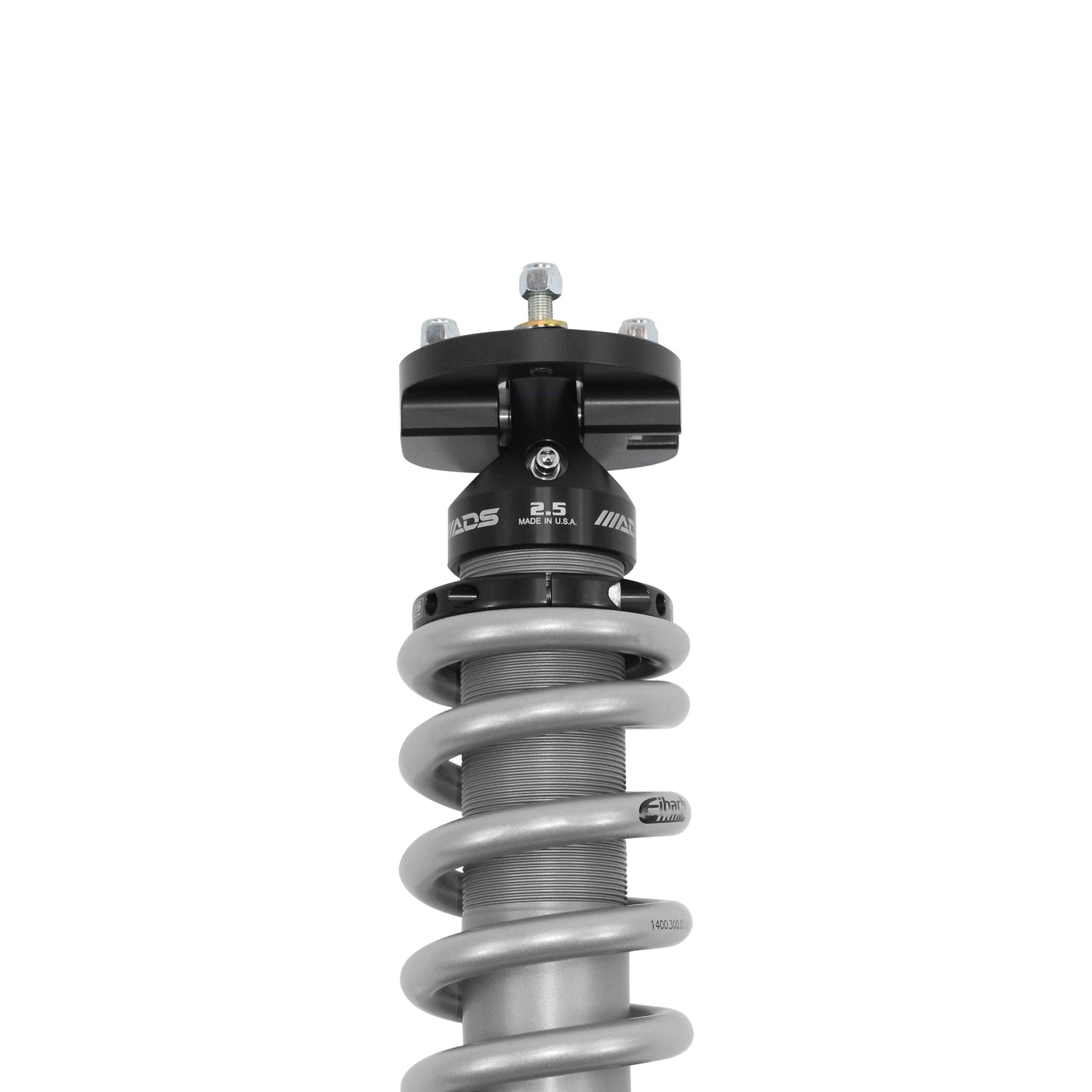

Photo - out of package [AVID:616a176a-5015-4ec1-8f0c-833d46287c0e]

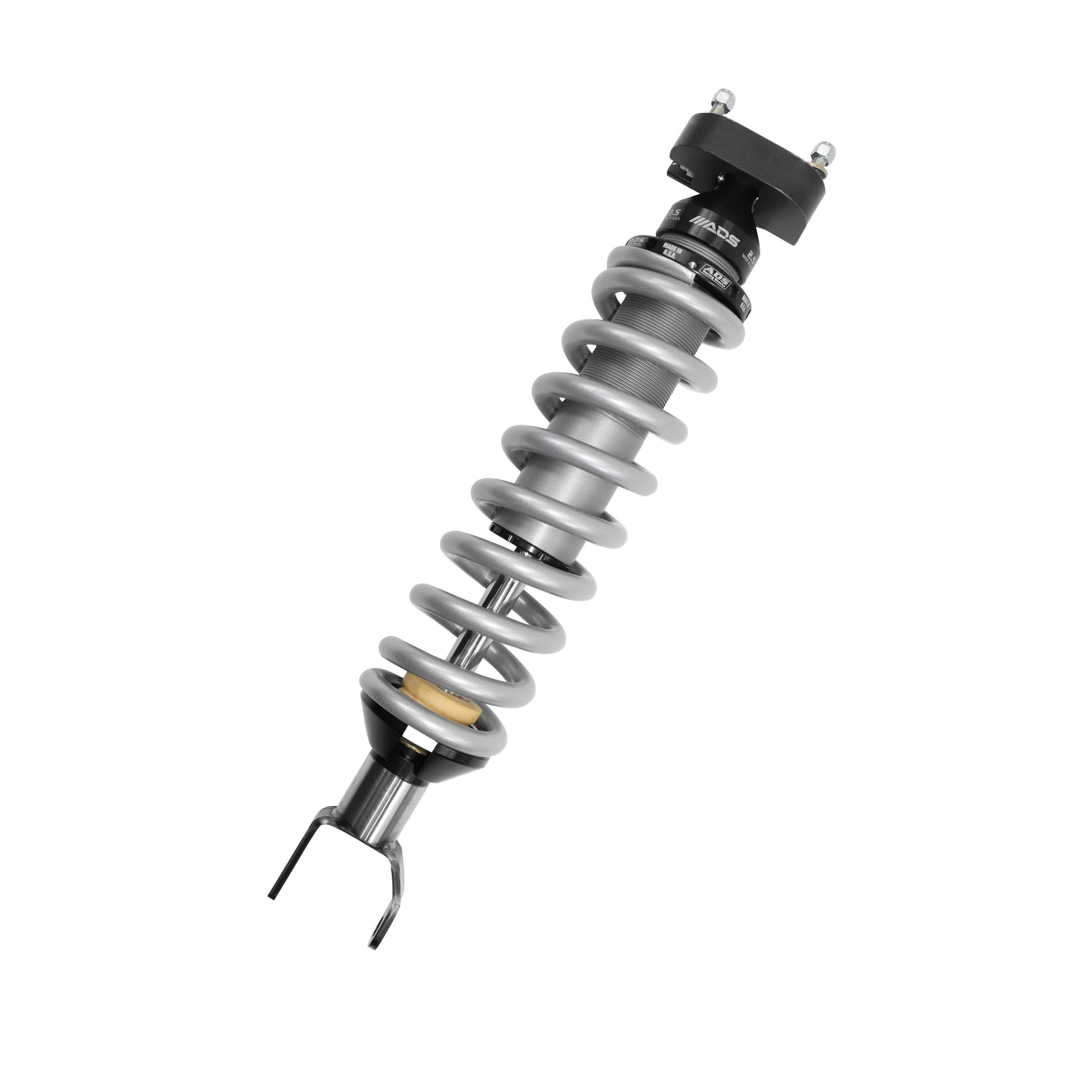

Photo - Close Up [AVID:750c7378-8370-4a82-a646-42e55186e392]

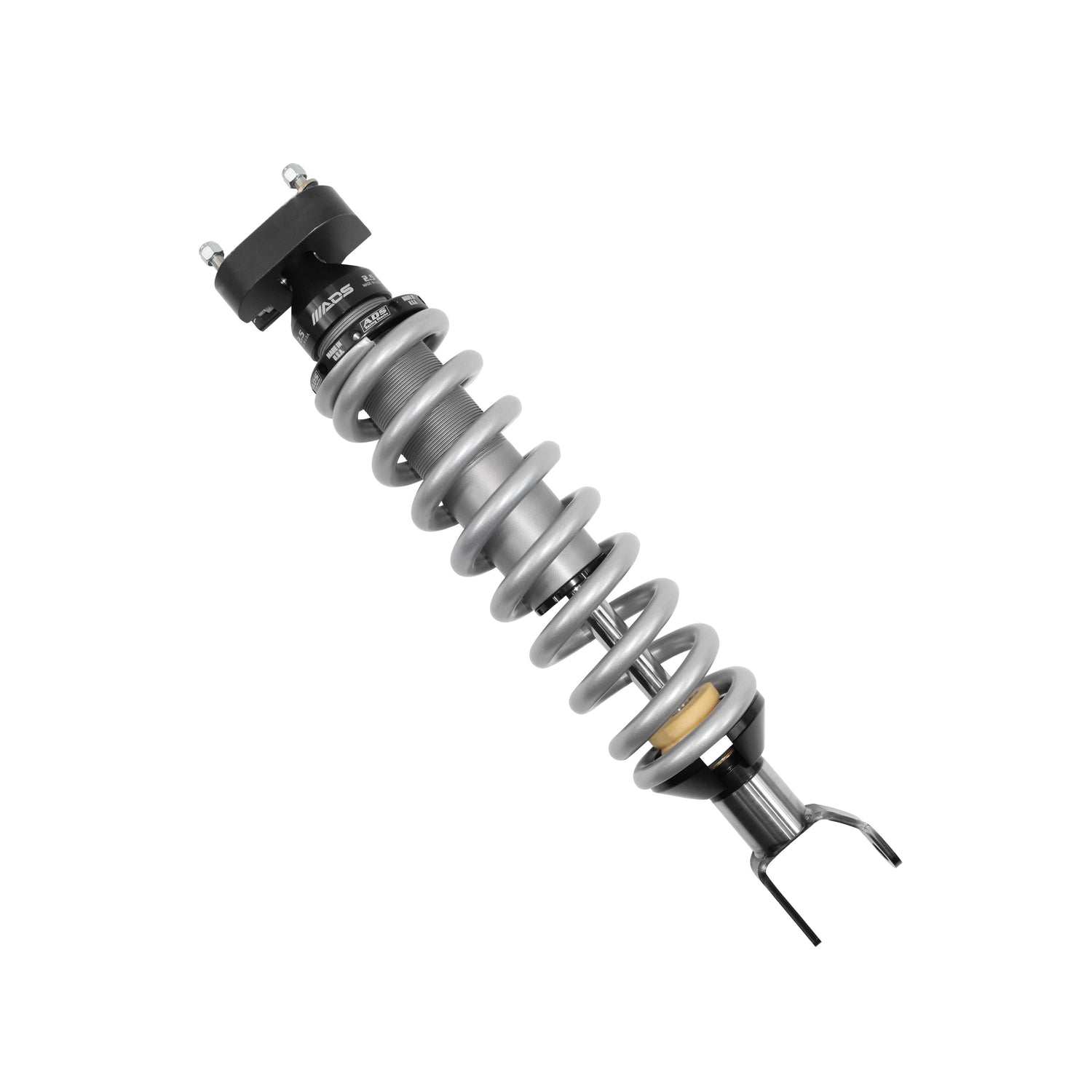

Photo - Close Up [AVID:846ef47e-846f-496f-bbdd-12c8a3e47ab2]

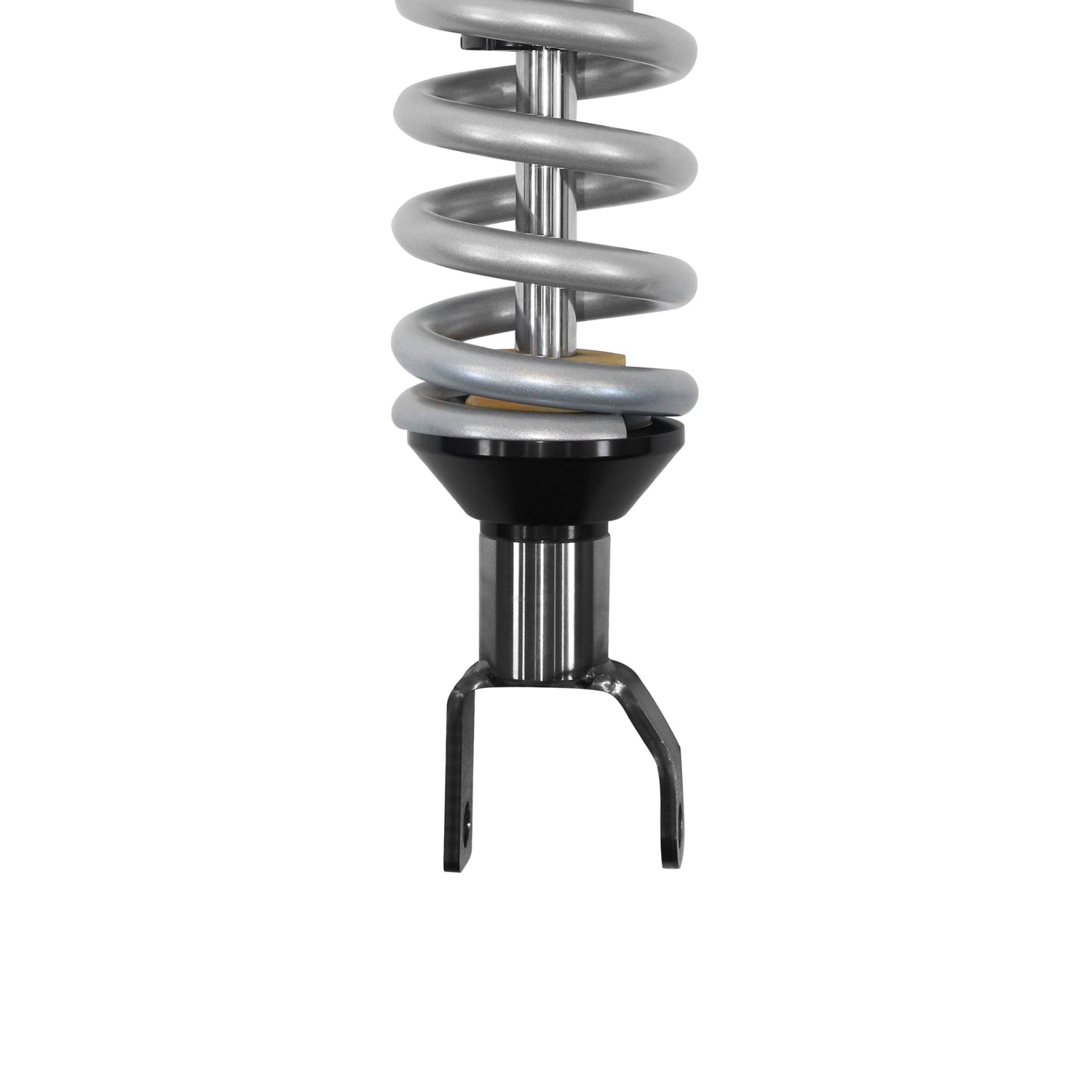

Photo - out of package [AVID:f2348359-c96e-4dc1-b9ec-605b4a471128]

Vehicle and performance upgrade

Back to AVID Shock Center

ADS Mesa 2.5" Coilovers - Front 100ADS-10143

ADS ADS Shocks SKU 100ADS-10143

Purchase options

Choose your options and quantity

Vehicle upgrade

Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.

Confirm the complete shock package. Match the application, dimensions, mounts, clearance, position, quantity, and every listed condition.
$1,662.45

Available to order

Total $1,662.45 Current selection

Complete every required choice. AVID verifies the exact components, pricing, and configuration before the system can enter the cart.

Planning this vehicle build? Save this exact variant to a vehicle in My AVID Garage and track its public price over time.
This records product interest only. It does not reserve inventory, place an order, or begin a payment plan.
My AVID Garage

Save to Planned Build

ADS Mesa 2.5" Coilovers - Front 100ADS-10143

Loading your Garage…
Contact AVID Support about this product

Product information

Details when you need them.

Review fitment, performance context, specifications, installation information, and support.

Overview and included items

ADS Mesa 2.5" Coilovers - Front 100ADS-10143

The ADS Mesa 2.5" Coilovers - Front 100ADS-10143 is an ADS factory-replacement shock identified by manufacturer part number 100ADS-10143. 2.5" Mesa IFP Shock, 2019-'25 RAM 1500, 0.0 - 2.5 Lift.

What This Means on the Vehicle

  • Product identity: The ADS part number is preserved as 100ADS-10143.
  • Application: 2019-2025 1500 RAM.

Vehicle Fitment

  • 2019-2025 1500 RAM

Key Features

  • Product type: Coilover

Specifications

  • Body Diameter: 2.5
  • Collapsed Length: 17.34
  • Extended Length: 23.35
  • Cylinder Diameter: 2.5
  • Lower Mount Type: Clevis
  • Mounting Hardware Included: Yes
  • Shaft Diameter: 0.875
  • Shaft Material: Hard-chrome plated steel
  • Travel Length: 6
  • Strut Mount Insulator(S) Included: No
  • Upper Mount Type: Mounting Plate
  • Stroke: 6
Applications and Fitment
Application 1
2019-2026 Ram 1500 Big Horn
Notes
Provides 1-2.5 (in) Front Lift|Without Air Suspension
Application 2
2019-2024 Ram 1500 Laramie
Notes
Provides 1-2.5 (in) Front Lift|Without Air Suspension
Application 3
2019-2021 Ram 1500 Laramie Longhorn
Notes
Provides 1-2.5 (in) Front Lift|Without Air Suspension
Application 4
2019-2024 Ram 1500 Lone Star
Notes
Provides 1-2.5 (in) Front Lift|Without Air Suspension
Application 5
2019-2024 Ram 1500 Rebel
Notes
Provides 1-2.5 (in) Front Lift|Without Air Suspension
Application 6
2019-2024 Ram 1500 Tradesman
Notes
Provides 1-2.5 (in) Front Lift|Without Air Suspension
Application 7
2021-2024 Ram 1500 Limited Longhorn
Notes
Provides 1-2.5 (in) Front Lift|Without Air Suspension
Application 8
2021 Ram 1500 Longhorn
Notes
Provides 1-2.5 (in) Front Lift|Without Air Suspension
Specifications

No additional specifications are currently available for this product.

Downloads and instructions
Installation and Requirements

Confirm every vehicle or dimensional condition, mount, position, clearance, and quantity. Fitment type: Verified direct fit. Provides 1-2.5 (in) Front Lift • Without Air Suspension
