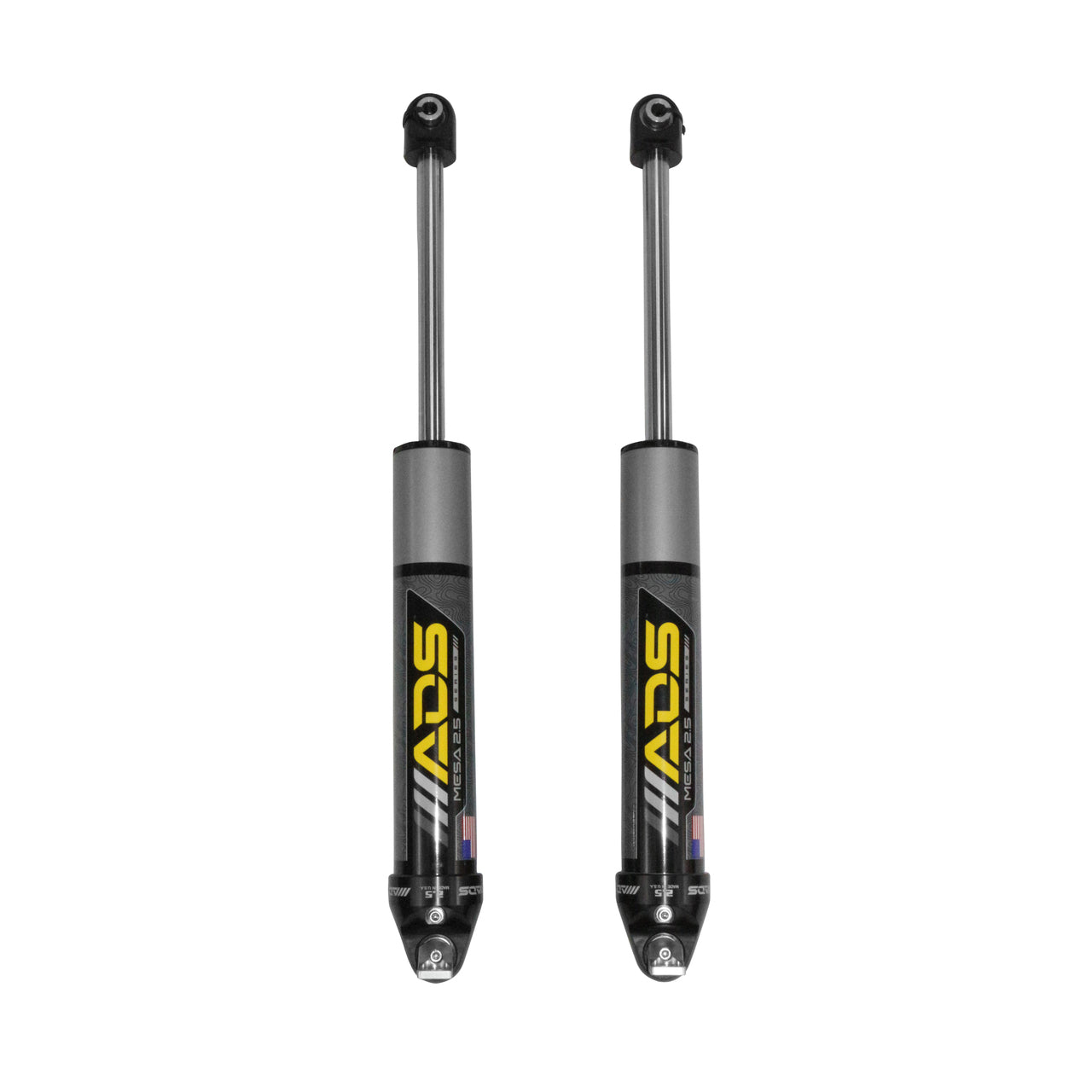

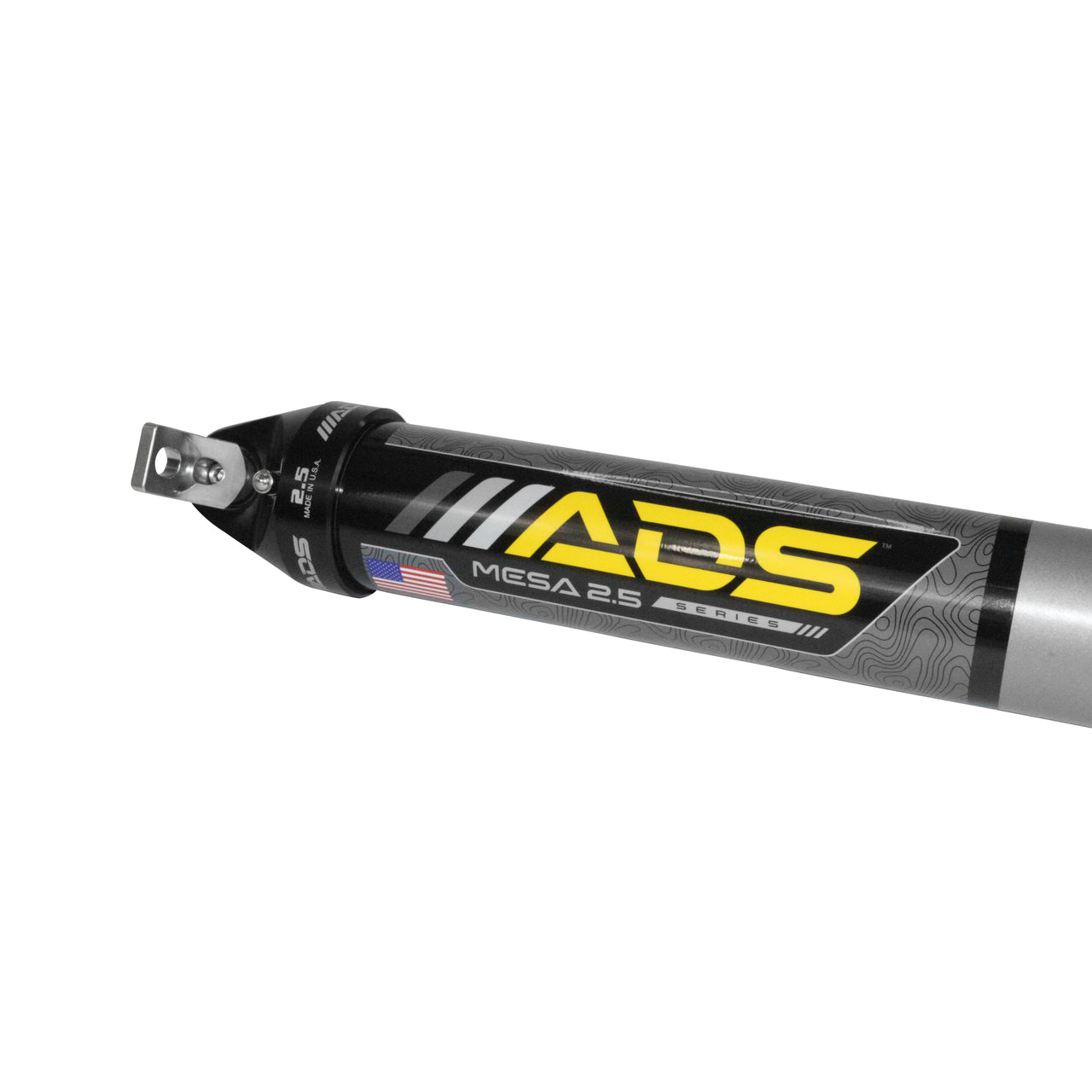

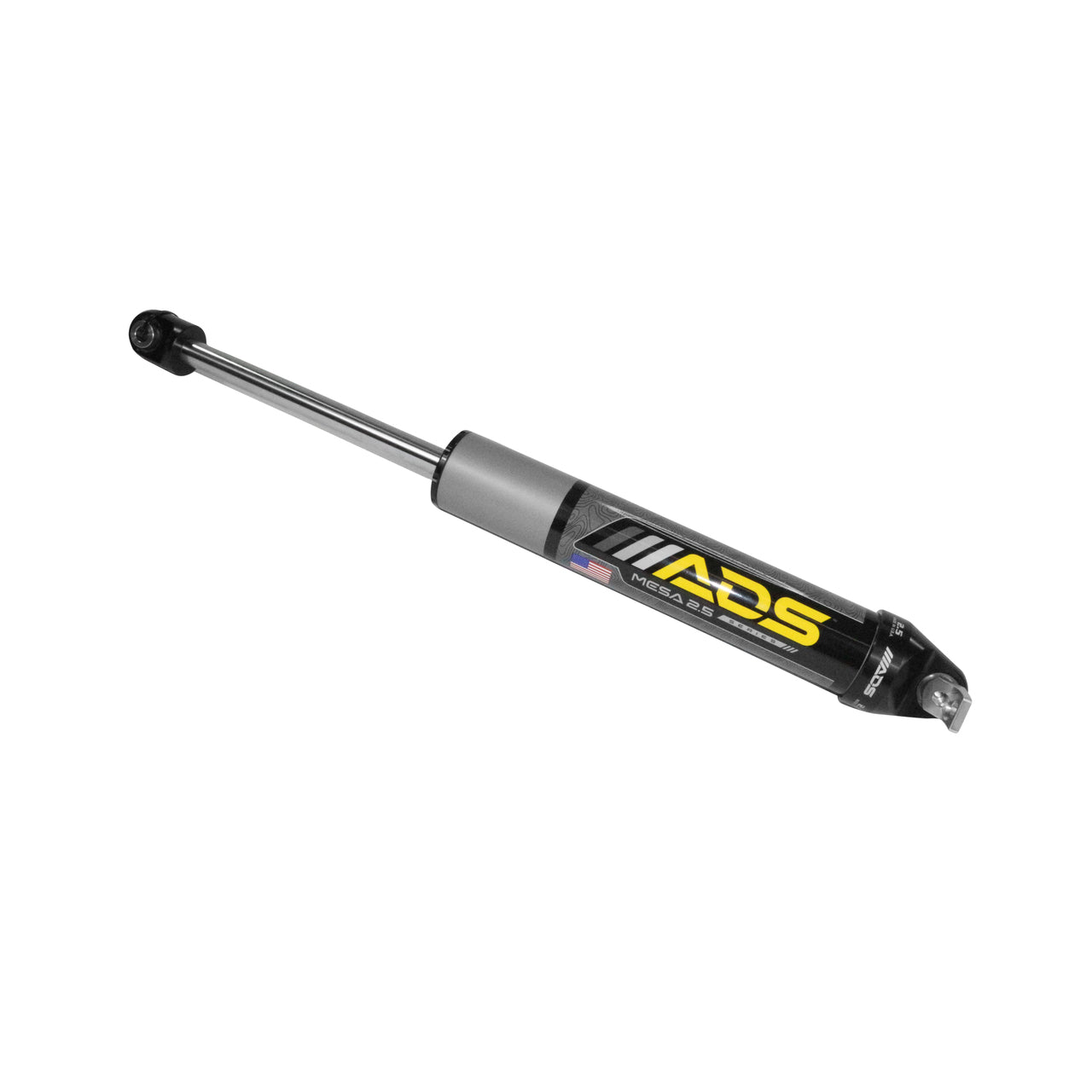

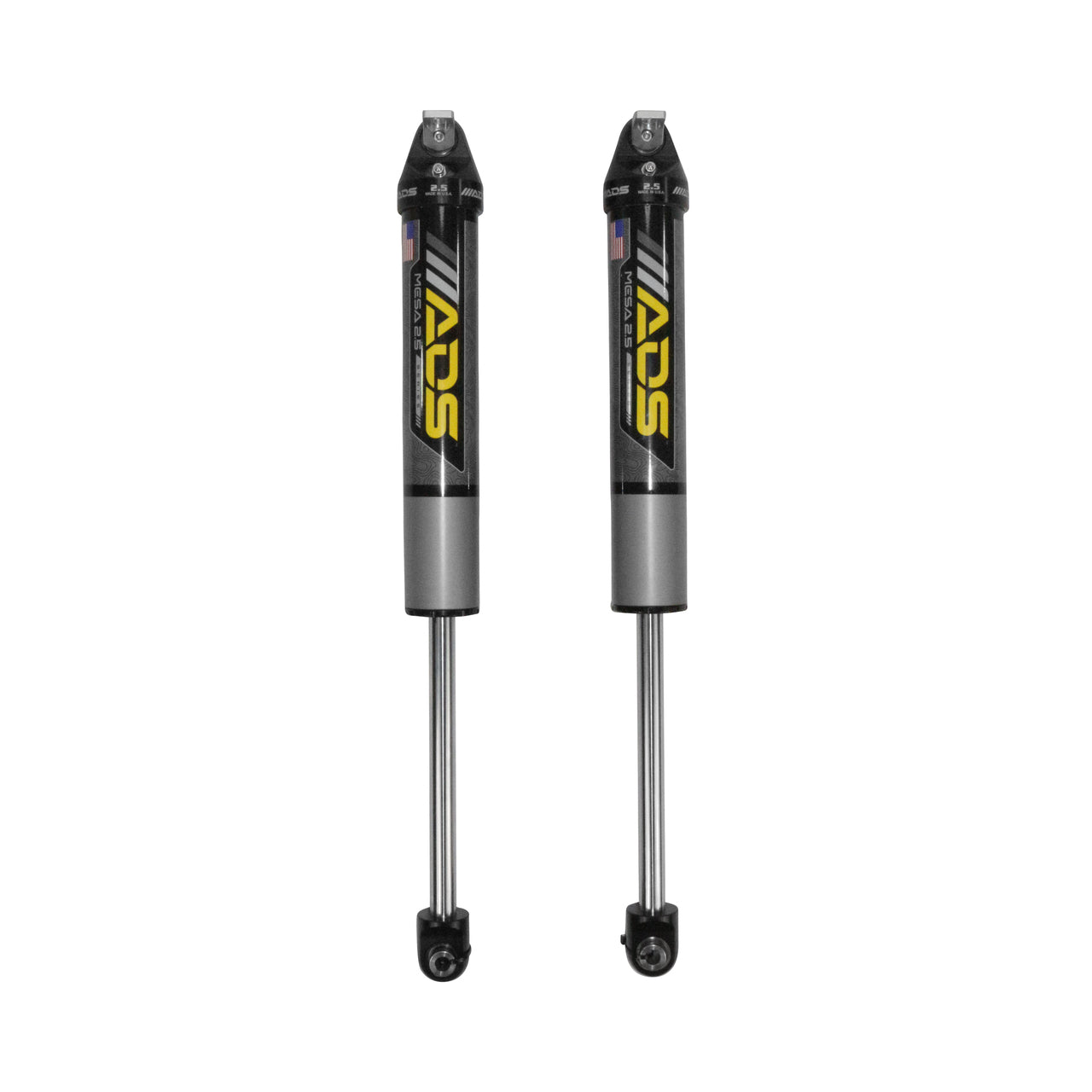

ADS Mesa 2.5" Shocks - Rear 100ADS-10099

ADS Mesa 2.5" Shocks - Rear 100ADS-10099

The ADS Mesa 2.5" Shocks - Rear 100ADS-10099 is an ADS factory-replacement shock identified by manufacturer part number 100ADS-10099. 2.5" Mesa IFP Shock 1997-'06 WRANGLER 'TJ', 0.0 - 3.0 Lift.

What This Means on the Vehicle

• Product identity: The ADS part number is preserved as 100ADS-10099.
• Application: Mesa 1997-2006 TJ.

Vehicle Fitment

• Mesa 1997-2006 TJ

Key Features

• Product type: Smooth Body

Specifications

• Body Diameter: 2.5
• Collapsed Length: 15.21
• Extended Length: 23.4

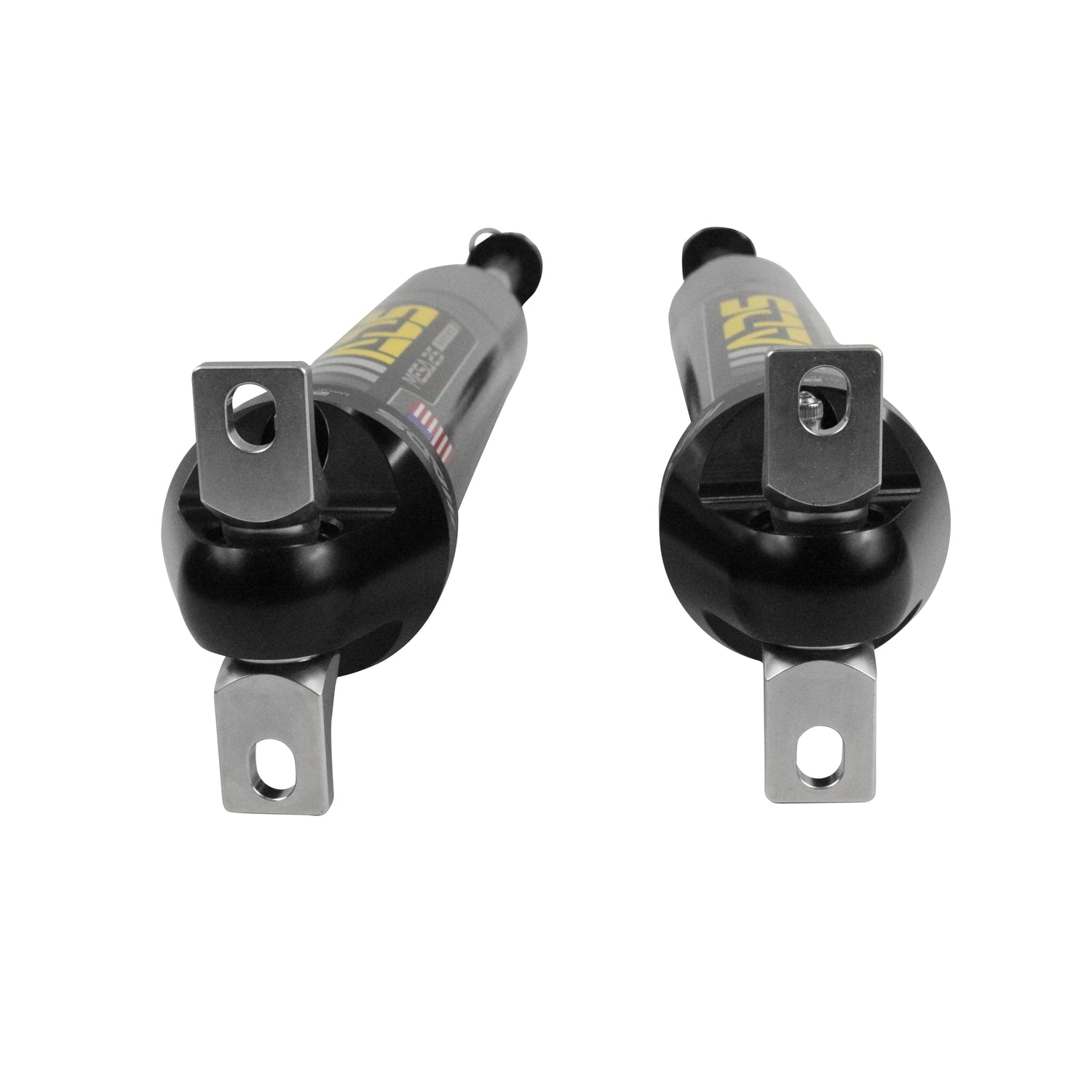

• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Shaft Material: Hard-chrome plated steel
• Rod Diameter: 0.875
• Stroke: 8.19
• Travel Length: 8.19
• Upper Mount Type: T-Bar
