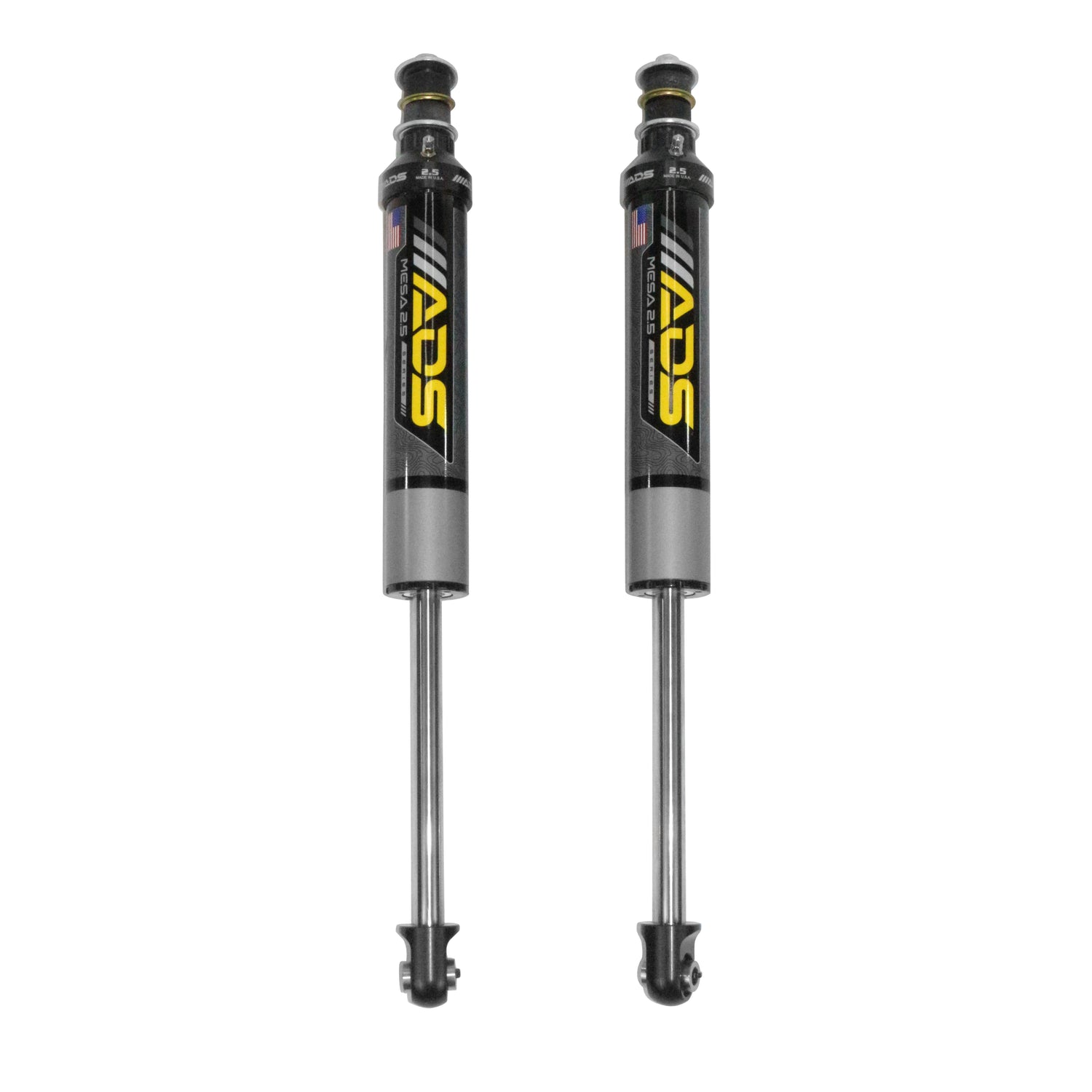

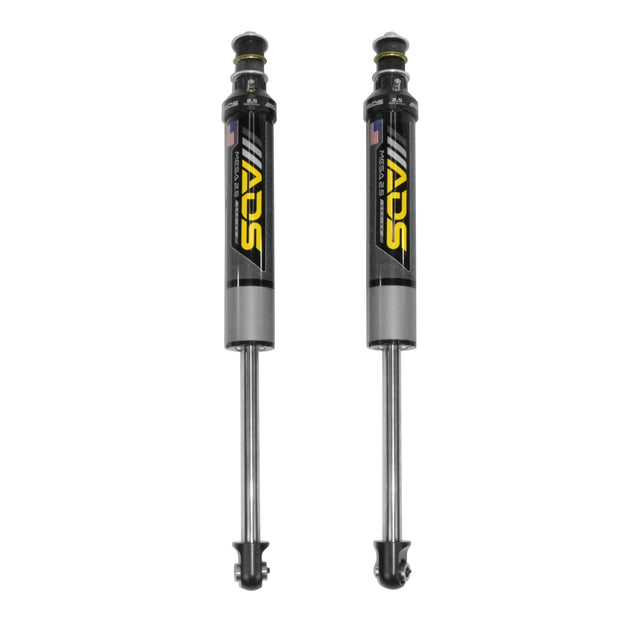

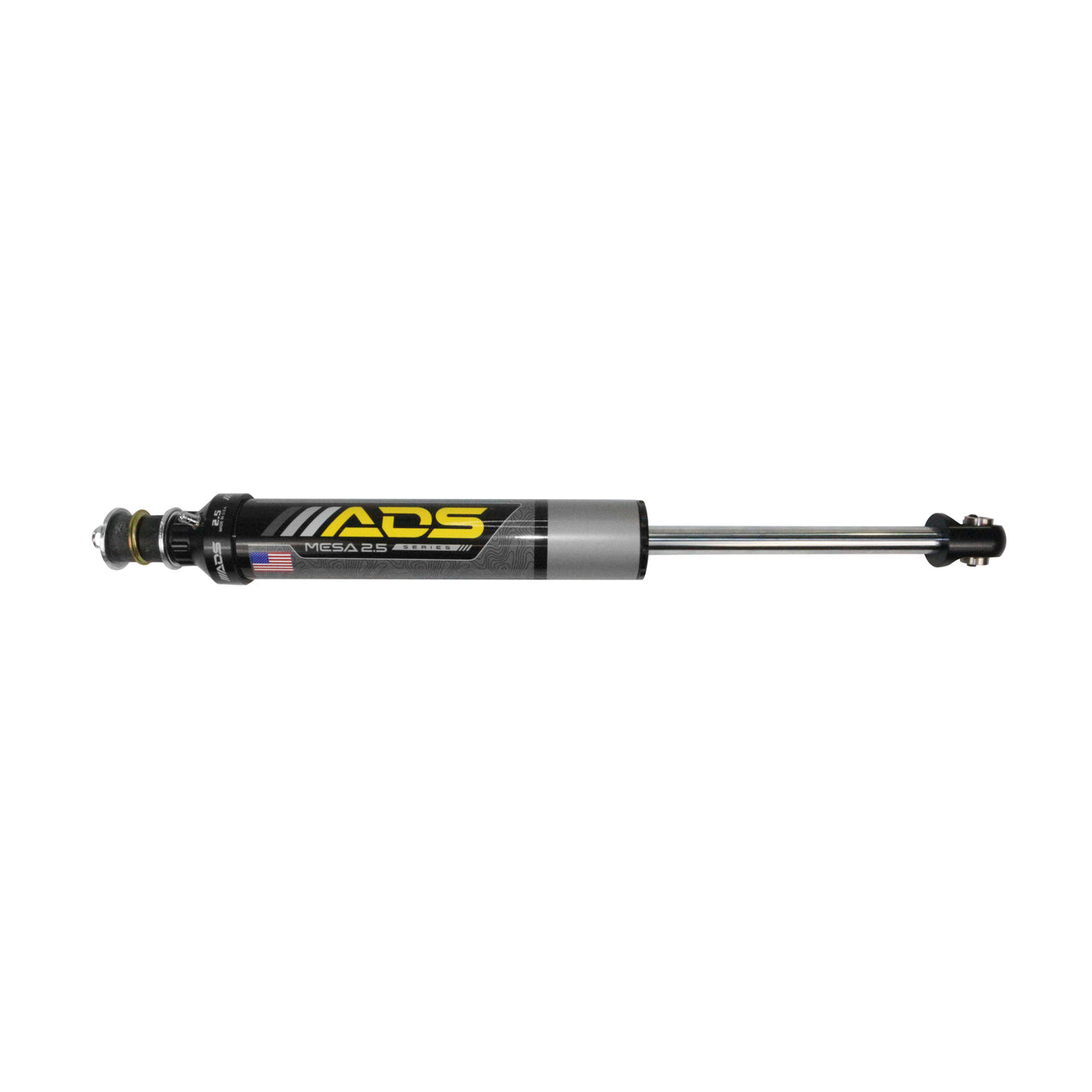

ADS Mesa 2.5" Shocks - Front 100ADS-10091

ADS Mesa 2.5" Shocks - Front 100ADS-10091

The ADS Mesa 2.5" Shocks - Front 100ADS-10091 is an ADS factory-replacement shock identified by manufacturer part number 100ADS-10091. 2.5" Mesa IFP Shock, 2005-24', F250 2.0" - 3.5" Lift.

What This Means on the Vehicle

• Product identity: The ADS part number is preserved as 100ADS-10091.
• Application: 2005-2024 F250 (4x4).

Vehicle Fitment

• 2005-2024 F250 (4x4)

Key Features

• Product type: Smooth Body

Specifications

• Body Diameter: 2.5
• Collapsed Length: 16.07
• Extended Length: 24.26

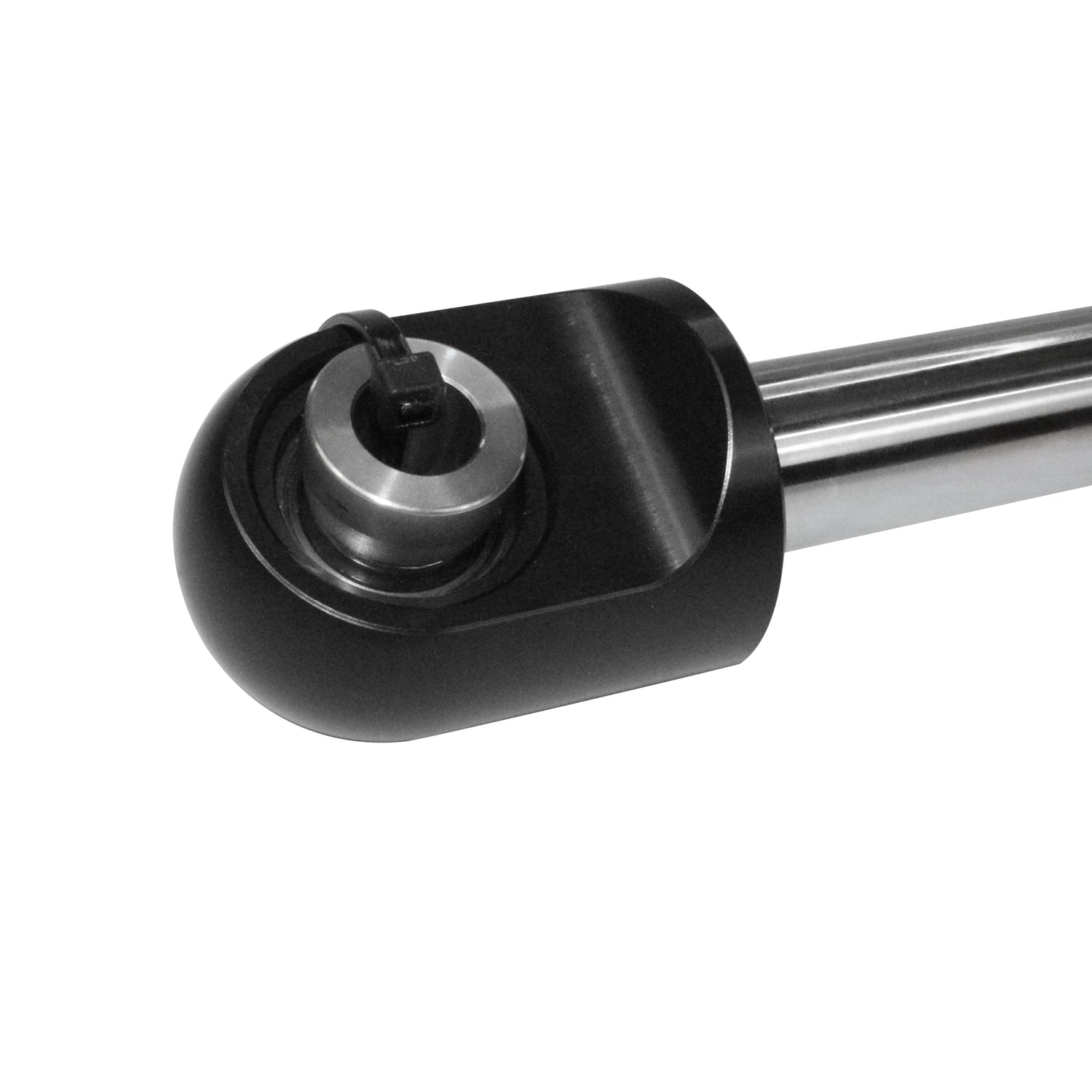

• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Travel Length: 8.19
• Stroke: 8.19
• Rod Diameter: 0.875
• Shaft Material: Hard-chrome plated steel
• Upper Mount Type: Stud
