Yamaha YXZ1000 MT72 72" Front Long Travel Suspension Kit, Billet Race Knuckles

YXZ1000 MTR72 Front Mid-Travel SR Kit – 72” Race Geometry Edition

The ultimate race-bred evolution of our proven MTR72 kit. Engineered for aggressive driving, this Race Geometry Edition delivers spot-on KPI, caster, and making all pivots true double shear, while maintaining a true 72” stance. Handcrafted from 4130 Chromoly and TIG-welded, this system eliminates factory weak points and maximizes strength where it matters most.

Key Features

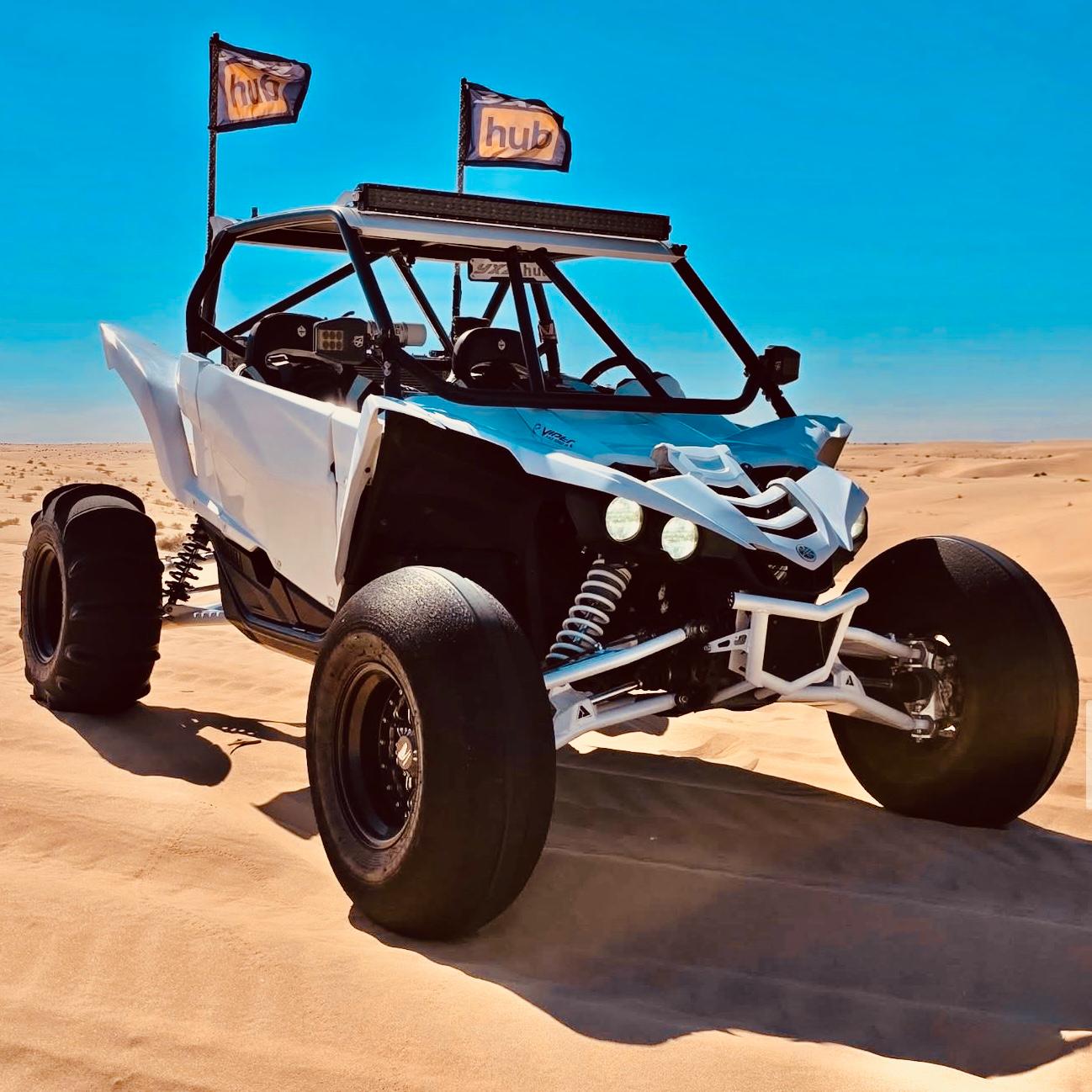

• Race-optimized 72” stance – 4” wider per side with corrected geometry for ultimate stability.
• 4130 Chromoly construction – lightweight, fully TIG-welded durability tested in race conditions.
• 7/8” “stem cup” pivots – signature AVID design for maximum strength.
• 3/4” heim joints – precise camber/caster adjustment with race-ready safety.
• Relocated front shocks – positioned at the correct angle for smoother travel.
• 7/8” uniball bearings – eliminates weak factory ball joints with double-shear race strength.
• 7075-T6 billet uprights  – unmatched rigidity and impact resistance.
• 100% bolt-on install – no cutting, welding, or fabrication required.

Performance Specs*

• 3.4” ground clearance at full bump (with stock shocks & 32” tires)
• 23.6” ground clearance at full droop
• 20.2” total wheel travel
• Optional 10” shock tower available

*Actual numbers may vary with tire choice and shock settings.

What’s Included

• Complete front upper & lower control arms (left and right)
• 7075 billet race spindles

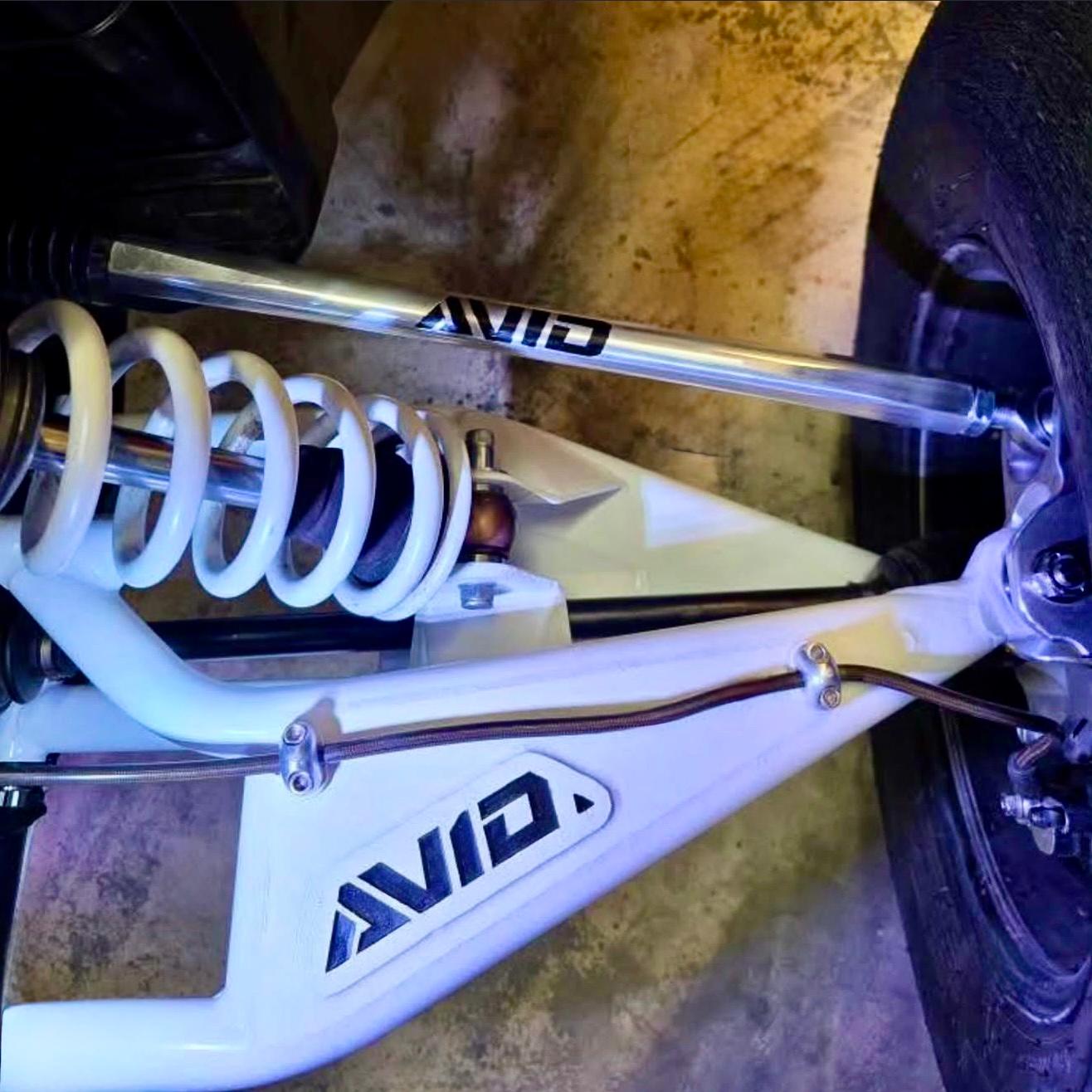

• 7075 billet tie-rod kit
• Extended brake lines
• Welded on brake tabs
• All uniballs, rod ends, bushings, and misalignment spacers
• Complete titanium hardware kit
