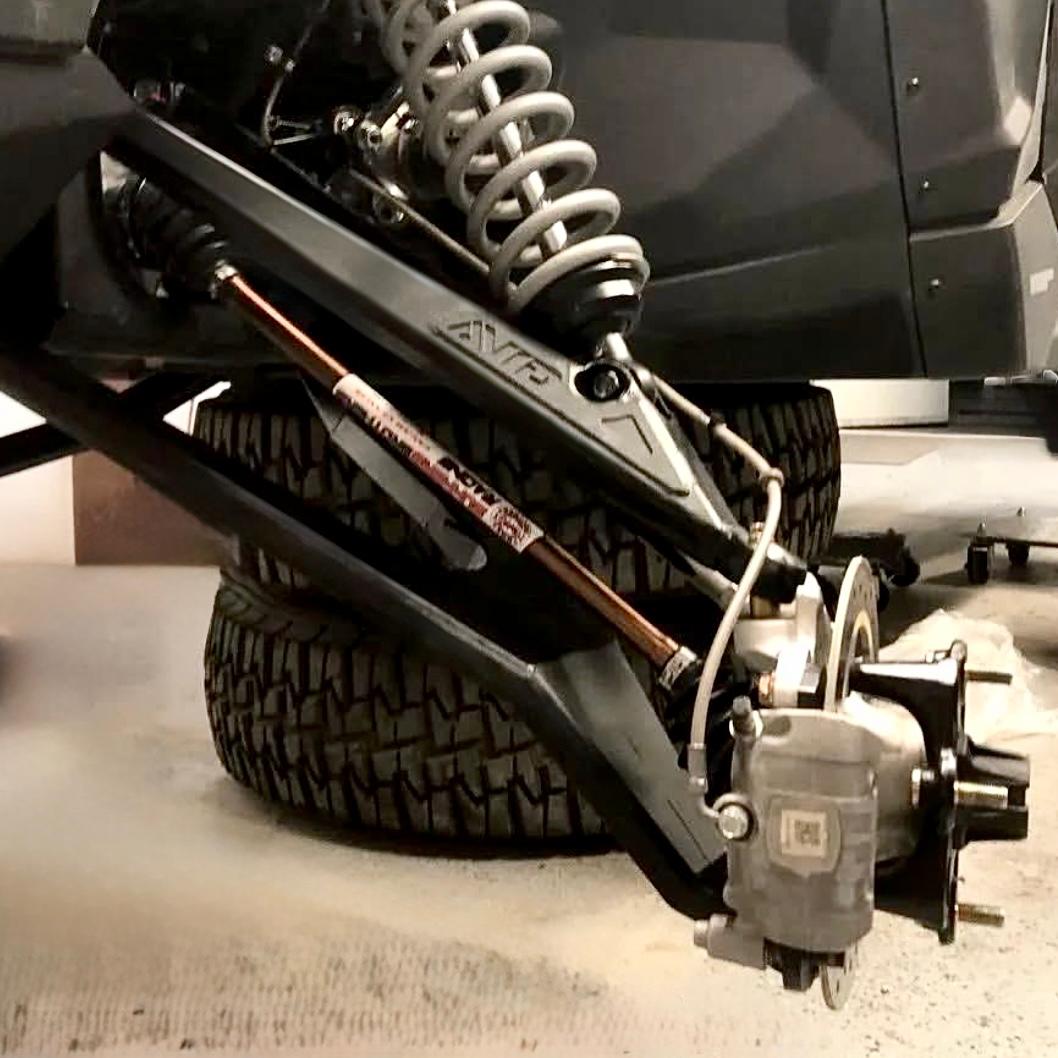

Installed AVID front control arms with wheel removed, showing shock, brake rotor, and knuckle connections
Front view of a black Maverick X3 showing control arms and coilover shocks on a dirt trail
Front view of a Maverick X3 showing an AVID bumper and front control arms
Black four-seat Maverick X3 parked on a dirt trail, viewed from the front corner
White and blue Maverick X3 race vehicle airborne over a desert trail with front suspension extended
Maverick X3 race vehicle approaching on a dusty desert course
Red and white Maverick X3 race vehicle cornering through rocky terrain
White and blue Maverick X3 race vehicle crossing uneven desert terrain
Two racers standing beside an AVID-branded Maverick X3 at a race event backdrop
Front view of an airborne Maverick X3 with suspension extended against an AVID graphic
Back to suspension kits by vehicle

Can-Am Maverick X3 72" Chromoly Front Control Arm Kit, Non-Smart Shock

AVID Racing Suspension Kit SKU AVID-X372-F-KIT1

Purchase Options

$3,750.00

Available to order

Total $3,750.00 Current selection

Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.

My AVID Garage

Save to Planned Build

Can-Am Maverick X3 72" Chromoly Front Control Arm Kit, Non-Smart Shock | AVID Racing

Saving does not reserve inventory, place an order, or begin a payment plan.

Loading your Garage…
Contact AVID About Fitment

Product Details

Overview & Included Items

Can-Am Maverick X3 72" Chromoly Front Control Arm Kit, Non-Smart Shock | AVID Racing

Our front control arm kit is a direct replacement for the factory arms on 72-inch Can-Am Maverick X3 models without Smart Shox. It includes the left and right upper and lower arms, along with the rod ends, uniballs, and hardware needed for installation.

The arms use 7/8-inch uniballs at the knuckle connections. Double-shear mounting requires a double-shear knuckle; installing these arms alone does not make the connection double shear.

We build the arms from 4130 chromoly and TIG weld them. Delrin lower control arm bushings and 4130 chromoly crush sleeves complete the lower arm pivots.

Construction and Fit

  • Direct replacement for factory 72-inch Maverick X3 models without Smart Shox
  • 4130 chromoly arms with TIG-welded construction
  • 7/8-inch uniballs
  • Double-shear mounting when paired with double-shear knuckles

What's Included

  • Left and right front upper and lower control arms
  • Rod ends and uniballs
  • Lower control arm bushings and crush sleeves
  • Spindle pins and misalignments
  • Installation hardware
Applications & Fitment

Applications With Conditions

  • Can-Am Maverick X3 2017–2018

    Turbo R

    Requirements
    Requires the factory 72-inch suspension configuration without Smart Shox. · Double-shear mounting requires double-shear knuckles.
    Exclusions
    Not for Smart Shox-equipped models.

  • Can-Am Maverick X3 2019–2026

    All Submodels

    Requirements
    Requires the factory 72-inch suspension configuration without Smart Shox. · Double-shear mounting requires double-shear knuckles.
    Exclusions
    Not for Smart Shox-equipped models.

  • Can-Am Maverick X3 2017–2018

    Turbo R X RS

    Requirements
    Requires the factory 72-inch suspension configuration without Smart Shox. · Double-shear mounting requires double-shear knuckles.
    Exclusions
    Not for Smart Shox-equipped models.

  • Can-Am Maverick X3 2018

    Turbo

    Requirements
    Requires the factory 72-inch suspension configuration without Smart Shox. · Double-shear mounting requires double-shear knuckles.
    Exclusions
    Not for Smart Shox-equipped models.

  • Can-Am Maverick X3 2018

    900 HO

    Requirements
    Requires the factory 72-inch suspension configuration without Smart Shox. · Double-shear mounting requires double-shear knuckles.
    Exclusions
    Not for Smart Shox-equipped models.

  • Can-Am Maverick X3 2018

    Turbo R X RC

    Requirements
    Requires the factory 72-inch suspension configuration without Smart Shox. · Double-shear mounting requires double-shear knuckles.
    Exclusions
    Not for Smart Shox-equipped models.

  • Can-Am Maverick X3 2018

    Turbo R X MR

    Requirements
    Requires the factory 72-inch suspension configuration without Smart Shox. · Double-shear mounting requires double-shear knuckles.
    Exclusions
    Not for Smart Shox-equipped models.

  • Can-Am Maverick X3 2018

    Turbo X MR

    Requirements
    Requires the factory 72-inch suspension configuration without Smart Shox. · Double-shear mounting requires double-shear knuckles.
    Exclusions
    Not for Smart Shox-equipped models.

  • Can-Am Maverick X3 2018

    Turbo X RC

    Requirements
    Requires the factory 72-inch suspension configuration without Smart Shox. · Double-shear mounting requires double-shear knuckles.
    Exclusions
    Not for Smart Shox-equipped models.

  • Can-Am Maverick X3 2017–2018

    Turbo R X ds

    Requirements
    Requires the factory 72-inch suspension configuration without Smart Shox. · Double-shear mounting requires double-shear knuckles.
    Exclusions
    Not for Smart Shox-equipped models.
Specifications
Riding use
Baja, Sand Dunes, Short Course, All-Terrain
Main construction
Chromoly
Position / component
Front control arms
Overall width
72"
