AVID Racing  |  SKU: AVID-YXZ-R12ST

AVID YXZ1000 Rear 12" WIY Shock Tower


Description

Rear Shock Relocation Towers — Yamaha YXZ1000R — 4130 Chromoly Weld-In

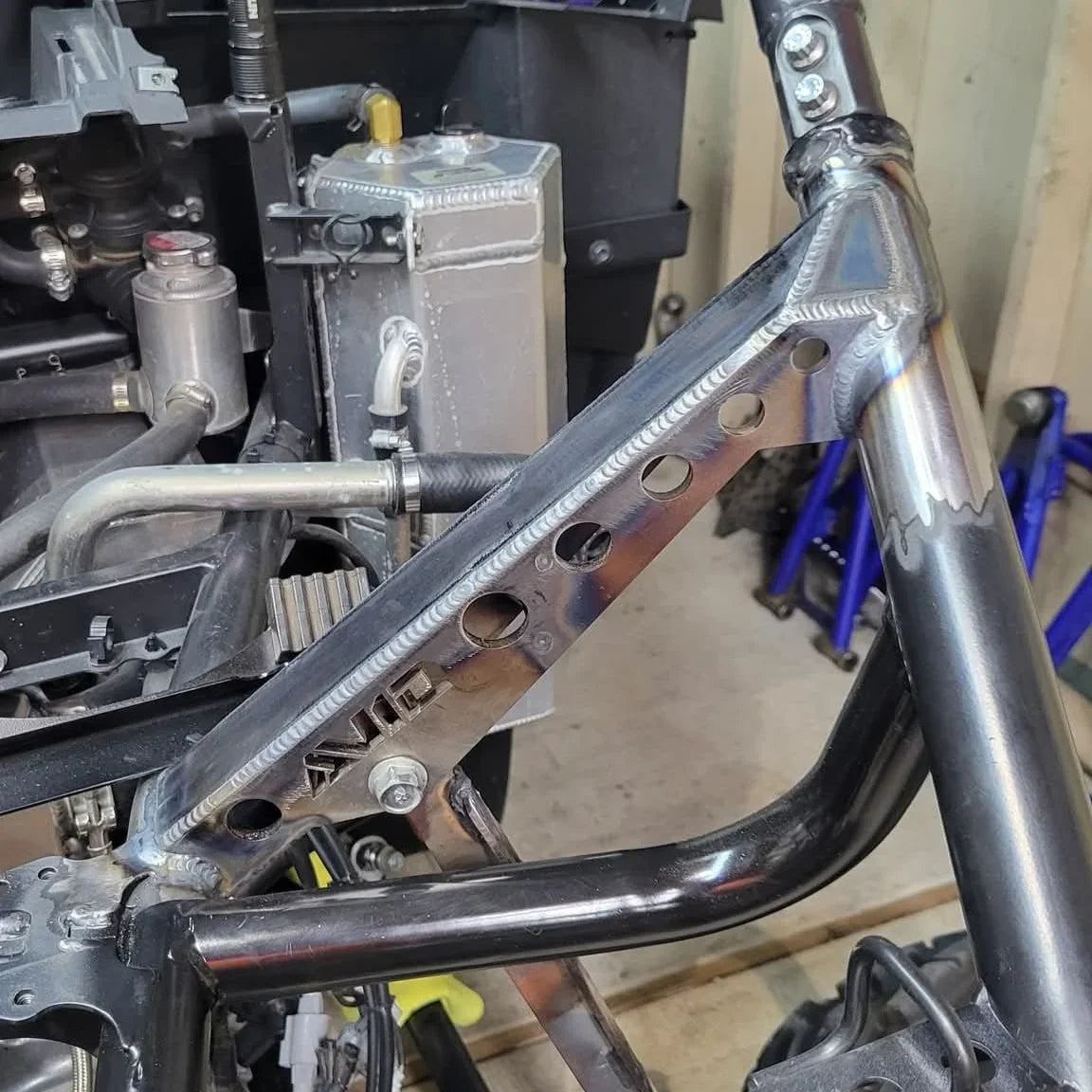

Give your YXZ the same geometry gains as our bolt-on towers—now in a weld-in 4130 chromoly package. This tower ties shock loads directly into the chassis, moving the upper mount upward and forward for a near-vertical stance that sharpens damping efficiency and bottom-out control. Stronger structure, lower cost—requires professional welding.

  • Weld-in design — integrated load path for maximum rigidity.
  • 4130 chromoly — laser-cut, Polished, CNC-formed, TIG-ready.
  • Optimized geometry — increases shock verticality & tuning window.
  • Race-focused value — higher strength at a financially lower price point.
  • Engineered for AVID MT & XC rear suspension kits
  • Compatible with factory-length OEM or Fox Race shocks.
  • Model years: All years. 2019+ YXZ1000R (rear-mounted radiator) will need a mount trimmed .

What’s in the box

  • Left & Right 4130 weld-in relocation towers
  • Weld-on chassis reinforcement plates
  • Hardware interface spacers (as required)

Fitment notes

  • Welding required. Professional TIG on 4130 recommended.

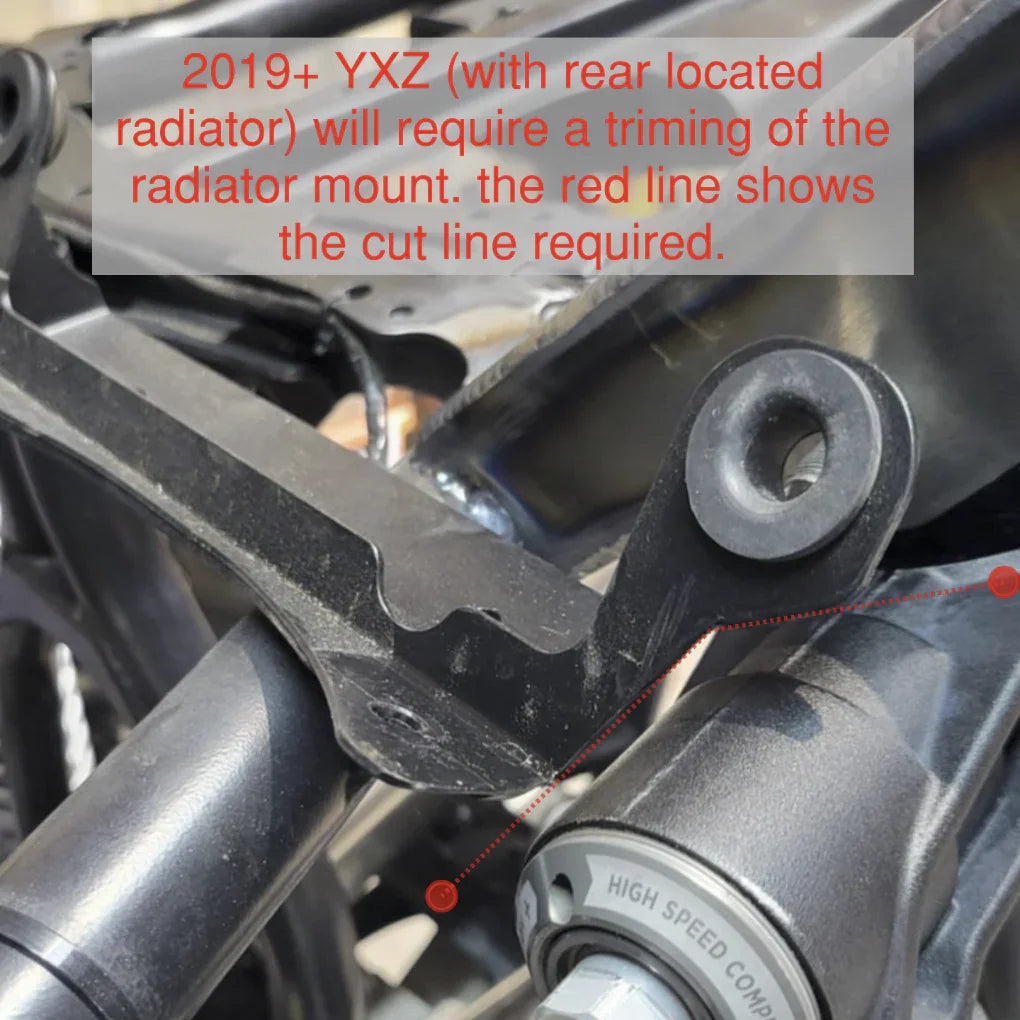

  • OEM radiator support bracket trimming for is required to clear the factory 2019+YXZ radiator bracket (see picture). If using Fox Race shocks, no trimming is typically required.
  • While these towers may fit stock or third-party arms, AVID cannot confirm clearance or geometry without additional modifications.
$450.00 USD
